1. Release Notes

These Release Notes summarize current status, information on validated platforms, and known issues with NVIDIA virtual GPU software and asscoiated hardware on Citrix XenServer.

The releases in this release family of NVIDIA virtual GPU software include the software listed in the following table:

Software 5.0 5.1
NVIDIA Virtual GPU Manager for the Citrix XenServer releases listed in Hypervisor Software Versions 384.73 384.99
NVIDIA Windows driver 385.41 385.90
NVIDIA Linux driver version 384.73 384.99
CAUTION:

If you install the wrong package for the version of Citrix XenServer you are using, NVIDIA Virtual GPU Manager will fail to load.

The releases of the vGPU Manager and guest VM drivers that you install must be compatible. Different versions of the vGPU Manager and guest VM driver from within the same main release branch can be used together. For example, you can use the vGPU Manager from release 5.1 with guest VM drivers from release 5.0. However, versions of the vGPU Manager and guest VM driver from different main release branches cannot be used together. For example, you cannot use the vGPU Manager from release 5.1 with guest VM drivers from release 4.4. See VM running older NVIDIA vGPU drivers fails to initialize vGPU when booted.

Updates in Release 5.0

  • Support for GPUs based on the NVIDIA® Pascal™ architecture
  • Compute mode support for NVIDIA vGPU and pass-through GPU on GPUs based on the NVIDIA Pascal architecture
  • New NVIDIA vGPU schedulers for GPUs based on the NVIDIA Pascal architecture
  • Support for NVML and nvidia-smi on 32-Bit Windows VMs
  • Application-level monitoring of NVIDIA vGPU engine utilization
  • Encoder session monitoring
  • Support for NVENC on Linux NVIDIA vGPUs
  • Removal of support for GRID K1 and GRID K2 GPUs
  • Software enforcement of licensing requirements
  • Miscellaneous bug fixes

Updates in Release 5.1

  • Support for the Tesla P100 12GB GPU
  • Miscellaneous bug fixes

2. Validated Platforms

This release of NVIDIA virtual GPU software provides support for several NVIDIA GPUs on validated server hardware platforms, Citrix XenServer hypervisor software versions, and guest operating systems.

Supported NVIDIA GPUs and Validated Server Platforms

This release of NVIDIA virtual GPU software provides support for the following NVIDIA GPUs on Citrix XenServer, running on validated server hardware platforms:

  • Tesla M6
  • Tesla M10
  • Tesla M60
  • Tesla P4
  • Tesla P6
  • Tesla P40
  • Tesla P100
  • Since 5.1: Tesla P100 12GB

For a list of validated server platforms, refer to NVIDIA GRID Certified Servers.

Note:

Tesla M60 and M6 GPUs support compute mode and graphics mode. NVIDIA vGPU requires GPUs that support both modes to operate in graphics mode.

Recent Tesla M60 GPUs and M6 GPUs are supplied in graphics mode. However, your GPU might be in compute mode if it is an older Tesla M60 GPU or M6 GPU, or if its mode has previously been changed.

To configure the mode of Tesla M60 and M6 GPUs, use the gpumodeswitch tool provided with NVIDIA virtual GPU software releases.

Hypervisor Software Versions

This release has been tested with the following hypervisor software versions:

Software Version tested Notes

Citrix XenServer 7.2

RTM build is supported.

All NVIDIA GPUs that support NVIDIA virtual GPU software are supported.

Citrix XenServer 7.1

RTM build is supported.

All NVIDIA GPUs that support NVIDIA virtual GPU software are supported.

Citrix XenServer 7.0

RTM build 125380 is supported.

All NVIDIA GPUs that support NVIDIA virtual GPU software are supported.

Citrix XenServer 6.5

Version 6.5 with XS65ESP1. The NVIDIA Virtual GPU Manager included in this release will not install without XenServer 6.5 SP1.

Only the following NVIDIA GPUs are supported:
  • Tesla M6
  • Tesla M10
  • Tesla M60

Citrix XenDesktop

Version 7.6, 7.8, and 7.11 in HDX 3D Pro mode.

Since 5.1: Version 7.15 in HDX 3D Pro mode.



Guest OS Support

NVIDIA virtual GPU software supports several Windows releases and Linux distributions as a guest OS. The supported guest operating systems depend on the hypervisor software version.

Note:

Use only a guest OS release that is listed as supported by NVIDIA virtual GPU software with your virtualization software. To be listed as supported, a guest OS release must be supported not only by NVIDIA virtual GPU software, but also by your virtualization software. NVIDIA cannot support guest OS releases that your virtualization software does not support.

In pass-through mode, GPUs based on the Pascal architecture support only 64-bit guest operating systems. No 32-bit guest operating systems are supported in pass-through mode for these GPUs.

Windows Guest OS Support

NVIDIA virtual GPU software supports the following Windows releases as a guest OS on Citrix XenServer:

Guest OS NVIDIA vGPU Pass-Through GPU
Windows Server 2016 7.2, 7.1, 7.0 7.2, 7.1, 7.0
Windows Server 2012 R2 7.2, 7.1, 7.0, 6.5 SP1 7.2, 7.1, 7.0, 6.5 SP1
Windows Server 2008 R2 7.2, 7.1, 7.0, 6.5 SP1 7.2, 7.1, 7.0, 6.5 SP1
Windows 10 RS2 (64-bit) 7.2, 7.1, 7.0, 6.5 SP1 7.2, 7.1, 7.0, 6.5 SP1
Windows 10 RS2 (32-bit) 7.2, 7.1, 7.0, 6.5 SP1 7.2, 7.1, 7.0, 6.5 SP1
Windows 8.1 Update (64-bit) 7.2, 7.1, 7.0, 6.5 SP1 7.2, 7.1, 7.0, 6.5 SP1
Windows 8.1 Update (32-bit) 7.2, 7.1, 7.0, 6.5 SP1 7.2, 7.1, 7.0, 6.5 SP1
Windows 8.1 (64-bit) 7.2, 7.1, 7.0, 6.5 SP1 -
Windows 8.1 (32-bit) 7.2, 7.1, 7.0, 6.5 SP1 -
Windows 8 (32/64-bit) 7.2, 7.1, 7.0, 6.5 SP1 -
Windows 7 (32/64-bit) 7.2, 7.1, 7.0, 6.5 SP1 7.2, 7.1, 7.0, 6.5 SP1

Linux Guest OS Support

NVIDIA virtual GPU software supports the following Linux distributions as a guest OS on Citrix XenServer:

Guest OS NVIDIA vGPU Pass-Through GPU
Red Hat Enterprise Linux 7.0-7.3 7.2, 7.1, 7.0 7.2, 7.1, 7.0
CentOS 7.0-7.3 7.2, 7.1, 7.0 7.2, 7.1, 7.0
Ubuntu 16.04 LTS 7.2, 7.1, 7.0 7.2, 7.1, 7.0
Ubuntu 14.04 LTS 7.2, 7.1, 7.0 7.2, 7.1, 7.0

3. Known Product Limitations

Known product limitations for this release of NVIDIA virtual GPU software are described in the following sections.

vGPU profiles with 512 Mbytes or less of frame buffer support only 1 virtual display head on Windows 10

Description

To reduce the possibility of memory exhaustion, vGPU profiles with 512 Mbytes or less of frame buffer support only 1 virtual display head on a Windows 10 guest OS.

The following vGPU profiles have 512 Mbytes or less of frame buffer:

  • Tesla M6-0B, M6-0Q
  • Tesla M10-0B, M10-0Q
  • Tesla M60-0B, M60-0Q

Workaround

Use a profile that supports more than 1 virtual display head and has at least 1 Gbyte of frame buffer.

NVENC requires at least 1 Gbyte of frame buffer

Description

Using the frame buffer for the NVIDIA hardware-based H.264/HEVC video encoder (NVENC) may cause memory exhaustion with vGPU profiles that have 512 Mbytes or less of frame buffer. To reduce the possibility of memory exhaustion, NVENC is disabled on profiles that have 512 Mbytes or less of frame buffer. Application GPU acceleration remains fully supported and available for all profiles, including profiles with 512 MBytes or less of frame buffer. NVENC support from both Citrix and VMware is a recent feature and, if you are using an older version, you should experience no change in functionality.

The following vGPU profiles have 512 Mbytes or less of frame buffer:

  • Tesla M6-0B, M6-0Q
  • Tesla M10-0B, M10-0Q
  • Tesla M60-0B, M60-0Q

Workaround

If you require NVENC to be enabled, use a profile that has at least 1 Gbyte of frame buffer.

VM running older NVIDIA vGPU drivers fails to initialize vGPU when booted

Description

A VM running a version of the NVIDIA guest VM drivers from a previous main release branch, for example release 4.4, will fail to initialize vGPU when booted on a Citrix XenServer platform running the current release of Virtual GPU Manager.

In this scenario, the VM boots in standard VGA mode with reduced resolution and color depth. The NVIDIA virtual GPU is present in Windows Device Manager but displays a warning sign, and the following device status:

Windows has stopped this device because it has reported problems. (Code 43)

Depending on the versions of drivers in use, the Citrix XenServer VM’s /var/log/messages log file reports one of the following errors:

  • An error message:
    vmiop_log: error: Unable to fetch Guest NVIDIA driver information
  • A version mismatch between guest and host drivers:
    vmiop_log: error: Guest VGX version(1.1) and Host VGX version(1.2) do not match
  • A signature mismatch:
    vmiop_log: error: VGPU message signature mismatch.

Resolution

Install the current NVIDIA guest VM driver in the VM.

Virtual GPU fails to start if ECC is enabled

Description

Tesla M60, Tesla M6, and GPUs based on the Pascal GPU architecture, for example Tesla P100 or Tesla P4, support error correcting code (ECC) memory for improved data integrity. Tesla M60 and M6 GPUs in graphics mode are supplied with ECC memory disabled by default, but it may subsequently be enabled using nvidia-smi. GPUs based on the Pascal GPU architecture are supplied with ECC memory enabled.

However, NVIDIA vGPU does not support ECC memory. If ECC memory is enabled, NVIDIA vGPU fails to start. The following error is logged in the Citrix XenServer VM’s /var/log/messages log file:

vmiop_log: error: Initialization: VGX not supported with ECC Enabled.

Resolution

Ensure that ECC is disabled on all GPUs.

  1. Use nvidia-smi to list the status of all GPUs, and check for ECC noted as enabled on GPUs.
  2. Change the ECC status to off on each GPU for which ECC is enabled by executing the following command:
    nvidia-smi -i id -e 0

    id is the index of the GPU as reported by nvidia-smi.

  3. Reboot the host.

Single vGPU benchmark scores are lower than passthrough GPU

Description

A single vGPU configured on a physical GPU produces lower benchmark scores than the physical GPU run in passthrough mode.

Aside from performance differences that may be attributed to a vGPU’s smaller framebuffer size, vGPU incorporates a performance balancing feature known as Frame Rate Limiter (FRL), which is enabled on all vGPUs. FRL is used to ensure balanced performance across multiple vGPUs that are resident on the same physical GPU. The FRL setting is designed to give good interactive remote graphics experience but may reduce scores in benchmarks that depend on measuring frame rendering rates, as compared to the same benchmarks running on a passthrough GPU.

Resolution

FRL is controlled by an internal vGPU setting. NVIDIA does not validate vGPU with FRL disabled, but for validation of benchmark performance, FRL can be temporarily disabled by specifying frame_rate_limiter=0 in the VM’s platform:vgpu_extra_args parameter:

[root@xenserver ~]# xe vm-param-set uuid=e71afda4-53f4-3a1b-6c92-a364a7f619c2 platform:vgpu_extra_args="frame_rate_limiter=0"
[root@xenserver ~]#

The setting takes effect the next time the VM is started or rebooted.

With this setting in place, the VM’s vGPU will run without any frame rate limit. The FRL can be reverted back to its default setting in one of the following ways:

  • Removing the vgpu_extra_args key from the platform parameter
  • Removing frame_rate_limiter=0 from the vgpu_extra_args key
  • Setting frame_rate_limiter=1. For example:
    [root@xenserver ~]# xe vm-param-set uuid=e71afda4-53f4-3a1b-6c92-a364a7f619c2 platform:vgpu_extra_args="frame_rate_limiter=1"
    [root@xenserver ~]#

nvidia-smi fails to operate when all GPUs are assigned to GPU passthrough mode

Description

If all GPUs in the platform are assigned to VMs in passthrough mode, nvidia-smi will return an error:

[root@xenserver-vgx-test ~]# nvidia-smi
Failed to initialize NVML: Unknown Error

This is because GPUs operating in passthrough mode are not visible to nvidia-smi and the NVIDIA kernel driver operating in the Citrix XenServer dom0.

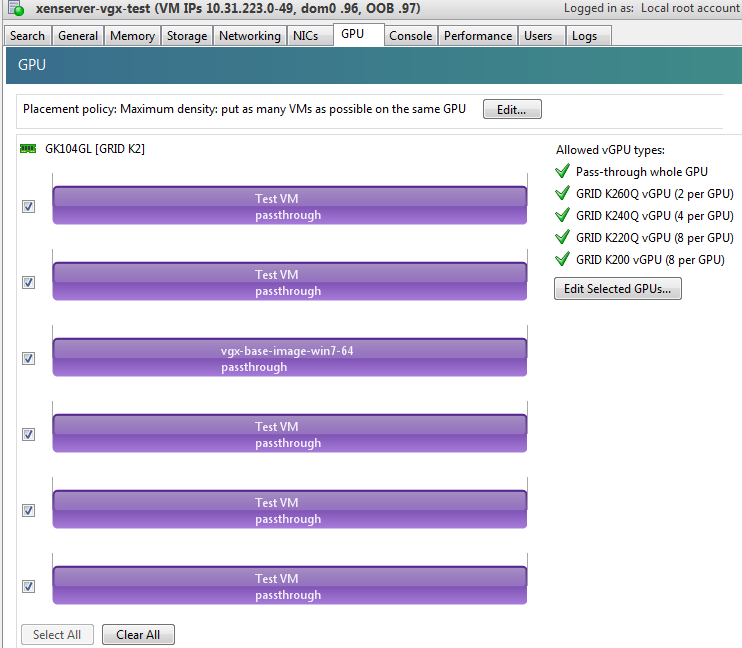

To confirm that all GPUs are operating in passthrough, use XenCenter’s GPU tab to review current GPU assignment:

Screen capture of the GPU tab in Citrix Xencenter

Resolution

N/A

Windows Aero is disabled on XenDesktop session using 3 or 4 monitors in 2560×1600 resolution

Description

Windows Aero may be disabled when XenDesktop is connected to a VM with a vGPU or passthrough GPU, with 3 or 4 monitors at 2560×1600 resolution.

This limitation is a limitation of Windows 7. For details, see the Microsoft knowledge base article Desktop background disappears with very large extended desktop on Windows 7.

VMs configured with large memory fail to initialize vGPU when booted

Description

When starting multiple VMs configured with large amounts of RAM (typically more than 32GB per VM), a VM may fail to initialize vGPU. In this scenario, the VM boots in standard VGA mode with reduced resolution and color depth. The NVIDIA virtual GPU software GPU is present in Windows Device Manager but displays a warning sign, and the following device status:

Windows has stopped this device because it has reported problems. (Code 43)

The Citrix XenServer VM’s /var/log/messages log file contains these error messages:

vmiop_log: error: NVOS status 0x29
vmiop_log: error: Assertion Failed at 0x7620fd4b:179
vmiop_log: error: 8 frames returned by backtrace
...
vmiop_log: error: VGPU message 12 failed, result code: 0x29
...
vmiop_log: error: NVOS status 0x8
vmiop_log: error: Assertion Failed at 0x7620c8df:280
vmiop_log: error: 8 frames returned by backtrace
...
vmiop_log: error: VGPU message 26 failed, result code: 0x8

Resolution

vGPU reserves a portion of the VM’s framebuffer for use in GPU mapping of VM system memory. The reservation is sufficient to support up to 32GB of system memory, and may be increased to accommodate up to 64GB by specifying enable_large_sys_mem=1 in the VM’s platform:vgpu_extra_args parameter:

[root@xenserver ~]# xe vm-param-set uuid=e71afda4-53f4-3a1b-6c92-a364a7f619c2 platform:vgpu_extra_args="enable_large_sys_mem=1"

The setting takes effect the next time the VM is started or rebooted. With this setting in place, less GPU FB is available to applications running in the VM. To accommodate system memory larger than 64GB, the reservation can be further increased by specifying extra_fb_reservation in the VM’s platform:vgpu_extra_args parameter, and setting its value to the desired reservation size in megabytes. The default value of 64M is sufficient to support 64GB of RAM. We recommend adding 2M of reservation for each additional 1GB of system memory. For example, to support 96GB of RAM, set extra_fb_reservation to 128:

platform:vgpu_extra_args="enable_large_sys_mem=1, extra_fb_reservation=128"

The reservation can be reverted back to its default setting in one of the following ways:

  • Removing the vgpu_extra_args key from the platform parameter
  • Removing enable_large_sys_mem from the vgpu_extra_args key
  • Setting enable_large_sys_mem=0

vGPU host driver RPM upgrade fails

Description

Upgrading vGPU host driver RPM fails with an error message about failed dependencies on the console.

[root@xenserver ~]# rpm –U NVIDIA-vGPU-xenserver-6.5-352.46.x86_64.rpm
error: Failed dependencies:
       NVIDIA-vgx-xenserver conflicts with NVIDIA-vGPU-xenserver-6.5-352.46.x86_64
[root@xenserver ~]#

Resolution

Uninstall the older vGPU RPM before installing the latest driver.

Use the following command to uninstall the older vGPU RPM:

[root@xenserver ~]# rpm –e NVIDIA-vgx-xenserver

Resolved Issues

Issues Resolved in Release 5.0

No resolved issues are reported in this release for Citrix XenServer.

Issues Resolved in Release 5.1

Bug ID Summary and Description
200307528

Ubuntu 16.04 VMs run slowly after acquiring a license

Ubuntu 16.04 VMs to which an NVIDIA vGPU is assigned run slowly after acquiring a license. Ubuntu 16.04 VMs that have not been assigned an NVIDIA vGPU run noticeably faster.

1967625

NVIDIA vGPU utilization in guest VMs is incorrectly reported for vGPUs using a fixed share scheduler

3D engine utilization in guest VMs should be reported as a percentage of the maximum physical GPU utilization the vGPU can consume. However, the utilization for vGPUs using a fixed share scheduler does not correctly account for the vGPU's fixed share of the physical GPU cycles. Furthermore, the utilization reported by nvidia-smi pmon is inconsistent with the utilization reported by nvidia-smi dmon.

5. Known Issues

Multiple display heads are not detected by Ubuntu 14.04 guest VMs

Description

After an Ubuntu 14.04 guest VM has acquired a license, multiple display heads connected to the VM are not detected.

Version

Ubuntu 14.04

Workaround

To see all the connected display heads after the VM has acquired a license, open the Displays settings window and click Detect displays.

Status

Open

Ref. #

200334648

CILP is not working in Windows VMs

Description

CILP is not working in Windows VMs. If a CUDA application is running in one VM and a graphics application is running in another VM, the following errors occur:

  • The CUDA application times out.
  • A TDR is triggered in the VM that is running graphics application, which may cause flickering or an application crash.

CILP isn't expected to work on Windows until Windows 10 RS3.

Version

Windows 10 RS2 Creators Update

Status

Open

Ref. #

200333574

Luxmark causes a segmentation fault on an unlicensed Linux client

Description

If the Luxmark application is run on a Linux guest VM configured with NVIDIA vGPU that is booted without acquiring a license, a segmentation fault occurs and the application core dumps. The fault occurs when the application cannot allocate a CUDA object on NVIDIA vGPUs where CUDA is disabled. On NVIDIA vGPUs that can support CUDA, CUDA is disabled in unlicensed mode.

Status

Not an NVIDIA bug.

Ref. #

200330956

Ubuntu 16.04 VMs run slowly after acquiring a license

Description

Ubuntu 16.04 VMs to which an NVIDIA vGPU is assigned run slowly after acquiring a license. Ubuntu 16.04 VMs that have not been assigned an NVIDIA vGPU run noticeably faster.

Version

Ubuntu 16.04

Workaround

After the VM has acquired a license, restart the Compiz compositing window manager

Status

Resloved in version 5.1

Ref. #

200307528

Since 5.1: On GPUs based on the Pascal architecture, Ubuntu 16.04 VMs run slowly after acquiring a license

Description

On GPUs based on the Pascal architecture, Ubuntu VMs to which an NVIDIA vGPU or pass-through GPU is assigned run slowly after acquiring a license. Ubuntu VMs that have not been assigned an NVIDIA vGPUor pass-through GPU run noticeably faster.

Workaround

After the VM has acquired a license, restart the lightdm service.

Status

Open.

Ref. #

200359618

Resolution is not updated after a VM acquires a license and is restarted

Description

In a Red Enterprise Linux 7.3 guest VM, an increase in resolution from 1024×768 to 2560×1600 is not applied after a license is acquired and the gridd service is restarted. This issue occurs if the multimonitor parameter is added to the xorg.conf file.

Version

Red Enterprise Linux 7.3

Status

Open

Ref. #

200275925

On Tesla P40, P6, and P4 GPUs, the default ECC setting prevents NVIDIA vGPU from starting

Description

On Tesla P40, Tesla P6, and Tesla P4 GPUs, the default error-correcting code (ECC) memory setting prevents NVIDIA vGPU from starting. By default, ECC memory is enabled on these GPUs, but NVIDIA vGPU does not support ECC memory.

Workaround

Before running NVIDIA vGPU, disable ECC memory as explained in Virtual GPU Software User Guide.

Status

Closed.

Ref. #

200269717

NVIDIA vGPU utilization in guest VMs is incorrectly reported for vGPUs using a fixed share scheduler

Description

NVIDIA vGPU utilization in guest VMs is incorrectly reported for vGPUs using a fixed share scheduler.

3D engine utilization in guest VMs should be reported as a percentage of the maximum physical GPU utilization the vGPU can consume. For example, a vGPU that is allocated a 25% share of the physical GPU should be reported as fully utilized (100%) when it is consuming 25% of the physical GPU's cycles. However, the utilization for vGPUs using a fixed share scheduler does not correctly account for the vGPU's fixed share of the physical GPU cycles.

Furthermore, the utilization reported by nvidia-smi pmon is inconsistent with the utilization reported by nvidia-smi dmon.

Status

Resloved in version 5.1

Ref. #

1967625

NVIDIA vGPU encoder and process utilization counters don't work with Windows Performance Counters

Description

GPU encoder and process utilization counter groups are listed in Windows Performance Counters, but no instances of the counters are available. The counters are disabled by default and must be enabled.

Workaround

Enable the counters by running the following sequence of commands from a command shell:

wmic /namespace:nv path System call enableProcessUtilizationPerfCounter
wmic /namespace:nv path System call enableEncoderSessionsPerfCounter

If you need to disable the counters, run the following sequence of commands from a command shell:

wmic /namespace:nv path System call disableProcessUtilizationPerfCounter
wmic /namespace:nv path System call disableEncoderSessionsPerfCounter

Status

Open

Ref. #

1971698

A segmentation fault in DBus code causes nvidia-gridd to exit on Red Hat Enterprise Linux and CentOS

Description

On Red Hat Enterprise Linux 6.8 and 6.9, and CentOS 6.8 and 6.9, a segmentation fault in DBus code causes the nvidia-gridd service to exit.

The nvidia-gridd service uses DBus for communication with NVIDIA X Server Settings to display licensing information through the Manage License page. Disabling the GUI for licensing resolves this issue.

Since 5.1: The GUI for licensing is disabled by default.

Version

Red Hat Enterprise Linux 6.8 and 6.9

CentOS 6.8 and 6.9

NVIDIA virtual GPU software 5.0

5.0 Only: Workaround

This workaround requires sudo privileges.

  1. As root, edit the /etc/nvidia/gridd.conf file to set the EnableUI option to FALSE.

  2. Start the nvidia-gridd service.

    # sudo service nvidia-gridd start
  3. Confirm that the nvidia-gridd service has obtained a license by examining the log messages written to /var/log/messages.

    # sudo grep gridd /var/log/messages
    …
    Aug 5 15:40:06 localhost nvidia-gridd: Started (4293)
    Aug 5 15:40:24 localhost nvidia-gridd: License acquired successfully.

Status

Open

Ref. #

  • 200358191
  • 200319854
  • 1895945

Since 5.1: The nvidia-gridd service fails because the required configuration is not provided

Description

The nvidia-gridd service exits with an error because the required configuration is not provided.

The known issue described in A segmentation fault in DBus code causes nvidia-gridd to exit on Red Hat Enterprise Linux and CentOS causes the NVIDIA X Server Settings page for managing licensing settings through a GUI to be disabled by default. As a result, if the required license configuration is not provided through the configuration file, the service exits with an error.

Details of the error can be obtained by checking the status of the nvidia-gridd service.

# service nvidia-gridd status
nvidia-gridd.service - NVIDIA Grid Daemon
Loaded: loaded (/usr/lib/systemd/system/nvidia-gridd.service; enabled; vendor preset: disabled)
   Active: failed (Result: exit-code) since Wed 2017-11-01 19:25:07 IST; 27s ago
  Process: 11990 ExecStopPost=/bin/rm -rf /var/run/nvidia-gridd (code=exited, status=0/SUCCESS)
  Process: 11905 ExecStart=/usr/bin/nvidia-gridd (code=exited, status=0/SUCCESS)
Main PID: 11906 (code=exited, status=1/FAILURE)
Nov 01 19:24:35 localhost.localdomain systemd[1]: Starting NVIDIA Grid Daemon...
Nov 01 19:24:35 localhost.localdomain nvidia-gridd[11906]: Started (11906)
Nov 01 19:24:35 localhost.localdomain systemd[1]: Started NVIDIA Grid Daemon.
Nov 01 19:24:36 localhost.localdomain nvidia-gridd[11906]:  Failed to open config file : /etc/nvidia/gridd.conf error :No such file or directory
Nov 01 19:25:07 localhost.localdomain nvidia-gridd[11906]: Service provider detection complete.
Nov 01 19:25:07 localhost.localdomain nvidia-gridd[11906]: Shutdown (11906)
Nov 01 19:25:07 localhost.localdomain systemd[1]: nvidia-gridd.service: main process exited, code=exited, status=1/FAILURE
Nov 01 19:25:07 localhost.localdomain systemd[1]: Unit nvidia-gridd.service entered failed state.
Nov 01 19:25:07 localhost.localdomain systemd[1]: nvidia-gridd.service failed.

Workaround

Use a configuration file to license NVIDIA virtual GPU software on Linux as explained in Virtual GPU Client Licensing User Guide.

Status

Open

Ref. #

200359469

Since 5.1: The Apply button is disabled after change to unlicensed mode

Description

After the mode is changed from licensed Quadro Virtual Datacenter Workstation Edition mode to Unlicensed Tesla mode, the Apply button on the Manage GRID License page is disabled. As a result, NVIDIA X Server Settings cannot be used to switch to Tesla (Unlicensed) mode on a licensed system.

Workaround

  1. Start NVIDIA X Server Settings by using the method for launching applications provided by your Linux distribution.
  2. In the NVIDIA X Server Settings window that opens, click Manage GRID License.
  3. Clear the Primary Server field.
  4. Select the Tesla (unlicensed) option.
  5. Click Apply.

Status

Open

Ref. #

200359624

Licenses remain checked out when VMs are forcibly powered off

Description

NVIDIA virtual GPU software licenses remain checked out on the license server when non-persistent VMs are forcibly powered off.

The NVIDIA service running in a VM returns checked out licenses when the VM is shut down. In environments where non-persistent licensed VMs are not cleanly shut down, licenses on the license server can become exhausted. For example, this issue can occur in automated test environments where VMs are frequently changing and are not guaranteed to be cleanly shut down. The licenses from such VMs remain checked out against their MAC address for seven days before they time out and become available to other VMs.

Resolution

If VMs are routinely being powered off without clean shutdown in your environment, you can avoid this issue by shortening the license borrow period. To shorten the license borrow period, set the LicenseInterval configuration setting in your VM image. For details, refer to Virtual GPU Client Licensing User Guide.

Status

Closed

Ref. #

1694975

Memory exhaustion can occur with vGPU profiles that have 512 Mbytes or less of frame buffer

Description

Memory exhaustion can occur with vGPU profiles that have 512 Mbytes or less of frame buffer.

This issue typically occurs in the following situations:

  • Full screen 1080p video content is playing in a browser. In this situation, the session hangs and session reconnection fails.
  • Multiple display heads are used with Citrix XenDesktop or VMware Horizon on a Windows 10 guest VM.
  • Higher resolution monitors are used.
  • Applications that are frame-buffer intensive are used.
  • NVENC is in use.

To reduce the possibility of memory exhaustion, NVENC is disabled on profiles that have 512 Mbytes or less of frame buffer.

When memory exhaustion occurs, the NVIDIA host driver reports Xid error 31 and Xid error 43 in XenServer’s /var/log/messages file.

The following vGPU profiles have 512 Mbytes or less of frame buffer:

  • Tesla M6-0B, M6-0Q
  • Tesla M10-0B, M10-0Q
  • Tesla M60-0B, M60-0Q

The root cause is a known issue associated with changes to the way that recent Microsoft operating systems handle and allow access to overprovisioning messages and errors. If your systems are provisioned with enough frame buffer to support your use cases, you should not encounter these issues.

Workaround

  • Use an appropriately sized vGPU to ensure that the frame buffer supplied to a VM through the vGPU is adequate for your workloads.
  • Monitor your frame buffer usage.
  • If you are using Windows 10, consider these workarounds and solutions:

Status

Open

Ref. #

  • 200130864
  • 1803861

VM bug checks after the guest VM driver for Windows 10 RS2 is installed

Description

When the VM is rebooted after the guest VM driver for Windows 10 RS2 is installed, the VM bug checks. When Windows boots, it selects one of the standard supported video modes. If Windows is booted directly with a display that is driven by an NVIDIA driver, for example a vGPU on Citrix XenServer, a blue screen crash occurs.

This issue occurs when the screen resolution is switched from VGA mode to a resolution that is higher than 1920×1200.

Fix

Download and install Microsoft Windows Update KB4020102 from the Microsoft Update Catalog.

Workaround

If you have applied the fix, ignore this workaround.

Otherwise, you can work around this issue until you are able to apply the fix by not using resolutions higher than 1920×1200.

  1. Choose a GPU profile in Citrix XenCenter that does not allow resolutions higher than 1920×1200.
  2. Before rebooting the VM, set the display resolution to 1920×1200 or lower.

Status

Not an NVIDIA bug

Ref. #

200310861

On XenServer 7.0, VMs unexpectedly reboot and XenServer crashes or freezes

Description

On XenServer 7.0, VMs to which a vGPU is attached unexpectedly reboot and XenServer crashes or freezes.

The event log in XenServer’s /var/log/crash/xen.log file lists the following errors:

  • A fatal bus error on a component at the slot where the GPU card is installed
  • A fatal error on a component at bus 0, device 2, function 0

This issue occurs when page-modification logging (PML) is enabled on Intel Broadwell CPUs running XenServer 7.0. Citrix is aware of this issue and is working on a permanent fix.

Workaround

Disable page-modification logging (PML) as explained in XenServer 7 host crash while starting multiple virtual machines in the Citrix Support Knowledge Center.

Status

Not an NVIDIA bug

Ref. #

1853248

With no NVIDIA driver installed, XenServer misidentifies Tesla M10 cards

Description

An erroneous entry in the pci.ids database causes Citrix XenServer to identify Tesla M10 cards as GRID M40 when no NVIDIA driver is installed.

Version

Citrix XenServer 6.5 and 7.0

Workaround

None

Status

Not an NVIDIA bug

Ref. #

NVIDIA-420/1792341

GNOME Display Manager (GDM) fails to start on Red Hat Enterprise Linux 7.2 and CentOS 7.0

Description

GDM fails to start on Red Hat Enterprise Linux 7.2 and CentOS 7.0 with the following error:

Oh no! Something has gone wrong!

Workaround

Permanently enable permissive mode for Security Enhanced Linux (SELinux).

  1. As root, edit the /etc/selinux/config file to set SELINUX to permissive.
    SELINUX=permissive
  2. Reboot the system.
    ~]# reboot

For more information, see Permissive Mode in Red Hat Enterprise Linux 7 SELinux User's and Administrator's Guide.

Status

Not an NVIDIA bug

Ref. #

200167868

Video goes blank when run in loop in Windows Media Player

Description

When connected to a vGPU-enabled VM using Citrix XenDesktop, a video played back in looping mode on Windows Media Player goes blank or freezes after a few iterations.

Workaround

None

Status

Not an NVIDIA bug

Ref. #

1306623

Local VGA console is momentarily unblanked when XenDesktop changes resolution of the VM desktop

Description

When XenDesktop establishes a remote connection to a VM using vGPU, the VM’s local VGA console display in XenCenter is blanked (assuming the VM local console has not been disabled by setting platform:vgpu_extra_args="disable_vnc=1"). If the XenDesktop session changes resolution of the VM’s desktop, the local VGA console momentarily unblanks, allowing a XenCenter user to briefly view the desktop.

Workaround

Disable the VM’s local VGA console

xe vm-param-set uuid=vm-uuid platform:vgpu_extra_args="disable_vnc=1"

Status

Open

Ref. #

NVIDIA-145/1375164

VM bugchecks on shutdown/restart when XenDesktop is installed and NVIDIA driver is uninstalled or upgraded.

Description

If the XenDesktop agent is installed in a VM before any NVIDIA GPU driver is installed, the VM will bugcheck (bluescreen) when the NVIDIA driver is subsequently upgraded or uninstalled. The bugcheck code is 0x7E, SYSTEM_THREAD_EXCEPTION_NOT_HANDLED.

Workaround

Use one of the following workarounds:

  • Do a force shutdown of the VM and restart it.
  • Install the NVIDIA driver in guest VMs before installing XenDesktop.

Status

Open

Ref. #

NVIDIA-295/200018125

Application frame rate may drop when running XenDesktop at 2560×1600 resolution.

Description

An application’s rendering frame rate may drop when running XenDesktop at 2560×1600 resolution, relative to the frame rate obtained at lower resolutions.

Fix

Using the Windows regedit utility within the VM, open the HKLM\SOFTWARE\Citrix\Graphics registry key and create a new DWORD value, EncodeSpeed, with a value of 2. Reboot the VM. This setting may improve the delivered frame rate at the expense of a reduction in image quality.

Status

Open

Ref. #

NVIDIA-190/1416336

Windows VM BSOD

Description

Windows VM bugchecks on XenServer when running a large number of vGPU based VMs.

XenServer’s /var/log/messages file contains these error messages:

NVRM: Xid (PCI:0000:08:00): 31, Ch 0000001e, engmask 00000111, intr 10000000
NVRM: Xid (PCI:0000:08:00): 31, Ch 00000016, engmask 00000111, intr 10000000
...
vmiop_log: error: Assertion Failed at 0xb5b898d8:4184
vmiop_log: error: 8 frames returned by backtrace
vmiop_log: error: /usr/lib/libnvidia-vgx.so(_nv000793vgx+0x69d) [0xb5b8064d]
vmiop_log: error: /usr/lib/libnvidia-vgx.so(_nv000479vgx+0x118) [0xb5b898d8]
vmiop_log: error: /usr/lib/libnvidia-vgx.so(_nv000782vgx+0x59) [0xb5b85f49]
vmiop_log: error: /usr/lib/libnvidia-vgx.so(_nv000347vgx+0x3db) [0xb5b932db]
vmiop_log: error: /usr/lib/libnvidia-vgx.so [0xb5b78e4a]
vmiop_log: error: /usr/lib/xen/bin/vgpu [0x80554be]
vmiop_log: error: /lib/libpthread.so.0 [0xb7612912]
vmiop_log: error: /lib/libc.so.6(clone+0x5e) [0xb76fc5ee]
vmiop_log: error: failed to initialize guest PTE entries
vmiop_log: error: failed to fill up guest PTE entries 3
vmiop_log: error: VGPU message 27 failed, result code: 0xff000003
vmiop_log: error:         0xc1d00001, 0xff010000, 0x1a77ba000, 0x0, 0x1,
vmiop_log: error:         0x1, 0x1000, 0x10202, 0xc1d00001, 0xff010000,
vmiop_log: error:         0xcaf00004, 0x0
vmiop_log: error: Timeout occurred, reset initiated.

Version

XenServer 6.2

Fix

Ensure that you are running the latest OEM firmware for your NVIDIA virtual GPU software boards.

Status

Closed

Ref. #

NVIDIA-327/1632120

Windows VM BSOD when upgrading NVIDIA drivers over a XenDesktop session

Description

Windows VM bugchecks when NVIDIA guest drivers are upgraded over a XenDesktop session.

If the VM is restarted after the bugcheck, the upgraded driver loads correctly and full functionality is available.

Fix

Upgrade XenDesktop to 7.6 Feature Pack 3

Status

Closed

Ref. #

NVIDIA-370/200130780

XenCenter does not allow vGPUs to be selected as a GPU type for Linux VMs

Description

When creating a new Linux VM or editing the properties of an existing Linux VM, XenCenter does not allow vGPUs to be selected as a GPU type.

vGPU on Linux VMs is supported as a technical preview on XenServer 6.5, and does include XenCenter integration.

Version

Affects the XenCenter integration with XenServer 6.5 only.

Resolved in the XenCenter integration with XenServer 7.0.

Workaround

Refer to XenServer vGPU Management in Virtual GPU Software User Guide for how to configure vGPU by using the xe CLI.

Status

Closed

Ref. #

NVIDIA-360

If X server is killed on a RHEL7 VM running vGPU, XenCenter console may not automatically switch to text console

Description

If X server is killed on a RHEL7 VM running vGPU, XenCenter console may display a corrupted image and fail to switchover to text console.

The failure to switchover to text console is due to a bug in RHEL7, which causes X server to not start correctly under certain configurations.

Workaround

Use CTRL+ALT+F1, F2, or F3 to switch between Linux terminals.

Status

Closed

Ref. #

NVIDIA-350/200123378

Multiple WebGL tabs in Microsoft Internet Explorer may trigger TDR on Windows VMs

Description

Running intensive WebGL applications in multiple IE tabs may trigger a TDR on Windows VMs.

Workaround

Disable hardware acceleration in IE.

To enable software rendering in IE, refer to the Microsoft knowledge base article How to enable or disable software rendering in Internet Explorer.

Status

Open

Ref. #

200148377

XenDesktop shows only a black screen when connected to a vGPU VM

Description

XenDesktop sometimes displays only a black screen when it is connected to an NVIDIA vGPU VM. The probable cause is that the display that is connected to the NVIDIA vGPU is entering a lower power state.

Fix

Disable all display-related power management settings.

For detailed instructions, visit Microsoft power plans frequently asked questions and from the list, select your OS version.

Status

Not an NVIDIA bug

Ref. #

1719877

Notices

Notice

ALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS, AND OTHER DOCUMENTS (TOGETHER AND SEPARATELY, "MATERIALS") ARE BEING PROVIDED "AS IS." NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY, OR OTHERWISE WITH RESPECT TO THE MATERIALS, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE.

Information furnished is believed to be accurate and reliable. However, NVIDIA Corporation assumes no responsibility for the consequences of use of such information or for any infringement of patents or other rights of third parties that may result from its use. No license is granted by implication of otherwise under any patent rights of NVIDIA Corporation. Specifications mentioned in this publication are subject to change without notice. This publication supersedes and replaces all other information previously supplied. NVIDIA Corporation products are not authorized as critical components in life support devices or systems without express written approval of NVIDIA Corporation.

HDMI

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

OpenCL

OpenCL is a trademark of Apple Inc. used under license to the Khronos Group Inc.

Trademarks

NVIDIA, the NVIDIA logo, NVIDIA GRID, vGPU, Pascal, Quadro, and Tesla are trademarks or registered trademarks of NVIDIA Corporation in the U.S. and other countries. Other company and product names may be trademarks of the respective companies with which they are associated.
