Training

Nsight Compute training content.

NVIDIA Nsight Compute Training resources.

External Resources

Forum

• DevTalk Nsight Compute Forum

Blogs

• Check the current list of blog posts

Videos

• Check the current list of training videos

Code Examples

• Have a look at our coding examples on GitHub

Usage Examples

Filter Options

Note that examples will use the term workload to refer to either kernels, graphs, ranges or cmdlists unless stated otherwise.

1. Profile first two workloads

   --launch-count 2

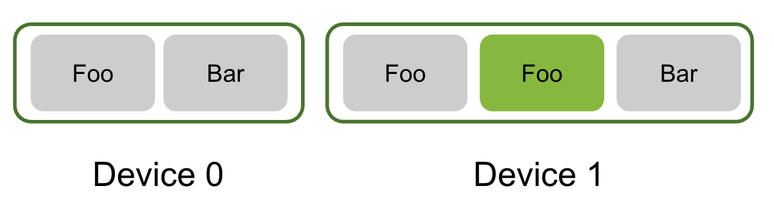

2. Profile first two workloads launched on device with device ID 1



   --device 1 --launch-count 2

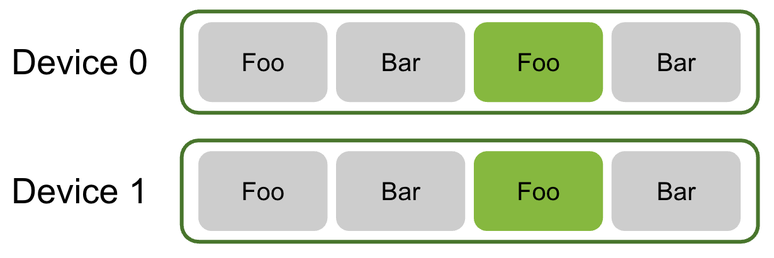

3. Profile 2nd workload on each gpu



   --launch-skip 1 --launch-count 1 --filter-mode per-gpu

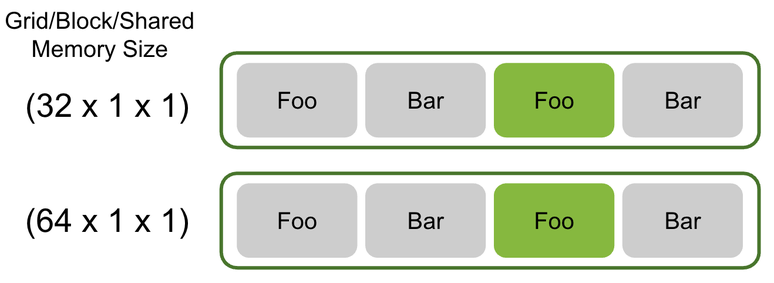

4. Skip first 2 workloads of each launch configuration before profiling

   --launch-skip 2 --filter-mode per-launch-config

5. Profile “Bar” kernel



   --kernel-name Bar

6. Profile kernels which have “Bar” in function name



   --kernel-name regex:Bar

7. Profile only 2nd invocation of kernel “Foo”



   --kernel-id ::Foo:2

8. Profile only 2nd invocation of all kernels which have “Bar” in name



   --kernel-id ::regex:Bar:2

9. Skip first 2 workloads before matching “Foo” or “Bar” in kernel names



   --launch-skip-before-match 2 --kernel-name regex:“Foo|Bar”

10. Profile all 7th kernel invocations with mangled name “_FooBar” on CUDA context ID 1 and stream ID 2

    --kernel-id 1:2:_Foobar:7 --kernel-name-base mangled

11. Profile all workloads launched in first 3 cu(da)ProfilerStart/Stop APIs created ranges



    --range-filter :[1-3]:

12. Profile all workloads launched in 2nd NVTX Push/Pop range A



    --range-filters ::2 --nvtx --nvtx-include A/

13. Profile all workloads launched in NVTX Push/Pop range A except the ones in NVTX Push/Pop range B



    --nvtx --nvtx-include A/ --nvtx-exclude B/

14. Profile all “Foo” kernels except those launched in NVTX Push/Pop range B



    --nvtx --nvtx-exclude B/ --kernel-name Foo

15. Profile all workloads launched in 2nd NVTX Start/End range A inside 2nd cu(da)ProfilerStart/Stop APIs created range



    --range-filter yes:2:2 --nvtx --nvtx-include A

16. Profile all workloads launched in 1st NVTX Push/Pop range A inside both 1st and 2nd cu(da)ProfilerStart/Stop APIs created range



    --range-filter yes:[1-2]:1 --nvtx --nvtx-include A/

17. Profile all workloads launched in 1st cu(da)ProfilerStart/Stop APIs created range with 2nd NVTX push/pop range A and domain D

    --range-filter no:1:2 --nvtx --nvtx-include D@A/
