TransformerEngine-accelerated Llama 3 training with native PyTorch training loop

This folder demonstrates how to train TE-accelerated Llama 3 with a native PyTorch training loop, including sequence packing, FP8/MXFP8/NVFP4 precision with layer-wise control, using fully sharded data parallel (FSDP) for distributed training. This recipe is configured for genomic sequences using a custom nucleotide tokenizer.

How to use this recipe

This folder contains an independent, minimal training example. It does not depend on any other code in the top-level bionemo-framework repository. You can download a zipped directory of this folder alone by clicking here.

How to deploy this recipe on cloud providers

🚧 Under development

Supported Models and Training Features

Model	BF16	FP8[1]	MXFP8[2]	NVFP4[3]	THD Input Format	Context Parallelism	Tensor Parallelism
Llama 3	✅	✅	✅	✅	✅	✅	🚧

✅: Supported
🚧: Under development
❌: Not supported

[1]: Requires compute capability 9.0 and above (Hopper+)
[2]: Requires compute capability 10.0 and 10.3 (Blackwell), 12.0 support pending
[3]: Requires compute capability 10.0 and above (Blackwell+)

Installing Dependencies

The easiest way to get started with this recipe is to use the provided Dockerfile, which uses the latest NVIDIA PyTorch base image to provide optimized versions of PyTorch and TransformerEngine. To build the container, run:

docker build -t llama3_native_te .

To run the container, run:

docker run -it --gpus all --network host --ipc=host --rm -v ${PWD}:/workspace/bionemo llama3_native_te /bin/bash

Alternatively, the dependencies can be installed manually in an environment with CUDA support. See requirements.txt for the list of dependencies.

Performance Benchmarks

Scaling Llama 3 70B with Context Parallelism (CP) on 32x NVIDIA GB300 GPUs (NVL32) with synthetic data of increasing sequence length. MFU was calculated using a 2.5 PFLOPS/GPU maximum theoretical bf16 throughput, with model FLOPS calculated with the formula

def compute_model_pflops(seq_len, global_batch_size, step_time_s):
    B, S, H, L, V = global_batch_size, seq_len, HIDDEN_DIM, N_LAYERS, VOCAB_SIZE
    model_flops = (
        (24 * B * S * H * H + 4 * B * S * S * H) * (3 * L) + (6 * B * S * H * V)
    ) / step_time_s
    return model_flops / 1e15

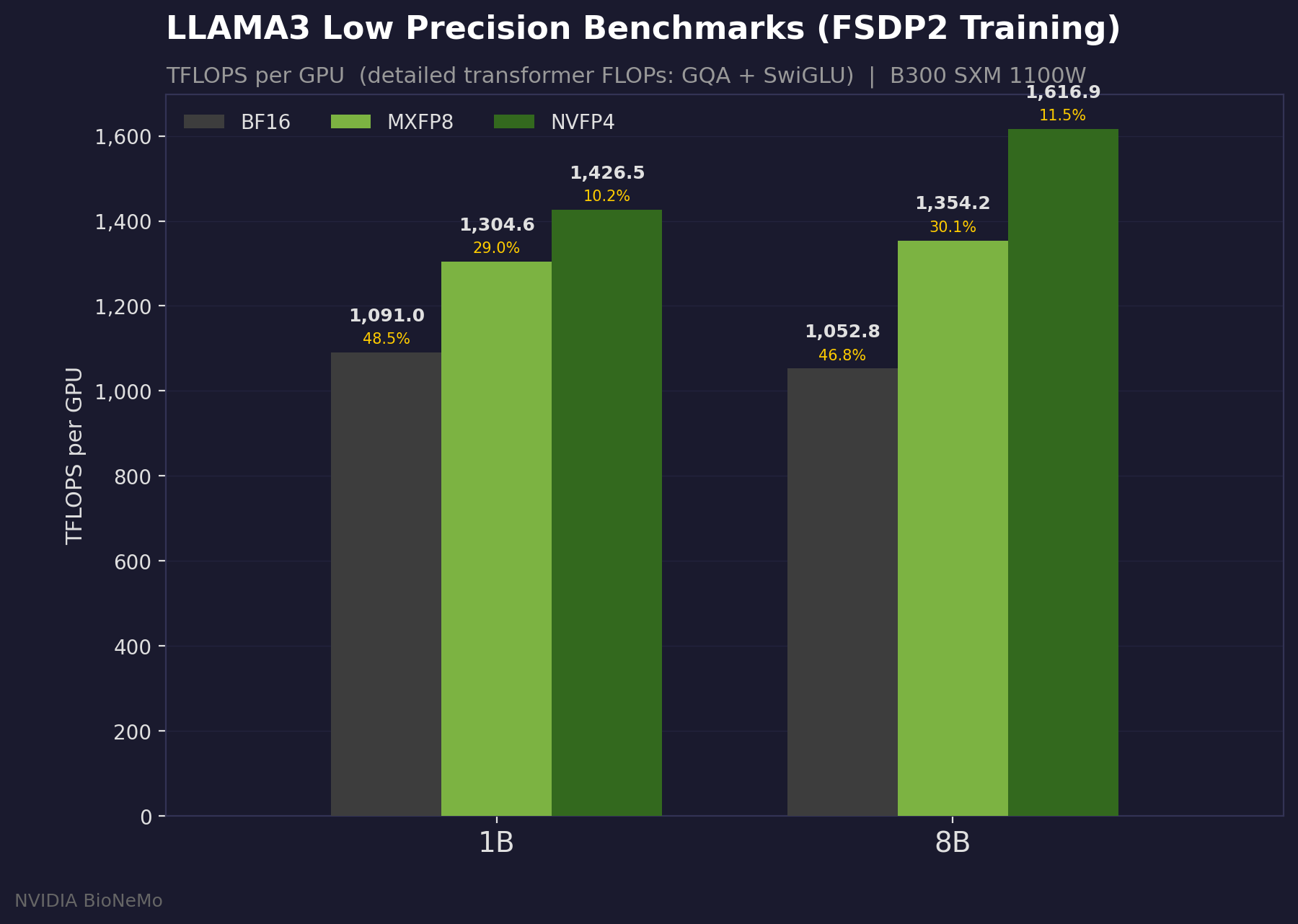

Low precision performance benchmarks

In the above plot we can see the performance increases as we lower the precision of our transformer layers across the 1B and 8B variant of LLAMA3.

MXFP8 vs BF16 throughput on Llama-3.1 (Lingua / DCLM)

We benchmarked MXFP8 (MXFP8BlockScaling, E4M3) against the BF16 baseline using the Lingua / DCLM training setup on NVIDIA Blackwell GPUs. All runs use TransformerEngine, fused AdamW with FP32 master weights, and THD sequence packing.

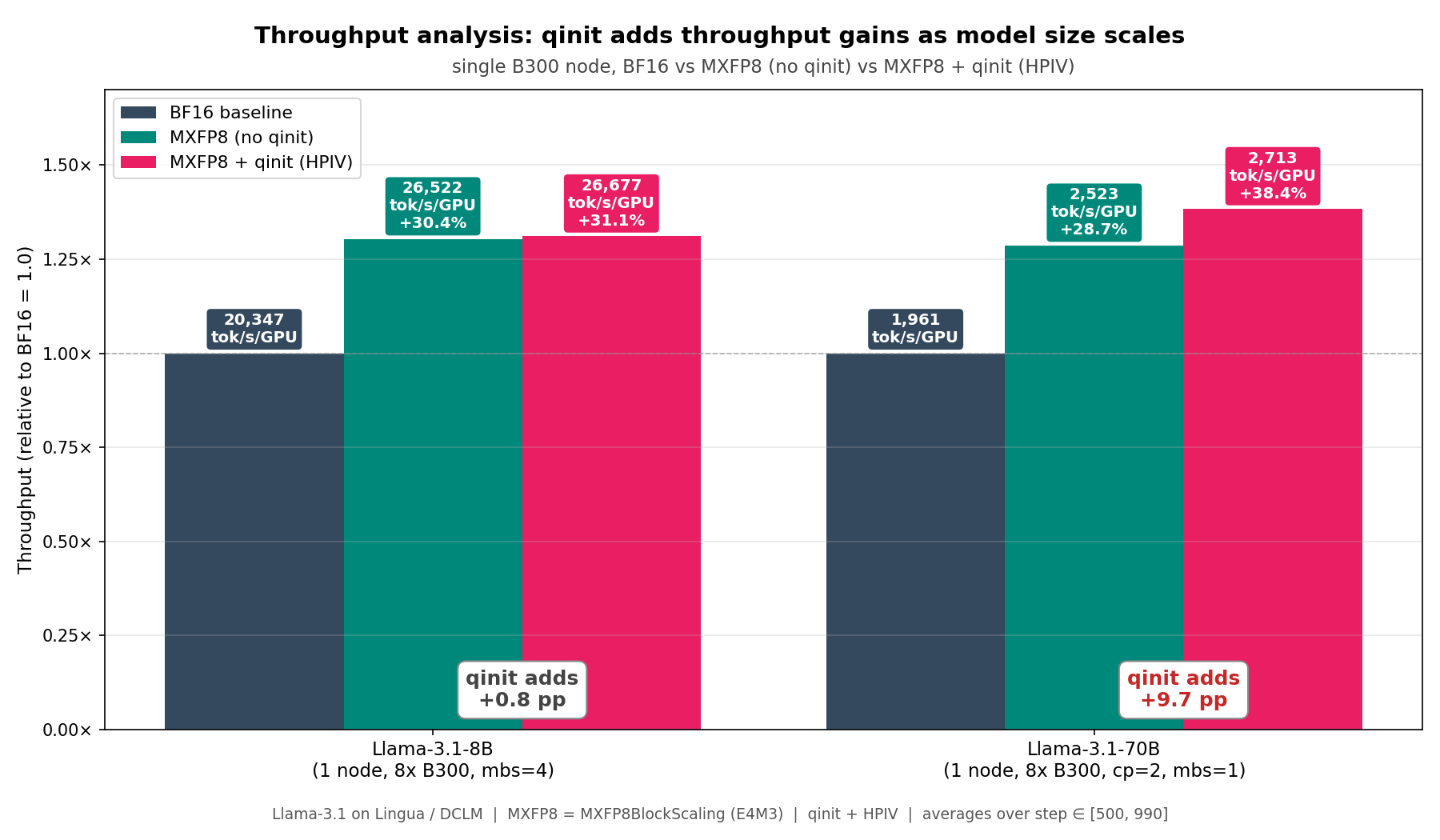

Key finding: plain MXFP8 over BF16 gives roughly the same ~30% throughput uplift on both 8B and 70B. Quantized model init (qinit) adds essentially nothing on 8B (+0.8 pp) but adds ~10 percentage points on 70B (+9.7 pp) — the per-layer quantize/dequantize work saved by qinit scales with depth (80 vs 32 transformer layers). On 70B, MXFP8 + qinit delivers a +38.4% throughput gain over BF16 on a single B300 node.

Single-node detail: per-model 3-way comparisons

The per-model charts below show the 3-way (BF16 / MXFP8 no-qinit / MXFP8 + qinit) comparison underlying the headline figure above. **Llama-3.1-8B** (1 node / 8× B300 SXM6 AC, mbs=4, grad_acc=1, gbs = 32 seqs / 262k tokens, seq_len = 8192):

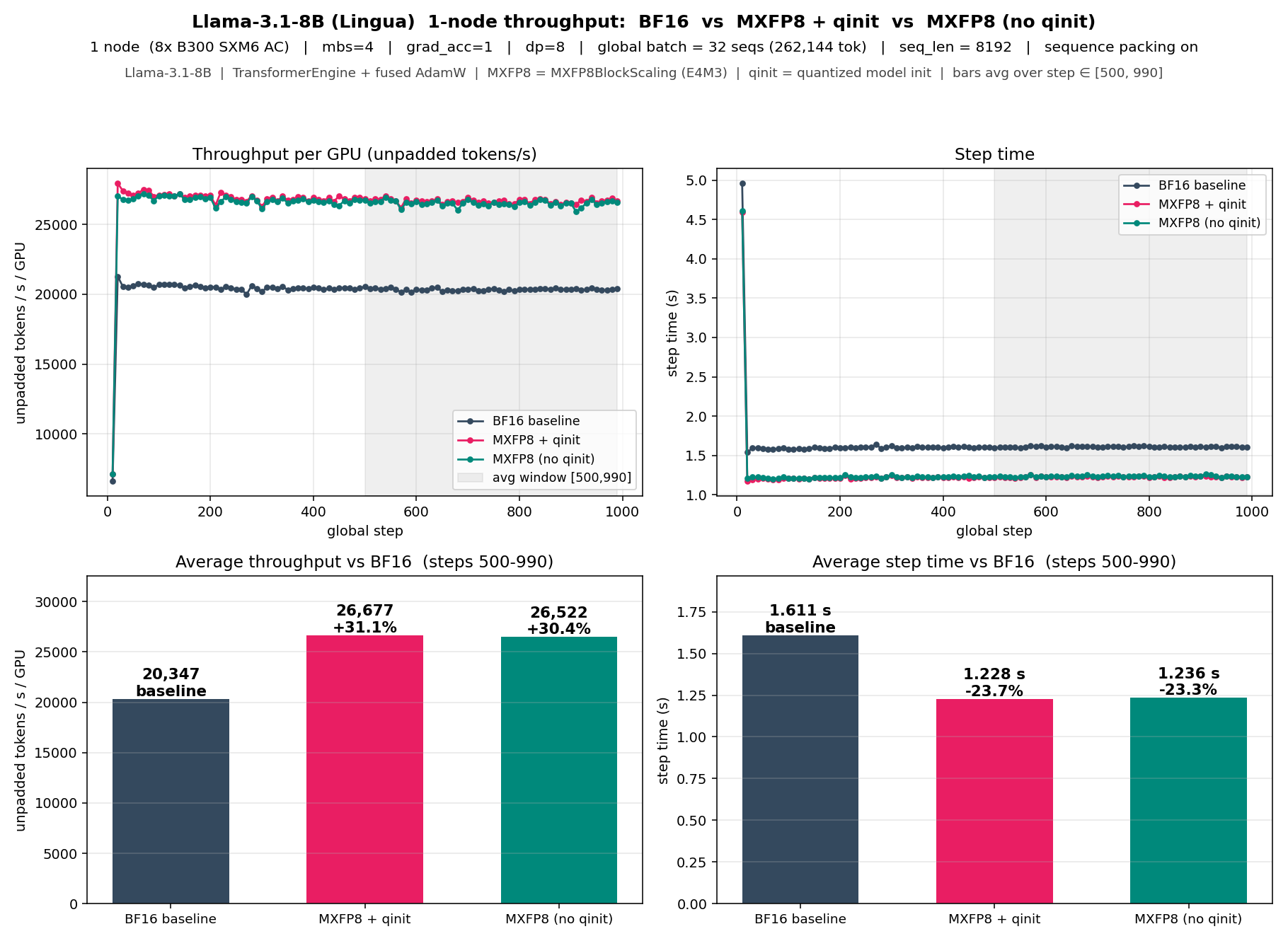

On a single B300 node, **MXFP8 + qinit (+31.1%) and MXFP8 without qinit (+30.4%) deliver essentially the same throughput gain over BF16**. At this layer count the per-layer quantize/dequantize saving qinit provides is small; the speedup comes mainly from the FP8 GEMMs themselves. Averaged over global step ∈ [500, 990]. **Llama-3.1-70B** (1 node / 8× B300 SXM6 AC, mbs=1, grad_acc=1, cp=2, dp=4, gbs = 4 seqs / ≈34k packed tokens, seq_len = 8192):

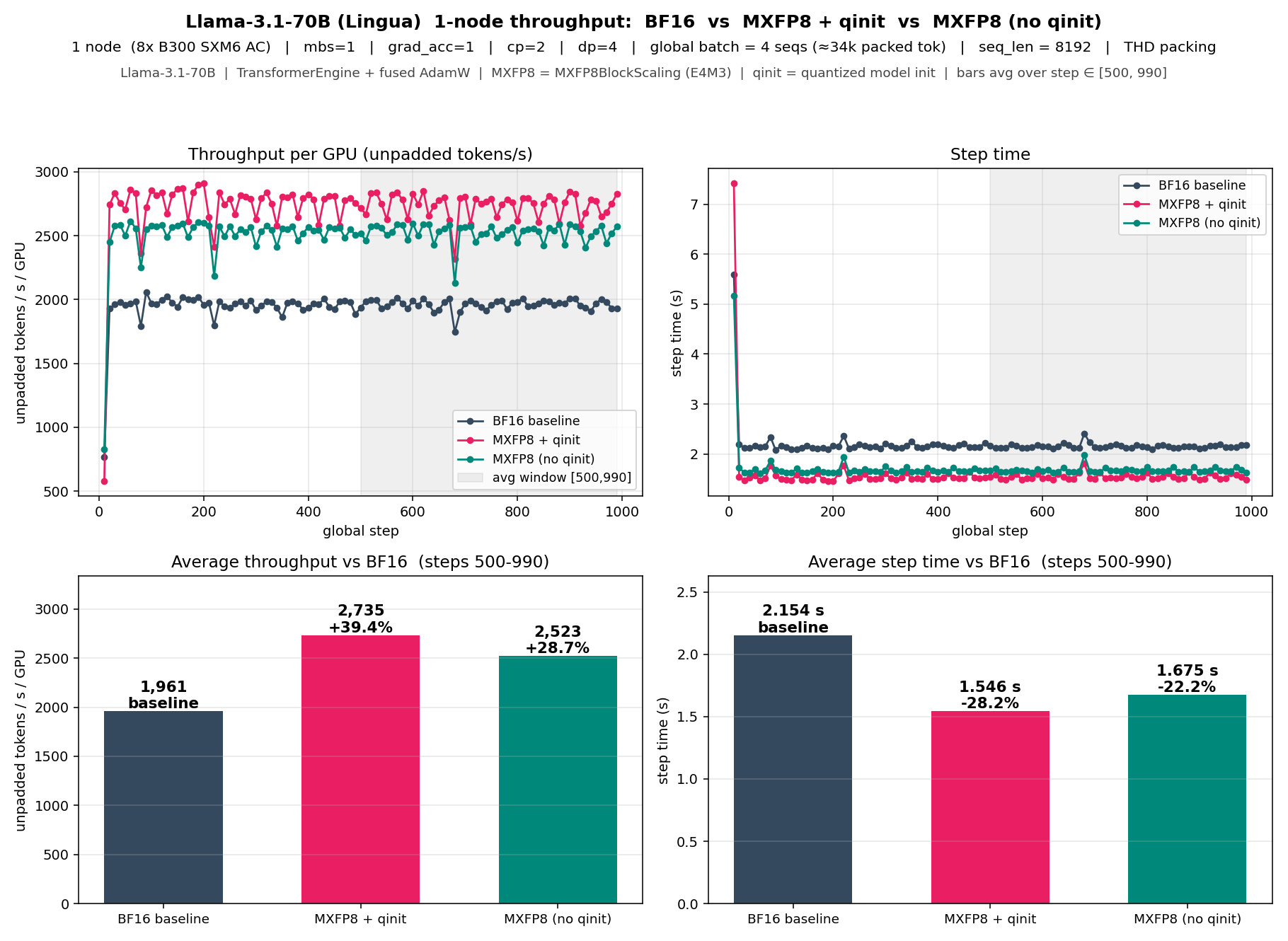

On a single B300 node, **MXFP8 + qinit (+39.4%) pulls ahead of MXFP8 without qinit (+28.7%) — a ~10 percentage point gap that doesn't appear at 8B**. With 80 transformer layers, the per-step quantize/dequantize work avoided by qinit (the FP8 weight is already in compute format, so no on-the-fly cast every forward and backward) adds up to a meaningful throughput gain over the no-qinit path. Averaged over global step ∈ [500, 990]. We also separately measured `preserve_high_precision_init_val=True` (HPIV) and found it within 1% of the qinit-without-HPIV throughput, so HPIV's startup-time master-weight seeding is essentially free at steady state.

Multi-node throughput (B200, production-scale runs)

We also measured MXFP8 + qinit throughput at scale, on multi-node B200 with longer Lingua DCLM runs to confirm the single-node findings hold in production conditions. **Llama-3.1-8B** (8 nodes / 64× B200, mbs=2, grad_acc=2, global batch = 256 seqs, seq_len = 8192):

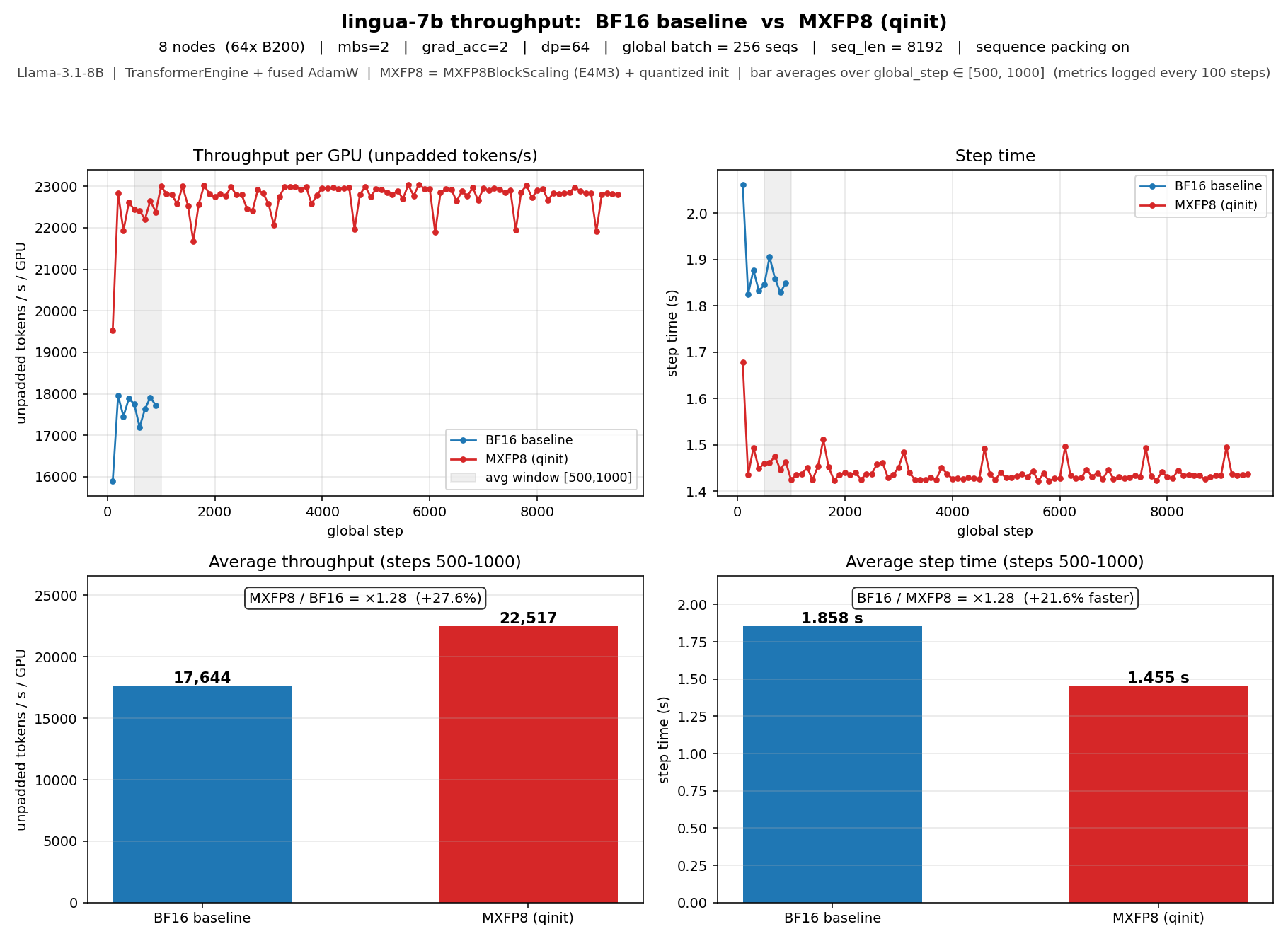

MXFP8 + qinit reaches **22,517 unpadded tokens / s / GPU vs 17,644 for BF16 — a +27.6% throughput gain (×1.28 speedup, −21.7% step time)**. Averaged over global step ∈ [500, 1000]. **Llama-3.1-70B** (4 nodes / 32× B200, cp=2, dp=16, mbs=1, grad_acc=1, gbs = 16 seqs, seq_len = 8192):

MXFP8 + qinit reaches **2,725 unpadded tokens / s / GPU vs 1,972 for BF16 — a +38.2% throughput gain (×1.40 speedup, −27.6% step time)**. Averaged over global step ∈ [100, 490]. The larger relative gain on 70B vs 8B at scale matches the size-dependent pattern shown in the single-node headline above.

Wandb runs:

• Single-node 8B — BF16 / MXFP8 + qinit / MXFP8 (no qinit)
• Single-node 70B (1k steps) — BF16 / MXFP8 + qinit / MXFP8 + qinit + HPIV / MXFP8 (no qinit)
• Multi-node 8B — BF16 / MXFP8 + qinit
• Multi-node 70B — BF16 / MXFP8 + qinit

Convergence Benchmarks

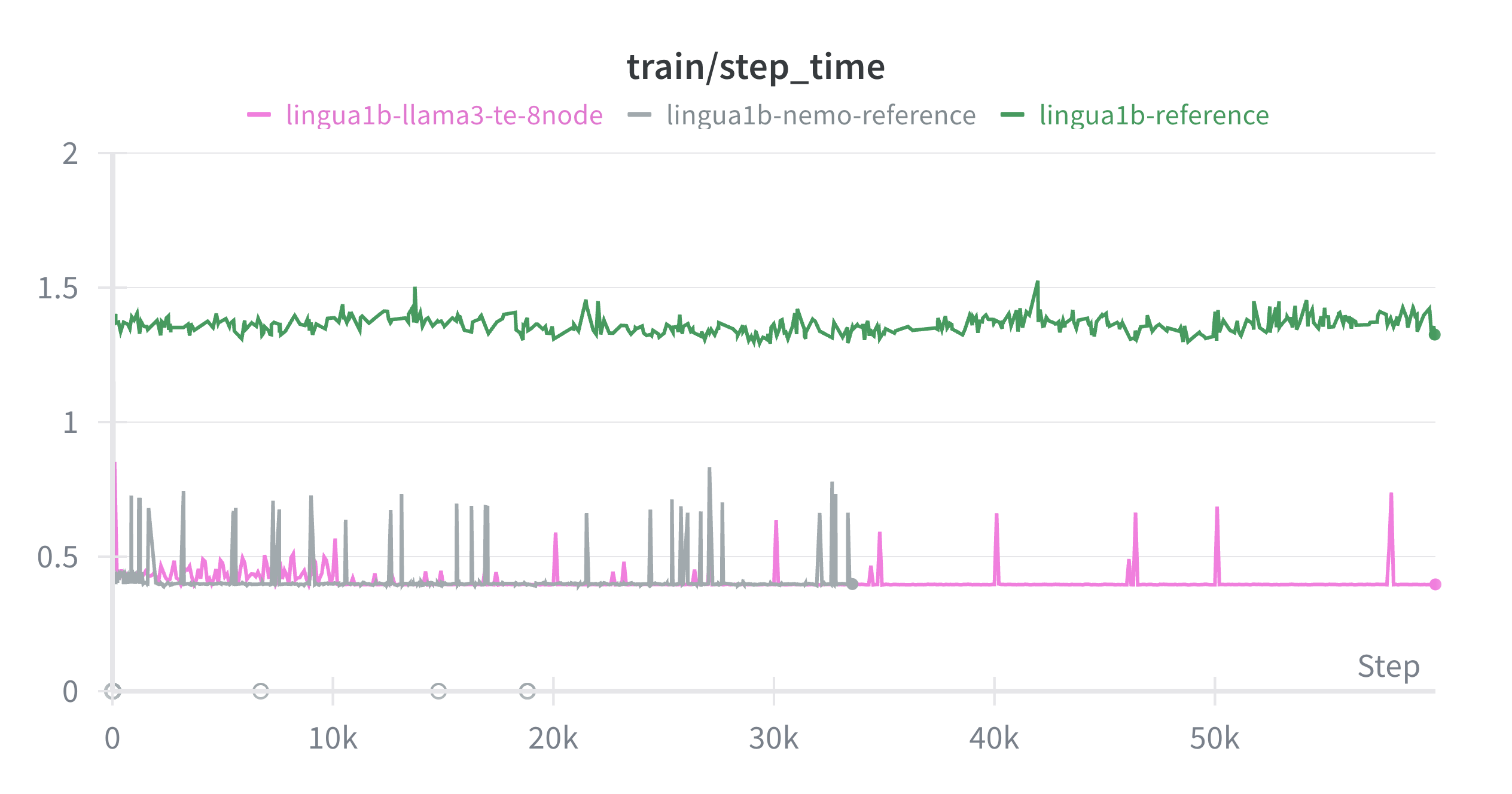

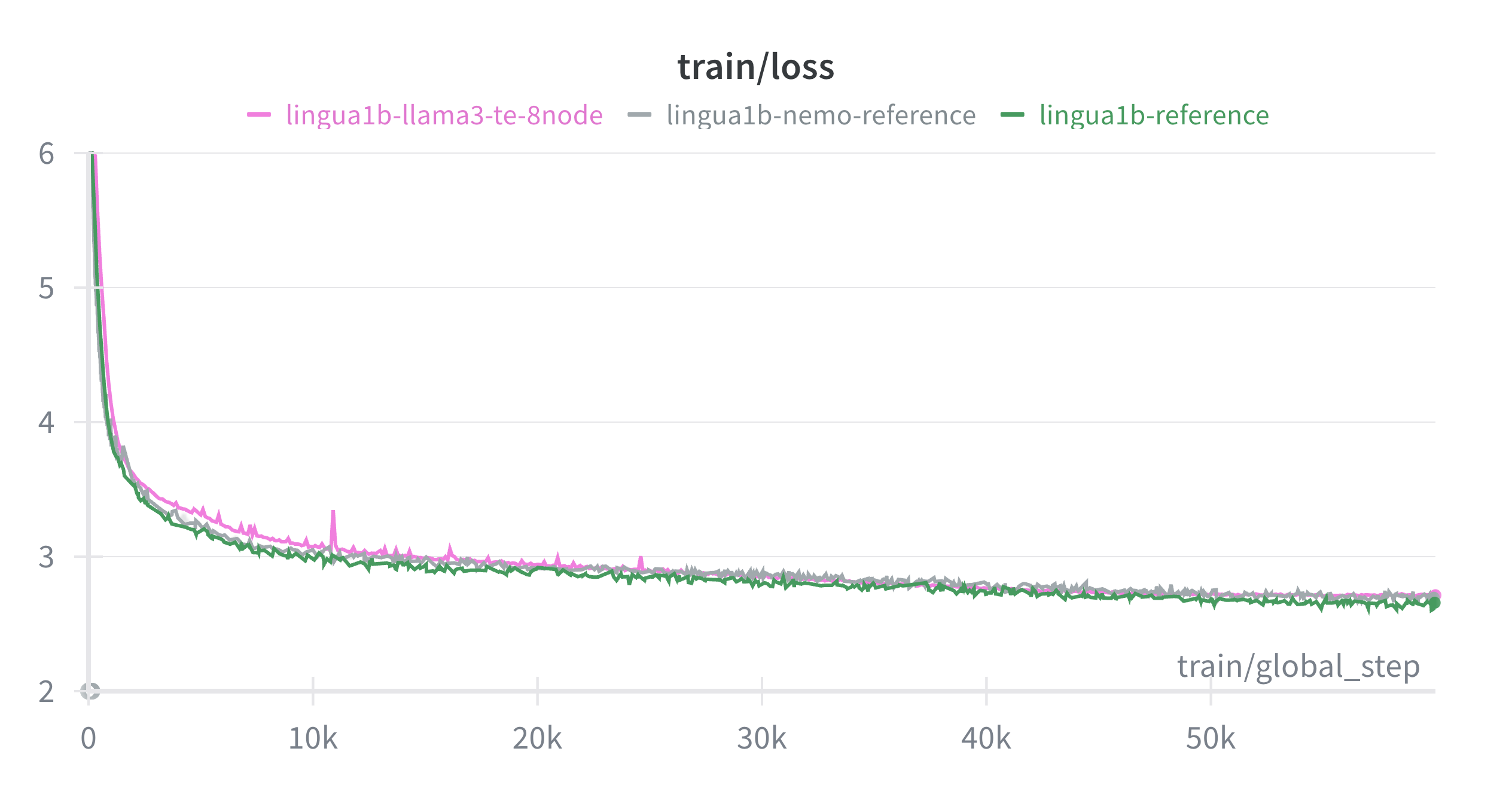

We compared the convergence of this Llama3 recipe (with FSDP2) against NeMo 2.0 (https://github.com/NVIDIA-NeMo/NeMo) and the facebookresearch/lingua implementation on the DCLM Baseline 1.0 dataset. See Training on Natural Language Data (Lingua Reproduction) for more details. The figure above shows similar loss convergence and step time to the NeMo 2.0 training example, and the following table shows downstream performance on various tasks using the lm-eval library. The variation in training step time every 10,000 steps are due checkpointing, further work will be done to improve training step time stability.

name	arc_challenge	arc_easy	boolq	copa	hella_swag	piqa	winogrande
Llama3 1B (Lingua)	32	69.32	62.94	77	47.16	73.34	63.06
Llama3 1B (NeMo2)	32.34	67	59.79	78	59.09	74.43	59.83
Llama3 1B (Recipes)	30.63	65.57	55.6	80	44.57	73.29	58.72

Models were trained on 64 NVIDIA H100 GPUs with a micro batch size of 4 and a context length of 4096 for 60,000 steps. Training was performed with BF16 precision.

Low Precision convergence benchmarks

For the multi-node 8B run on DCLM, the MXFP8 + quantized init training loss tracks the BF16 baseline to within ~0.1% over 60k steps, confirming the throughput gains above come with no measurable convergence regression. A small additional improvement is observed when keeping the first and last transformer layers in BF16 while running all other layers in MXFP8 (configurable via fp8_layers).

Distributed Training

This recipe supports distributed training using DDP, FSDP2, and FSDP2 with Context Parallelism, shown in three separate training entrypoints:

• Distributed Data Parallel (DDP), shown in train_ddp.py
• Fully Sharded Data Parallel 2 (FSDP2), shown in train_fsdp2.py
• FSDP2 with Context Parallelism, shown in train_fsdp2_cp.py

Commands to Launch Training

To run single-process training on one GPU, run:

python train_fsdp2.py  # or train_ddp.py

To run multi-process training locally on 2+ GPUs, run (e.g. 2 GPUs):

torchrun --nproc_per_node=2 train_fsdp2.py  # or train_ddp.py

Multi-Node training is supported with both strategies.

A convergence test configuration (L0_convergence) is also available, which uses a tiny Llama model to verify that the training loop can overfit on a small dataset:

python train_fsdp2.py --config-name L0_convergence

Gradient accumulation is supported with both strategies. To enable gradient accumulation, set grad_acc_steps to the number of steps to accumulate gradients before updating the model parameters. This is useful to scale the effective batch size while running on a smaller number of GPUs.

python train_fsdp2.py --config-name L0_sanity grad_acc_steps=2

Quantized Training (FP8 / MXFP8 / NVFP4)

To run training with FP8, enable it by overriding the fp8_config.enabled=true configuration parameter. Additional FP8 configuration parameters, including switching to MXFP8BlockScaling, can be set using the hydra configuration.

python train_fsdp2.py --config-name L0_sanity fp8_config.enabled=true

Quantized Model Initialization

When training with FP8, you can initialize model weights directly in the target quantized format by setting config_kwargs.use_quantized_model_init=true. This tells TransformerEngine to create weights inside a te.quantized_model_init context, avoiding a separate quantization step after initialization.

python train_fsdp2.py --config-name L0_sanity \
  fp8_config.enabled=true \
  +config_kwargs.use_quantized_model_init=true

FP8 Debugging

python train_fsdp2.py --config-name L0_sanity fp4_config.enabled=true

Note: This feature is available for the train_ddp and the train_fsdp2 scripts. NVFP4 stats logging is not yet supported and will be enabled in a future TransformerEngine release; FP8/MXFP8 stats logging works today.

Additional recipe parameters (e.g., switching to MXFP8BlockScaling) can be set via the hydra configuration.

Layer-Wise Precision

You can control which transformer layers use FP8 or FP4 by specifying 1-indexed layer numbers via fp8_layers and fp4_layers. Layers not assigned to either format will run in BF16.

For example, to run layers 1-3 in FP8, layers 4-6 in FP4, and the rest in BF16 on a model with more than 6 layers:

python train_fsdp2.py --config-name L0_sanity \
  fp8_config.enabled=true \
  fp4_config.enabled=true \
  'fp8_layers=[1,2,3]' \
  'fp4_layers=[4,5,6]'

When both fp8_config and fp4_config are enabled but only one layer list is provided, the other format automatically claims the remaining layers. For example, if fp8_layers=[1,2,3] is set and fp4_config.enabled=true with no fp4_layers, then layers 4 through N will default to FP4.

Quantization Stats Debugging

We provide a mechanism to log tensor statistics (activations, weights, gradients) for quantized layers during training. When layer-wise precision is used, the stats config is automatically updated so that only the relevant layers are tracked.

To enable stats logging:

python train_fsdp2.py \
  quant_stats_config.enabled=true \
  quant_stats_config.quant_log_dir=./logs/quant_stats \
  quant_stats_config.quant_stats_file=./fp8_debugging_stats.yaml \
  fp8_config.enabled=true

Note: This feature is available for the train_ddp and the train_fsdp2 scripts. NVFP4 stats logging is not yet supported and will be enabled in a future TransformerEngine release; FP8/MXFP8 stats logging works today.

The config file structure fp8_debugging_stats.yaml is explained in the NVIDIA Transformer Engine config file documentation in more detail.

Stats collection has a performance cost dependent on the freq parameter in the config file. freq=1 collects stats on every step which in our experiments caused a ~29% decrease in throughput (executed on a single RTX 5090). We recommend using freq>=10 to reduce this performance hit.

Sequence Packing (THD input format)

Sequence packing is handled via a padding-free collator (in collator.py) that provides input arguments (e.g. cu_seq_lens_q) needed for padding-free attention. To enable sequence packing, set use_sequence_packing=true in the hydra configuration.

python train_fsdp2.py --config-name L0_sanity use_sequence_packing=true

FP8 and Sequence Packing

To combine FP8 training with sequence packing, the number of unpadded input tokens must be a multiple of 16. The data collator will automatically pad packed sequences to the maximum number of tokens per batch.

python train_fsdp2.py --config-name L0_sanity \
  fp8_config.enabled=true \
  use_sequence_packing=true

Context Parallel Training

Context parallelism splits each sequence across multiple GPUs along the sequence dimension, enabling training with very long sequences. Use train_fsdp2_cp.py with the L0_sanity_cp configuration and set cp_size to the number of context parallelism ranks. Works with both BSHD (no padding) and THD (padding) input formats. Only TE models are supported.

torchrun --nproc_per_node=4 train_fsdp2_cp.py --config-name L0_sanity_cp cp_size=2

Downloading Pre-Training Data For Offline Training

This recipe is configured to use genomic sequences. The default configuration uses a local test file test_genomic_sequences.parquet.

For large-scale training, you can point the dataset configuration to a directory containing Parquet files or a Hugging Face dataset, e.g., for the DCLM Baseline 1.0 dataset:

hf download mlfoundations/dclm-baseline-1.0 \
 --repo-type dataset --include 'global-shard_01_of_10/*' \
 --local-dir /path/to/download/directory

python train_fsdp2.py --config-name L0_sanity \
  dataset.load_dataset_kwargs.path=/path/to/download/directory

Training on Natural Language Data (Lingua Reproduction)

We provide a configuration to reproduce the Llama-3.2-1B training experiments from Meta Lingua, using the DCLM Baseline 1.0 dataset.

To launch this training, use the L2_lingua_1b configuration:

python train_fsdp2.py --config-name L2_lingua_1b

This configuration:

• Uses the meta-llama/Llama-3-8B tokenizer (requires Hugging Face login).
• Streams the mlfoundations/dclm-baseline-1.0 dataset.
• Sets up training parameters to match the Lingua 1B baseline.

Note: Ensure you have authenticated with Hugging Face (huggingface-cli login) to access the tokenizer if it requires gated access, or update the config to use a public Llama 3 tokenizer.

Saving and Loading Checkpoints

To enable checkpoint saving, ensure that checkpoint.ckpt_dir is set to a writable directory. Checkpointing frequency is controlled by the checkpoint.save_every_n_steps configuration parameter.

python train_fsdp2.py --config-name L0_sanity \
  checkpoint.ckpt_dir=/path/to/ckpt_dir \
  checkpoint.save_every_n_steps=100

To enable checkpoint loading, set checkpoint.resume_from_checkpoint=true to resume from the latest checkpoint.

python train_fsdp2.py --config-name L0_sanity \
  checkpoint.ckpt_dir=/path/to/ckpt_dir \
  checkpoint.resume_from_checkpoint=true

We also show how to export a final model at the end of training, which is suitable for uploading to the Hugging Face Hub or for local inference as a more durable format than torch distributed checkpoints. To enable this, set checkpoint.save_final_model=true in the hydra configuration. The resulting model will be saved to the final_model directory within the checkpoint directory.

Saving Dataloader State with StatefulDataLoader

These examples show how to save and resume your dataloader by passing the dataloader instance to our save_checkpoint_* and load_checkpoint_* functions using the StatefulDataLoader class from torchdata. See checkpoint.py for implementation details.

Performance Profiling with NVIDIA Nsight Systems

This recipe includes built-in support for profiling with NVIDIA Nsight Systems, which provides detailed performance traces including CUDA kernels, CPU activities, memory operations, and NVTX ranges. The profiler allows you to specify the exact training step range to profile.

Basic Usage (Single GPU)

To profile a training run on a single GPU:

nsys profile \
  -o nsight_trace \
  --trace=cuda,nvtx,osrt,cudnn,cublas \
  --pytorch=autograd-nvtx \
  --capture-range=cudaProfilerApi \
  --capture-range-end=stop \
  python train_fsdp2.py \
    profiler.enabled=true \
    profiler.start_step=10 \
    profiler.end_step=15

Profiler Configuration Parameters:

• profiler.enabled: Enable/disable profiling (default: false)
• profiler.start_step: Training step at which to start profiling (default: 10)
• profiler.end_step: Training step at which to end profiling (default: 15)

Nsight Systems Flags:

• --pytorch=autograd-nvtx: Adds NVTX markers for PyTorch autograd operations (forward/backward passes, optimizer steps). This helps visualize the training loop structure and identify bottlenecks in the computation graph.
• --pytorch-backtrace=cuda: Captures Python backtraces for CUDA kernel launches, helping identify which Python code triggered each kernel. This is invaluable for debugging performance issues and understanding which operations are expensive.
• --python-sampling=true (optional): Periodically samples Python call stacks to identify CPU-side bottlenecks. Useful when investigating data loading, preprocessing, or Python overhead. Adds ~5-15% overhead, so only use when needed.

Note: The PyTorch-specific flags (--pytorch=autograd-nvtx and --pytorch-backtrace=cuda) add minimal overhead but provide significantly more detailed insights into PyTorch operations, making them highly recommended for training workload profiling. Use --python-sampling=true only when investigating CPU/Python performance.

The profiler will start capturing performance data at start_step and stop at end_step. It's recommended to start profiling after a few steps to allow training to stabilize.

Multi-GPU Profiling

For distributed training, profiling is only performed on global rank 0 to minimize overhead and avoid redundant data collection. Other ranks will skip profiling automatically.

Multi-GPU on Single Node

nsys profile \
  -o nsight_trace_rank0 \
  --trace=cuda,nvtx,osrt,cudnn,cublas \
  --pytorch=autograd-nvtx \
  --pytorch-backtrace=cuda \
  --capture-range=cudaProfilerApi \
  --capture-range-end=stop \
  torchrun --nproc_per_node=2 train_fsdp2.py \
    profiler.enabled=true

For more information on Nsight Systems, see the official documentation.

Running Inference with the Trained Model

Models can be loaded from the final checkpoint directory using the AutoModelForCausalLM method (or NVLlamaForCausalLM if using TE layers directly, though standard HF loading works if the config.json is updated to include an auto_map entry for modeling_llama_te.NVLlamaForCausalLM and the custom forward pass is packaged in the checkpoint directory).

If you trained with TE layers (which is the default in this recipe), you can use the NVLlamaForCausalLM class for inference, which supports high-performance generation with TE-provided InferenceParams key-value cache class.

import torch
from transformers import AutoTokenizer
from transformer_engine.pytorch.attention import InferenceParams
from modeling_llama_te import NVLlamaForCausalLM, NVLlamaConfig

# Load the model configuration and weights
config = NVLlamaConfig.from_pretrained("path/to/final_model")
model = NVLlamaForCausalLM.from_pretrained("path/to/final_model", config=config)
tokenizer = AutoTokenizer.from_pretrained("./tokenizers/nucleotide_fast_tokenizer")

model.to("cuda")
model.eval()

# Example genomic sequence
sequence = "ACGTACGT"
inputs = tokenizer(sequence, return_tensors="pt").to("cuda")

# Setup inference parameters for efficient generation
past_key_values = InferenceParams(
    max_batch_size=1,
    max_sequence_length=256,
    num_heads_kv=model.config.num_key_value_heads,
    head_dim_k=model.config.hidden_size // model.config.num_attention_heads,
    dtype=torch.bfloat16,
    qkv_format="thd",
    max_ctx_len=256,
)

for layer_number in range(1, model.config.num_hidden_layers + 1):
    past_key_values.allocate_memory(layer_number)

# Generate
with torch.no_grad():
    output_ids = model.generate(
        **inputs, max_new_tokens=16, use_cache=True, past_key_values=past_key_values
    )

generated_text = tokenizer.batch_decode(output_ids, skip_special_tokens=True)
print(generated_text)

Converting to Hugging Face Format

If you want to convert the trained TE model back to a standard Hugging Face LlamaForCausalLM (e.g., to use with vLLM or SGLang), you can use the provided conversion script in ../../models/llama3/convert.py.

import torch
from transformers import AutoTokenizer
from modeling_llama_te import NVLlamaForCausalLM, NVLlamaConfig
from convert import convert_llama_te_to_hf  # Import from ../../models/llama3/convert.py

# Load TE model
config = NVLlamaConfig.from_pretrained("path/to/final_model")
model_te = NVLlamaForCausalLM.from_pretrained("path/to/final_model", config=config)

# Convert to HF
model_hf = convert_llama_te_to_hf(model_te)

# Save HF model
model_hf.save_pretrained("path/to/hf_converted_model")
tokenizer = AutoTokenizer.from_pretrained("./tokenizers/nucleotide_fast_tokenizer")
tokenizer.save_pretrained("path/to/hf_converted_model")

Once converted, the model can be loaded by any library that supports Llama 3, such as vLLM or SGLang.

# Example vLLM usage
vllm serve path/to/hf_converted_model

Developer Guide

Running tests

To run tests locally, run recipes_local_test.py from the repository root with the recipe directory as an argument.

./ci/scripts/recipes_local_test.py recipes/llama3_native_te/

Development container

To use the provided devcontainer, use "Dev Containers: Reopen in Container" from the VSCode menu, and choose the "BioNeMo Recipes Dev Container" option. To run the tests inside the container, run pytest -v . in the recipe directory.

Hydra Tips

Hydra is a powerful configuration management library for Python. This recipe uses Hydra to manage training configurations, allowing for easy modification of training hyper-parameters and model settings.

Configuration parameters can be overridden from the command line, e.g. python train_fsdp2.py --config-name L0_sanity fp8_config.enabled=true.
