NVCA Configuration#

This page documents NVCA configuration options that apply to all deployment modes: NGC-managed, Helm-managed, and Self-hosted. Where the configuration steps differ per mode, instructions are provided for each.

For mode-specific lifecycle operations (registration, upgrades, deregistration), see:

NGC-Managed Clusters for clusters managed through the NGC UI
Helm-Managed Clusters for clusters managed through Helm values

Note

This page is being populated incrementally. Additional configuration topics (network policies, manual instance configuration, feature flag management, node selection, and more) will be consolidated here in future updates.

Advanced Settings#

Note

Some of the options below are supported only on Cluster Agent Versions 2.50.0 or higher. If you are upgrading from an older version, you must Edit Cluster Configuration from Settings page and enter the cluster specific configuration and hit Save and continue as soon as the version 2.50.0 or higher is selected from View Update Instructions

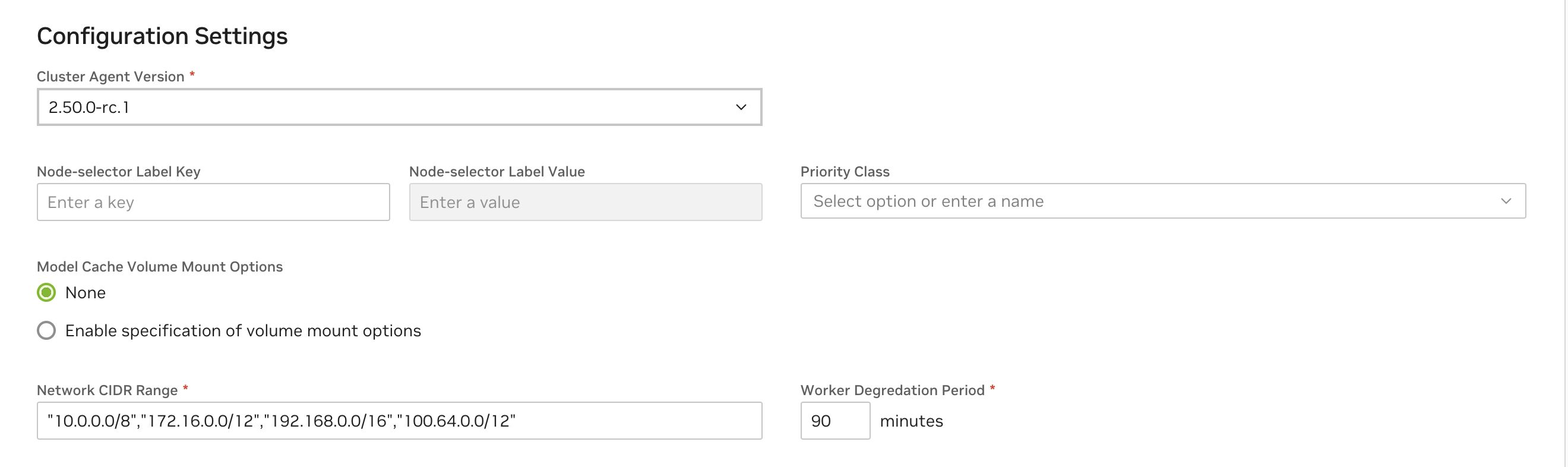

See below for descriptions of all capability options in the “Advanced Settings” section of the cluster configuration.

Configuration	Description
Cluster Agent Version	Version of the cluster agent to be installed on the cluster. Defaults to the latest available. Recommended to use the latest version available at the time of registration unless there are business reasons to pick another version.
Node Selector Key and Node Selector Value	This Key-Value pair is the label selector key to control the placement of the cluster agent and the cluster agent operator pods to specic nodes on the cluster. Not providing a value will allow these infrastructure components to be placed anywhere on the cluster. Ensure there are matching nodes in the cluster using `kubectl get node -l key=value` before registration as incorrect value will cause operational issues. For additional details: Labels & Selectors
Priority Class	Set appropriate kubernetes priority class name for cluster agent and the operator pod. Additional details: Priority Class
Model Cache Volume Mount Options	Configure the model cache volume mount options based on the CSI Driver capabilities on the cluster. Refer to the CSI Driver documentation. Defaults to `Enabled` and `ro,norecovery,nouuid` on an upgrade. Requires cluster reconfiguration after upgrade to prevent disruption. Additional details: Mount options
Network CIDR Range	Quoted & comma separated list of CIDR range for outbound network access for the infrastructure components & workloads on the cluster.
Worker Degradation Period	Stabilization time (in minutes) before cluster agent fails to consider a worker as healthy and initiates a purge.

Cluster Features#

Cluster Features allow enabling specific features on the cluster. Note that for customer-managed clusters (registered via the Cluster Agent) Dynamic GPU Discovery is enabled by default. For NVIDIA managed clusters, Collect Function Logs is also enabled by default.

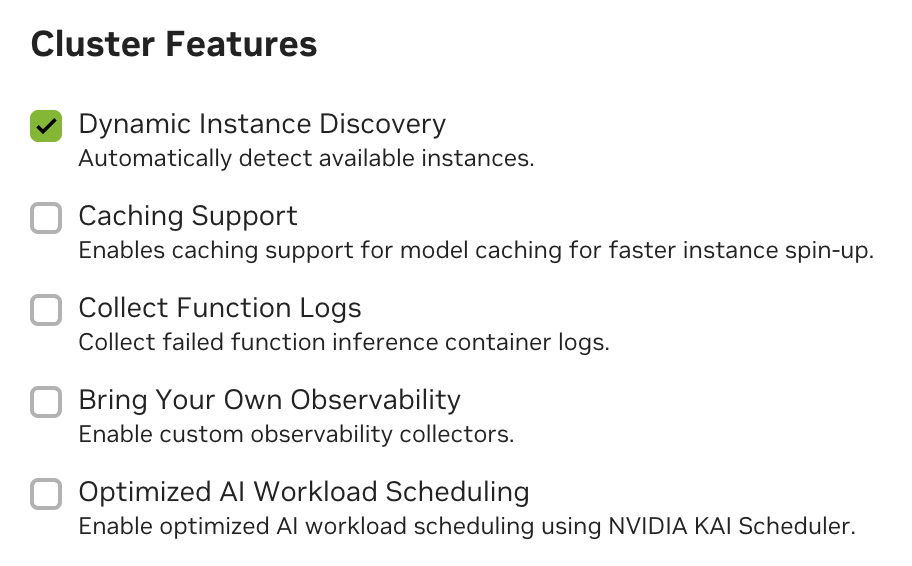

See below for descriptions of all cluster features in the cluster configuration.

Capability	Description
Dynamic GP Discovery	Enables automatic detection and management of allocatable GPU capacity within the cluster via the NVIDIA GPU Operator. This capability is strongly recommended and would only be disabled in cases where Manual Instance Configuration is required.
Collect Function Logs	This capability enables the emission of comprehensive Cluster Agent logs, which are then forwarded to the NVIDIA internal team, aiding in diagnosing and resolving issues effectively. When enabled these will not be visible in the UI, but are always available by running commands to retrieve logs directly on the cluster.
Caching Support	Enhances application performance by storing frequently accessed data (models, resources and containers) in a cache. See Caching Support.
Bring Your Own Observability	Enable support for custom observability selectors in the cluster. Additional setup details: BYOObservability
Optimized AI Workload Scheduling	Enable support for optimized AI workload scheduling using NVIDIA KAI Scheduler. Additional setup details: KAIScheduler

Note

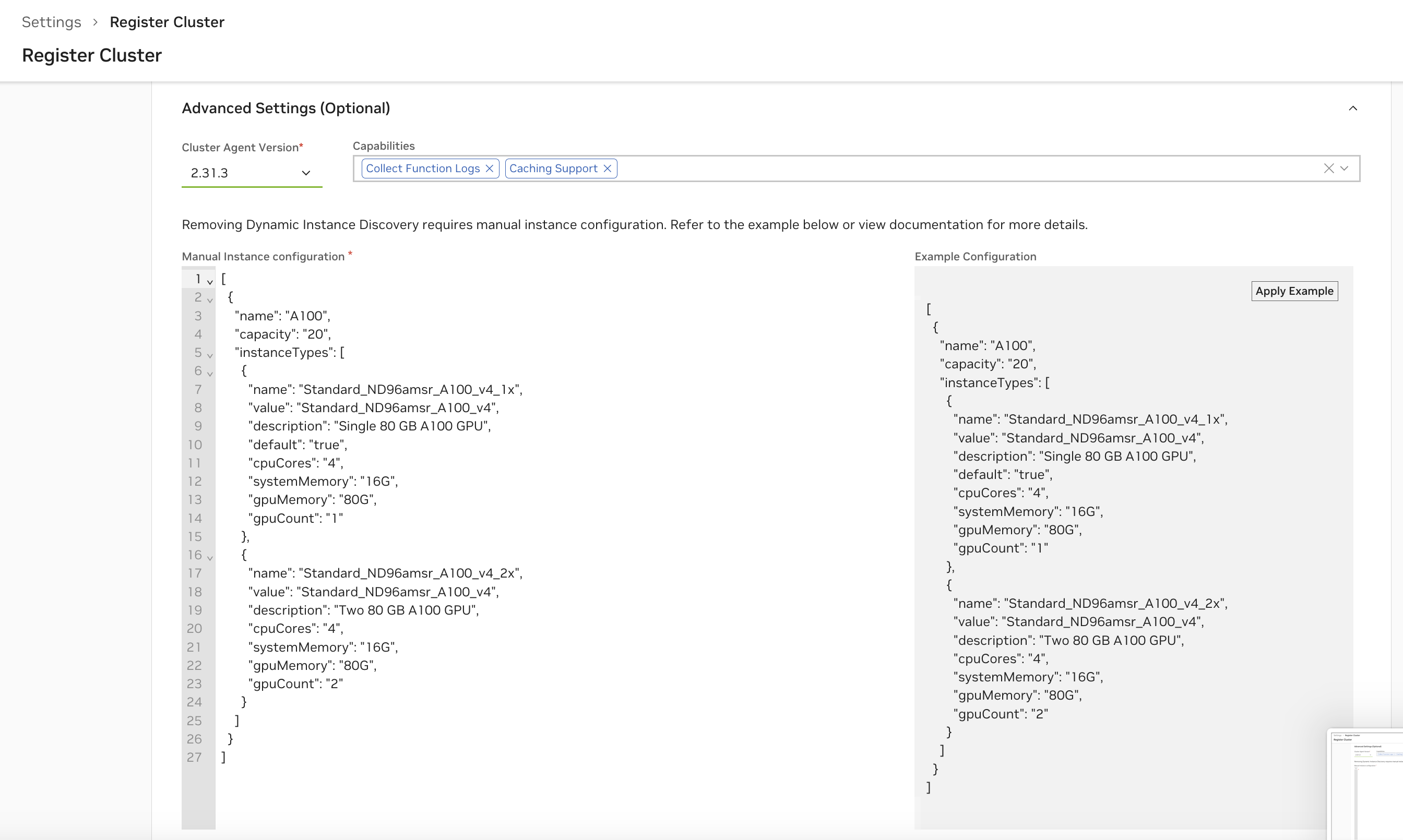

Removing the Dynamic GPU Discovery will require manual instance configuration. See Manual Instance Configuration.

Caching Support#

Enabling caching for models, resources and containers is recommended for optimal performance. You must create StorageClass configurations for caching within your cluster to fully enable “Caching Support” with the Cluster Agent. See examples below.

Note

Caching is currently not supported for AWS EKS.

StorageClass Configurations in GCP

nvcf-sc.yaml#

kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
    name: nvcf-sc
provisioner: pd.csi.storage.gke.io
allowVolumeExpansion: true
volumeBindingMode: Immediate
reclaimPolicy: Retain
parameters:
    type: pd-ssd
    csi.storage.k8s.io/fstype: xfs

nvcf-cc-sc.yaml#

kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
    name: nvcf-cc-sc
provisioner: pd.csi.storage.gke.io
allowVolumeExpansion: true
volumeBindingMode: Immediate
reclaimPolicy: Retain
parameters:
    type: pd-ssd
    csi.storage.k8s.io/fstype: xfs

Note

GCP currently allows only 10 VM’s to mount a Persistent Volume in Read-Only mode.

StorageClass Configurations in Azure

nvcf-sc.yaml#

kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
    name: nvcf-sc
provisioner: file.csi.azure.com
allowVolumeExpansion: true
volumeBindingMode: Immediate
reclaimPolicy: Retain
parameters:
    skuName: Standard_LRS
    csi.storage.k8s.io/fstype: xfs

nvcf-cc-sc.yaml#

kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
    name: nvcf-cc-sc
provisioner: file.csi.azure.com
allowVolumeExpansion: true
volumeBindingMode: Immediate
reclaimPolicy: Retain
parameters:
    skuName: Standard_LRS
    csi.storage.k8s.io/fstype: xfs

StorageClass Configurations in Oracle Cloud

nvcf-sc.yaml#

kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
  name: nvcf-sc
provisioner: blockvolume.csi.oraclecloud.com
allowVolumeExpansion: true
volumeBindingMode: Immediate
reclaimPolicy: Retain
parameters:
  csi.storage.k8s.io/fstype: xfs

nvcf-cc-sc.yaml#

kind: StorageClass
apiVersion: storage.k8s.io/v1
metadata:
  name: nvcf-cc-sc
provisioner: blockvolume.csi.oraclecloud.com
allowVolumeExpansion: true
volumeBindingMode: Immediate
reclaimPolicy: Retain
parameters:
  csi.storage.k8s.io/fstype: xfs

Apply the StorageClass Configurations

Save the StorageClass template to files nvcf-sc.yaml and nvcf-cc-sc.yaml and apply them as:

kubectl create -f nvcf-sc.yaml
kubectl create -f nvcf-cc-sc.yaml

Override the Default Mount Options for Cache Volumes

Note

Supported in Cluster Agent Versions 2.45.21 or higher

Warning

Please note this is a Post NVCA Install Operation and needs careful consideration to ensure there are no volume corruptions. Use with caution.

Cluster Agent with caching support by default will enable linux mount-options with ro,norecovery,nouuid.

If the CSI Driver in the cluster doesn’t support mount options then you may apply the following command on the cluster to disable the mount options

nvcf_cluster_name="$(kubectl get nvcfbackends -n nvca-operator -o name | cut -d'/' -f2)"
kubectl patch nvcfbackend -n nvca-operator "$nvcf_cluster_name" --type=merge -p '{"spec":{"overrides":{"featureGate":{"cacheCSIVolumeMountOptionsConfig":{"disabled":true}}}}}'

If you want to update the mount-options to a different value for example: ro,norecovery. You may use the following command. Replace these options with desired value as dictated by CSI Driver Volume Mount Options.

nvcf_cluster_name="$(kubectl get nvcfbackends -n nvca-operator -o name | cut -d'/' -f2)"
kubectl patch nvcfbackend -n nvca-operator "$nvcf_cluster_name" --type=merge -p '{"spec":{"overrides":{"featureGate":{"cacheCSIVolumeMountOptionsConfig":{"disabled":false}}}}}'
kubectl patch nvcfbackend -n nvca-operator "$nvcf_cluster_name" --type=merge -p '{"spec":{"overrides":{"featureGate":{"cacheCSIVolumeMountOptionsConfig":{"mountOptions":"ro,norecovery"}}}}}'

Account-Isolated Clusters#

Note

Supported in Cluster Agent Versions 2.49.0 or higher

Clusters with the AccountIsolation attribute have enhanced isolation between workloads, ensuring that function and task instances run on nodes isolated by NCAId. This is particularly important for customers with strict security requirements or those who want to ensure complete separation of workloads at the account level.

Warning

In Account Isolated mode, the cluster might be inefficient in GPU utilization if workloads are not designed to utilize the full capacity of the isolated nodes. While toggling this attribute, the cluster workloads also have to be drained using CordonAndDrainMaintenance mode to effectively re-balance the workloads as the attribute will not be applied retroactively.

NVLink-optimized Clusters#

Clusters with MNNVL GPUs like GB200 can run multi-node workloads that require inter-GPU data transfer with large performance improvements when properly configured. The Cluster Agent can be directed to configure multi-node workloads with their own ComputeDomains automatically to optimize inter-GPU connections.

Additional prerequisites: - The NVIDIA GPU DRA driver must be installed. - The NVLinkOptimized cluster attribute must be added during cluster registration.

Warning

In NVLink-optimized mode, the NVIDIA GPU DRA driver currently limits one GPU-enabled Pod to a node. To optimally utilize these clusters, GPU-enabled Pods _should_ request a full Node’s worth of GPUs. For example, Nodes in GB200 clusters have 4 GPUs each so all containers and all GPU-enabled Pods in a workload must request nvidia.com/gpu’s that sum to 4.

Kata Container-Isolated Workloads#

Clusters that have this attribute run all function/task Pods in Kata Containers without exception.

Additional cluster restrictions to be aware of:

Pod containers _must_ at least have resource limits defined for cpu and memory. If unset, runtime behavior is undefined.
Object count limits are configured for resource fairness in these clusters:
- ConfigMaps: 20
- Secrets: 20
- Services: 20
- Pods: 100
- Jobs: 10
- CronJobs: 10
- Deployments: 10
- ReplicaSets: 10
- StatefulSets: 10

Network Configuration#

Warning

The network policies described in this section are only enforced if your cluster’s Container Network Interface (CNI) supports Kubernetes Network Policies. Common CNIs that support network policies include:

Calico
Cilium
Weave Net
Antrea

If your cluster uses a CNI that doesn’t support network policies, the security controls described below will not be enforced, and pods will be able to communicate with each other without restrictions. This could lead to security vulnerabilities.

The NVCA operator requires outbound network connectivity to pull images, charts, and report logs and metrics. During installation, the operator pre-configures the nvca-namespace-networkpolicies configmap with the following network policies:

Policy Name	Description
allow-egress-gxcache	Allows egress traffic to the GX Cache namespace for caching operations (only relevant for NVIDIA managed clusters)
allow-egress-internet-no- internal-no-api	Allows egress traffic to the public internet (0.0.0.0/0) but blocks traffic to common private IP ranges. Also allows DNS resolution via kube-dns.
allow-egress-intra-namespace	Controls pod-to-pod communication within the same namespace. This policy is only applied to function namespaces and not to shared pod instance namespaces.
allow-egress-nvcf-cache	Allows egress traffic to NVCF cache services (only relevant for NVIDIA managed clusters)
allow-egress-prometheus- nvcf-byoo	Allows egress traffic to Prometheus monitoring endpoints (only relevant for NVIDIA managed clusters)
allow-ingress-monitoring	Allows ingress traffic for monitoring services
allow-ingress-monitoring-dcgm	Allows ingress traffic for DCGM monitoring
allow-ingress-monitoring- gxcache	Allows ingress traffic for GX Cache monitoring (only relevant for NVIDIA managed clusters)

Key Network Requirements#

Kubernetes API Access

NVCA requires access to the Kubernetes API

Consult your cloud provider’s documentation (e.g., Azure, AWS, GCP) for the Kubernetes API endpoint

Container Registry and NVCF Control Plane Access

Access to nvcr.io and helm.ngc.nvidia.com is required to pull container images, resources, and helm charts.

NVCA requires access to NVIDIA control plane services for coordination of functions and task deployments and invocation, this includes:

connect.pnats.nvcf.nvidia.com

grpc.api.nvcf.nvidia.com

*.api.nvcf.nvidia.com

sqs.*.amazonaws.com

spot.gdn.nvidia.com

ess.ngc.nvidia.com

api.ngc.nvidia.com

Monitoring and Logging

If your environment requires advanced monitoring or logging (e.g., sending logs to external endpoints), ensure your cluster’s NetworkPolicy or firewall rules allow egress to the required monitoring/logging domains

Network Policy Customization via ConfigMap#

The NVCA operator pre-configures the nvca-namespace-networkpolicies configmap during installation. If you need to customize these policies for your cluster, you can use a configmap to override the default policies.

To customize a network policy:

Create a configmap with your custom network policy, for example:

patchcm.yaml#

apiVersion: v1
kind: ConfigMap
metadata:
  name: demopatch-configmap
  namespace: nvca-operator
  labels:
    nvca.nvcf.nvidia.io/operator-kustomization: enabled
data:
  patches: |
    - target:
        group: ""
        version: v1
        kind: ConfigMap
        name: nvca-namespace-networkpolicies
      patch: |-
        - op: replace
          path: /data/allow-egress-internet-no-internal-no-api
          value: |
            apiVersion: networking.k8s.io/v1
            kind: NetworkPolicy
            metadata:
              name: allow-egress-internet-no-internal-no-api
              labels:
                app.kubernetes.io/name: nvca
                app.kubernetes.io/instance: nvca
                app.kubernetes.io/version: "1.0"
                app.kubernetes.io/managed-by: nvca-operator
            spec:
              podSelector: {}
              policyTypes:
                - Egress
              egress:
                - to:
                  - namespaceSelector: {}
                    podSelector:
                      matchLabels:
                        k8s-app: kube-dns
                - to:
                  - namespaceSelector:
                      matchLabels:
                        kubernetes.io/metadata.name: gxcache
                  ports:
                    - port: 8888
                      protocol: TCP
                    - port: 8889
                      protocol: TCP

Apply the configmap:
```
1kubectl apply -f patchcm.yaml
```
Verify the changes:
```
1kubectl logs -n nvca-operator -l app.kubernetes.io/name=nvca-operator
```
You should see a message indicating successful patching: configmap patched successfully

The changes will be applied to the nvcf-backend namespace and will be used for all new namespaces’ network policies. The network policies will also be updated across all helm chart namespaces.

Network Policy Customization via clusterNetworkCIDRs Flag#

You can customize the allow-egress-internet-no-internal-no-api policy with helm, by adding on the networkPolicy.clusterNetworkCIDRs flag. For example:

helm upgrade nvca-operator -n nvca-operator --create-namespace -i --reuse-values --wait "https://helm.stg.ngc.nvidia.com/nvidia/nvcf-byoc/charts/nvca-operator-1.14.0.tgz" --username='$oauthtoken' --password=$(helm get values -n nvca-operator nvca-operator -o json | jq -r '.ngcConfig.serviceKey') --set networkPolicy.clusterNetworkCIDRs="{10.0.0.0/8,172.16.0.0/12,192.168.0.0/16,100.64.0.0/12}"

This command will override the default k8s networking CIDRs specified in the allow-egress-internet-no-internal-no-api with your input.

Advanced: Additional Configuration Options#

CSI Volume Mount Options#

The NVIDIA Cluster Agent supports customizing CSI volume mount options for caching. This allows you to configure specific mount options for the CSI volumes used in your cluster.

Warning

CSI volume mount options configuration is an experimental feature and may be subject to change in future releases.

To configure CSI volume mount options:

Get the NVCF cluster name:

nvcf_cluster_name="$(kubectl get nvcfbackends -n nvca-operator -o name | cut -d'/' -f2)"

View current mount options configuration:

kubectl get nvcfbackend -n nvca-operator "$nvcf_cluster_name" -o yaml | grep -A 5 "cacheCSIVolumeMountOptionsConfig"

Set mount options (example):

kubectl patch nvcfbackends.nvcf.nvidia.io -n nvca-operator "$nvcf_cluster_name" --type='json' -p='[{"op": "replace", "path": "/spec/overrides/featureGate/cacheCSIVolumeMountOptionsConfig", "value": {"disabled": false, "mountOptions": "ro,norecovery,nouuid"}}]'

Verify the changes:

kubectl get nvcfbackend -n nvca-operator "$nvcf_cluster_name" -o yaml | grep -A 5 "cacheCSIVolumeMountOptionsConfig"

The default mount options are: - ro: Read-only mount - norecovery: Skip journal recovery - nouuid: Ignore filesystem UUID

You can modify these options based on your specific requirements. The configuration will be applied to all CSI volumes created by the NVIDIA Cluster Agent for caching purposes.

Node Selection for Cloud Functions#

By default, the cluster agent uses all nodes discovered with GPU resources to schedule Cloud Functions and there are no additional configuration required.

In order to limit the nodes that can run Cloud Functions, you may use nvca.nvcf.nvidia.io/schedule=true label on the specific nodes.

If there are no nodes in the cluster with the nvca.nvcf.nvidia.io/schedule=true label set, the cluster agent will switch to the default behavior of using all nodes with GPUs.

For example, to mark specific nodes as schedulable in a cluster:

kubectl label node <node-name> nvca.nvcf.nvidia.io/schedule=true

To mark a single node from the above set as unschedulable for nvcf workloads, you can unlabel using:

kubectl label node <node-name> nvca.nvcf.nvidia.io/schedule-

GPU Product Name Override#

The NVIDIA Cluster Agent supports GPU product name override via node label. This is useful for customers who want to use a custom product name or override the default GPU product name.

For example, to set the GPU product name for a node, use the following command:

kubectl label node <node-name> nvca.nvcf.nvidia.io/gpu.product=<product-name>

Note: The GPU Product Name Override via node labeling only takes effect when there are no pre-existing active instances in the cluster. If active instances already exist with the original GPU instance types, the override will not be applied.

Managing Feature Flags#

The NVIDIA Cluster Agent supports various feature flags that can be enabled or disabled to customize its behavior. The following are some commonly used feature flags:

Feature Flag	Description
DynamicGPUDiscovery	Dynamically discover GPUs and instance types on this cluster. This is enabled by default for customer-managed clusters.
HelmSharedStorage	Configure Helm functions and tasks with shared read-only storage for ESS secrets. This is required for enabling Helm-based tasks in your cluster. Please note turning on this feature flag requires additional configuration, see Helm Shared Storage section below.
LogPosting	Post instance logs to SIS directly. This is enabled by default for NVIDIA managed clusters.
MultiNodeWorkloads	Instruct NVCA to report multi-node instance types to SIS during registration.
SelfHosted	Enables local vault-based authentication for self-hosted deployments. Required when `ngcConfig.clusterSource` is `self-managed`.

Setting Feature Flags at Install Time#

Feature flags can be set during the initial NVCA Operator installation through Helm values. The mechanism differs by deployment mode.

Verifying Feature Flags#

After installing or upgrading, verify the active feature flags:

nvcf_cluster_name="$(kubectl get nvcfbackends -n nvca-operator -o name | cut -d'/' -f2)"
kubectl get nvcfbackends -n nvca-operator "$nvcf_cluster_name" -o jsonpath='{.spec.featureGate.values}' && echo ""

The NVCA agent pod command-line args also reflect the active flags:

kubectl get pods -n nvca-system -o yaml | grep -i feature

Modifying Feature Flags at Runtime#

For NGC-managed and Helm-managed clusters, feature flags can also be modified at runtime by patching the NVCFBackend resource directly. This is useful for quick changes without running a helm upgrade.

Note

For self-managed (standalone or helmfile) clusters, prefer helm upgrade with updated values to change feature flags. Direct patches to the NVCFBackend will be overwritten on the next Helm upgrade.

Get the NVCF cluster name:

nvcf_cluster_name="$(kubectl get nvcfbackends -n nvca-operator -o name | cut -d'/' -f2)"

View current feature flags:

kubectl get nvcfbackends -n nvca-operator -o yaml | grep -A 5 "featureGate:"

Patch the feature flags. Note that this will override all feature flags.

Warning

When modifying feature flags, you must preserve any existing feature flags you want to keep. The patch command will override all feature flags, so you need to include all desired feature flags in the value array.

kubectl patch nvcfbackends.nvcf.nvidia.io -n nvca-operator "$nvcf_cluster_name" --type=merge -p '{"spec":{"overrides":{"featureGate":{"values":["LogPosting","CachingSupport"]}}}}'

As an alternative to the patch command, you can also modify the feature flags using the edit command:

kubectl edit nvcfbackend -n nvca-operator
...
spec:
  featureGate:
    values:
    - LogPosting                # Existing feature flag
  overrides:
    featureGate:
      values:
      - LogPosting              # Existing feature flag copied over
      - -CachingSupport         # Caching support disabled
      ...

Verify the changes:

kubectl get pods -n nvca-system -o yaml | grep -i feature

Enable Helm Shared Storage#

The NVIDIA Cluster Agent supports shared storage for Helm charts through the SMB CSI driver. This feature is required for enabling Helm-based tasks in your cluster.

Note

The Helm shared storage feature must be enabled before you can use Helm-based tasks in your cluster. This feature provides the necessary storage infrastructure for Helm chart operations.

Warning

When enabling the Helm shared storage feature flag, you must preserve any existing feature flags. The patch command will override all feature flags, so you need to include all desired feature flags in the value array. If you already have other feature flags enabled, you should include them along with “HelmSharedStorage” in the value array.

First, install the SMB CSI driver using Helm:

helm repo add csi-driver-smb https://raw.githubusercontent.com/kubernetes-csi/csi-driver-smb/master/charts
helm install csi-driver-smb csi-driver-smb/csi-driver-smb --namespace kube-system --version v1.16.0

Get the NVCF cluster name:

nvcf_cluster_name="$(kubectl get nvcfbackends -n nvca-operator -o name | cut -d'/' -f2)"

Enable the Helm shared storage feature flag:

kubectl patch nvcfbackends.nvcf.nvidia.io -n nvca-operator "$nvcf_cluster_name" --type=merge -p '{"spec":{"overrides":{"featureGate":{"values":["LogPosting","HelmSharedStorage", "CachingSupport"]}}}}'

Verify that the feature flag is enabled:

kubectl get pods -n nvca-system -o yaml | grep HelmSharedStorage

Agent Config Merging#

The NVIDIA Cluster Agent supports merging custom configuration into the generated NVCA config via the agentConfig.mergeConfig Helm value. This allows you to override or extend NVCA runtime settings without modifying the operator’s config generation logic.

When agentConfig.mergeConfig is set, the Helm chart creates a ConfigMap called agent-config-merge containing the provided YAML. This ConfigMap is mounted into the NVCA pod and merged with the generated config at runtime.

Example values.yaml:

agentConfig:
  mergeConfig: |
    agent:
      logLevel: debug

Apply via Helm:

helm upgrade nvca-operator -n nvca-operator --create-namespace -i \
  <chart-reference> \
  --set-file agentConfig.mergeConfig=my-nvca-config.yaml

Or include it in a values file passed to helm upgrade -f values.yaml.

Manual Instance Configuration#

Warning

It is highly recommended to rely on Dynamic GPU Discovery (and therefore the NVIDIA GPU Operator), as manual instance configuration is error-prone.

This type of configuration is only necessary when the cluster cloud provider does not support the NVIDIA GPU Operator.

Manual instance configuration allows you to disable Dynamic GPU Discovery and instead provide a static list of instance types that NVCA will register with the NVCF control plane. This is useful when:

You have a known, fixed set of GPU configurations
Dynamic GPU discovery isn’t working correctly for your environment
You want to control exactly which instance types are available

By default, NVCA uses Dynamic GPU Discovery to automatically detect GPUs on cluster nodes and register appropriate instance types. When this is disabled, NVCA instead reads a static GPU configuration from a ConfigMap.

Note

NGC-managed clusters: You can also configure manual instances through the NGC UI by unchecking “Dynamic GPU Discovery” in the Cluster Features section during registration or reconfiguration. The UI will present a configuration editor.

../_images/cluster-setup-advanced-configuration.png

Prerequisites#

A working NVCF cluster with nvca-operator installed
Access to modify Helm values for nvca-operator
Since you are not using the GPU Operator, you must ensure each GPU node has the instance-type label that matches the “value” field in your manual configuration:
```
kubectl label nodes <node-name> nvca.nvcf.nvidia.io/instance-type=<instance-type-value>
```
For example, if your configuration specifies "value": "OCI.GPU.A10", you would label the node with:
```
kubectl label nodes gpu-node-1 nvca.nvcf.nvidia.io/instance-type=OCI.GPU.A10
```

Step 1: Create the GPU Configuration JSON#

Create a JSON file defining your GPU types and instance configurations. The configuration is an array of GPU types, each containing an array of instance types.

Example Configuration (gpu-config.json):

[
    {
        "name": "H100",
        "capacity": 8,
        "instanceTypes": [
            {
                "name": "ON-PREM.GPU.H100_1x",
                "value": "ON-PREM.GPU.H100",
                "description": "One Nvidia Hopper GPU",
                "default": true,
                "cpuCores": 16,
                "systemMemory": "128G",
                "gpuMemory": "80G",
                "gpuCount": 1,
                "os": "linux",
                "driverVersion": "535.135.05",
                "cpuArch": "amd64",
                "storage": "1Ti"
            },
            {
                "name": "ON-PREM.GPU.H100_8x",
                "value": "ON-PREM.GPU.H100",
                "description": "Eight Nvidia Hopper GPUs (Full Node)",
                "default": false,
                "cpuCores": 128,
                "systemMemory": "1Ti",
                "gpuMemory": "640G",
                "gpuCount": 8,
                "os": "linux",
                "driverVersion": "535.135.05",
                "cpuArch": "amd64",
                "storage": "8Ti"
            }
        ]
    }
]

Step 2: Base64 Encode the Configuration#

The GPU configuration must be Base64-encoded for the Helm values. Use the following command:

# Base64 encode the configuration (without line wrapping)
GPU_CONFIG_B64=$(cat gpu-config.json | base64 -w 0)
echo $GPU_CONFIG_B64

Note

On macOS, use base64 without the -w 0 flag:

GPU_CONFIG_B64=$(cat gpu-config.json | base64)

Step 3: Configure Helm Values#

Update your nvca-operator Helm values to disable Dynamic GPU Discovery and provide the manual configuration. The values path depends on your cluster source mode.

Self-Managed (self-hosted NVCF)

For self-hosted deployments where ngcConfig.clusterSource is self-managed, use the selfManaged values:

Example values.yaml:

selfManaged:
  # Disable dynamic GPU discovery
  featureGateValues: []

  # Your Base64-encoded GPU configuration
  gpuManualInstanceConfigB64: "<your-base64-encoded-config>"

Note

By default selfManaged.featureGateValues is ["DynamicGPUDiscovery"]. Set it to an empty list ([]) to disable dynamic discovery and use your manual configuration instead.

Helm-Managed (cloud NVCF)

For cloud-managed deployments where ngcConfig.clusterSource is helm-managed, use the helmManaged values:

Example values.yaml:

ngcConfig:
  clusterSource: "helm-managed"

helmManaged:
  cloudProvider: "on-prem"
  clusterRegion: "us-west-1"
  clusterGroupID: "your-group-id"
  clusterGroupName: "your-group-name"
  nvcaVersion: "2.97.0"

  # Disable dynamic GPU discovery
  featureGateValues:
    - "-DynamicGPUDiscovery"

  # Your Base64-encoded GPU configuration
  gpuManualInstanceConfigB64: "<your-base64-encoded-config>"

Note

For helm-managed, the feature gate is disabled by prefixing with - (i.e. "-DynamicGPUDiscovery"). For self-managed, set the list to [] instead.

Step 4: Install or Upgrade the Operator#

Apply the configuration using Helm:

helm upgrade nvca-operator -n nvca-operator --create-namespace -i \
  <chart-reference> \
  -f values.yaml

If you are using the NVCF self-hosted Helmfile, add your values file as an entry in the nvca-operator release values: list and run helmfile sync or helmfile apply instead.

Configuration Fields Reference#

GPU Type Fields:

Field	Required	Description
`name`	Yes	GPU type name (e.g., “A100”, “L40”, “H100”). Must match the GPU product name reported by `nvidia-smi`.
`capacity`	No	Total GPU capacity for this type. Used for resource accounting and quota management.
`instanceTypes`	Yes	Array of instance type configurations for this GPU type.

Instance Type Fields:

Field	Required	Description
`name`	Yes	Unique instance type identifier (e.g., “ON-PREM.GPU.H100_1x”). This is the name users select when deploying functions.
`value`	Yes	Instance type value used for internal matching (e.g., “ON-PREM.GPU.H100”). Must match the `nvca.nvcf.nvidia.io/instance-type` node label.
`description`	No	Human-readable description displayed in the UI.
`default`	No	Whether this is the default instance type for this GPU. Only one instance type per GPU should be marked as default.
`cpuCores`	Yes	Number of CPU cores allocated to workloads using this instance type.
`systemMemory`	Yes	System RAM allocation (e.g., “28G”, “128G”, “1Ti”). Uses Kubernetes quantity format.
`gpuMemory`	Yes	Total GPU memory for this instance type. For multi-GPU instances, this is the total across all GPUs.
`gpuCount`	Yes	Number of GPUs in this instance type.
`os`	No	Operating system (e.g., “linux”).
`driverVersion`	No	NVIDIA driver version (e.g., “535.135.05”).
`cpuArch`	No	CPU architecture (e.g., “amd64”, “arm64”).
`storage`	No	Storage allocation per instance (e.g., “512Gi”, “1Ti”). Uses Kubernetes quantity format.

Verification#

After applying the configuration, verify that NVCA is using the static configuration:

Check the NVCFBackend resource:
```
kubectl get nvcfbackend -n nvca-operator -o yaml
```
Look for -DynamicGPUDiscovery in the feature gates and verify the GPU configuration is present.
Check the nvca-config ConfigMap:
```
kubectl get configmap nvca-config -n nvca-system -o yaml
```
The gpus key should contain your JSON configuration.

Check NVCA logs for registration:

kubectl logs -n nvca-system -l app=nvca | grep -i "registration\|instance"

Troubleshooting#

Configuration Not Applied:

Verify Dynamic GPU Discovery is disabled in the feature gate values
Ensure the Base64 encoding is correct and doesn’t contain line breaks
Check that the JSON is valid before encoding

Invalid JSON Format:

Validate your JSON using a JSON validator before encoding
Ensure all required fields are present
Check that numeric values (cpuCores, gpuCount) are not quoted as strings

Memory/Storage Format Errors:

Memory and storage values must use valid Kubernetes quantity format:

Valid: "28G", "128Gi", "1Ti", "512Mi"
Invalid: "28GB", "128 Gi", "1TB"

Note

Use G or Gi for gigabytes, T or Ti for terabytes. The i suffix indicates binary units (1024-based).

Cloud Provider-Specific Notes#

Oracle Cloud Infrastructure (OCI)#

When using Oracle Container Engine for Kubernetes (OKE), ensure that:

Your compute nodes and GPU nodes are in the same availability domain
This is required for proper network connectivity between the NVIDIA Cluster Agent and GPU nodes
Flannel CNI is the current recommended and validated CNI vs OCI native CNI for OKE cluster networking.

AWS#

When using AWS EKS, note that the following limitations exist:

Caching is currently not supported
