WholeMemory implementation details

WholeMemory has two storage locations and four address-mapping types. Not every combination is supported by every communicator, topology, CUDA version, and communication backend. Use wholememory_communicator_support_type_location before selecting a configuration.

Type	Location	Allocation	Mapping
Continuous	Device	Each rank	One continuous device virtual-address range
Continuous	Host	Shared pinned host allocation	One continuous mapped range
Chunked	Device	Each rank	One CUDA IPC-mapped chunk per rank
Chunked	Host	Shared pinned host allocation	One mapped chunk per rank
Distributed	Device or host	Each rank	Only the local partition is mapped
Hierarchy	Device or host, when supported	Each rank	Local and cross-communicator hierarchy

Continuous and chunked allocations are mapped allocations. Distributed allocations rely on explicit communication for non-local data. Hierarchy allocations divide communication into local and cross groups so operations can use topology-aware paths.

WholeMemory Layout

Because one WholeMemory object can span several GPUs, WholeGraph partitions it across communicator ranks. Each rank owns one continuous portion of the allocation. The portion can reside in device memory, pinned host memory, or a peer-accessible device allocation. A caller can specify data granularity so a logical record is never split between partitions.

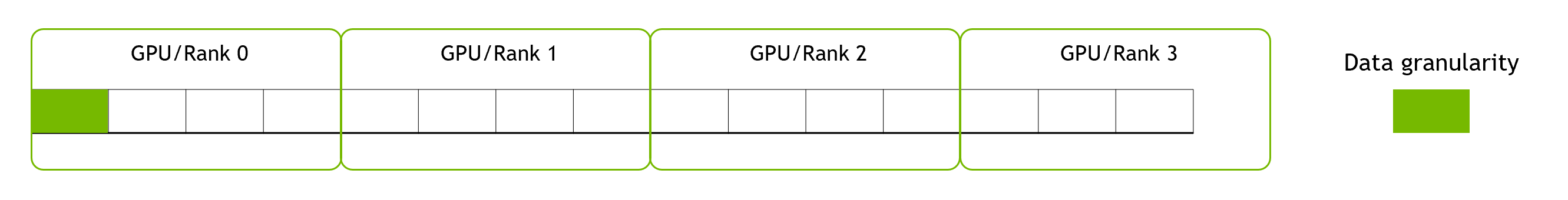

The following figure shows 15 data blocks distributed over four GPUs.

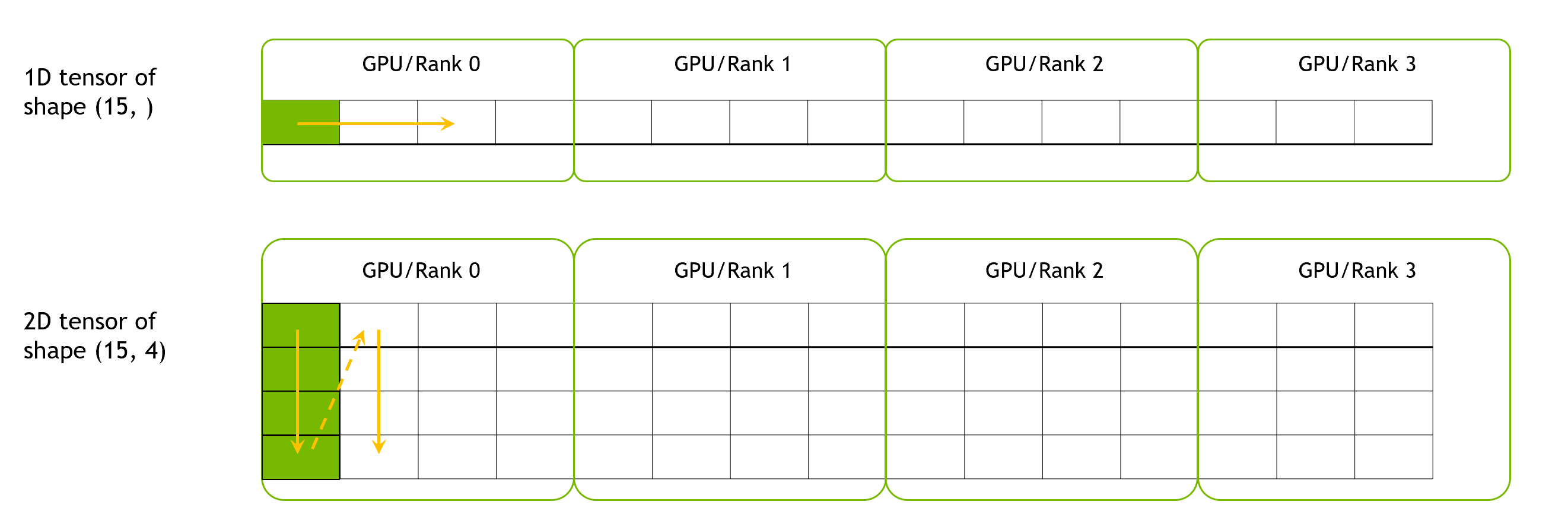

WholeMemory tensor descriptions support up to eight dimensions in 26.10. The first dimension is partitioned across ranks. The following two-dimensional example uses one row as its data granularity:

WholeMemory Allocation

The following sections describe the allocation process for the supported memory-type and location combinations.

Device Continuous WholeMemory

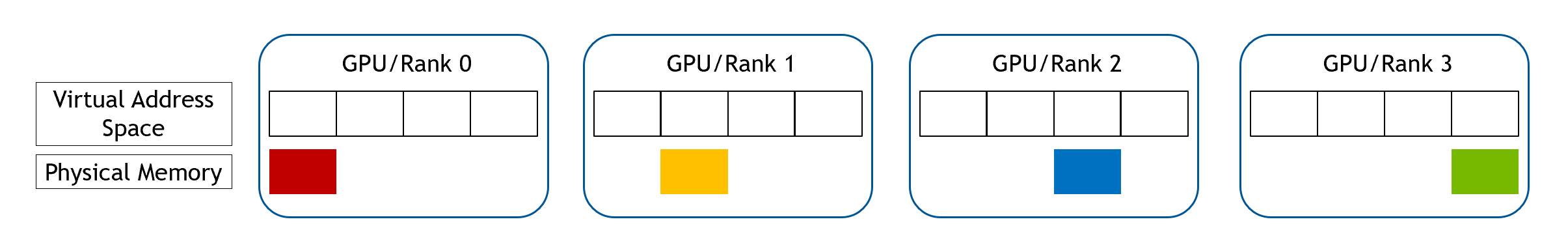

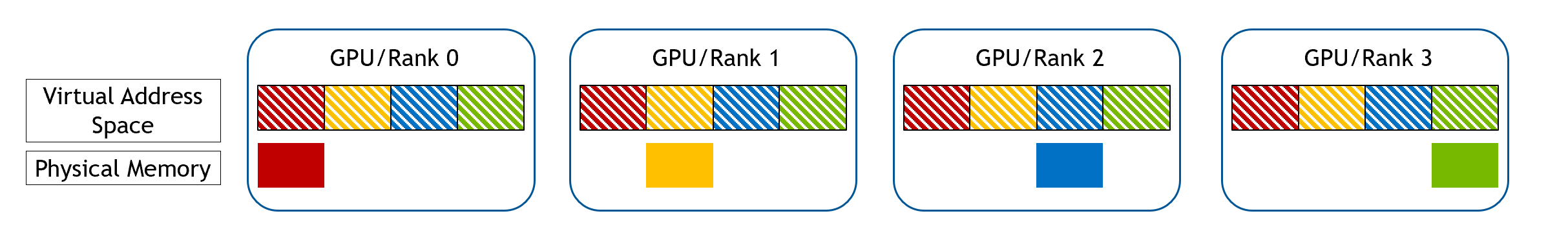

For device continuous WholeMemory, a virtual-address range covering the entire allocation is first reserved on each GPU. Each GPU then allocates its physical portion: Each GPU exchanges memory handles and maps every portion into the reserved address range:

Device Chunked WholeMemory

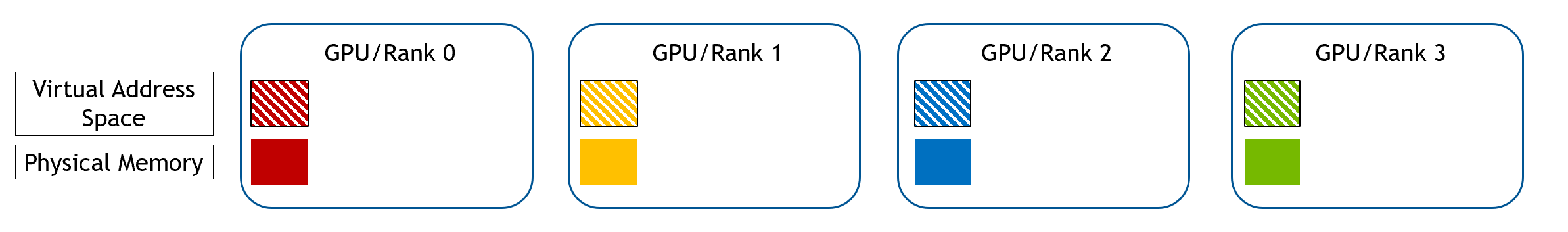

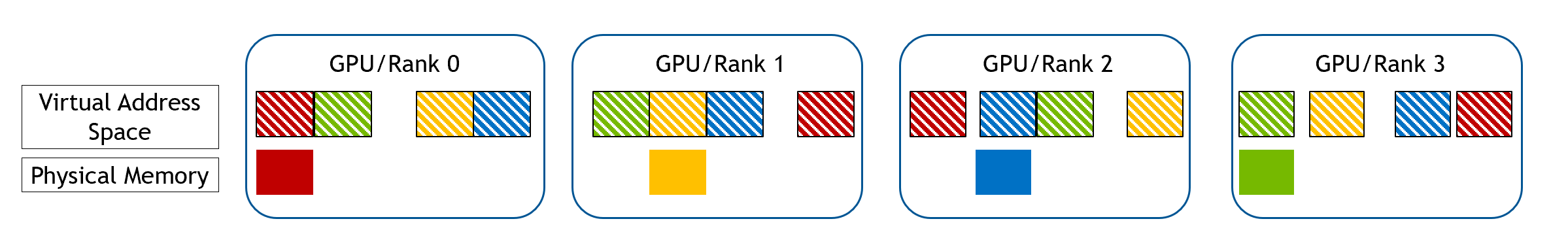

For device chunked WholeMemory, each GPU allocates its local portion with the CUDA runtime: Each GPU exchanges CUDA IPC handles and maps one chunk for every peer:

Host Mapped WholeMemory

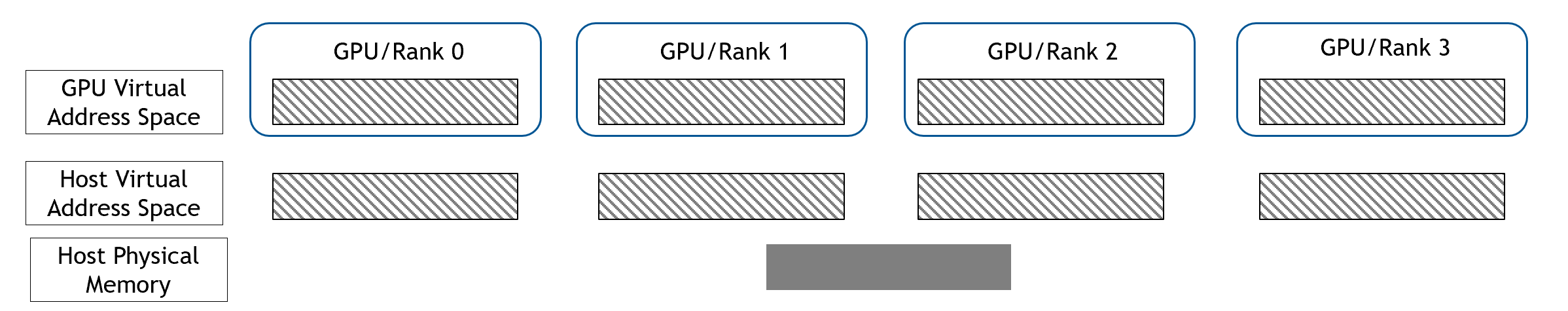

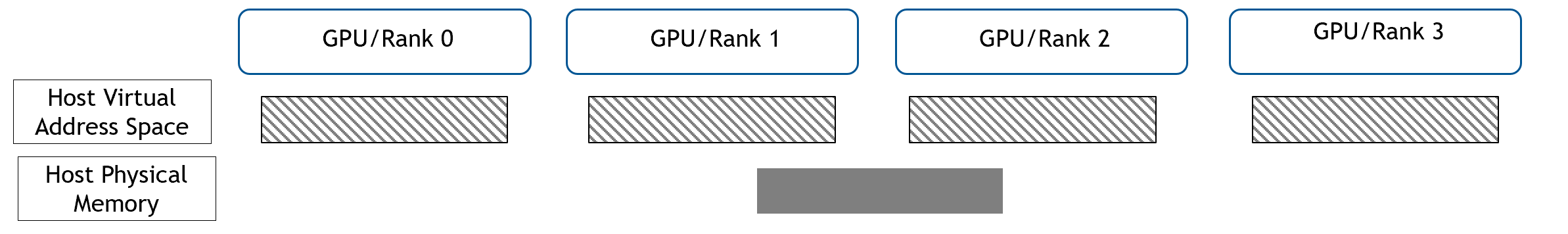

Host continuous and host chunked allocations use the same shared pinned-memory allocation: Each rank then registers the host allocation in its GPU address space:

Distributed WholeMemory

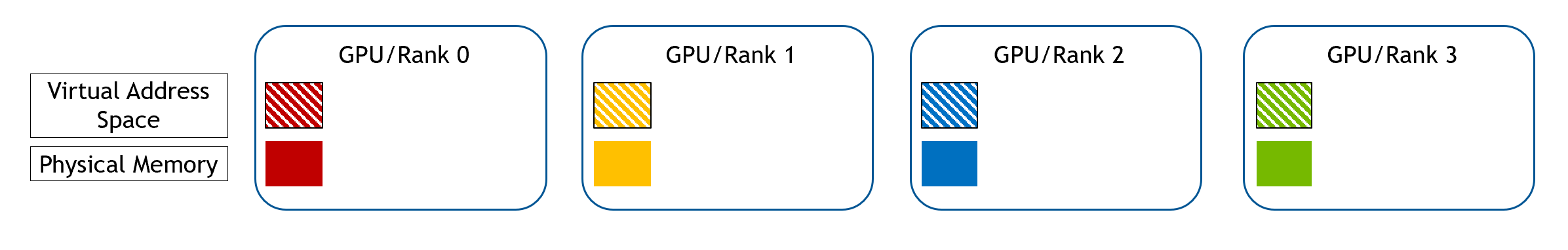

For distributed WholeMemory, each GPU allocates only its local portion. Remote access uses explicit communication.

Hierarchy WholeMemory

Hierarchy WholeMemory creates a local communicator for ranks in the same topology domain and a cross communicator between domains. Gather operations can route indices and data through those two levels. Capability and backend restrictions are exposed by the 26.10 API and should be checked at runtime.
