Getting Started

This document provides instructions, including pre-requisites for getting started with the NVIDIA GPU Operator.


Red Hat OpenShift 4

For installing the GPU Operator on clusters with Red Hat OpenShift using RHCOS worker nodes, follow the user guide.


Google Cloud Anthos

For getting started with NVIDIA GPUs for Google Cloud Anthos, follow the getting started document.


Prerequisites

Before installing the GPU Operator, you should ensure that the Kubernetes cluster meets some prerequisites.

  1. Nodes must be configured with a container engine such as Docker CE/EE, cri-o, or containerd. For docker, follow the official install instructions.

  2. If the HWE kernel (e.g. kernel 5.x) is used with Ubuntu 18.04 LTS or Ubuntu 20.04 LTS, then the nouveau driver for NVIDIA GPUs must be blacklisted before starting the GPU Operator. Follow the steps in the CUDA installation guide to disable the nouveau driver and update initramfs.

  3. Node Feature Discovery (NFD) is a dependency for the Operator on each node. By default, NFD master and worker are automatically deployed by the Operator. If NFD is already running in the cluster prior to the deployment of the operator, then the Operator can be configured to not to install NFD.

  4. For monitoring in Kubernetes 1.13 and 1.14, enable the kubelet KubeletPodResources feature gate. From Kubernetes 1.15 onwards, its enabled by default.

Note

To enable the KubeletPodResources feature gate, run the following command: echo -e "KUBELET_EXTRA_ARGS=--feature-gates=KubeletPodResources=true" | sudo tee /etc/default/kubelet

Before installing the GPU Operator on NVIDIA vGPU, ensure the following.

  1. The NVIDIA vGPU Host Driver version 12.0 (or later) is pre-installed on all hypervisors hosting NVIDIA vGPU accelerated Kubernetes worker node virtual machines. Please refer to NVIDIA vGPU Documentation for details.

  2. A NVIDIA vGPU License Server is installed and reachable from all Kubernetes worker node virtual machines.

  3. A private registry is available to upload the NVIDIA vGPU specific driver container image.

  4. Each Kubernetes worker node in the cluster has access to the private registry. Private registry access is usually managed through imagePullSecrets. See the Kubernetes Documentation for more information. The user is required to provide these secrets to the NVIDIA GPU-Operator in the driver section of the values.yaml file.

  5. Git and Docker/Podman are required to build the vGPU driver image from source repository and push to local registry.

Note

Uploading the NVIDIA vGPU driver to a publicly available repository or otherwise publicly sharing the driver is a violation of the NVIDIA vGPU EULA.

The rest of this document includes instructions for installing the GPU Operator on supported Linux distributions.

Install Kubernetes

Refer to Install Kubernetes for getting started with setting up a Kubernetes cluster.

Install NVIDIA GPU Operator

Install Helm

The preferred method to deploy the GPU Operator is using helm.

$ curl -fsSL -o get_helm.sh https://raw.githubusercontent.com/helm/helm/master/scripts/get-helm-3 \
   && chmod 700 get_helm.sh \
   && ./get_helm.sh

Now, add the NVIDIA Helm repository:

$ helm repo add nvidia https://nvidia.github.io/gpu-operator \
   && helm repo update

Install the GPU Operator

The GPU Operator Helm chart offers a number of customizable options that can be configured depending on your environment.

Chart Customization Options

The following options are available when using the Helm chart. These options can be used with --set when installing via Helm.

Parameter

Description

Default

nfd.enabled

Deploys Node Feature Discovery plugin as a daemonset. Set this variable to false if NFD is already running in the cluster.

true

operator.defaultRuntime

By default, the operator assumes your Kubernetes deployment is running with docker as its container runtime. Other values are either crio (for CRI-O) or containerd (for containerd).

docker

mig.strategy

Controls the strategy to be used with MIG on supported NVIDIA GPUs. Options are either mixed or single.

single

psp.enabled

The GPU operator deploys PodSecurityPolicies if enabled.

false

driver.enabled

By default, the Operator deploys NVIDIA drivers as a container on the system. Set this value to false when using the Operator on systems with pre-installed drivers.

true

driver.repository

The images are downloaded from NGC. Specify another image repository when using custom driver images.

nvcr.io/nvidia

driver.version

Version of the NVIDIA datacenter driver supported by the Operator.

Depends on the version of the Operator. See the Component Matrix for more information on supported drivers.

driver.rdma.enabled

Controls whether the driver daemonset should build and load the nvidia-peermem kernel module.

false

toolkit.enabled

By default, the Operator deploys the NVIDIA Container Toolkit (nvidia-docker2 stack) as a container on the system. Set this value to false when using the Operator on systems with pre-installed NVIDIA runtimes.

true

migManager.enabled

The MIG manager watches for changes to the MIG geometry and applies reconfiguration as needed. By default, the MIG manager only runs on nodes with GPUs that support MIG (for e.g. A100).

true

Common Deployment Scenarios

In this section, we present some common deployment recipes when using the Helm chart to install the GPU Operator.

Bare-metal/Passthrough with default configurations on Ubuntu

In this scenario, the default configuration options are used:

$ helm install --wait --generate-name \
     nvidia/gpu-operator
Bare-metal/Passthrough with default configurations on CentOS

In this scenario, the CentOS toolkit image is used:

$ helm install --wait --generate-name --set toolkit.version=1.7.1-centos7 \
     nvidia/gpu-operator

Note

  • For CentOS 8 systems, use toolkit.version=1.7.1-centos8.

  • Replace 1.7.1 toolkit version used here with the latest one available here.


NVIDIA vGPU

Note

The GPU Operator with NVIDIA vGPUs requires additional steps to build a private driver image prior to install. Refer to the document NVIDIA vGPU for detailed instructions on the workflow and required values of the variables used in this command.

The command below will install the GPU Operator with its default configuration for vGPU:

$ helm install --wait --generate-name \
     nvidia/gpu-operator --set driver.repository=$PRIVATE_REGISTRY \
     --set driver.version=$VERSION \
     --set driver.imagePullSecrets={$REGISTRY_SECRET_NAME} \
     --set driver.licensingConfig.configMapName=licensing-config

NVIDIA AI Enterprise

Note

The GPU Operator with NVIDIA AI Enterprise requires some tasks to be completed prior to installation. Refer to the document NVIDIA AI Enterprise for instructions prior to running the below commands.

Add the NVIDIA AI Enterprise Helm repository, where api-key is the NGC API key for accessing the NVIDIA Enterprise Collection that you generated:

$ helm repo add nvaie https://helm.ngc.nvidia.com/nvaie \
    --username='$oauthtoken' --password=api-key \
    && helm repo update

Install the NVIDIA GPU Operator:

$ helm install --wait --generate-name nvaie/gpu-operator -n gpu-operator-resources

Bare-metal/Passthrough with pre-installed NVIDIA drivers

In this example, the user has already pre-installed NVIDIA drivers as part of the system image:

$ helm install --wait --generate-name \
     nvidia/gpu-operator \
     --set driver.enabled=false

Bare-metal/Passthrough with pre-installed drivers and NVIDIA Container Toolkit

In this example, the user has already pre-installed the NVIDIA drivers and NVIDIA Container Toolkit (nvidia-docker2) as part of the system image.

Note

These steps should be followed when using the GPU Operator v1.8+ on DGX systems such as DGX A100.

Before installing the operator, ensure that the following configurations are modified depending on the container runtime configured in your cluster.

Docker:

  • Update the Docker configuration to add nvidia as the default runtime. The nvidia runtime should be setup as the default container runtime for Docker on GPU nodes. This can be done by adding the default-runtime line into the Docker daemon config file, which is usually located on the system at /etc/docker/daemon.json:

    {
        "default-runtime": "nvidia",
        "runtimes": {
            "nvidia": {
                "path": "/usr/bin/nvidia-container-runtime",
                "runtimeArgs": []
          }
        }
    }


    Restart the Docker daemon to complete the installation after setting the default runtime:

    $ sudo systemctl restart docker


Containerd:

  • Update containerd to use nvidia as the default runtime and add nvidia runtime configuration. This can be done by adding below config to /etc/containerd/config.toml and restarting containerd service.

    version = 2
    [plugins]
      [plugins."io.containerd.grpc.v1.cri"]
        [plugins."io.containerd.grpc.v1.cri".containerd]
          default_runtime_name = "nvidia"

          [plugins."io.containerd.grpc.v1.cri".containerd.runtimes]
            [plugins."io.containerd.grpc.v1.cri".containerd.runtimes.nvidia]
              privileged_without_host_devices = false
              runtime_engine = ""
              runtime_root = ""
              runtime_type = "io.containerd.runc.v2"
              [plugins."io.containerd.grpc.v1.cri".containerd.runtimes.nvidia.options]
                BinaryName = "/usr/bin/nvidia-container-runtime"


    Restart the Containerd daemon to complete the installation after setting the default runtime:

    $ sudo systemctl restart containerd


Install the GPU operator with the following options:

$ helm install --wait --generate-name \
      nvidia/gpu-operator \
      --set driver.enabled=false \
      --set toolkit.enabled=false

Bare-metal/Passthrough with pre-installed NVIDIA Container Toolkit (but no drivers)

In this example, the user has already pre-installed the NVIDIA Container Toolkit (nvidia-docker2) as part of the system image.

Before installing the operator, ensure that the following configurations are modified depending on the container runtime configured in your cluster.

Docker:

  • Update the Docker configuration to add nvidia as the default runtime. The nvidia runtime should be setup as the default container runtime for Docker on GPU nodes. This can be done by adding the default-runtime line into the Docker daemon config file, which is usually located on the system at /etc/docker/daemon.json:

    {
        "default-runtime": "nvidia",
        "runtimes": {
            "nvidia": {
                "path": "/usr/bin/nvidia-container-runtime",
                "runtimeArgs": []
          }
        }
    }


    Restart the Docker daemon to complete the installation after setting the default runtime:

    $ sudo systemctl restart docker


Containerd:

  • Update containerd to use nvidia as the default runtime and add nvidia runtime configuration. This can be done by adding below config to /etc/containerd/config.toml and restarting containerd service.

    version = 2
    [plugins]
      [plugins."io.containerd.grpc.v1.cri"]
        [plugins."io.containerd.grpc.v1.cri".containerd]
          default_runtime_name = "nvidia"

          [plugins."io.containerd.grpc.v1.cri".containerd.runtimes]
            [plugins."io.containerd.grpc.v1.cri".containerd.runtimes.nvidia]
              privileged_without_host_devices = false
              runtime_engine = ""
              runtime_root = ""
              runtime_type = "io.containerd.runc.v2"
              [plugins."io.containerd.grpc.v1.cri".containerd.runtimes.nvidia.options]
                BinaryName = "/usr/bin/nvidia-container-runtime"


    Restart the Containerd daemon to complete the installation after setting the default runtime:

    $ sudo systemctl restart containerd


Configure toolkit to use the root directory of the driver installation as /run/nvidia/driver, which is the path mounted by driver container.

$ sudo sed -i 's/^#root/root/' /etc/nvidia-container-runtime/config.toml

Once these steps are complete, now install the GPU operator with the following options (which will provision a driver):

$ helm install --wait --generate-name \
     nvidia/gpu-operator \
     --set toolkit.enabled=false

Custom driver image (based off a specific driver version)

If you want to use custom driver container images (for e.g. using 465.27), then you would need to build a new driver container image. Follow these steps:

  • Rebuild the driver container by specifying the $DRIVER_VERSION argument when building the Docker image. For reference, the driver container Dockerfiles are available on the Git repo here

  • Build the container using the appropriate Dockerfile. For example:

    $ docker build --pull -t \
        --build-arg DRIVER_VERSION=455.28 \
        nvidia/driver:455.28-ubuntu20.04 \
        --file Dockerfile .


    Ensure that the driver container is tagged as shown in the example by using the driver:<version>-<os> schema.

  • Specify the new driver image and repository by overriding the defaults in the Helm install command. For example:

    $ helm install --wait --generate-name \
         nvidia/gpu-operator \
         --set driver.repository=docker.io/nvidia \
         --set driver.version="465.27"


Note that these instructions are provided for reference and evaluation purposes. Not using the standard releases of the GPU Operator from NVIDIA would mean limited support for such custom configurations.


Set the default container runtime as containerd

In this example, we set the default container runtime to be used as containerd.

$ helm install --wait --generate-name \
     nvidia/gpu-operator \
     --set operator.defaultRuntime=containerd

When setting containerd as the defaultRuntime the following options are also available:

toolkit:
   env:
   - name: CONTAINERD_CONFIG
   value: /etc/containerd/config.toml
   - name: CONTAINERD_SOCKET
   value: /run/containerd/containerd.sock
   - name: CONTAINERD_RUNTIME_CLASS
   value: nvidia
   - name: CONTAINERD_SET_AS_DEFAULT
   value: true

These options are defined as follows:

  • CONTAINERD_CONFIGThe path on the host to the containerd config

    you would like to have updated with support for the nvidia-container-runtime. By default this will point to /etc/containerd/config.toml (the default location for containerd). It should be customized if your containerd installation is not in the default location.

  • CONTAINERD_SOCKETThe path on the host to the socket file used to

    communicate with containerd. The operator will use this to send a SIGHUP signal to the containerd daemon to reload its config. By default this will point to /run/containerd/containerd.sock (the default location for containerd). It should be customized if your containerd installation is not in the default location.

  • CONTAINERD_RUNTIME_CLASSThe name of the

    Runtime Class you would like to associate with the nvidia-container-runtime. Pods launched with a runtimeClassName equal to CONTAINERD_RUNTIME_CLASS will always run with the nvidia-container-runtime. The default CONTAINERD_RUNTIME_CLASS is nvidia.

  • CONTAINERD_SET_AS_DEFAULTA flag indicating whether you want to set

    nvidia-container-runtime as the default runtime used to launch all containers. When set to false, only containers in pods with a runtimeClassName equal to CONTAINERD_RUNTIME_CLASS will be run with the nvidia-container-runtime. The default value is true.


Proxy Environments

Refer to the section Install GPU Operator in Proxy Environments for more information on how to install the Operator on clusters behind a HTTP proxy.


Air-gapped Environments

Refer to the section Install GPU Operator in Air-gapped Environments for more information on how to install the Operator in air-gapped environments.


Multi-Instance GPU (MIG)

Refer to the document GPU Operator with MIG for more information on how use the Operator with Multi-Instance GPU (MIG) on NVIDIA Ampere products. For guidance on configuring MIG support for the NVIDIA GPU Operator in an OpenShift Container Platform cluster, see the user guide.


Outdated Kernels

Refer to the section Considerations when Installing with Outdated Kernels in Cluster for more information on how to install the Operator successfully when nodes in the cluster are not running the latest kernel


Verify GPU Operator Install

Once the Helm chart is installed, check the status of the pods to ensure all the containers are running and the validation is complete:

$ kubectl get pods -A
NAMESPACE                NAME                                                          READY   STATUS      RESTARTS   AGE
default                  gpu-operator-d6ccd4d8d-f7m57                                  1/1     Running     0          5m51s
default                  gpu-operator-node-feature-discovery-master-867c4f7bfb-cbxck   1/1     Running     0          5m51s
default                  gpu-operator-node-feature-discovery-worker-wv2rq              1/1     Running     0          5m51s
gpu-operator-resources   gpu-feature-discovery-qmftl                                   1/1     Running     0          5m35s
gpu-operator-resources   nvidia-container-toolkit-daemonset-tx4rd                      1/1     Running     0          5m35s
gpu-operator-resources   nvidia-cuda-validator-ip-172-31-65-3                          0/1     Completed   0          2m29s
gpu-operator-resources   nvidia-dcgm-exporter-99t8p                                    1/1     Running     0          5m35s
gpu-operator-resources   nvidia-device-plugin-daemonset-nkbtz                          1/1     Running     0          5m35s
gpu-operator-resources   nvidia-device-plugin-validator-ip-172-31-65-3                 0/1     Completed   0          103s
gpu-operator-resources   nvidia-driver-daemonset-w97sh                                 1/1     Running     0          5m35s
gpu-operator-resources   nvidia-operator-validator-2djn2                               1/1     Running     0          5m35s
kube-system              calico-kube-controllers-b656ddcfc-4sgld                       1/1     Running     0          8m11s
kube-system              calico-node-wzdbr                                             1/1     Running     0          8m11s
kube-system              coredns-558bd4d5db-2w9tf                                      1/1     Running     0          8m11s
kube-system              coredns-558bd4d5db-cv5md                                      1/1     Running     0          8m11s
kube-system              etcd-ip-172-31-65-3                                           1/1     Running     0          8m25s
kube-system              kube-apiserver-ip-172-31-65-3                                 1/1     Running     0          8m25s
kube-system              kube-controller-manager-ip-172-31-65-3                        1/1     Running     0          8m25s
kube-system              kube-proxy-gpqc5                                              1/1     Running     0          8m11s
kube-system              kube-scheduler-ip-172-31-65-3                                 1/1     Running     0          8m25s

We can now proceed to running some sample GPU workloads to verify that the Operator (and its components) are working correctly.

Running Sample GPU Applications

CUDA VectorAdd

In the first example, let’s run a simple CUDA sample, which adds two vectors together:

$ cat << EOF | kubectl create -f -
apiVersion: v1
kind: Pod
metadata:
  name: cuda-vectoradd
spec:
  restartPolicy: OnFailure
  containers:
  - name: cuda-vectoradd
    image: "nvidia/samples:vectoradd-cuda11.2.1"
    resources:
      limits:
         nvidia.com/gpu: 1
EOF

The sample should run fairly quickly. If you view the logs of the container:

[Vector addition of 50000 elements]
Copy input data from the host memory to the CUDA device
CUDA kernel launch with 196 blocks of 256 threads
Copy output data from the CUDA device to the host memory
Test PASSED
Done

CUDA FP16 Matrix multiply

In the second example, let’s try running a CUDA load generator, which does an FP16 matrix-multiply on the GPU using the Tensor Cores when available:

$ cat << EOF | kubectl create -f -
apiVersion: v1
kind: Pod
metadata:
   name: dcgmproftester
spec:
   restartPolicy: OnFailure
   containers:
   - name: dcgmproftester11
     image: nvidia/samples:dcgmproftester-2.0.10-cuda11.0-ubuntu18.04
     args: ["--no-dcgm-validation", "-t 1004", "-d 30"]
     resources:
       limits:
          nvidia.com/gpu: 1
     securityContext:
       capabilities:
         add: ["SYS_ADMIN"]

EOF

and then view the logs of the dcgmproftester pod:

$ kubectl logs -f dcgmproftester

You should see the FP16 GEMM being run on the GPU:

Skipping CreateDcgmGroups() since DCGM validation is disabled
CU_DEVICE_ATTRIBUTE_MAX_THREADS_PER_MULTIPROCESSOR: 1024
CU_DEVICE_ATTRIBUTE_MULTIPROCESSOR_COUNT: 40
CU_DEVICE_ATTRIBUTE_MAX_SHARED_MEMORY_PER_MULTIPROCESSOR: 65536
CU_DEVICE_ATTRIBUTE_COMPUTE_CAPABILITY_MAJOR: 7
CU_DEVICE_ATTRIBUTE_COMPUTE_CAPABILITY_MINOR: 5
CU_DEVICE_ATTRIBUTE_GLOBAL_MEMORY_BUS_WIDTH: 256
CU_DEVICE_ATTRIBUTE_MEMORY_CLOCK_RATE: 5001000
Max Memory bandwidth: 320064000000 bytes (320.06 GiB)
CudaInit completed successfully.

Skipping WatchFields() since DCGM validation is disabled
TensorEngineActive: generated ???, dcgm 0.000 (26096.4 gflops)
TensorEngineActive: generated ???, dcgm 0.000 (26344.4 gflops)
TensorEngineActive: generated ???, dcgm 0.000 (26351.2 gflops)
TensorEngineActive: generated ???, dcgm 0.000 (26359.9 gflops)
TensorEngineActive: generated ???, dcgm 0.000 (26750.7 gflops)
TensorEngineActive: generated ???, dcgm 0.000 (25378.8 gflops)

You will observe that on an NVIDIA T4, this has resulted in ~26 TFLOPS of FP16 GEMM performance.

Jupyter Notebook

In the next example, let’s try running a TensorFlow Jupyter notebook.

First, deploy the pods:

$ kubectl apply -f https://nvidia.github.io/gpu-operator/notebook-example.yml

Check to determine if the pod has successfully started:

$ kubectl get pod tf-notebook
NAMESPACE                NAME                                                              READY   STATUS      RESTARTS   AGE
default                  tf-notebook                                                       1/1     Running     0          3m45s

Since the example also includes a service, let’s obtain the external port at which the notebook is accessible:

$ kubectl get svc -A
NAMESPACE                NAME                                                    TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                  AGE
default                  tf-notebook                                             NodePort    10.106.229.20   <none>        80:30001/TCP             4m41s
..

And the token for the Jupyter notebook:

$ kubectl logs tf-notebook
[I 21:50:23.188 NotebookApp] Writing notebook server cookie secret to /root/.local/share/jupyter/runtime/notebook_cookie_secret
[I 21:50:23.390 NotebookApp] Serving notebooks from local directory: /tf
[I 21:50:23.391 NotebookApp] The Jupyter Notebook is running at:
[I 21:50:23.391 NotebookApp] http://tf-notebook:8888/?token=3660c9ee9b225458faaf853200bc512ff2206f635ab2b1d9
[I 21:50:23.391 NotebookApp]  or http://127.0.0.1:8888/?token=3660c9ee9b225458faaf853200bc512ff2206f635ab2b1d9
[I 21:50:23.391 NotebookApp] Use Control-C to stop this server and shut down all kernels (twice to skip confirmation).
[C 21:50:23.394 NotebookApp]

   To access the notebook, open this file in a browser:
      file:///root/.local/share/jupyter/runtime/nbserver-1-open.html
   Or copy and paste one of these URLs:
      http://tf-notebook:8888/?token=3660c9ee9b225458faaf853200bc512ff2206f635ab2b1d9
   or http://127.0.0.1:8888/?token=3660c9ee9b225458faaf853200bc512ff2206f635ab2b1d9

The notebook should now be accessible from your browser at this URL: http:://<your-machine-ip>:30001/?token=3660c9ee9b225458faaf853200bc512ff2206f635ab2b1d9

Demo

Check out the demo below where we scale GPU nodes in a K8s cluster using the GPU Operator:

../_images/gpu-operator-demo.gif

GPU Telemetry

To gather GPU telemetry in Kubernetes, the GPU Operator deploys the dcgm-exporter. dcgm-exporter, based on DCGM exposes GPU metrics for Prometheus and can be visualized using Grafana. dcgm-exporter is architected to take advantage of KubeletPodResources API and exposes GPU metrics in a format that can be scraped by Prometheus.

With GPU Operator users can customize the metrics to be collected by dcgm-exporter. Below are the steps for this

  1. Fetch the metrics file and save as dcgm-metrics.csv

$ curl https://raw.githubusercontent.com/NVIDIA/dcgm-exporter/main/etc/dcp-metrics-included.csv > dcgm-metrics.csv
  1. Edit the metrics file as required to add/remove any metrics to be collected.

  2. Create a Namespace gpu-operator-resources if one is already not present.

$ kubectl create namespace gpu-operator-resources
  1. Create a ConfigMap using the file edited above.

$ kubectl create configmap metrics-config -n gpu-operator-resources --from-file=dcgm-metrics.csv
  1. Install GPU Operator with additional options --set dcgmExporter.config.name=metrics-config and

--set dcgmExporter.env[0].name=DCGM_EXPORTER_COLLECTORS --set dcgmExporter.env[0].value=/etc/dcgm-exporter/dcgm-metrics.csv

The rest of this section walks through how to setup Prometheus, Grafana using Operators and using Prometheus with dcgm-exporter.

Setting up Prometheus

Implementing a Prometheus stack can be complicated but can be managed by taking advantage of the Helm package manager and the Prometheus Operator and kube-prometheus projects. The Operator uses standard configurations and dashboards for Prometheus and Grafana and the Helm prometheus-operator chart allows you to get a full cluster monitoring solution up and running by installing Prometheus Operator and the rest of the components listed above.

First, add the helm repo:

$ helm repo add prometheus-community \
   https://prometheus-community.github.io/helm-charts

Now, search for the available prometheus charts:

$ helm search repo kube-prometheus

Once you’ve located which the version of the chart to use, inspect the chart so we can modify the settings:

$ helm inspect values prometheus-community/kube-prometheus-stack > /tmp/kube-prometheus-stack.values

Next, we’ll need to edit the values file to change the port at which the Prometheus server service is available. In the prometheus instance section of the chart, change the service type from ClusterIP to NodePort. This will allow the Prometheus server to be accessible at your machine ip address at port 30090 as http://<machine-ip>:30090/

From:
 ## Port to expose on each node
 ## Only used if service.type is 'NodePort'
 ##
 nodePort: 30090

 ## Loadbalancer IP
 ## Only use if service.type is "loadbalancer"
 loadBalancerIP: ""
 loadBalancerSourceRanges: []
 ## Service type
 ##
 type: ClusterIP

To:
 ## Port to expose on each node
 ## Only used if service.type is 'NodePort'
 ##
 nodePort: 30090

 ## Loadbalancer IP
 ## Only use if service.type is "loadbalancer"
 loadBalancerIP: ""
 loadBalancerSourceRanges: []
 ## Service type
 ##
 type: NodePort

Also, modify the prometheusSpec.serviceMonitorSelectorNilUsesHelmValues settings to false below:

## If true, a nil or {} value for prometheus.prometheusSpec.serviceMonitorSelector will cause the
## prometheus resource to be created with selectors based on values in the helm deployment,
## which will also match the servicemonitors created
##
serviceMonitorSelectorNilUsesHelmValues: false

Add the following configMap to the section on additionalScrapeConfigs in the Helm chart:

## AdditionalScrapeConfigs allows specifying additional Prometheus scrape configurations. Scrape configurations
## are appended to the configurations generated by the Prometheus Operator. Job configurations must have the form
## as specified in the official Prometheus documentation:
## https://prometheus.io/docs/prometheus/latest/configuration/configuration/#scrape_config. As scrape configs are
## appended, the user is responsible to make sure it is valid. Note that using this feature may expose the possibility
## to break upgrades of Prometheus. It is advised to review Prometheus release notes to ensure that no incompatible
## scrape configs are going to break Prometheus after the upgrade.
##
## The scrape configuration example below will find master nodes, provided they have the name .*mst.*, relabel the
## port to 2379 and allow etcd scraping provided it is running on all Kubernetes master nodes
##
additionalScrapeConfigs:
- job_name: gpu-metrics
  scrape_interval: 1s
  metrics_path: /metrics
  scheme: http
  kubernetes_sd_configs:
  - role: endpoints
    namespaces:
      names:
      - gpu-operator-resources
  relabel_configs:
  - source_labels: [__meta_kubernetes_pod_node_name]
    action: replace
    target_label: kubernetes_node

Finally, we can deploy the Prometheus and Grafana pods using the kube-prometheus-stack via Helm:

$ helm install prometheus-community/kube-prometheus-stack \
   --create-namespace --namespace prometheus \
   --generate-name \
   --values /tmp/kube-prometheus-stack.values

Note

You can also override values in the Prometheus chart directly on the Helm command line:

$ helm install prometheus-community/kube-prometheus-stack \
   --create-namespace --namespace prometheus \
   --generate-name \
   --set prometheus.service.type=NodePort \
   --set prometheus.prometheusSpec.serviceMonitorSelectorNilUsesHelmValues=false

You should see a console output as below:

NAME: kube-prometheus-stack-1603211794
LAST DEPLOYED: Tue Oct 20 16:36:39 2020
NAMESPACE: prometheus
STATUS: deployed
REVISION: 1
NOTES:
kube-prometheus-stack has been installed. Check its status by running:
kubectl --namespace prometheus get pods -l "release=kube-prometheus-stack-1603211794"

Visit https://github.com/prometheus-operator/kube-prometheus for instructions on how to create & configure Alertmanager and Prometheus instances using the Operator.

Now you can see the Prometheus and Grafana pods:

$ kubectl get pods -A
NAMESPACE                NAME                                                              READY   STATUS      RESTARTS   AGE
default                  gpu-operator-1597965115-node-feature-discovery-master-fbf9rczx5   1/1     Running     1          6h57m
default                  gpu-operator-1597965115-node-feature-discovery-worker-n58pm       1/1     Running     1          6h57m
default                  gpu-operator-774ff7994c-xh62d                                     1/1     Running     1          6h57m
default                  gpu-operator-test                                                 0/1     Completed   0          8h
gpu-operator-resources   nvidia-container-toolkit-daemonset-grnnd                          1/1     Running     1          6h57m
gpu-operator-resources   nvidia-dcgm-exporter-nv5z7                                        1/1     Running     7          6h57m
gpu-operator-resources   nvidia-device-plugin-daemonset-qq6lq                              1/1     Running     7          6h57m
gpu-operator-resources   nvidia-device-plugin-validation                                   0/1     Completed   0          6h57m
gpu-operator-resources   nvidia-driver-daemonset-vwzvq                                     1/1     Running     1          6h57m
gpu-operator-resources   nvidia-driver-validation                                          0/1     Completed   3          6h57m
kube-system              calico-kube-controllers-578894d4cd-pv5kw                          1/1     Running     1          10h
kube-system              calico-node-ffhdd                                                 1/1     Running     1          10h
kube-system              coredns-66bff467f8-nwdrx                                          1/1     Running     1          10h
kube-system              coredns-66bff467f8-srg8d                                          1/1     Running     1          10h
kube-system              etcd-ip-172-31-80-124                                             1/1     Running     1          10h
kube-system              kube-apiserver-ip-172-31-80-124                                   1/1     Running     1          10h
kube-system              kube-controller-manager-ip-172-31-80-124                          1/1     Running     1          10h
kube-system              kube-proxy-kj5qb                                                  1/1     Running     1          10h
kube-system              kube-scheduler-ip-172-31-80-124                                   1/1     Running     1          10h
prometheus               alertmanager-prometheus-operator-159799-alertmanager-0            2/2     Running     0          12s
prometheus               prometheus-operator-159799-operator-78f95fccbd-hcl76              2/2     Running     0          16s
prometheus               prometheus-operator-1597990146-grafana-5c7db4f7d4-qcjbj           2/2     Running     0          16s
prometheus               prometheus-operator-1597990146-kube-state-metrics-645c57c8x28nv   1/1     Running     0          16s
prometheus               prometheus-operator-1597990146-prometheus-node-exporter-6lchc     1/1     Running     0          16s
prometheus               prometheus-prometheus-operator-159799-prometheus-0                2/3     Running     0          2s

You can view the services setup as part of the operator and dcgm-exporter:

$ kubectl get svc -A
NAMESPACE                NAME                                                      TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                        AGE
default                  gpu-operator-1597965115-node-feature-discovery-master     ClusterIP   10.110.46.7      <none>        8080/TCP                       6h57m
default                  kubernetes                                                ClusterIP   10.96.0.1        <none>        443/TCP                        10h
default                  tf-notebook                                               NodePort    10.106.229.20    <none>        80:30001/TCP                   8h
gpu-operator-resources   nvidia-dcgm-exporter                                      ClusterIP   10.99.250.100    <none>        9400/TCP                       6h57m
kube-system              kube-dns                                                  ClusterIP   10.96.0.10       <none>        53/UDP,53/TCP,9153/TCP         10h
kube-system              prometheus-operator-159797-kubelet                        ClusterIP   None             <none>        10250/TCP,10255/TCP,4194/TCP   4h50m
kube-system              prometheus-operator-159799-coredns                        ClusterIP   None             <none>        9153/TCP                       32s
kube-system              prometheus-operator-159799-kube-controller-manager        ClusterIP   None             <none>        10252/TCP                      32s
kube-system              prometheus-operator-159799-kube-etcd                      ClusterIP   None             <none>        2379/TCP                       32s
kube-system              prometheus-operator-159799-kube-proxy                     ClusterIP   None             <none>        10249/TCP                      32s
kube-system              prometheus-operator-159799-kube-scheduler                 ClusterIP   None             <none>        10251/TCP                      32s
kube-system              prometheus-operator-159799-kubelet                        ClusterIP   None             <none>        10250/TCP,10255/TCP,4194/TCP   18s
prometheus               alertmanager-operated                                     ClusterIP   None             <none>        9093/TCP,9094/TCP,9094/UDP     28s
prometheus               prometheus-operated                                       ClusterIP   None             <none>        9090/TCP                       18s
prometheus               prometheus-operator-159799-alertmanager                   ClusterIP   10.106.93.161    <none>        9093/TCP                       32s
prometheus               prometheus-operator-159799-operator                       ClusterIP   10.100.116.170   <none>        8080/TCP,443/TCP               32s
prometheus               prometheus-operator-159799-prometheus                     NodePort    10.102.169.42    <none>        9090:30090/TCP                 32s
prometheus               prometheus-operator-1597990146-grafana                    ClusterIP   10.104.40.69     <none>        80/TCP                         32s
prometheus               prometheus-operator-1597990146-kube-state-metrics         ClusterIP   10.100.204.91    <none>        8080/TCP                       32s
prometheus               prometheus-operator-1597990146-prometheus-node-exporter   ClusterIP   10.97.64.60      <none>        9100/TCP                       32s

You can observe that the Prometheus server is available at port 30090 on the node’s IP address. Open your browser to http://<machine-ip-address>:30090. It may take a few minutes for DCGM to start publishing the metrics to Prometheus. The metrics availability can be verified by typing DCGM_FI_DEV_GPU_UTIL in the event bar to determine if the GPU metrics are visible:

../_images/001-dcgm-e2e-prom-screenshot.png

Using Grafana

You can also launch the Grafana tools for visualizing the GPU metrics.

There are two mechanisms for dealing with the ports on which Grafana is available - the service can be patched or port-forwarding can be used to reach the home page. Either option can be chosen based on preference.

Patching the Grafana Service

By default, Grafana uses a ClusterIP to expose the ports on which the service is accessible. This can be changed to a NodePort instead, so the page is accessible from the browser, similar to the Prometheus dashboard.

You can use kubectl patch to update the service API object to expose a NodePort instead.

First, modify the spec to change the service type:

$ cat << EOF | tee grafana-patch.yaml
spec:
  type: NodePort
  nodePort: 32322
EOF

And now use kubectl patch:

$ kubectl patch svc prometheus-operator-1597990146-grafana -n prometheus --patch "$(cat grafana-patch.yaml)"
service/prometheus-operator-1597990146-grafana patched

You can verify that the service is now exposed at an externally accessible port:

$ kubectl get svc -A
NAMESPACE     NAME                                                      TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                        AGE
<snip>
prometheus    prometheus-operator-1597990146-grafana                    NodePort    10.108.187.141   <none>        80:32258/TCP                   17h

Open your browser to http://<machine-ip-address>:32258 and view the Grafana login page. Access Grafana home using the admin username. The password credentials for the login are available in the prometheus.values file we edited in the earlier section of the doc:

## Deploy default dashboards.
##
defaultDashboardsEnabled: true

adminPassword: prom-operator
../_images/002-dcgm-e2e-grafana-screenshot.png

Upgrade

Using Helm

Starting with GPU Operator v1.8.0, the GPU Operator supports dynamic updates to existing resources. This allows the GPU Operator to ensure settings from the ClusterPolicy Spec are always applied and current.

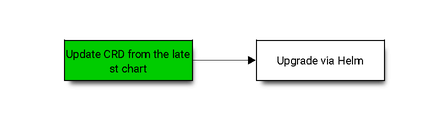

Since Helm doesn’t support auto upgrade of existing CRDs, the user needs to follow a two step process to upgrade the GPU Operator chart:

With this workflow, all existing GPU operator resources are updated inline and the ClusterPolicy resource is patched with updates from values.yaml.

Download the CRD from the specific <release-tag> from the Git repo. For example:

$ wget https://gitlab.com/nvidia/kubernetes/gpu-operator/-/raw/<release-tag>/deployments/gpu-operator/crds/nvidia.com_clusterpolicies_crd.yaml

Apply the CRD using the file downloaded above:

$  kubectl apply -f nvidia.com_clusterpolicies_crd.yaml

Fetch latest values from the chart (replace the .x below with the desired version)

$ helm show values nvidia/gpu-operator --version=1.8.x > values-1.8.x.yaml

Update the values file as needed.

And upgrade via Helm:

$ helm upgrade gpu-operator -n gpu-operator-resources -f values-1.8.x.yaml

Cluster Policy Updates

The GPU Operator also supports dynamic updates to the ClusterPolicy CustomResource using kubectl:

$ kubectl edit clusterpolicy

After the edits are complete, Kubernetes will automatically apply the updates to cluster.

Additional Controls for Driver Upgrades

While most of the GPU Operator managed daemonset pods can be updated without dependencies, the NVIDIA driver daemonset needs special handling. This is due to the fact that the driver kernel modules have to be unloaded and loaded again on each driver container restart. In turn this has certain dependencies:

  1. All clients to the GPU driver have to be disabled

  2. The current GPU driver kernel modules have to be unloaded

  3. The updated driver pods need to start

  4. The GPU driver has to be installed and new kernel modules loaded

  5. The driver clients disabled initially have to be enabled again

In order to achieve this, a new component called k8s-driver-manager is added which will ensure that, all existing GPU driver clients are disabled and current modules are unloaded. This component is added as an initContainer within the driver daemonset.

Since the k8s-driver-manager evicts pods from the node to complete the driver upgrade, users can control the node drain behavior using environment variables as specified in the GPU Operator Helm chart (see the driver.manager.env variables):

imagePullPolicy: IfNotPresent
env:
- name: ENABLE_AUTO_DRAIN
   value: "true"
- name: DRAIN_USE_FORCE
   value: "false"
- name: DRAIN_POD_SELECTOR_LABEL
   value: ""
- name: DRAIN_TIMEOUT_SECONDS
   value: "0s"
- name: DRAIN_DELETE_EMPTYDIR_DATA
   value: "false"
  • The DRAIN_POD_SELECTOR_LABEL env can be used to let k8s-driver-manager only evict GPU pods with matching labels from the node. This way, CPU only pods will not be affected during driver upgrades.

  • DRAIN_USE_FORCE needs to be enabled for evicting GPU pods that are not managed by any of the replication controllers (Deployment, Daemonset, StatefulSet, ReplicaSet).

Using OLM in OpenShift

For upgrading the GPU Operator when running in OpenShift, refer to the official documentation on upgrading installed operators: https://docs.openshift.com/container-platform/4.8/operators/admin/olm-upgrading-operators.html

Uninstall

To uninstall the operator:

$ helm delete $(helm list | grep gpu-operator | awk '{print $1}')

You should now see all the pods being deleted:

$ kubectl get pods -n gpu-operator-resources
No resources found.

Also, ensure that CRDs created during the operator install have been removed:

$ kubectl get crds -A | grep -i clusterpolicies.nvidia.com

Note

After un-install of GPU Operator, the NVIDIA driver modules might still be loaded. Either reboot the node or unload them using the following command:

$ sudo rmmod nvidia_modeset nvidia_uvm nvidia
