Using the NVSM CLI

NVIDIA DGX-2 servers running DGX OS version 4.0.1 or later should come with NVSM pre-installed.

NVSM CLI communicates with the privileged NVSM API server, so NVSM CLI requires superuser privileges to run. All examples given in this guide are prefixed with the sudo command.

Using the NVSM CLI Interactively

Starting an interactive session

The command “sudo nvsm” will start an NVSM CLI interactive session.

user@dgx-2:~$ sudo nvsm
[sudo] password for user:
nvsm->

Once at the “nvsm-> ” prompt, the user can enter NVSM CLI commands to view and manage the DGX system.

Example command

One such command is “show fans”, which prints the state of all fans known to NVSM.

nvsm-> show fans
/chassis/localhost/thermal/fans/FAN10_F
Properties:
    Status_State = Enabled
    Status_Health = OK
    Name = FAN10_F
    MemberId = 19
    ReadingUnits = RPM
    LowerThresholdNonCritical = 5046.000
    Reading = 9802 RPM
    LowerThresholdCritical = 3596.000
    ...
    /chassis/localhost/thermal/fans/PDB_FAN4
Properties:
    Status_State = Enabled
    Status_Health = OK
    Name = PDB_FAN4
    MemberId = 23
    ReadingUnits = RPM
    LowerThresholdNonCritical = 11900.000
    Reading = 14076 RPM
    LowerThresholdCritical = 10744.000
nvsm->

Leaving an interactive session

To leave the NVSM CLI interactive session, use the “exit” command.

nvsm-> exit
user@dgx2:~$

Using the NVSM CLI Non-Interactively

Any NVSM CLI command can be invoked from the system shell, without starting an NVSM CLI interactive session. To do this, simply append the desired NVSM CLI command to the “sudo nvsm” command. The “show fans” command given above can be invoked directly from the system shell as follows.

user@dgx2:~$ sudo nvsm show fans
/chassis/localhost/thermal/fans/FAN10_F
Properties:
    Status_State = Enabled
    Status_Health = OK
    Name = FAN10_F
    MemberId = 19
    ReadingUnits = RPM
    LowerThresholdNonCritical = 5046.000
    Reading = 9802 RPM
    LowerThresholdCritical = 3596.000
...
/chassis/localhost/thermal/fans/PDB_FAN4
Properties:
    Status_State = Enabled
    Status_Health = OK
    Name = PDB_FAN4
    MemberId = 23
    ReadingUnits = RPM
    LowerThresholdNonCritical = 11900.000
    Reading = 14076 RPM
    LowerThresholdCritical = 10744.000
user@dgx2:~$

The output of some NVSM commands can be too large to fit on one screen, it is sometimes useful to pipe this output to a paging utility such as “less”.

user@dgx2:~$ sudo nvsm show fans | less

Throughout this chapter, examples are given for both interactive and non-interactive NVSM CLI use cases. Note that these interactive and non-interactive examples are interchangeable.

Getting Help

Apart from the NVSM CLI User Guide (this document), there are many sources for finding additional help for NVSM CLI and the related NVSM tools.

nvsm “man” Page

A man page for NVSM CLI is included on DGX systems with NVSM installed. The user can view this man page by invoking the “man nvsm” command.

user@dgx2:~$ man nvsm

nvsm –help/-h Flag

By passing the –help or -h flag, the nvsm command will display a help message that is similar to “man nvsm ”. The help message can also be invoked through “nvsm --help ”. It shows a description, nvsm command verbs, options and a few examples

Example output:

user@dgxa100:~$ sudo nvsm --help
Run 'sudo nvsm [command] -h' for a command-specific help message
NVSM(1)                                 NVSM CLI                              NVSM(1)

NAME
  nvsm - NVSM CLI Documentation

  User Guide: https://docs.nvidia.com/datacenter/nvsm/latest/pdf/nvsm-user-guide.pdf

SYNOPSIS
  nvsm [help] [--color WHEN] [-i] [--log-level LEVEL] [--] [<command>]

DESCRIPTION
  nvsm(1), also known as NVSM CLI, is a command-line interface for System Management on
  NVIDIA DGX systems. Internally, NVSM CLI is a client of the NVSM (NVIDIA System Management)
  API server, which is facilitated by the nvsm(1) daemon.

  Invoking the nvsm(1) command without any arguments will start an NVSM CLI interactive session.
  Alternatively, by passing commands as part of the [<command>]  argument, NVSM CLI can be run
  in a non-interactive mode.

  Note: nvsm must be run with root privileges.

NVSM COMMANDS
  nvsm show [-h, --help] [-level LEVEL] [-display CATEGORIES] [-all] [target] [where] :
      Display information about devices and other entities managed by NVSM

  nvsm cd [-h, --help] [target]:
      Change the working target address used by NVSM verbs

  nvsm set [-h, --help] [target] :
      Change the value of NVSM target properties

  nvsm start [-h, --help] [-noblock] [-force] [-quiet] [-timeout TIMEOUT] [target] :
      Start a job managed by NVSM

  nvsm dump health [-h, --help] [-o OUTPUT] [-t, -tags "tag1,tag2"]
      [-tfp, -tar_file_path "/x/y/path"] [-tfn, -tar_file_name "name.tar.xz"] :
      Generates a health report file

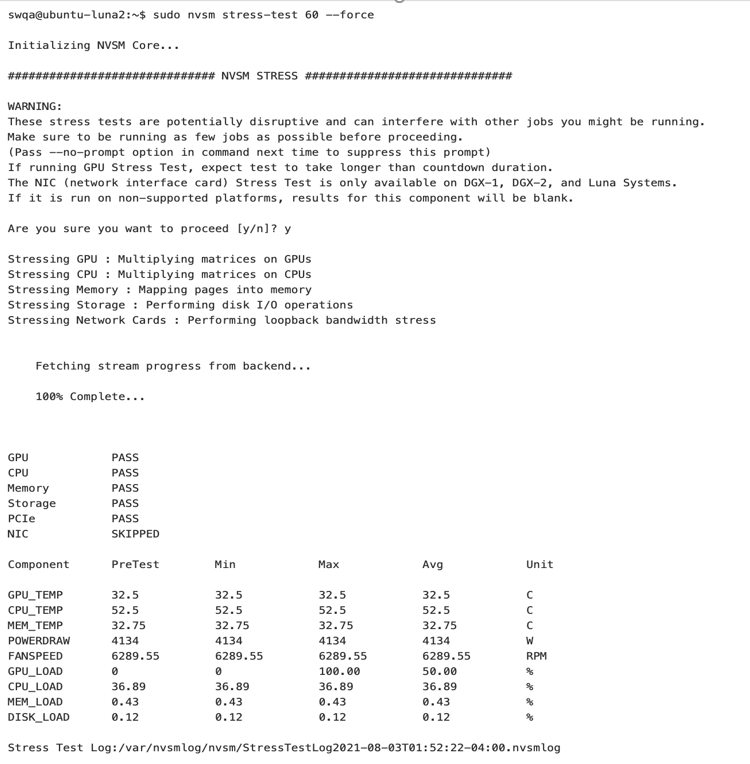

  nvsm stress-test [--usage, -h, --help] [-force] [-no-prompt] [<test>] [DURATION] :
      NVIDIA System Management Stress Testing

  nvsm lock [-h, --help] [target] :
      Enable locking of SED

  nvsm create [-h, --help] [target] :
      The create command is used to generate new resources on demand

OPTIONS
  --color WHEN
      Control colorization of output. Possible values for WHEN are "always", "never", or "auto".
      Default value is "auto".

  -i, --interactive
      When this option is given, run in interactive mode. The default is automatic.

  --log-level LEVEL
      Set the output logging level. Possible values for LEVEL are "debug", "info", "warning",
      "error", and "critical". The default value is "warning".

EXAMPLES
   sudo nvsm help
      Display the help message for NVSM CLI

   sudo nvsm show -h
      Display the help message for the NVSM show command

   sudo nvsm show gpus
      Display information for all GPUs in the system.

   sudo nvsm
      Run nvsm in interactive mode

   sudo nvsm show versions
      Display system version properties

   sudo nvsm update firmware
      Run through the steps of selecting a firmware update container on the local DGX system,
      and running it to update the firmware on the system. This requires that you have already
      loaded the container onto the DGX system.

   sudo nvsm dump health
      Produce a health report file suitable for attaching to support tickets.

AUTHOR
       NVIDIA Corporation

COPYRIGHT
       2021, NVIDIA Corporation

Help for NVSM CLI Commands

Each NVSM command verb within the NVSM CLI interactive session, such as show, cd, set, start, dump health, stress-test, lock and create recognizes a “-h ” or “--help ” flag that describes the NVSM command and its arguments. These commands also have their own man pages, which can be invoked, for example, using “man nvsm_show ”.

The help messages show the description, NVSM command nouns (or sub commands), options and examples.

Example output:

user@dgxa100:~$ sudo nvsm show -h
NVSM_SHOW(1)               NVSM CLI                                   NVSM_SHOW(1)

NAME
   nvsm_show - NVSM SHOW CLI Documentation

SYNOPSIS
   nvsm show [-h, --help] [-level LEVEL] [-display CATEGORIES] [-all] [target] [where]

DESCRIPTION
   Show is used to display information about system components. It displays information
   about devices and other entities managed by NVSM

OPTIONS
   --help, -h
          show this help message and exit

   -level LEVEL, -l LEVEL
          Specify the target depth level to which the show command will traverse the
          target hierarchy.
          The default value for LEVEL is 1, which means "the current target only".

   -display CATEGORIES, -d CATEGORIES
          Select  the  categories of information displayed about the given target.
          Valid values for CATEGORIES are 'associations', 'targets', 'properties', 'verbs',
          and 'all'. The default value for CATEGORY is 'all'. Multiple values can be
          specified by separating those values with colon. Sub-arguments for properties
          are supported which are separated by comma with paranthesis as optional.

   -all, -a
          Show data that are normally hidden. This includes OEM properties and OEM targets
          unique to NVSM.

   target The target address of the Managed Element to show. The target address can be relative
          to the current working target, or it can be absolute. Simple globbing to select multiple
          Managed Elements is also possible.

   where  Using this argument, targets can be filtered based on the value of their properties.
          This can be used to quickly find targets with interesting properties. Currently this
          supports '==' and '!=' operations, which mean 'equal' and 'not equal' respectively.
          UNIX-style wildcards using '*' are also supported.

COMMANDS
   show alerts
          Display warnings and critical alerts for all subsystems

   show drives
          Display the storage drives

   show versions
          Display system version properties

   show fans
          Display information for all the fans in the system.

   show firmware
          Walk through steps of selecting a firmware update container on the local DGX system,
          and run it to show the firmware versions installed on system. This requires that you
          have already loaded the container onto the DGX system.

   update firmware
          Walk  through  steps of selecting a firmware update container on the local DGX system,
          and run it to update the firmware on system. This requires that you have already loaded
          the container onto the DGX system.

   show gpus
          Display information for all GPUs in the system

   show health
          Display overall system health

   show memory
          Display information for all installed DIMMs

   show networkadapters
          Display information for the physical network adapters

   show networkdevicefunctions
          Display information for the PCIe functions for a given network adapter

   show networkinterfaces
          Display information for each logical network adapter on the system.

   show networkports
          Display information for the network ports of a given networkadapter

   show nvswitches
          Display information for all the NVSwitch interconnects in the system.

   show policy
          Display alert policies for subsystems

   show power
          Display information for all power supply units (PSUs) in the system.

   show processors
          Display information for all processors in the system.

   show storage
          Display storage related information

   show temperature
          Display temperature information for all sensors in the system

   show volumes
          Show storage volumes

   show powermode
          Display the current system power mode

   show led
          Lists values for available system LED status. Includes u.2 NVME, Chassis/Blade LED
          status(on applicable platforms) disable exporters
          Disable NVSM metric collection data

   show controllers
          List applicable controllers properties. Applicable for SAS storage controller in dgx1,
          and M.2 and U.2 NVMe controller properties for other platforms.

EXAMPLES
   sudo nvsm show -h
          Display the help message for the NVSM show command

   sudo nvsm show health -h
          Display the help message for the NVSM show health command

   sudo nvsm show gpus
          Display information for all GPUs in the system.

   sudo nvsm show versions
          Display system version properties

   sudo nvsm show storage
          View all storage-related information

   sudo nvsm show processors
          Information for all CPUs installed on the system

AUTHOR
       NVIDIA Corporation

COPYRIGHT
       2021, NVIDIA Corporation

21.07.12-4-g5586f4ba   Aug 04, 2021            NVSM_SHOW(1)

When a wrong command is entered, the CLI prompts the user to check the specified help message.

:~$ sudo nvsm show wrong_command
ERROR:nvsm:Target address "wrong_command" does not exist
Run: 'sudo nvsm show --help' for more options

Setting DGX H100 BMC Redfish Password

In DGX H100, Redfish services in BMC can be accessed using the BMC Redfish host IP address, which is termed the Host Interface. NVSM deployed on the Host OS communicates over Host Interface with the BMC Redfish services for the system data.

The Redfish host interface is a secured communication channel. As a prerequisite, BMC credentials with minimal read type access is set up in the Host OS before making any communication with the BMC Redfish services via NVSM.

The following NVSM commands sets up the BMC credentials for NVSM consumption in Host OS:

# nvsm set -bmccred   (or)   # nvsm set --bmccredentials

$ sudo nvsm set -bmccred
BMC credentials entered will be encrypted and stored.
Enter BMC username: admin
Enter BMC password:
Re Enter BMC password:
Entered credentials stored successfully.

Credentials get encrypted and stored on the Host.

Examining System Health

The most basic functionality of NVSM CLI is examination of system state. NVSM CLI provides a “show” command for this purpose.

Because NVSM CLI is modeled after the SMASH CLP, the output of the NVSM CLI “show” command should be familiar to users of BMC command line interfaces.

List of Basic Commands

The following table lists the basic commands (primarily “show”). Detailed use of these commands are explained in subsequent sections of the document.

Note

On DGX Station, the following are the only commands supported.

• nvsm show health

• nvsm dump health

Global Commands	Descriptions
$ sudo nvsm show alerts	Displays warnings and critical alerts for all subsystems
$ sudo nvsm show policy	Displays alert policies for subsystems
$ sudo nvsm show versions	Displays system version properties

Health Commands	Descriptions
$ sudo nvsm show health	Displays overall system health
$ sudo nvsm dump health	Generates a health report file

Storage Commands	Descriptions
$ sudo nvsm show storage	Displays all storage-related information
$ sudo nvsm show drives	Displays the storage drives
$ sudo nvsm show controllers	Display the storage controllers
$ sudo nvsm show volumes	Displays the storage volumes

GPU Commands	Descriptions
$ sudo nvsm show gpus	Displays information for all GPUs in the system.

Processor Commands	Descriptions
$ sudo nvsm show processors	Displays information for all CPUs in the system
$ sudo nvsm show cpus	Alias for “show processors”

Memory Commands	Descriptions
$ sudo nvsm show memory	Displays information for all installed DIMMs
$ sudo nvsm show dimms	Alias for “show memory”

Thermal Commands	Descriptions
$ sudo nvsm show fans	Displays information for all the fans in the system.
$ sudo nvsm show temperatures	Displays temperature information for all sensors in the system
$ sudo nvsm show temps	Alias for “show temperatures”

Network Commands	Descriptions
$ sudo nvsm show networkadapters	Displays information for the physical network adapters
$ sudo nvsm show networkinterfaces	Displays information for the logical network interfaces
$ sudo nvsm show networkports	Displays information for the network ports of a given network adapter
$ sudo nvsm show networkdevicefunctions	Displays information for the PCIe functions for a given network adapter

Power Commands	Descriptions
$ sudo nvsm show power	Displays information for all power supply units (PSUs) in the system.
$ sudo nvsm show powermode	Display the current system power mode
$ sudo nvsm show psus	Alias for “show power”

NVSwitch Commands	Descriptions
$ sudo nvsm show nvswitches	Displays information for all the NVSwitch interconnects in the system.

Firmware Commands	Descriptions
$ sudo nvsm show firmware	Guides you through the steps of selecting a firmware update container on your local DGX system, and running it to show the firmware versions installed on the system. This requires that you have already loaded the container onto the DGX system.
$ sudo nvsm update firmware	Guides you through the steps of selecting a firmware update container on your local DGX system, and running it to update the firmware on the system. This requires that you have already loaded the container onto the DGX system.

Show Health

The “show health” command can be used to quickly assess overall system health.

user@dgx-2:~$ sudo nvsm show health

Example output:

...
Checks
------Verify installed DIMM memory sticks..........................
HealthyNumber of logical CPU cores [96].............................
HealthyGPU link speed [0000:39:00.0][8GT/s].........................
HealthyGPU link width [0000:39:00.0][x16]...........................
Healthy
...
Health Summary
--------------
205 out of 205 checks are Healthy
Overall system status is Healthy

If any system health problems are found, this will be reflected in the health summary at the bottom of the “show health” output”. Detailed information on health checks performed will appear above.

Dump Health

The “dump health” command produces a health report file suitable for attaching to support tickets.

user@dgx-2:~$ sudo nvsm dump health

Example output:

Writing output to /tmp/nvsm-health-dgx-1-20180907085048.tar.xzDone.

The file produced by “dump health” is a familiar compressed tar archive, and its contents can be examined by using the “tar” command as shown in the following example.

user@dgx-2:~$ cd /tmp
user@dgx-2:/tmp$ sudo tar xlf nvsm-health-dgx-1-20180907085048.tar.xz
user@dgx-2:/tmp$ sudo ls ./nvsm-health-dgx-1-20180907085048
date            java         nvsysinfo_commands  sos_reports
df              last         nvsysinfo_log.txt   sos_strings
dmidecode       lib          proc                sys
etc             lsb-release  ps                  uname
free            lsmod        pstree              uptime
hostname        lsof         route               usr
initctl         lspci        run                 var
installed-debs  mount        sos_commands        version.txt
ip_addr         netstat      sos_logs            vgdisplay

The option -qkd or --quick_dump can be used to collect the health report more quickly, at the cost of higher CPU/memory consumption.

# nvsm dump health -qkd

Show Versions

The “nvsm show versions” command displays hardware components on board, along with their firmware versions. It also shows the installed version of NVSM, Datacenter GPU Manager, and OS among others.

user@dgxa100:~$ sudo nvsm show versions

Example output:

itializing NVSM Core...

/versions
Properties:
    dgx-release = 5.1.0
    nvidia-driver = 470.57.01
    cuda-driver = 11.4
    os-release = Ubuntu 20.04.2 LTS (Focal Fossa)
    kernel = 5.4.0-77-generic
    nvidia-container-runtime-docker = 3.4.0-1
    docker-ce = 20.10.7
    platform = DGXA100
    nvsm = 21.07.12-5-g9775e940-dirty
    mlnx-ofed = MLNX_OFED_LINUX-5.4-1.0.3.0:
    datacenter-gpu-manager = 1:2.2.9
    datacenter-gpu-manager-fabricmanager = 470.57.01-1
    sBIOS = 1.03
    vBIOS-GPU-0 = 92.00.45.00.06
    vBIOS-GPU-1 = 92.00.45.00.06
    vBIOS-GPU-2 = 92.00.45.00.06
    vBIOS-GPU-3 = 92.00.45.00.06
    vBIOS-GPU-4 = 92.00.45.00.06
    vBIOS-GPU-5 = 92.00.45.00.06
    vBIOS-GPU-6 = 92.00.45.00.06
    vBIOS-GPU-7 = 92.00.45.00.06
    BMC = 0.14.17
    CEC-BMC-1 = 03.28
    CEC-Delta-2 = 04.00
    PSU-0 Chassis-1  = 01.05.01.05.01.05
    PSU-1 Chassis-1  = 01.05.01.05.01.05
    PSU-2 Chassis-1  = 01.05.01.05.01.05
    PSU-3 Chassis-1  = 01.05.01.05.01.05
    PSU-4 Chassis-1  = 01.05.01.05.01.05
    PSU-5 Chassis-1  = 01.07.01.05.01.06
    MB-FPGA = 0.01.03
    MID-FPGA = 0.01.03
    NvSwitch-0 = 92.10.18.00.02
    NvSwitch-1 = 92.10.18.00.02
    NvSwitch-2 = 92.10.18.00.02
    NvSwitch-3 = 92.10.18.00.02
    NvSwitch-4 = 92.10.18.00.02
    NvSwitch-5 = 92.10.18.00.02
    SSD-nvme0 (S/N S4YPNE0MB00495) System-1 = EPK9CB5Q
    SSD-nvme1 (S/N S436NA0M510827) System-1 = EDA7602Q
    SSD-nvme2 (S/N S436NA0M510817) System-1 = EDA7602Q
    SSD-nvme3 (S/N S4YPNE0MB01307) System-1 = EPK9CB5Q
    SSD-nvme4 (S/N S4YPNE0MC01447) System-1 = EPK9CB5Q

Show Storage

NVSM CLI provides a “show storage” command to view all storage-related information. This command can be invoked from the command line as follows.

user@dgx-2:~$ sudo nvsm show storage

The following NVSM commands also show storage-related information.

• user@dgx-2:~$ sudo nvsm show drives


• user@dgx-2:~$ sudo nvsm show volumes


• user@dgx-2:~$ sudo nvsm show controllers


• user@dgx-2:~$ sudo nvsm show led


Within an NVSM CLI interactive session, the CLI targets related to storage are located under the /systems/localhost/storage/1 target.

user@dgx2:~$ sudo nvsm
nvsm-> cd /systems/localhost/storage/
nvsm(/systems/localhost/storage/)-> show

Example output:

/systems/localhost/storage/
Properties:
    DriveCount = 10
    Volumes = [ md0, md1, nvme0n1p1, nvme1n1p1 ]
Targets:
    alerts
    drives
    policy
    volumes
Verbs:
    cd
    show

Show Storage Alerts

Storage alerts are generated when the DSHM monitoring daemon detects a storage-related problem and attempts to alert the user (via email or otherwise). Past storage alerts can be viewed within an NVSM CLI interactive session under the /systems/localhost/storage/1/alerts target.

user@dgx-2:~$ sudo nvsm
nvsm-> cd /systems/localhost/storage/alerts
nvsm(/systems/localhost/storage/alerts)-> show

Example output:

/systems/localhost/storage/alerts
Targets:
    alert0
    alert1
Verbs:
    cd
    show

In this example listing, there appear to be two storage alerts associated with this system. The contents of these alerts can be viewed with the “show” command.

For example:

nvsm(/systems/localhost/storage/alerts)-> show alert1

/systems/localhost/storage/alerts/alert1
Properties:
    system_name = dgx-2
    message_details = EFI System Partition 1 is corrupted
nvme0n1p1
    component_id = nvme0n1p1
    description = Storage sub-system is reporting an error
    event_time = 2018-07-14 12:51:19
    recommended_action =
         1. Please run nvsysinfo
         2. Please open a case with NVIDIA Enterprise Support at this address https://nvid.nvidia.com/enterpriselogin
         3. Attach this notification and the nvsysinfo log file from /tmp/nvsysinfo-XYZ*
    alert_id = NV-VOL-03
    system_serial = productserial
    message = System entered degraded mode, storage sub-system is reporting an error
    severity = Warning
Verbs:
    cd
    show

The message seen in this alert suggests a possible EFI partition corruption, which is an error condition that might adversely affect this system’s ability to boot. Note that the text seen here reflects the exact message that the user would have seen when this alert was generated.

Possible categories for storage alerts are given in the table below.

Alert ID	Severity	Details
NV-DRIVE-01	Critical	Drive missing
NV-DRIVE-07	Warning	System has unsupported drive
NV-DRIVE-09	Warning	Unsupported SED drive configuration
NV-DRIVE-10	Critical	Unsupported volume encryption configuration
NV-DRIVE-11	Warning	M.2 firmware version mismatch
NV-VOL-01	Critical	RAID-0 corruption observed
NV-VOL-02	Critical	RAID-1 corruption observed
NV-VOL-03	Warning	EFI System Partition 1 corruption observed
NV-VOL-04	Warning	EFI System Partition 2 corruption observed
NV-CONTROLLER-01	Warning	Controller is reporting an error
NV-CONTROLLER-02	Warning	Storage controller is reporting PHY error
NV-CONTROLLER-03	Warning	Controller set at lower than expected speed
NV-CONTROLLER-04	Critical	Controller is reporting an error
NV-CONTROLLER-05	Critical	Controller is reporting an error
NV-CONTROLLER-06	Critical	Controller is reporting an error
NV-CONTROLLER-07	Critical	LEDStatus for controller needs to be cleared

Show Storage Drives

Within an NVSM CLI interactive session, each storage drive on the system is represented by a target under the /systems/localhost/storage/drives target. A listing of drives can be obtained as follows.

user@dgx-2:~$ sudo nvsm
nvsm-> cd /systems/localhost/storage/drives
nvsm(/systems/localhost/storage/drives)-> show

Example output:

/systems/localhost/storage/drives
Targets:
    nvme0n1
    nvme1n1
    nvme2n1
    nvme3n1
    nvme4n1
    nvme5n1
    nvme6n1
    nvme7n1
    nvme8n1
    nvme9n1
Verbs:
    cd
    show

Details for any particular drive can be viewed with the “show” command.

For example:

nvsm(/systems/localhost/storage/drives)-> show nvme2n1

/systems/localhost/storage/drives/nvme2n1
Properties:
    Capacity = 3840755982336
    BlockSizeBytes = 7501476528
    SerialNumber = 18141C244707
    PartNumber = N/A
    Model = Micron_9200_MTFDHAL3T8TCT
    Revision = 100007C0
    Manufacturer = Micron Technology Inc
    Status_State = Enabled
    Status_Health = OK
    Name = Non-Volatile Memory Express
    MediaType = SSD
    IndicatorLED = N/A
    EncryptionStatus = N/A
    HotSpareType = N/A
    Protocol = NVMe
    NegotiatedSpeedsGbs = 0
    Id = 2
Verbs:
    cd
    show

Show Storage Volumes

Within an NVSM CLI interactive session, each storage volume on the system is represented by a target under the /systems/localhost/storage/volumes target. A listing of volumes can be obtained as follows.

user@dgx-2:~$ sudo nvsm

nvsmnvsm-> cd /systems/localhost/storage/volumes
nvsm(/systems/localhost/storage/volumes)-> show

Example output:

/systems/localhost/storage/volumes
Targets:
    md0
    md1
    nvme0n1p1
    nvme1n1p1
Verbs:
    cd
    show

Details for any particular volume can be viewed with the “show” command.

For example:

nvsm(/systems/localhost/storage/volumes)-> show md0

/systems/localhost/storage/volumes/md0P
roperties:
    Status_State = Enabled
    Status_Health = OK
    Name = md0
    Encrypted = False
    VolumeType = RAID-1
    Drives = [ nvme0n1, nvme1n1 ]
    CapacityBytes = 893.6G
    Id = md0
Verbs:
    cd
    show

Show GPUs

Information for all GPUs installed on the system can be viewed invoking the “show gpus” command as follows.

user@dgx-2:~$ sudo nvsm show gpus

Within an NVSM CLI interactive session, the same information can be accessed under the /systems/localhost/gpus CLI target.

user@dgx-2:~$ sudo nvsm
nvsm-> cd /systems/localhost/gpus
nvsm(/systems/localhost/gpus)-> show

Example output:

/systems/localhost/gpus
Targets:
    0
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
Verbs:
    cd
    show

Details for any particular GPU can also be viewed with the “show” command.

For example:

nvsm(/systems/localhost/gpus)-> show 6
/systems/localhost/gpus/6
Properties:
    Inventory_ModelName = Tesla V100-SXM3-32GB
    Inventory_UUID = GPU-4c653056-0d6e-df7d-19c0-4663d6745b97
    Inventory_SerialNumber = 0332318503073
    Inventory_PCIeDeviceId = 1DB810DE
    Inventory_PCIeSubSystemId = 12AB10DE
    Inventory_BrandName = Tesla
    Inventory_PartNumber = 699-2G504-0200-000
Verbs:
    cd
    show

Showing Individual GPUs

Details for any particular GPU can also be viewed with the “show” command.

For example:

   nvsm(/systems/localhost/gpus)-> show GPU6
/systems/localhost/gpus/GPU6
Properties:
    Inventory_ModelName = Tesla V100-SXM3-32GB
    Inventory_UUID = GPU-4c653056-0d6e-df7d-19c0-4663d6745b97
    Inventory_SerialNumber = 0332318503073
    Inventory_PCIeDeviceId = 1DB810DE
    Inventory_PCIeSubSystemId = 12AB10DE
    Inventory_BrandName = Tesla
    Inventory_PartNumber = 699-2G504-0200-000
    Specifications_MaxPCIeGen = 3
    Specifications_MaxPCIeLinkWidth = 16x
    Specifications_MaxSpeeds_GraphicsClock = 1597 MHz
    Specifications_MaxSpeeds_MemClock = 958 MHz
    Specifications_MaxSpeeds_SMClock = 1597 MHz
    Specifications_MaxSpeeds_VideoClock = 1432 MHz
    Connections_PCIeGen = 3
    Connections_PCIeLinkWidth = 16x
    Connections_PCIeLocation = 00000000:34:00.0
    Power_PowerDraw = 50.95 W
    Stats_ErrorStats_ECCMode = Enabled
    Stats_FrameBufferMemoryUsage_Free = 32510 MiB
    Stats_FrameBufferMemoryUsage_Total = 32510 MiB
    Stats_FrameBufferMemoryUsage_Used = 0 MiB
    Stats_PCIeRxThroughput = 0 KB/s
    Stats_PCIeTxThroughput = 0 KB/s
    Stats_PerformanceState = P0
    Stats_UtilDecoder = 0 %
    Stats_UtilEncoder = 0 %
    Stats_UtilGPU = 0 %
    Stats_UtilMemory = 0 %
    Status_Health = OK
Verbs:
    cd
    show

Identifying GPU Health Incidents

Explain the benefits of the task, the purpose of the task, who should perform the task, and when to perform the task in 50 words or fewer.

NVSM uses NVIDIA Data Center GPU Manager (DCGM) to continuously monitor GPU health, and reports GPU health issues as  “GPU health incidents”. Whenever GPU health incidents are present, NVSM indicates this state in the “Status_HealthRollup ” property of the /systems/localhost/gpus CLI target.

“Status_HealthRollup ” captures the overall health of all GPUs in the system in a single value. Check  the “Status_HealthRollup ” property before checking other properties when checking for GPU health incidents.

To check for GPU health incidents, do the following,

1. Display the “Properties” section of GPU health

   ~$ sudo nvsm
   nvsm-> cd /systems/localhost/gpus
   nvsm(/systems/localhost/gpus)-> show -display properties


   A system with a GPU-related issue might report the following.

   Properties:
       Status_HealthRollup = Critical
       Status_Health = OK


   The “Status_Health = OK ” property in this example indicates that NVSM did not find any system-level problems, such as missing drivers or incorrect device file permissions.

   The “Status_HealthRollup = Critical ” property indicates that at least one GPU in this system is exhibiting a “Critical” health incident.

2. To find this GPU, issue the following command to list the health status for each GPU..

   ~$ sudo nvsm
   nvsm-> show -display properties=*health /systems/localhost/gpus/*


   The GPU with the health incidents will be reported as in the following example for GPU14.

   /systems/localhost/gpus/GPU14
   Properties:
       Status_Health = Critica


3. Issue the following command to show the detailed health information for a particular GPU (GPU14 in this example).

   nvsm-> cd /systems/localhost/gpus
   nvsm(/systems/localhost/gpus)-> show -level all GPU14/health


   The output shows all the incidents involving that particular GPU.

   /systems/localhost/gpus/GPU14/health
   Properties:
       Health = Critical
   Targets:
       incident0
   Verbs:
       cd
       show/systems/localhost/gpus/GPU2/health/incident0
   Properties:
       Message = GPU 14's NvLink link 2 is currently down.
       Health = Critical
       System = NVLink
   Verbs:
       cd
       show


The output in this example narrows down the scope to a specific incident (or incidents) on a specific GPU. DCGM will monitor for a variety of GPU conditions, so check “Status_HealthRollup ” using NVSM CLI to understand each incident.

Show Processors

Information for all CPUs installed on the system can be viewed using the “show processors” command.

user@dgx-2$ sudo nvsm show processors

From within an NVSM CLI interactive session, the same information is available under the /systems/localhost/processors target.

user@dgx-2:~$ sudo nvsm
nvsm-> cd /systems/localhost/processors
nvsm(/systems/localhost/processors)-> show

Example output:

/systems/localhost/processors
Targets:
    CPU0
    CPU1
    alerts
    policy
Verbs:
    cd
    show

Details for any particular CPU can be viewed using the “show” command.

For example:

nvsm(/systems/localhost/processors)-> show CPU0/systems/localhost/processors/CPU0
Properties:
    Id = CPU0
    InstructionSet = x86-64
    Manufacturer = Intel(R) Corporation
    MaxSpeedMHz = 3600
    Model = Intel(R) Xeon(R) Platinum 8168 CPU @ 2.70GHz
    Name = Central Processor
    ProcessorArchitecture = x86
    ProcessorId_EffectiveFamily = 6
    ProcessorId_EffectiveModel = 85
    ProcessorId_IdentificationRegisters = 0xBFEBFBFF00050654
    ProcessorId_Step = 4
    ProcessorId_VendorId = GenuineIntel
    ProcessorType = CPU
    Socket = CPU 0
    Status_Health = OK
    Status_State = Enabled
    TotalCores = 24
    TotalThreads = 48
Verbs:
    cd
    show

Show Processor Alerts

Processor alerts are generated when the DSHM monitoring daemon detects a CPU Internal Error (IERR) or Thermal Trip and attempts to alert the user (via email or otherwise). Past processor alerts can be viewed within an NVSM CLI interactive session under the /systems/localhost/processors/alerts target.

user@dgx-2:~$ sudo nvsm
nvsm-> cd /systems/localhost/processors/alerts
nvsm(/systems/localhost/processors/alerts)-> show

Example output:

/systems/localhost/processors/alerts
Targets:
    alert0
    alert1
    alert2
Verbs:
    cd
    show

This example listing appears to show three processor alerts associated with this system. The contents of these alerts can be viewed with the “show” command.

For example:

nvsm(/systems/localhost/processors/alerts)-> show alert2

/systems/localhost/processors/alerts/alert2
Properties:
      system_name = xpl-bu-06
      component_id = CPU0
      description = CPU is reporting an error.
      event_time = 2018-07-18T16:42:20.580050
      recommended_action =
      1. Please run nvsysinfo
      2. Please open a case with NVIDIA Enterprise Support at this address https://nvid.nvidia.com/enterpriselogin
      3. Attach this notification and the nvsysinfo log file from /tmp/nvsysinfo-XYZ*
      severity = Critical
      alert_id = NV-CPU-02
      system_serial = To be filled by O.E.M.
      message = System entered degraded mode, CPU0 is reporting an error.
      message_details = CPU Thermtrip has occurred, processor socket temperature exceeded the thermal specifications of the component.
Verbs:
    cd
    show

Possible categories for processor alerts are given in the table below.

Alert ID	Severity	Details
NV-CPU-01	Critical	An unrecoverable CPU Internal error has occurred.
NV-CPU-02	Critical	CPU Thermtrip has occurred, processor socket temperature exceeded the thermal specifications of the component.

Show Memory

Information for all system memory (i.e. all DIMMs installed near the CPU, not including GPU memory) can be viewed using the “show memory” command.

user@dgx-2:~$ sudo nvsm show memory

From within an NVSM CLI interactive session, system memory information is accessible under the /systems/localhost/memory target.

lab@xpl-dvt-42:~$ sudo nvsm
nvsm-> cd /systems/localhost/memory
nvsm(/systems/localhost/memory)-> show

Example output:

/systems/localhost/memory
Targets:
    CPU0_DIMM_A1
    CPU0_DIMM_A2
    CPU0_DIMM_B1
    CPU0_DIMM_B2
    CPU0_DIMM_C1
    CPU0_DIMM_C2
    CPU0_DIMM_D1
    CPU0_DIMM_D2
    CPU0_DIMM_E1
    CPU0_DIMM_E2
    CPU0_DIMM_F1
    CPU0_DIMM_F2
    CPU1_DIMM_G1
    CPU1_DIMM_G2
    CPU1_DIMM_H1
    CPU1_DIMM_H2
    CPU1_DIMM_I1
    CPU1_DIMM_I2
    CPU1_DIMM_J1
    CPU1_DIMM_J2
    CPU1_DIMM_K1
    CPU1_DIMM_K2
    CPU1_DIMM_L1
    CPU1_DIMM_L2
    alerts    policy
Verbs:
    cd
    show

Details for any particular memory DIMM can be viewed using the “show” command.

For example:

nvsm(/systems/localhost/memory)-> show CPU2_DIMM_B1

/systems/localhost/memory/CPU2_DIMM_B1
Properties:
    CapacityMiB = 65536
    DataWidthBits = 64
    Description = DIMM DDR4 Synchronous
    Id = CPU2_DIMM_B1
    Name = Memory Instance
    OperatingSpeedMhz = 2666
    PartNumber = 72ASS8G72LZ-2G6B2
    SerialNumber = 1CD83000
    Status_Health = OK
    Status_State = Enabled
    VendorId = Micron
Verbs:
    cd
    show

Show Memory Alerts

On DGX systems with a Baseboard Management Controller (BMC), the BMC will monitor DIMMs for correctable and uncorrectable errors. Whenever memory error counts cross a certain threshold (as determined by SBIOS), a memory alert is generated by the DSHM daemon in an attempt to notify the user (via email or otherwise).

Past memory alerts are accessible from an NVSM CLI interactive session under the /systems/localhost/memory/alerts target.

user@dgx-2:~$ sudo nvsm
nvsm-> cd /systems/localhost/memory/alerts
nvsm(/systems/localhost/memory/alerts)-> show

Example output:

/systems/localhost/memory/alerts
Targets:
    alert0
Verbs:
    cd
    show

This example listing appears to show one memory alert associated with this system. The contents of this alert can be viewed with the “show” command.

For example:

nvsm(/systems/localhost/memory/alerts)-> show alert0

/systems/localhost/memory/alerts/alert0
Properties:
   system_name = xpl-bu-06
   component_id = CPU1_DIMM_A2
   description = DIMM is reporting an error.
   event_time = 2018-07-18T16:48:09.906572
   recommended_action =
       1. Please run nvsysinfo
       2. Please open a case with NVIDIA Enterprise Support at this address https://nvid.nvidia.com/enterpriselogin
       3. Attach this notification and the nvsysinfo log file from /tmp/nvsysinfo-XYZ*
   severity = Critical
   alert_id = NV-DIMM-01
   system_serial = To be filled by O.E.M.
   message = System entered degraded mode, CPU1_DIMM_A2 is reporting an error.
   message_details = Uncorrectable error is reported.
Verbs:
    cd
    show

Possible categories for memory alerts are given in the table below.

Alert Type	Severity	Details
NV-DIMM-01	Critical	Uncorrectable error is reported.

Show Fans and Temperature

NVSM CLI provides a “show fans” command to display information for each fan on the system.

~$ sudo nvsm show fans

Likewise, NVSM CLI provides a “show temperatures” command to display temperature information for each temperature sensor known to NVSM.

~$ sudo nvsm show temperatures

Within an NVSM CLI interactive session, targets related to fans and temperature are located under the /chassis/localhost/thermal target.

~$ sudo nvsm
nvsm-> cd /chassis/localhost/thermal
nvsm(/chassis/localhost/thermal)-> show

Example output:

/chassis/localhost/thermal
Targets:
    alerts
    fans
    policy
    temperatures
Verbs:
    cd
    show

Show Thermal Alerts

The DSHM daemon monitors fan speed and temperature sensors. When the values of these sensors violate certain threshold criteria, DSHM generates a thermal alert in an attempt to notify the user (via email or otherwise).

Past thermal alerts can be viewed in an NVSM CLI interactive session under the /chassis/localhost/thermal/alerts target.

user@dgx-2:~$ sudo nvsm
nvsm-> cd /chassis/localhost/thermal/alerts
nvsm(/chassis/localhost/thermal/alerts)-> show

Example output:

/chassis/localhost/thermal/alerts
Targets:
    alert0
Verbs:
    cd
    show

This example listing appears to show one thermal alert associated with this system. The contents of this alert can be viewed with the “show” command.

For example:

nvsm(/chassis/localhost/thermal/alerts)-> show alert0
/chassis/localhost/thermal/alerts/alert0
Properties:
   system_name = system-name
    component_id = FAN1_R
    description = Fan Module is reporting an error.
    event_time = 2018-07-12T15:12:22.076814
    recommended_action =
        1. Please run nvsysinfo
        2. Please open a case with NVIDIA Enterprise Support at this address https://nvid.nvidia.com/enterpriselogin        3. Attach this notification and the nvsysinfo log file from /tmp/nvsysinfo-XYZ*
    severity = Critical
    alert_id = NV-FAN-01
    system_serial = To be filled by O.E.M.
    message = System entered degraded mode, FAN1_R is reporting an error.
    message_details = Fan speed reading has fallen below the expected speed setting.
Verbs:    cd    show

From the message in this alert, it appears that one of the rear fans is broken in this system. This is the exact message that the user would have received at the time this alert was generated, assuming alert notifications were enabled.

Possible categories for thermal-related (fan and temperature) alerts are given in the table below.

Alert ID	Severity	Details
NV-FAN-01	Critical	Fan speed reading has fallen below the expected speed setting.
NV-FAN-02	Critical	Fan readings are inaccessible.
NV-PDB-01	Critical	Operating temperature exceeds the thermal specifications of the component.

Show Fans

Within an NVSM CLI interactive session, each fan on the system is represented by a target under the /chassis/localhost/thermal/fans target. The “show” command can be used to obtain a listing of fans on the system.

user@dgx-2:~$ sudo nvsm

nvsm-> cd /chassis/localhost/thermal/fans

nvsm(/chassis/localhost/thermal/fans)-> show

Example output:

/chassis/localhost/thermal/fans
Targets:
    FAN10_F
    FAN10_R
    FAN1_F
    FAN1_R
    FAN2_F
    FAN2_R
    FAN3_F
    FAN3_R
    FAN4_F
    FAN4_R
    FAN5_F
    FAN5_R
    FAN6_F
    FAN6_R
    FAN7_F
    FAN7_R
    FAN8_F
    FAN8_R
    FAN9_F
    FAN9_R
    PDB_FAN1
    PDB_FAN2
    PDB_FAN3
    PDB_FAN4
Verbs:
    cd
    show

Again using the “show” command, the details for any given fan can be obtained as follows.

For example:

nvsm(/chassis/localhost/thermal/fans)-> show PDB_FAN2
/chassis/localhost/thermal/fans/PDB_FAN2
Properties:
    Status_State = Enabled
    Status_Health = OK
    Name = PDB_FAN2
    MemberId = 21
    ReadingUnits = RPM
    LowerThresholdNonCritical = 11900.000
    Reading = 13804 RPM
    LowerThresholdCritical = 10744.000
Verbs:
    cd
    show

Show Temperatures

Each temperature sensor known to NVSM is represented as a target under the /chassis/localhost/thermal/temperatures target. A listing of temperature sensors on the system can be obtained using the following commands.

nvsm(/chassis/localhost/thermal/temperatures)-> show

Example output:

/chassis/localhost/thermal/temperatures
Targets:
    PDB1
    PDB2
Verbs:
    cd
    show

As with fans, the details for any temperature sensor can be viewed with the “show” command.

For example:

nvsm(/chassis/localhost/thermal/temperatures)-> show PDB2
/chassis/localhost/thermal/temperatures/PDB2
Properties:
    Status_State = Enabled
    Status_Health = OK
    Name = PDB2
    PhysicalContext = PDB
    MemberId = 1
    ReadingCelsius = 20 degrees C
    UpperThresholdNonCritical = 127.000
    SensorNumber = 66h
    UpperThresholdCritical = 127.000
Verbs:
    cd
    show

Show Power Supplies

NVSM CLI provides a “show power” command to display information for all power supplies present on the system.

user@dgx-2:~$ sudo nvsm show power

From an NVSM CLI interactive session, power supply information can be found under the /chassis/localhost/power target.

user@dgx-2:~$ sudo nvsm
nvsm-> cd /chassis/localhost/power
nvsm(/chassis/localhost/power)-> show

Example output:

/chassis/localhost/power
Targets:
    PSU1
    PSU2
    PSU3
    PSU4
    PSU5
    PSU6
    alerts    policyVerbs:    cd    show

Details for any particular power supply can be viewed using the “show” command as follows.

For example:

nvsm(/chassis/localhost/power)-> show PSU4

/chassis/localhost/power/PSU4
Properties:
    Status_State = Present
    Status_Health = OK
    LastPowerOutputWatts = 442
    Name = PSU4
    SerialNumber = DTHTCD18240
    MemberId = 3
    PowerSupplyType = AC
    Model = ECD16010081
    Manufacturer = Delta
Verbs:
    cd
    show

Show Power Alerts

The DSHM daemon monitors PSU status. When the PSU status is not Ok, DSHM generates a power alert in an attempt to notify the user (via email or otherwise).

Prior power alerts can be viewed under the /chassis/localhost/power/alerts target of an NVSM CLI interactive session.

user@dgx-2:~$ sudo nvsm
nvsm-> cd /chassis/localhost/power/alerts
nvsm(/chassis/localhost/power/alerts)-> show

Example output:

/chassis/localhost/power/alerts
Targets:
    alert0
    alert1
    alert2
    alert3
    alert4
Verbs:
    cd
    show

This example listing shows a system with five prior power alerts. The details for any one of these alerts can be viewed using the “show” command.

For example:

nvsm(/chassis/localhost/power/alerts)-> show alert4
/chassis/localhost/power/alerts/alert4
Properties:
   system_name = system-name
   component_id = PSU4
   description = PSU is reporting an error.
   event_time = 2018-07-18T16:01:27.462005
   recommended_action =
       1. Please run nvsysinfo
       2. Please open a case with NVIDIA Enterprise Support at this address https://nvid.nvidia.com/enterpriselogin
       3. Attach this notification and the nvsysinfo log file from /tmp/nvsysinfo-XYZ*
   severity = Warning
   alert_id = NV-PSU-05
   system_serial = To be filled by O.E.M.
   message = System entered degraded mode, PSU4 is reporting an error.
   message_details = PSU is missing
Verbs:
    cd
    show

Possible categories for power alerts are given in the table below.

Alert ID	Severity	Details
NV-PSU-01	Critical	Power supply module has failed.
NV-PSU-02	Warning	Detected predictive failure of the Power supply module.
NV-PSU-03	Critical	Input to the Power supply module is missing.
NV-PSU-04	Critical	Input voltage is out of range for the Power Supply Module.
NV-PSU-05	Warning	PSU is missing

Show Network Adapters

NVSM CLI provides a show networkadapters command to display information for each physical network adapter in the chassis.

~$ sudo nvsm show networkadapters

Within an NVSM CLI interactive session, targets related to network adapters are located under the /chassis/localhost/NetworkAdapters target.

~$ sudo nvsm
nvsm-> cd /chassis/localhost/NetworkAdapters
nvsm(/chassis/localhost/NetworkAdapters)-> show

Display a List of Muted Adapters

To display a list of the muted adapters, run the following command:

$ sudo nvsm show /chassis/localhost/NetworkAdapters/policy
/chassis/localhost/NetworkAdapters/policy
Properties:
mute_monitoring = <NOT_SET>
mute_notification = <NOT_SET>

Show Network Ports

NVSM CLI provides a show networkports command to display information for each physical network port in the chassis.

~$ sudo nvsm show networkports

Within an NVSM CLI interactive session, targets related to network adapters are located under the /chassis/localhost/NetworkAdapter/<id>/NetworkPort target, where <id> is one of the network adapter IDs displayed from the nvsm show networkadapters command.

~$ sudo nvsm
nvsm-> cd /chassis/localhost/NetworkAdapters/<id>/NetworkPorts
nvsm(/chassis/localhost/NetworkAdapters/<id>/NetworkPorts)-> show

Show Network Device Functions

NVSM CLI provides a show networkdevicefunctions command to display information for each network adapter-centric PCIe function in the chassis.

~$ sudo nvsm show networkdevicefunctions

Within an NVSM CLI interactive session, targets related to network adevice functions are located under the /chassis/localhost/NetworkAdapter/<id>/NetworkDeviceFunctions target, where<id> is one of the network adapter IDs displayed from the nvsm show networkadapters command.

~$ sudo nvsm
nvsm-> cd /chassis/localhost/NetworkAdapters/<id>/NetworkDeviceFunctions
nvsm(/chassis/localhost/NetworkAdapters/<id>/NetworkDeviceFunctions)-> show

Display a List of Interfaces

Run the following command:

$ sudo nvsm show /chassis/localhost/NetworkAdapters
/chassis/localhost/NetworkAdapters
Targets:
PCI0000_0c_00
PCI0000_12_00
PCI0000_4b_00
PCI0000_54_00
PCI0000_8d_00
PCI0000_94_00
PCI0000_ba_00
PCI0000_cc_00
PCI0000_e1_00
PCI0000_e2_00

Show Network Interfaces

NVSM CLI provides a show networkinterfaces command to display information for each logical network adapter on the system.

~$ sudo nvsm show networkinterfaces

In an NVSM CLI interactive session, targets related to network adapters are located under the /system/localhost/networkinterfaces target.

~$ sudo nvsm
nvsm-> cd /system/localhost/NetworkInterfaces
nvsm(/system/localhost/NetworkInterfaces)-> show

Add an Interface to the Mute Notifications

Here is an example of a command you can run to add an interface to the mute notifications:

$ sudo nvsm set chassis/localhost/NetworkAdapters/policy mute_notification=PCI0000_0c_00,PCI0000_12_00

System Monitoring Configuration

NVSM provides a DSHM service that monitors the state of the DGX system.

NVSM CLI can be used to interact with the DSHM system monitoring service via the NVSM API server.

Configuring Email Alerts

In order to receive the Alerts generated by DSHM through email, configure the Email settings in the global policy using NVSM CLI. User shall receive email whenever a new alert gets generated. The sender address, recipient address(es), SMTP server IP address and SMTP server Port number must be configured according to the SMTP server settings hosted by the user.

Email configuration properties

Property	Description
email_sender	Sender email address Must be a valid email address, otherwise no emails will be sent. [ sender@domain.com ]
email_recipients	List of recipients to which the email shall be sent [ user1@domain.com,user2@domain.com ]
email_smtp_server_name	SMTP server name that the user wants to use for relaying email [ smtp.domain.com ]
email_smtp_server_port	Port Number used by the SMTP server for providing SMTP relay service. Numeric value

The following examples illustrate how to configure email settings in global policy using NVSM CLI.

user@dgx-2:~$sudo nvsm set /policy email_sender=dgx-admin@nvidia.com

user@dgx-2:~$sudo nvsm set /policy email_smtp_server_name=smtpserver.nvidia.com

user@dgx-2:~$sudo nvsm set /policy email_recipients=jdoe@nvidia.com,jdeer@nvidia.com

user@dgx-2:~$sudo nvsm set /policy email_smtp_server_port=465

Generating a Test Alert for Email

From within an NVSM CLI interactive session, a user may generate a test alert in order to trigger an SMTP instance and receive an email notification.

Creating a Test Alert

NVSM CLI provides a “create testalert ” command to generate a dummy alert that will trigger any SMTP or Call Home defined notification. Within an NVSM CLI interactive session, this basic command generates a dummy alert with default component_``id = Test0`` and severity = Warning.

~$ sudo nvsm create testalert

To configure the Severity and Component of a test alert, issue the following:

~$ sudo nvsm create testalert <component_id> <severity>

Example of generating a dummy alert with component_id = Email1 and severity = Critical:

~$ sudo nvsm create testalert Email1 Critical

Clearing a Test Alert

NVSM CLI also provides a “clear testalert ” command to dismiss a generated dummy alert. Within an NVSM CLI interactive session, this basic command will clear any test alert with component_id=Test0, even if there are multiple such alerts.

~$ sudo nvsm clear testalert

To specify which test alert to dismiss, issue the following:

~$ sudo nvsm clear testalert <component_id>

Showing a Test Alert

To display all generated test alerts, the NVSM CLI provides a “show testalerts ” command

~$ sudo nvsm show testalerts

Example output:

/systems/localhost/testalerts/alert0
Properties:
    system_name = system-name5
    message_details = Dummy Test
    component_id = Test0
    description = No component is reporting an error. This is a test.
    event_time = 2021-08-04T15:55:46.926710484-07:00
    recommended_action = Please run 'sudo nvsm clear testalert' to dismiss this alert.
    alert_id = NV-TEST-01
    system_serial = To be filled by O.E.M.
    message = Test Alert.
    severity = Warning
    clear_time = -
    hidden = false
    type = TestAlerts

Understanding System Monitoring Policies

From within an NVSM CLI interactive session, system monitor policy settings are accessible under the following targets.

CLI Target	Description
/policy	Global NVSM monitoring policy, such as email settings for alert notifications.
/systems/localhost/gpus/policy
/systems/localhost/memory/policy	NVSM policy for monitoring DIMM correctable and uncorrectable errors.
/systems/localhost/processors/policy	NVSM policy for monitoring CPU machine-check exceptions (MCE)
/systems/localhost/storage/policy	NVSM policy for monitoring storage drives and volumes
/chassis/policy
/chassis/localhost/thermal/policy	NVSM policy for monitoring fan speed and temperature as reported by the baseboard management controller (BMC)
/chassis/localhost/power/policy	NVSM policy for monitoring power supply voltages as reported by the BMC
/chassis/localhost/NetworkAdapters/policy	NVSM policy for monitoring the physical network adapters
/chassis/localhost/NetworkAdapters/<ETH x >/NetworkPorts/policy	NVSM policy for monitoring the network ports for the specified Ethernet network adapter
/chassis/localhost/NetworkAdapters/<IB y >/NetworkPorts/policy	NVSM policy for monitoring the network ports for the specified InfiniBand network adapter
/chassis/localhost/NetworkAdapters/<ETH x >/NetworkDeviceFunctions/policy	NVSM policy for monitoring the PCIe functions for the specified Ethernet network adapter
/chassis/localhost/NetworkAdapters/<IB y >/NetworkDeviceFunctions/policy	NVSM policy for monitoring the PCIe functions for the specified InfiniBand network adapter

Global Monitoring Policy

Global monitoring policy is represented by the /policy target of NVSM CLI.

user@dgx-2:~$ sudo nvsm show /policy

Example output:

/policy
Properties:
    email_sender = NVIDIA DSHM Service
    email_smtp_server_name = smtp.example.com
    email_recipients = jdoe@nvidia.com,jdeer@nvidia.com
    email_smtp_server_port = 465
Verbs:
    cd
    set
    show

The properties for global monitoring policy are described in the table below.

Property	Description
email_sender	Sender email address [ sender@domain.com ]
email_recipients	List of recipients to which the email shall be sent [ user1@domain.com,user2@domain.com ]
email_smtp_server_name	SMTP server name that the user wants to use for relaying email [ smtp.domain.com ]
email_smtp_server_port	Port Number used by the SMTP server for providing SMTP relay service. Numeric value

Memory Monitoring Policy

Memory monitoring policy is represented by the /systems/localhost/memory/policy target of NVSM CLI.

user@dgx-2:~$ sudo nvsm show /systems/localhost/memory/policy

Example output:

/systems/localhost/memory/policy
Properties:
    mute_notification = <NOT_SET>
    mute_monitoring = <NOT_SET>

Verbs:
    cd
    set
    show

The properties for memory monitoring policy are described in the table below.

Property	Syntax	Description
mute_notification	List of comma separated DIMM IDs Example: CPU1_DIMM_A1,CPU2_DIMM_F2	Email alert notification is suppressed for devices in the list.
mute_monitoring	List of comma separated DIMM IDs Example: CPU1_DIMM_A1,CPU2_DIMM_F2	Health monitoring is suppressed for devices in the list.

Processor Monitoring Policy

Processor monitoring policy is represented by the /systems/localhost/processors/policy target of NVSM CLI.

user@dgx-2:~$ sudo nvsm show /systems/localhost/processors/policy

Example output:

/systems/localhost/processors/policy
Properties:
    mute_notification = <NOT_SET>
    mute_monitoring = <NOT_SET>

Verbs:
    cd
    set
    show

The properties for processor monitoring policy are described in the table below.

Property	Syntax	Description
mute_notification	List of comma separated CPU IDs. Example: CPU0,CPU1	Email alert notification is suppressed for devices in the list.
mute_monitoring	List of comma separated CPU IDs Example: CPU0,CPU1	Health monitoring is suppressed for devices in the list.

Storage Monitoring Policy

Storage monitoring policy is represented by the /systems/localhost/storage/1/policy target of NVSM CLI.

user@dgx-2:~$ sudo nvsm show /systems/localhost/storage/policy

Example output:

/systems/localhost/storage/policy
Properties:
    volume_mute_monitoring = <NOT_SET>
    volume_poll_interval = 10
    drive_mute_monitoring = <NOT_SET>
    drive_mute_notification = <NOT_SET>
    drive_poll_interval = 10
    volume_mute_notification = <NOT_SET>
Verbs:
    cd
    set
    show

The properties for storage monitoring policy are described in the table below.

Property	Syntax	Description
drive_mute_notification	List of comma separated drive slots Example: 0, 1 etc	Email alert notification is suppressed for drives in the list.
drive_mute_monitoring	List of comma separated drive slots Example: 0, 1 etc	Health monitoring is suppressed for drives in the list.
drive_poll_interval	Positive integer	DSHM checks the health of the drives periodically. By default, this polling occurs every 10 seconds. The poll interval can be configured through this property.
volume_mute_notification	List of comma separated volume identifier Example: md0, md1 etc	Email alert notification is suppressed for volumes in the list
volume_mute_monitoring	List of comma separated volume identifier Example: md0, md1 etc	Health monitoring is suppressed for volumes in the list
volume_poll_interval	Positive integer	DSHM checks the health of the volumes periodically. By default, this polling occurs every 10 seconds. The poll interval can be configured through this property.

Storage volumes are identified by NVSM uniquely by their associated UUID. The mute monitoring for volume resources will hence use UUID instead of volume name. This is required for NVSM versions greater than 21.09.

Steps to identify the UUID of a volume to be set in mute monitoring & notification are listed below.

1. To get the list of volumes in the server run the below command:

   # nvsm show volumes


   # nvsm show volumes

   /systems/localhost/storage/volumes/md0
   Properties:
       CapacityBytes = 1918641373184
       Encrypted = False
       Id = md0
       Name = md0
       Status_Health = OK
       Status_State = Enabled
       VolumeType = Mirrored


2. To find the UUID of a particular volume, run the below command. The command lists properties which contain the UUID for the volume with the name md0:

   # mdadm --detail /dev/{volume name}


   # mdadm --detail /dev/md0
   /dev/md0:
              Version : 1.2
        Creation Time : Tue Feb 23 18:04:37 2021
           Raid Level : raid1
           Array Size : 1873673216 (1786.87 GiB 1918.64 GB)
        Used Dev Size : 1873673216 (1786.87 GiB 1918.64 GB)
         Raid Devices : 2
        Total Devices : 2
          Persistence : Superblock is persistent

        Intent Bitmap : Internal

          Update Time : Tue Apr 11 08:13:48 2023
                State : active
       Active Devices : 2
      Working Devices : 2
       Failed Devices : 0
        Spare Devices : 0

   Consistency Policy : bitmap

                 Name : dgx-20-04:0
                 UUID : 3568aa82:dc3da8ac:5c17ea13:b04cf894
               Events : 78460

       Number   Major   Minor   RaidDevice State
          0     259        5        0      active sync   /dev/nvme2n1p2
          1     259       15        1      active sync   /dev/nvme3n1p2


3. Run the below command to set the UUID for mute monitoring:

   # nvsm set /systems/localhost/storage/policy volume_mute_monitoring=<UUID>


   # nvsm set /systems/localhost/storage/policy
   volume_mute_monitoring=3568aa82:dc3da8ac:5c17ea13:b04cf894


   Note

   If you get an error message that states: WARNING:nvsm:Unknown volume ID: 3568aa82:dc3da8ac:5c17ea13:b04cf894, it can be ignored. This is a known issue that will be fixed in a future version of NVSM.

4. Run the below command to set the UUID for mute notification:

   # nvsm set /systems/localhost/storage/policy volume_mute_notification=<UUID>


   # nvsm set /systems/localhost/storage/policy
   volume_mute_notification=3568aa82:dc3da8ac:5c17ea13:b04cf894


5. Run the below command to verify that the policies were correctly set:

   # nvsm show /systems/localhost/storage/policy


   # nvsm show /systems/localhost/storage/policy
   /systems/localhost/storage/policy
   Properties:
       controller_mute_monitoring = <NOT_SET>
       controller_mute_notification = <NOT_SET>
       controller_poll_interval = 60
       drive_mute_monitoring = <NOT_SET>
       drive_mute_notification = <NOT_SET>
       drive_poll_interval = 60
       volume_mute_monitoring = 3568aa82:dc3da8ac:5c17ea13:b04cf894
       volume_mute_notification = 3568aa82:dc3da8ac:5c17ea13:b04cf894
       volume_poll_interval = 60
   Targets:
   Verbs:
       cd
       set
       show


Thermal Monitoring Policy

Thermal monitoring policy (for fan speed and temperature) is represented by the /chassis/localhost/thermal/policy target of NVSM CLI.

user@dgx-2:~$ sudo nvsm show /chassis/localhost/thermal/policy

Example output:

/chassis/localhost/thermal/policy
Properties:
    fan_mute_notification = <NOT_SET>
    pdb_mute_monitoring = <NOT_SET>
    fan_mute_monitoring = <NOT_SET>
    pdb_mute_notification = <NOT_SET>
Verbs:
    cd
    set
    show

The properties for thermal monitoring policy are described in the table below.

Property	Syntax	Description
fan_mute_notification	List of comma separated FAN IDs. Example: FAN2_R,FAN1_L,PDB_FAN2	Email alert notification is suppressed for devices in the list.
fan_mute_monitoring	List of comma separated FAN IDs Example: FAN6_F,PDB_FAN1	Health monitoring is suppressed for devices in the list.
pdb_mute_notification	List of comma separated PDB IDs. Example: PDB1,PDB2	Email alert notification is suppressed for devices in the list.
pdb_mute_monitoring	List of comma separated PDB IDs Example: PDB1	Health monitoring is suppressed for devices in the list.

Power Monitoring Policy

Power monitoring policy is represented by the /chassis/localhost/power/policy target of NVSM CLI.

user@dgx-2:~$ sudo nvsm show /chassis/localhost/power/policy

Example output:

/chassis/localhost/power/policy
Properties:
    mute_notification = <NOT_SET>
    mute_monitoring = <NOT_SET>

Verbs:
    cd
    set
    show

The properties for power monitoring policy are described in the table below.

Property	Syntax	Description
mute_notification	List of comma separated PSU IDs. Example: PSU4,PSU2	Email alert notification is suppressed for devices in the list.
mute_monitoring	List of comma separated FAN IDs Example: PSU1,PSU4	Health monitoring is suppressed for devices in the list.

PCIe Monitoring Policy

Memory monitoring policy is represented by the /systems/localhost/pcie/policy target of NVSM CLI.

:~$ sudo nvsm show /systems/localhost/pcie/policy

Example output:

/systems/localhost/pcie/policy
Properties:
    mute_notification = <NOT_SET>
    mute_monitoring = <NOT_SET>

Verbs:
    cd
    set
    show

The properties for memory monitoring policy are described in the table below.

Property	Syntax	Description
mute_notification	List of comma separated PCIe IDs	Email alert notification is suppressed for devices in the list.
mute_monitoring	List of comma separated PCIe IDs	Health monitoring is suppressed for devices in the list.

GPU Monitoring Policy

Memory monitoring policy is represented by the /systems/localhost/gpus/policy target of NVSM CLI.

:~$ sudo nvsm show /systems/localhost/gpus/policy

Example output:

/systems/localhost/gpus/policy
Properties:
    mute_notification = <NOT_SET>
    mute_monitoring = <NOT_SET>

Verbs:
    cd
    set
    show

The properties for memory monitoring policy are described in the table below.

Property	Syntax	Description
mute_notification	List of comma separated GPU IDs	Email alert notification is suppressed for devices in the list.
mute_monitoring	List of comma separated GPU IDs	Health monitoring is suppressed for devices in the list.

Network Adapter Monitoring Policies

Network Adapter Policy

The physical network adapter monitoring policy is represented by the /chassis/localhost/NetworkAdapters/policy target of the NVSM CLI.

:~$ sudo nvsm show /chassis/localhost/NetworkAdapters/policy

Example output:

/chassis/localhost/NetworkAdapters/policy
Properties:
    mute_notification = <NOT_SET>
    mute_monitoring = <NOT_SET>
Verbs:
    cd
    set
    show

The properties are described in the following table.

Property	Syntax	Description
mute_notification	List of comma separated physical network adapter IDs.	Email alert notification is suppressed for devices in the list.
mute_monitoring	List of comma separated physical network adapter IDs.	Health monitoring is suppressed for devices in the list.

The mute monitoring is assigned by using the Physical Adapter name and not the logical name. To get the physical adapter name use the command:

$ sudo nvsm show /chassis/localhost/NetworkAdapters

This command will display a list of target adapter names as shown below:

:~$:/etc/nvsm/platforms# sudo nvsm show /chassis/localhost/NetworkAdapters
/chassis/localhost/NetworkAdapters
Targets:
PCI0000_0c_00
PCI0000_12_00
PCI0000_4b_00
PCI0000_54_00
PCI0000_8d_00
PCI0000_94_00
PCI0000_ba_00
PCI0000_cc_00
PCI0000_e1_00
PCI0000_e2_00

Note

Use these adapter names to assign monitoring policies.

Here is an example that uses the PCI0000_0c_00 network interface:

:~$ sudo nvsm show /chassis/localhost/NetworkAdapters/PCI0000_0c_00/NetworkPorts/policy

Example output:

/chassis/localhost/NetworkAdapters/PCI0000_0c_00/NetworkPorts/policy
Properties:
    mute_notification = <NOT_SET>
    mute_monitoring = <NOT_SET>
Verbs:
    cd
    set
    show

The properties are described in the following table.

Property	Syntax	Description
mute_notification	List of comma separated physical network port IDs.	Email alert notification is suppressed for devices in the list.
mute_monitoring	List of comma separated physical network port IDs	Health monitoring is suppressed for devices in the list.

Network Devices Functions Policy

The network devices functions monitoring policy is represented by the /chassis/localhost/NetworkAdapters/<network-id>/NetworkDeviceFunctions/policy target of NVSM CLI.

The following command uses the PCI0000_0c_00 network port to demonstrate this command.

:~$ sudo nvsm show /chassis/localhost/NetworkAdapters/PCI0000_0c_00/NetworkDeviceFunctions/policy

Example output:

/chassis/localhost/NetworkAdapters/PCI0000_0c_00/NetworkDeviceFunctions/policy
Properties:
    mute_monitoring = <NOT_SET>
    mute_notification = <NOT_SET>
    rx_collision_threshold = 5
    rx_crc_threshold = 5
    tx_collision_threshold = 5
Verbs:
    cd
    set
    show

The properties are described in the following table.

Property	Syntax	Description
mute_notification	List of comma separated network-centric PCIe function IDs. Example: PSU4,PSU2	Email alert notification is suppressed for devices in the list.
mute_monitoring	List of comma separated network-centric PCIe function IDs. Example: PSU1,PSU4	Health monitoring is suppressed for devices in the list.
rx_collision_threshold	Positive integer
rx_crc_threshold	Positive integer
tx_collision_threshold	Positive integer

Performing System Management Tasks

This section describes commands for accomplishing some system management tasks.

Rebuilding a RAID/ESP Array for Current NVSM

On DGX systems, cache drives are configured as a RAID 0 array by default. This volume is mounted to /raid. In the example below, it shows as /dev/md1, but the name can be different depending on the OS naming schema and configuration.

Additionally for DGX systems with two NVMe OS drives, echo OS drive have two partitions:

• The second partitions are configured as a RAID 1 array with the operating system installed. In the examples below, it shows as /dev/md0.

• The first partition is known as the EFI System Partition (ESP). NVSM monitors the content of this partition from both drives. If one of the ESP is corrupted, NVSM can be used to recover that partition from the healthy ESP.

  Note

  This is not a RAID array, because UEFI does not support booting from software raid volumes.

Viewing a Healthy RAID/ESP Volume

On a healthy system, the OS volume appears with VolumeType = Mirrored and Status_Health = OK. For example:

nvsm(/systems/localhost/storage)-> show volumes/md0

/systems/localhost/storage/volumes/md0
Properties:
    CapacityBytes = 1918641373184
    Encrypted = False
    Id = md0
    Name = md0
    Status_Health = OK
    Status_State = Enabled
    VolumeType = Mirrored
Targets:
Verbs:
    cd
    show

The cache volume appears with VolumeType = NonRedundant and and Status_Health = OK. For example:

nvsm-> cd /systems/localhost/storage
nvsm(/systems/localhost/storage)-> show volumes/md1

/systems/localhost/storage/volumes/md1
Properties:
    CapacityBytes = 30724962910208
    Encrypted = False
    Id = md1
    Name = md1
    Status_Health = OK
    Status_State = Enabled
    VolumeType = NonRedundant
Targets:
    encryption
Verbs:
    cd
    show

The ESP volume appears with VolumeType = EFI system partition and Status_Health = OK. The name of the ESP volume varies per system; you can use the command nvsm show volumes to list all volumes and look for VolumeType = EFI system partition. Here’s the example from DGX A100:

nvsm(/systems/localhost/storage)-> show volumes

...

/systems/localhost/storage/volumes/nvme2n1p1
Properties:
    CapacityBytes = 536870912
    Encrypted = False
    Id = nvme2n1p1
    Name = nvme2n1p1
    Status_Health = OK
    Status_State = Enabled
    VolumeType = EFI system partition

...

/systems/localhost/storage/volumes/nvme3n1p1
Properties:
    CapacityBytes = 536870912
    Encrypted = False
    Id = nvme3n1p1
    Name = nvme3n1p1
    Status_Health = OK
    Status_State = StandbyOffline
    VolumeType = EFI system partition

Targets:
Verbs:
    cd
    show

Viewing a Degraded RAID/ESP Volume

On a system with degraded OS volume, the md0 volume will appear with only one drive, with the following Status_Health = Critical message:

nvsm-> cd /systems/localhost/storage
nvsm(/systems/localhost/storage)-> show volumes/md0

/systems/localhost/storage/volumes/md0
Properties:
    CapacityBytes = 1918641373184
    Encrypted = False
    Id = md0
    Name = md0
    Status_Health = Critical
    Status_State = Enabled
    VolumeType = Mirrored
Targets:
Verbs:
    cd
    show

On a system with corrupted ESP, the volume will appear with the following Status_Health = Critical and Status_State = UnavailableOffline messages:

nvsm-> cd /systems/localhost/storage
nvsm(/systems/localhost/storage)-> show volumes/nvme2n1p1

/systems/localhost/storage/volumes/nvme2n1p1
Properties:
    CapacityBytes = 536870912
    Encrypted = False
    Id = nvme2n1p1
    Name = nvme2n1p1
    Status_Health = Critical
    Status_State = UnavailableOffline
    VolumeType = EFI system partition
Targets:
Verbs:
    cd
    show

Rebuilding the RAID/ESP Volume

To rebuild the RAID/ESP volume, make sure that you have replaced failed NVMe drives.

The RAID rebuilding process should begin automatically upon turning on the system. If it does not start automatically, use NVSM CLI to manually rebuild the array as follows.

1. Start an NVSM CLI interactive session and switch to the storage target.

   ~$ sudo nvsm
   nvsm-> cd /systems/localhost/storage


2. Start the rebuilding process, and select which volumes to rebuild.

   • raid-1 for OS volume

   • raid-0 for cache volume

   • esp for EFI system partition

   For raid-1 volume, you also need to enter the replaced drive name.

   Note

   This is not the partition name. For example, use nvme3 instead of nvme3n1p2.

   nvsm(/systems/localhost/storage)-> start volumes/rebuild

   PROMPT: In order to rebuild volume, volume type is required. Please
           specify the volume type to rebuild from options below.
           raid-0: create raid-0 data volume
           raid-1: rebuild OS boot and root volumes
           esp:    find and replicate an empty EFI system partition

   Type of volume rebuild (CTRL-C to cancel): raid-1

   PROMPT: In order to rebuild this volume, a spare drive
           is required. Please specify the spare drive to
           use to rebuild RAID-1.

   Name of spare drive for RAID-1 rebuild (CTRL-C to cancel): nvme3

   WARNING: Once the rebuild process is started, the
            process cannot be stopped.

   Start RAID-1 rebuild? [y/n] y


3. After entering y at the prompt to start the RAID 1 rebuild, the “Initiating rebuild …” message appears.

   /systems/localhost/storage/volumes/rebuild started at 2023-04-10 Initiating RAID-1 rebuild on volume md0...
    0.0% [\ ]


4. After a few seconds, the “Rebuilding RAID-1 …” message appears.

   /systems/localhost/storage/volumes/rebuild started at 2023-04-10 08:22:58.910025
   Rebuilding RAID-1...
    31.0% [=============/ ]


5. If this message remains at Initiating RAID-1 rebuild for more than 30 seconds, there is a problem with the rebuild process. Verify that the name of the replacement drive is correct and try again.

The RAID 1 rebuild process should take about 1 hour to complete.

For more detailed information on replacing a failed NVMe drive, see the NVIDIA DGX-2 Service Manual or NVIDIA DGX A100 Service Manual.

Rebuilding a RAID 1 Array for Legacy NVSM (< 21.09)

For DGX systems with two NVMe OS drives configure as a RAID 1 array, the operating system is installed on volume md0. You can use NVSM CLI to view the health of the RAID volume and then rebuild the RAID array on two healthy drives.

Viewing a Healthy RAID Volume

On a healthy system, this volume appears with two drives and Status_Health = OK. For example:

 nvsm-> cd /systems/localhost/storage
nvsm(/systems/localhost/storage)-> show volumes/md0
/systems/localhost/storage/volumes/md0
Properties:
    Status_State = Enabled
    Status_Health = OK
    Name = md0
    Encrypted = False
    VolumeType = RAID-1
    Drives = [ nvme0n1, nvme1n1 ]
    CapacityBytes = 893.6G
    Id = md0
Targets:
    rebuild
Verbs:
    cd
    show

Viewing a Degraded RAID Volume

On a system with degraded OS volume, the md0 volume will appear with only one drive, with the following Status_Health = Warning, and Status_State = Degraded messages:

nvsm-> cd /systems/localhost/storage
nvsm(/systems/localhost/storage)-> show volumes/md0
/systems/localhost/storage/volumes/md0
Properties:
    Status_State = Degraded
    Status_Health = Warning
    Name = md0
    Encrypted = False
    VolumeType = RAID-1
    Drives = [ nvme1n1 ]
    CapacityBytes = 893.6G
    Id = md0Targets:
    rebuild
Verbs:
    cd
    show

In this situation, the OS volume is missing its parity drive.

Rebuilding the RAID 1 Volume

To rebuild the RAID array, make sure that you have installed a known good NVMe drive for the parity drive.

The RAID rebuilding process should begin automatically upon turning on the system. If it does not start automatically, use NVSM CLI to manually rebuild the array as follows.

1. Start an NVSM CLI interactive session and switch to the storage target.

   $ sudo nvsm
   nvsm-> cd /systems/localhost/storage


2. Start the rebuilding process and be ready to enter the device name of the replaced drive.

   nvsm(/systems/localhost/storage)-> start volumes/md0/rebuild
   PROMPT: In order to rebuild this volume, a spare drive
           is required. Please specify the spare drive to use
           to rebuild md0.
   Name of spare drive for md0 rebuild (CTRL-C to cancel): nvmeXn1
   WARNING: Once the volume rebuild process is started, the
            process cannot be stopped.
   Start RAID-1 rebuild on md0? [y/n] y


3. After entering y at the prompt to start the RAID 1 rebuild, the “Initiating rebuild …” message appears.

   /systems/localhost/storage/volumes/md0/rebuild started at 2018-10-12 15:27:26.525187
    Initiating RAID-1 rebuild on volume md0...
    0.0% [\ ]


   After about 30 seconds, the Rebuilding RAID-1 ... message should appear.

   /systems/localhost/storage/volumes/md0/rebuild started at 2018-10-12 15:27:26.525187
    Rebuilding RAID-1 rebuild on volume md0...
    31.0% [=============/ ]


   If this message remains at Initiating RAID-1 rebuild for more than 30 seconds, there is a problem with the rebuild process. Verify that the name of the replacement drive is correct and try again.

The RAID 1 rebuild process should take about 1 hour to complete.

For more detailed information on replacing a failed NVMe OS drive, see the NVIDIA DGX-2 Service Manual or NVIDIA DGX A100 Service Manual.

Setting MaxQ/MaxP on DGX-2 Systems

Beginning with DGX OS 4.0.5, you can set two GPU performance modes – MaxQ or MaxP.

Note

Support on DGX-2 systems requires BMC firmware version 1.04.03 or later. MaxQ/MaxP is not supported on DGX-2H systems.

MaxQ

• Maximum efficiency mode

• Allows two DGX-2 systems to be installed in racks that have a power budget of 18 kW.

• Switch to MaxQ mode as follows.

  $ sudo nvsm set powermode=maxq


  The settings are preserved across reboots.

MaxP

• Default mode for maximum performance

• GPUs operate unconstrained up to the thermal design power (TDP) level.

  In this setting, the maximum DGX-2 power consumption is 10 kW.

• Provides reduced but better performance than MaxQ when only 3 or 4 PSUs are working.

• If you switch to MaxQ mode, you can switch back to MaxP mode as follows:

  $ sudo nvsm set powermode=maxp


  The settings are preserved across reboots.

Performing a Stress Test

NVSM supports functionality to simultaneously stress various components (GPU, PCIe, DIMMs, Storage Drives, CPUs, Network Cards) of the system with large workloads. The stress-test will provide a summary at the end determining whether each stressed component passed the test or failed with some error. NVSM will also monitor various system metrics during the stress-test to provide a clearer picture of the kinds of computational loads imposed. This stress test can be invoked from the CLI.

Syntax:

$ sudo nvsm stress-test [--usage] [--force] [--no-prompt] [<test>...] [DURATION]

For help on running the test, issue the following.

$ sudo nvsm stress-test --usage

Example output for sudo nvsm stress-test 60 --force:
