Dynamic Mode

Data Loading: TensorFlow TFRecord

Overview

This example shows you how to use the data that is stored in the TensorFlow TFRecord format with DALI.

Creating index

To use data that is stored in the TFRecord format, we need to use the readers.TFRecord operator. In addition to the arguments that are common to all readers, such as random_shuffle, this operator takes path, index_path and features arguments.

• path is a list of paths to the TFRecord files

• index_path is a list that contains the paths to index files, which are used by DALI mainly to properly shard the dataset between multiple workers. The index for a TFRecord file can be obtained from that file by using the tfrecord2idx utility that is included with DALI. You need to create the index file only once per TFRecord file.

• features is a dictionary of pairs (name, feature), where feature (of type dali.tfrecord.Feature) describes the contents of the TFRecord. DALI features closely follow the TensorFlow types tf.FixedLenFeature and tf.VarLenFeature.

The DALI_EXTRA_PATH environment variable should point to the location where data from DALI extra repository is downloaded.

Important: Ensure that you check out the correct release tag that corresponds to the installed version of DALI.

import os
from pathlib import Path
from subprocess import call

import matplotlib.gridspec as gridspec
import matplotlib.pyplot as plt
import numpy as np

import nvidia.dali.experimental.dynamic as ndd
import nvidia.dali.tfrecord as tfrec

dali_extra_dir = Path(os.environ["DALI_EXTRA_PATH"])
tfrecord = dali_extra_dir / "db" / "tfrecord" / "train"
batch_size = 16
tfrecord_idx = Path("idx_files/train.idx")
tfrecord2idx_script = "tfrecord2idx"

if not tfrecord_idx.parent.exists():
    tfrecord_idx.parent.mkdir()

if not tfrecord_idx.is_file():
    call([tfrecord2idx_script, str(tfrecord), str(tfrecord_idx)])

Reading and Processing Images

1. Read the images stored in TFRecord format, decode them, and prepare them for ingestion in a DL framework.

   Processing images involves cropping, normalizing, and HWC -> CHW conversion process.

The TFRecord file that we used in this example does not have images upscaled to a common size. This results in an error during cropping, when the image is smaller than the crop window. To overcome this issue, use the resize operation before you crop. This step ensures that the shorter side of images being cropped is 256 pixels.

reader = ndd.readers.TFRecord(
    path=str(tfrecord),
    index_path=str(tfrecord_idx),
    features={
        "image/encoded": tfrec.FixedLenFeature((), tfrec.string, ""),
        "image/class/label": tfrec.FixedLenFeature([1], tfrec.int64, -1),
        "image/class/text": tfrec.FixedLenFeature([], tfrec.string, ""),
        "image/object/bbox/xmin": tfrec.VarLenFeature(tfrec.float32, 0.0),
        "image/object/bbox/ymin": tfrec.VarLenFeature(tfrec.float32, 0.0),
        "image/object/bbox/xmax": tfrec.VarLenFeature(tfrec.float32, 0.0),
        "image/object/bbox/ymax": tfrec.VarLenFeature(tfrec.float32, 0.0),
    },
)

for data in reader.next_epoch(batch_size=batch_size):
    jpegs = data["image/encoded"]
    images = ndd.decoders.image(jpegs, device="gpu")
    resized = ndd.resize(images, resize_shorter=256.0)
    output = ndd.crop_mirror_normalize(
        resized,
        dtype=ndd.float32,
        crop=(224, 224),
        mean=[0.0, 0.0, 0.0],
        std=[1.0, 1.0, 1.0],
    )
    labels = data["image/class/text"]
    break  # Run once

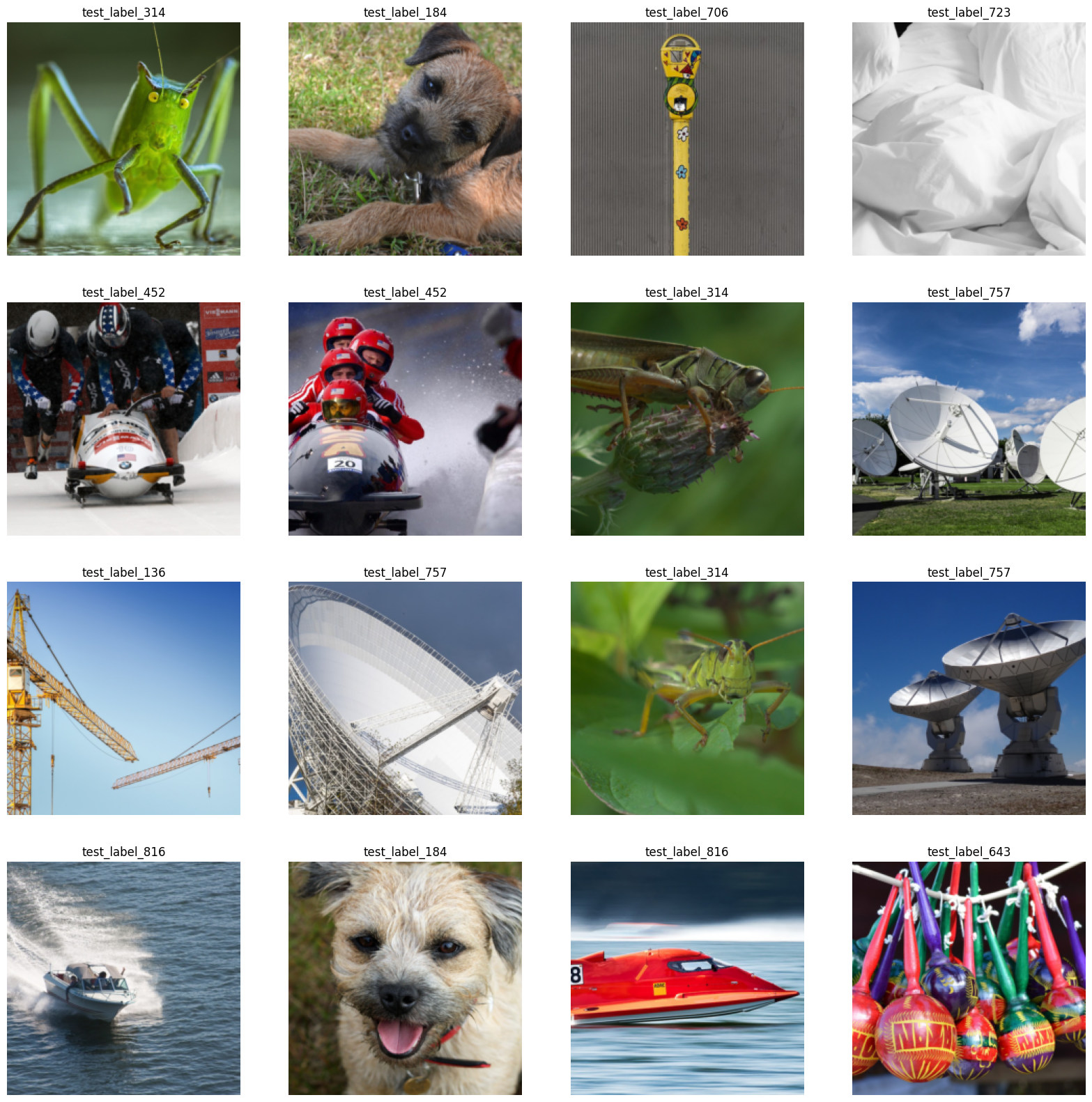

2. To visualize the results, use the matplotlib library, which expects images in HWC format, but the output is in CHW.

   Note: CHW is the preferred format for most Deep Learning frameworks.

3. For the visualization purposes, transpose the images back to the HWC layout.

def show_images(image_batch: ndd.Batch, label_batch: ndd.Batch):
    columns = 4
    rows = (batch_size + 1) // columns
    fig = plt.figure(figsize=(20, (20 // columns) * rows))
    gs = gridspec.GridSpec(rows, columns)
    for j, (img, label) in enumerate(zip(image_batch, label_batch)):
        plt.subplot(gs[j])
        plt.axis("off")
        ascii_data = np.asarray(label)
        plt.title("".join([chr(item) for item in ascii_data]))
        img_chw = np.asarray(img.cpu())
        img_hwc = np.transpose(img_chw, (1, 2, 0)) / 255.0
        plt.imshow(img_hwc)
    plt.show()

show_images(output, labels)

For more flexibility VarLenFeature supports the partial_shape parameter. If provided, the data will be reshaped to match its value. The first dimension will be inferred from the data size.
