Color Space Conversion

This example showcases different color space conversion operations available in DALI.

from pathlib import Path

import matplotlib.gridspec as gridspec
import matplotlib.pyplot as plt
import numpy as np
import nvidia.dali.experimental.dynamic as ndd
import nvidia.dali.types as types

image_dir = Path("../../data/images")
image_path = next(image_dir.glob("**/*.jpg"))
image = ndd.imread(image_path)

Color Space Conversions

We’ll demonstrate three common color space conversions:

• RGB to BGR

• RGB to YCbCr

• RGB to Grayscale

conversions = [
    ("RGB to BGR", types.RGB, types.BGR),
    ("RGB to YCbCR", types.RGB, types.YCbCr),
    ("RGB to Gray", types.RGB, types.GRAY),
]

def show_images(
    original: ndd.Tensor,
    converted_list: list[ndd.Tensor],
    titles: list[str],
    device: str,
):
    fig = plt.figure(figsize=(16, 8))
    columns = 4
    rows = 1
    gs = gridspec.GridSpec(rows, columns)

    plt.subplot(gs[0])
    plt.axis("off")
    plt.title("Original")
    plt.imshow(original.cpu())

    for i, (conv, title) in enumerate(zip(converted_list, titles)):
        plt.subplot(gs[i + 1])
        plt.axis("off")
        plt.title(f"{title} ({device})")
        img = np.asarray(conv.cpu())
        if len(img.shape) == 2 or img.shape[2] == 1:
            plt.imshow(
                np.squeeze(img) if len(img.shape) > 2 else img, cmap="gray"
            )
        else:
            plt.imshow(img)

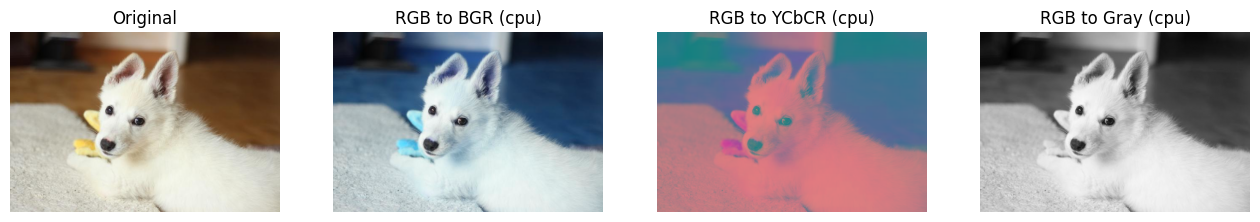

CPU Color Conversions

titles = [title for title, _, _ in conversions]
converted_cpu = [
    ndd.color_space_conversion(image, image_type=inp_t, output_type=out_t)
    for _, inp_t, out_t in conversions
]
show_images(image, converted_cpu, titles, "cpu")

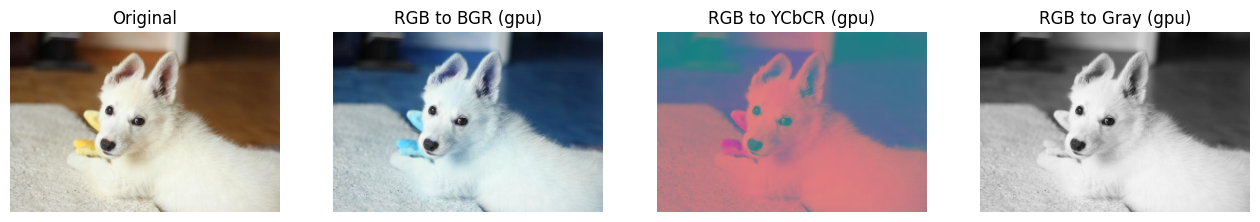

GPU Color Conversions

image_gpu = image.gpu()
converted_gpu = [
    ndd.color_space_conversion(image_gpu, image_type=inp_t, output_type=out_t)
    for _, inp_t, out_t in conversions
]
show_images(image_gpu, converted_gpu, titles, "gpu")
