GMSL Camera Capture Sample

The GMSL Camera Capture sample uses the GMSL camera interface, if available, on NVIDIA DRIVE™ PX 2 platforms. The sample opens an X window showing the input from the first camera on the selected CSI port.

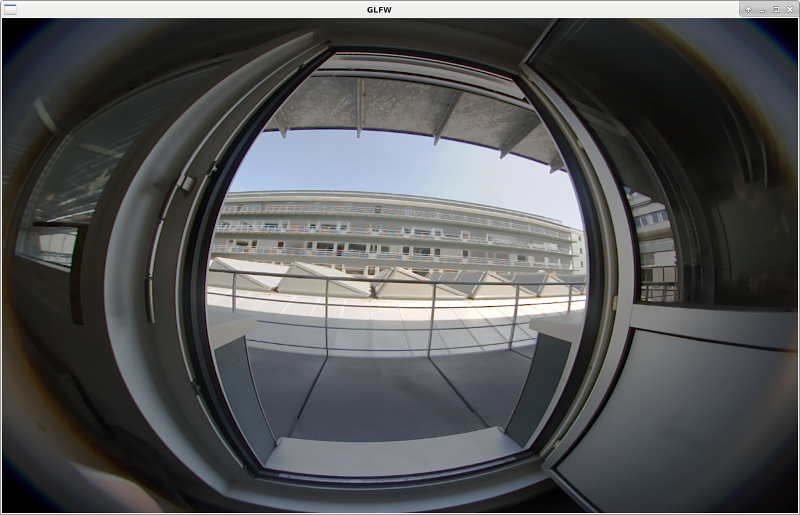

Single OV10640 camera capturing

Setting Up Cameras

For information about the physical location of the ports on NVIDIA DRIVE PX 2 platforms, see "Camera Setup under Configuration and Setup" in NVIDIA DRIVE 5.0 Linux PDK Development Guide.

Options

A camera must be connected to one of the NVIDIA DRIVE PX 2 CSI ports.

The following options are supported:

  • --csi-port={ab,cd,ef} specifies a CSI port. Default value: ab. For more information about the physical location of these ports on the board, see "Camera Setup" under "Configuration and Setup" in the _NVIDIA DRIVE 5.0 Linux PDK
  • --camera-type specifies the type of the camera. Use Sensor Indexer to query for supported camera types. Default value: ar0231-rccb.
  • --write-file specifies the output file. If --write-file is not provided, no file is written out on disk.
  • --serializer-type represents the format of the video with two possible options: h264 or uncompressed. When serializer-type is set to h264, you must also set the --serializer-bitrate, which is by default set to 8000000. Furthermore, the frame rate of the recorded video can be overwritten by providing --serialize-framerate.
  • --fifo-size={3,...} specifies the camera buffer size. Note that the size must be at least 3. To reduce the delay, use a low number when not recording.

If the camera type is not ar0231 or the CSI port is not the default ab, execute:

./sample_camera_gmsl --csi-port=cd --camera-type=c-ov10640-b1

When running on NVIDIA® Tegra® B, it is possible to specify the "slave" flag, which can be 0 or 1. If slave is true, then Tegra B will not be able to run cameras autonomously but it requires that the camera be simultaneously run from Tegra A. If slave is false, then Tegra B can control any camera that is not currently being used by Tegra A.

Screenshots can be captured by pressing s while the sample is running.

Note
  • Continental cameras model OV10640 can be launched under different names: the generic name is c-ov10640-b1 and is kept for backward compatibility. The two other modes ov10640-svc210 and ov10640-svc212 will activate lense specific configurations for an improved image quality.

Run on Tegra B

Master mode

Before running camera applications only on Tegra B, you must disable FRSYNC and the forward/reverse control channel of Tegra A aggregator. Please see Camera Setup (P2379) in NVIDIA DRIVE 5.0 Linux PDK Development Guide. This guide will show show you how to:

  • Turn MAX9286 aggregator on.
  • Disable FRSYNC and the forward/reverse control channel on MAX9286 aggregator to avoid any interference with MAX96799.

After this steps camera applications can run on Tegra B after reboot. Be aware that running camera applications on Tegra A re-enables the forward/reverse control channel and FRSYNC from MAX9286 and the procecedure of activating camera for Tegra B need to be repeated.

Slave mode

Cameras can be captured on Tegra B in slave mode, i.e. when they are already captured by an application on Tegra A. In such case it is possible to specify the "slave" flag, which can be 0 or 1. If slave is 1, then Tegra B will not be able to run cameras autonomously but it requires that camera to run at the same time from Tegra A. If slave is false, then Tegra B can control any camera that is not currently being used by Tegra A.
