Custom Topology

The Drag-and-Drop Topology Builder

One way to create custom simulations is with the built-in topology builder, which provides a drag-and-drop editor to design any custom network. To get started, navigate to https://dsx-air.nvidia.com/simulations.

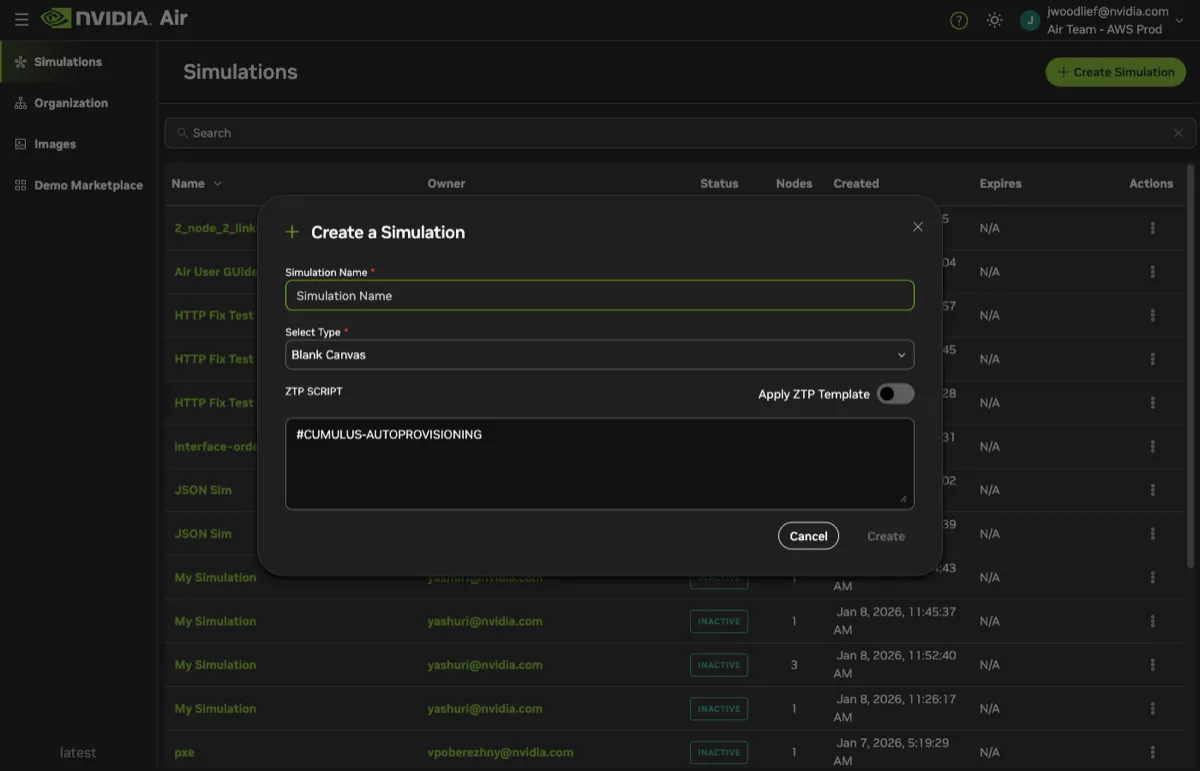

1. Select Create Simulation.
2. Provide a name for your simulation.
3. Select Blank Canvas as the type.
4. (Optional) Add a ZTP script to the simulation:
   1. Select Apply ZTP Template.
   2. Enter your ZTP script. A default script is prefilled to help get you started.
5. Click Create.

ZTP Scripts

When you create a new simulation, Air gives you the option to add a zero-touch provisioning (ZTP) script. The ZTP script is copied to the simulation’s oob-mgmt-server. Any node making a ZTP request on the out-of-band management network has access to this ZTP script through a DHCP server and web server running on the oob-mgmt-server.

A default script is prefilled to help you get started. It implements common ZTP features on Cumulus Linux, such as changing the default password or downloading SSH keys. You can edit the default script directly in the UI.

#!/bin/bash
# Created by Topology-Converter v4.7.1
#    Template Revision: v4.7.1
function error() {
  echo -e "e[0;33mERROR: The Zero Touch Provisioning script failed while running the command $BASH_COMMAND at line $BASH_LINENO.e[0m" >&2
}
trap error ERR
SSH_URL="http://192.168.200.1/authorized_keys"
# Uncomment to set up SSH key authentication for Ansible
# mkdir -p /home/cumulus/.ssh
# wget -q -O /home/cumulus/.ssh/authorized_keys $SSH_URL
# Uncomment to unexpire and change the default cumulus user password
# passwd -x 99999 cumulus
# echo 'cumulus:Cumu1usLinux!' | chpasswd
# Uncomment to make user cumulus passwordless sudo
# echo "cumulus ALL=(ALL) NOPASSWD:ALL" > /etc/sudoers.d/10_cumulus
# Uncomment to enable all debian sources & netq apps3 repo
# sed -i 's/#deb/deb/g' /etc/apt/sources.list
# wget -q -O pubkey https://apps3.cumulusnetworks.com/setup/cumulus-apps-deb.pubkey
# apt-key add pubkey
# rm pubkey
# Uncomment to allow NTP to make large steps at service restart
# echo "tinker panic 0" >> /etc/ntp.conf
# systemctl enable ntp@mgmt
exit 0
#CUMULUS-AUTOPROVISIONING

Manage Nodes

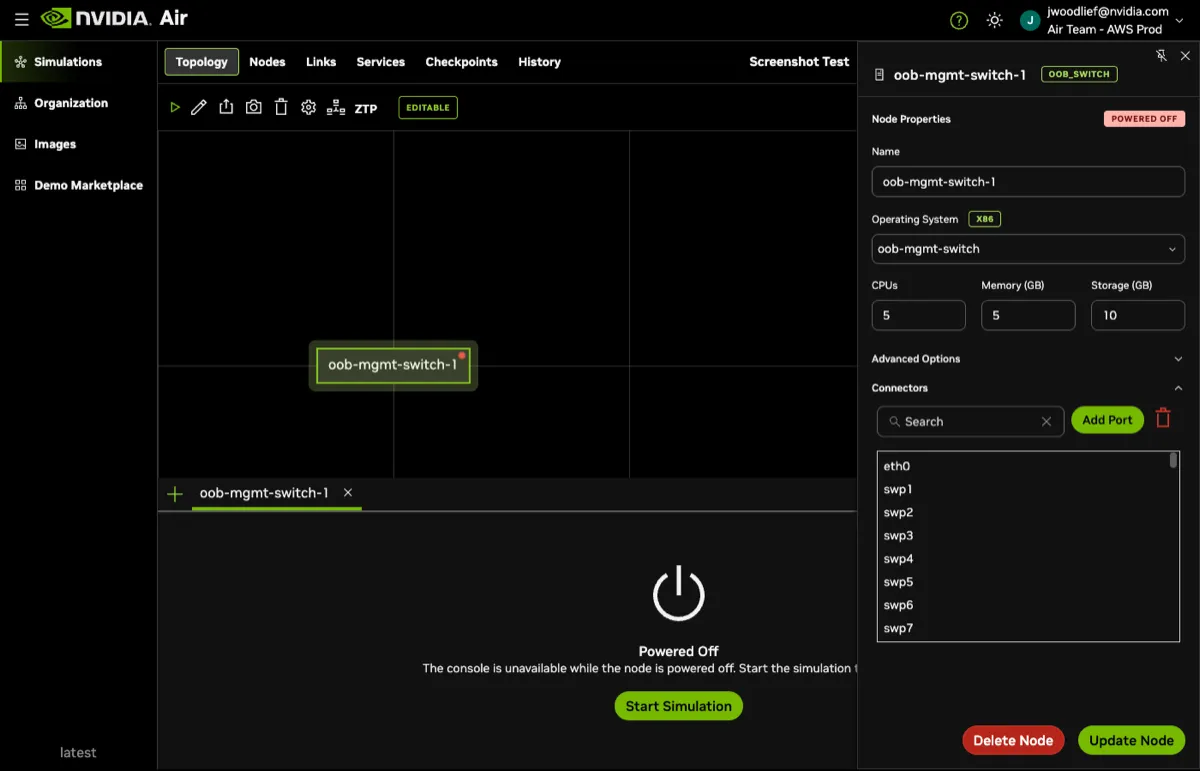

You can drag servers and switches from the System Palette to the workspace. Air provides access to hardware models based on available NVIDIA Spectrum switches. The model does not affect the simulation, but allows Air to pre-populate the number of ports based on the switch model. You do not need to use each port.

Select a node to view or edit its properties.

• Name: Node hostname.
• Operating System: Name of the OS installed on the node. The OS is installed automatically.
• CPUs: Number of CPUs. The default is 1 or 2 CPUs, depending on the Spectrum switch.
• Memory (GB): Amount of RAM (default is 2 GB).
• Storage (GB): Amount of hard disk space (default is 10 GB).
• Connectors: Choose an available port to connect directly to any port on another node.

Make sure to select Update Node when you complete the changes. You can delete nodes by selecting Delete Node.

Air also provides advanced options, such as enabling UEFI secure boot.

After you create your topology, start the simulation. You cannot add, remove, or edit nodes after the simulation starts for the first time. To edit a simulation that has already been started, revert the simulation to delete its checkpoints and return it to an editable state.

Breakout Ports

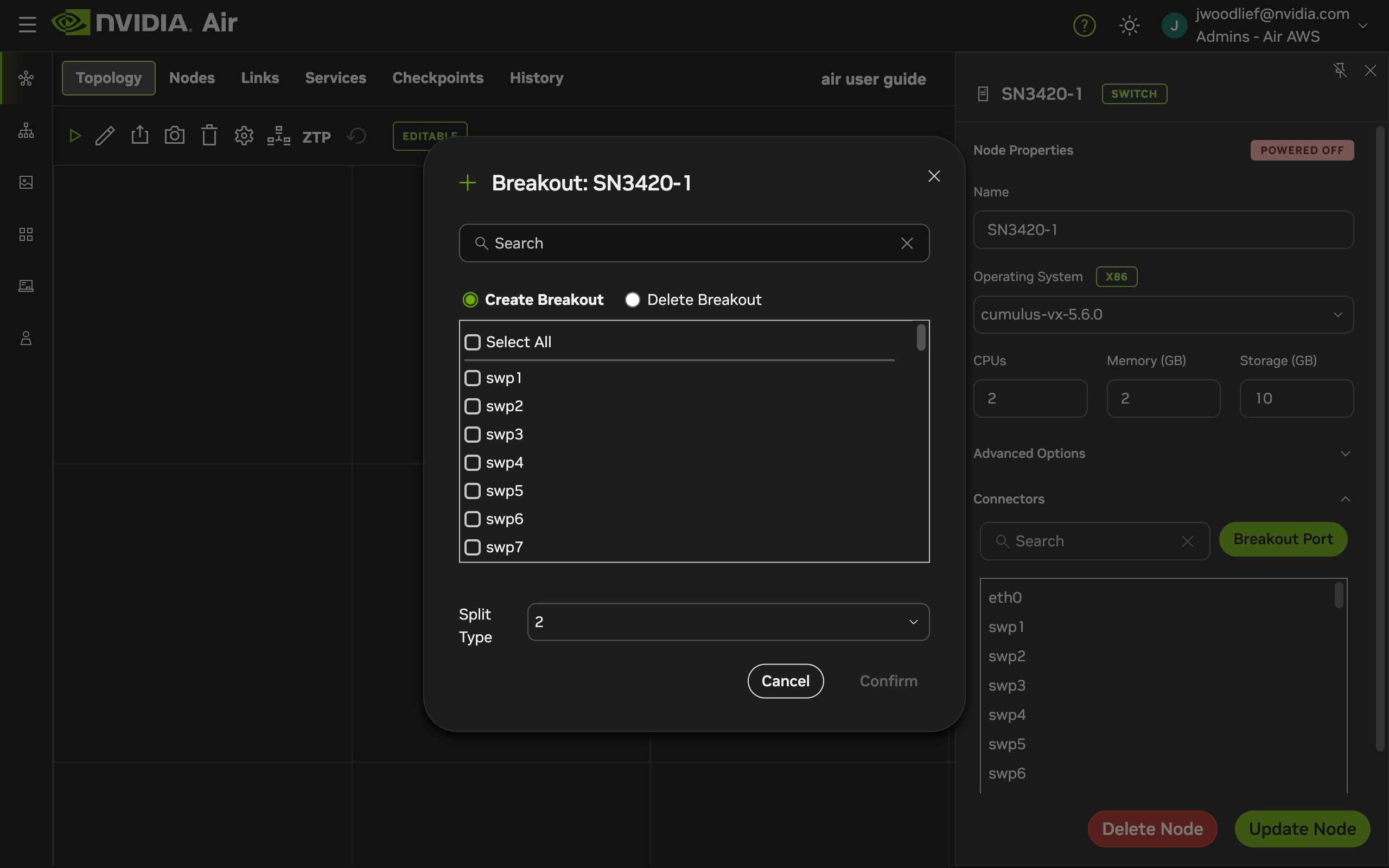

For switch nodes, you can break out a port into multiple sub-ports to simulate multi-lane configurations. For example, breaking out swp1 into four sub-ports creates swp1s0, swp1s1, swp1s2, and swp1s3.

To break out a port:

1. Select a switch node to open its properties panel.
2. In the Connectors section, click Breakout Port.
3. Select the ports you want to break out.
4. Choose the split type (number of sub-ports) and click Confirm.

The available split options depend on the switch model. To revert a breakout, select Delete Breakout in the Breakout Port dialog.

Outbound Links

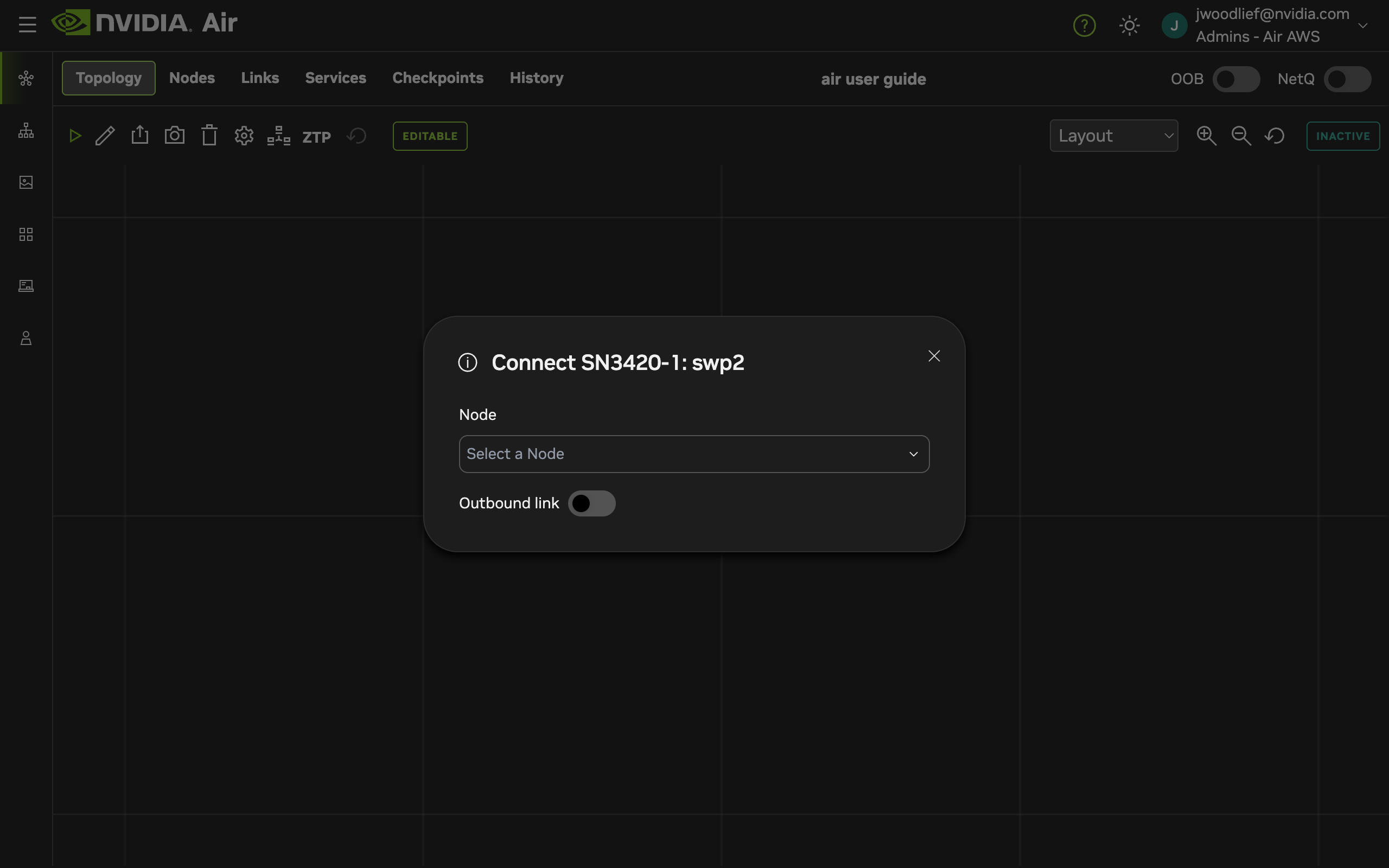

Outbound links connect a node’s interface directly to external networks, giving that interface internet access independently of the OOB management network. This is useful when you need a node to have a public-facing interface — for example, to simulate an edge router or a firewall with an external uplink.

To configure an outbound link:

1. Select a node to open its properties panel.
2. In the Connectors section, click the port you want to connect externally.
3. In the Connect dialog, select Outbound link.

Outbound interfaces appear in the Services tab, where you can create services (such as SSH or HTTP) that terminate on the outbound interface.

Troubleshoot Outbound Links

If you do not have service connectivity to an outbound link, try fully initializing the affected interface:

1. Ensure the interface is up:

   ubuntu@my-image:~$ sudo ip link set eth1 up

2. Configure the interface to receive a DHCP address from the network:

   ubuntu@my-image:~$ sudo nano /etc/netplan/40-air.yaml
   ####################################################### ########
   # IMPORTANT: When using NVIDIA Air services,
                                                                  #
   #  your Internet-facing interface must include the following:  #
   #   dhcp6: false                                               #
   #   accept-ra: true                                            #
   ################################################################
   network:
     version: 2
     renderer: networkd
     ethernets:
       eth0:
         dhcp4: true
       eth1:            <-------------------
         dhcp4: true    <-------------------

3. Apply the configuration:

   ubuntu@my-image:~$ sudo netplan apply

4. Recreate the service in DSX Air and attempt to connect again.

OOB Management Network

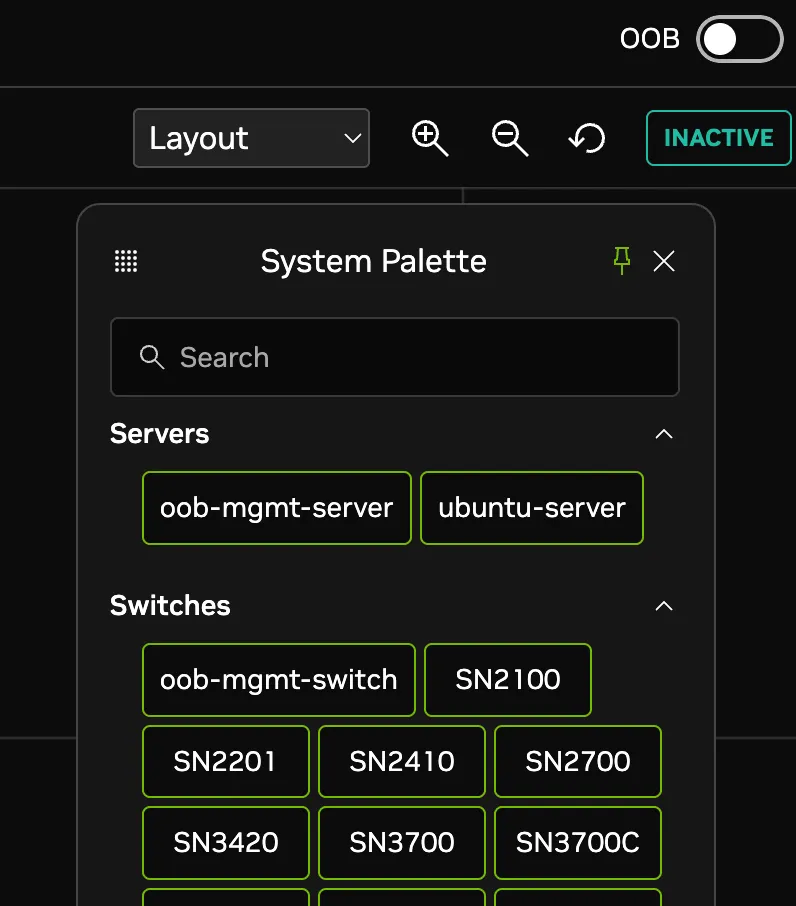

On the System Palette, there is an option to Enable OOB. This setting enables the out-of-band management network that connects all nodes to each other. It also adds an oob-mgmt-switch and oob-mgmt-server to your simulation. When you enable SSH, you connect to the oob-mgmt-server, making this node an ideal starting point for configurations. Air handles the configuration automatically for you.

You can add more oob-mgmt-switches and oob-mgmt-servers to your simulation manually even when Enable OOB is set to off. However, you must switch Enable OOB on to use the out-of-band network.

Placement Groups

A placement group keeps selected nodes in a simulation together on the same host. Use a placement group when a set of nodes, such as the nodes that model a single rack, must run on one host.

To create a group, give each member node the same placement_group value. When the simulation starts, Air places all members on a single host that has enough free capacity for their combined resource requirements. Air does not split a group across hosts.

• A group name applies only within its simulation. rack-a in another simulation is a separate group.
• Different groups can share a host. Nodes without a placement group are placed normally.
• Air selects the host each time the simulation starts, so a group does not always run on the same host.

Placement Group Rules

placement_group is separate from the group value under a node’s labels, which only affects how nodes are grouped visually. Nodes that share a visual group are not placed together unless they also share a placement group.

Define Placement Groups in a Topology File

Add placement_group to each member node in content.nodes. In the following example, server1 and server2 form the group rack-a, so Air needs one host with room for both servers’ combined CPU, memory, and storage. server3 is placed normally.

{
  "format": "JSON",
  "name": "Placement group example",
  "content": {
    "nodes": {
      "server1": {
        "os": "generic/ubuntu2204",
        "cpu": 2,
        "memory": 4096,
        "placement_group": "rack-a"
      },
      "server2": {
        "os": "generic/ubuntu2204",
        "cpu": 2,
        "memory": 4096,
        "placement_group": "rack-a"
      },
      "server3": {
        "os": "generic/ubuntu2204"
      }
    }
  }
}

Add the links your topology needs, then import the topology and start the simulation. You do not need a separate step to create or start a group.

In a DOT file, set the same attribute on each member node:

graph "Placement group example" {
  "server1" [ os="generic/ubuntu2204" placement_group="rack-a" ]
  "server2" [ os="generic/ubuntu2204" placement_group="rack-a" ]
}

When you export a simulation as JSON, grouped nodes keep their placement_group value, so importing the exported file recreates the same groups.

You can also assign or change placement-group membership through the API. See the placement_group field in the node update API reference.

Troubleshoot Placement Groups

If no host has room for a group, the simulation might take longer to start while Air waits for capacity, or the start fails. Open the simulation’s History tab to see the reason. The message names the group, its member nodes, and the combined resources they need.

Import Custom Topologies with External Files

You can create custom topologies in Air by importing either JSON (recommended) or DOT files. These files define a network’s nodes, attributes, and connections. You can modify the file with any text editor.

When you upload external topology files directly to Air, you can:

• Share and create copies of a topology
• Save the topology in a reusable file
• Streamline automation
• Generate very large topologies

JSON Files

To keep a set of nodes on the same host, add the optional placement_group field to each node. See Placement Groups.

The following JSON topology is an example of a simple topology with 1 spine, 2 leaf nodes, and 2 servers connected to each leaf.

{
    "format": "JSON",
    "title": "Demo",
    "ztp": null,
    "content": {
        "nodes": {
            "leaf01": {
                "cpu": 2,
                "memory": 4096,
                "storage": 20,
                "os": "cumulus-vx-5.16.1"
            },
            "leaf02": {
                "cpu": 2,
                "memory": 4096,
                "storage": 20,
                "os": "cumulus-vx-5.16.1"
            },
            "spine01": {
                "cpu": 2,
                "memory": 4096,
                "storage": 20,
                "os": "cumulus-vx-5.16.1"
            },
            "server01": {
                "cpu": 2,
                "memory": 2048,
                "storage": 10,
                "os": "generic/ubuntu2404"
            },
            "server02": {
                "cpu": 2,
                "memory": 2048,
                "storage": 10,
                "os": "generic/ubuntu2404"
            }
        },
        "links": [
            [{"interface": "swp1", "node": "leaf01"}, {"interface": "eth1", "node": "server01"}],
            [{"interface": "swp2", "node": "leaf01"}, {"interface": "swp1", "node": "spine01"}],
            [{"interface": "swp1", "node": "leaf02"}, {"interface": "eth1", "node": "server02"}],
            [{"interface": "swp2", "node": "leaf02"}, {"interface": "swp2", "node": "spine01"}]
        ]
    }
}

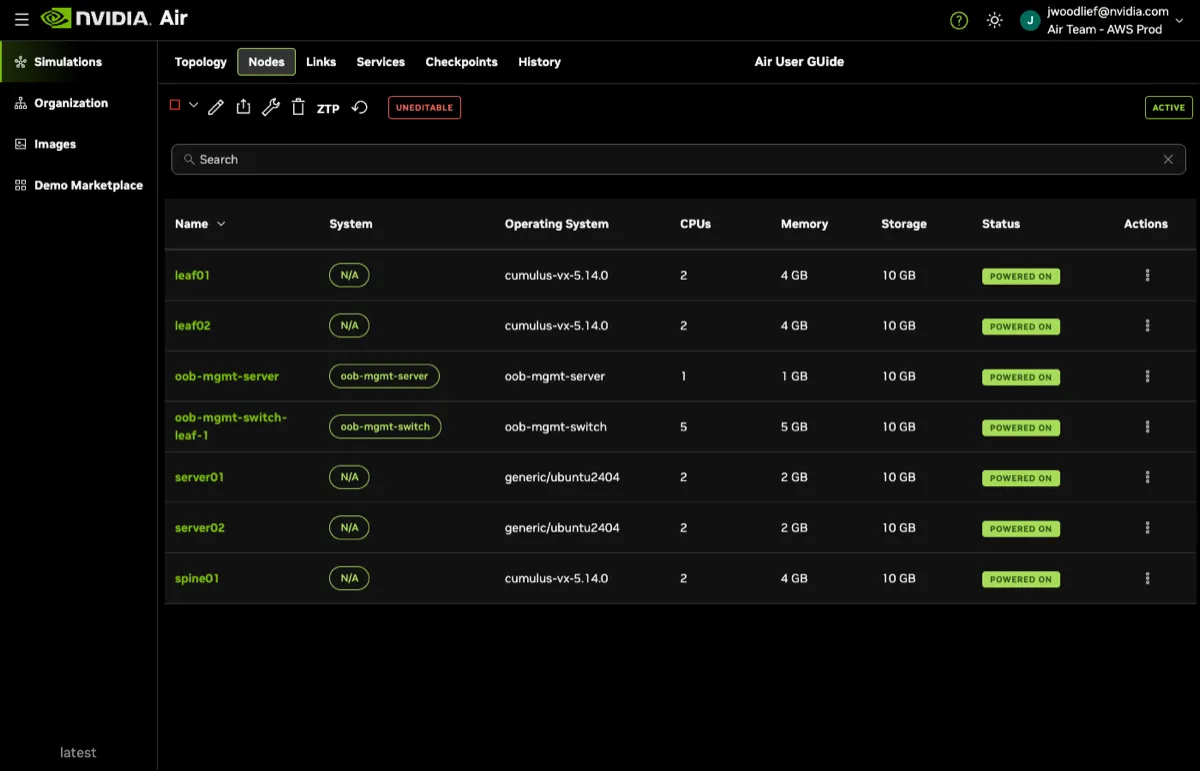

When you view the nodes within Air after starting the simulation, notice that the resources are allocated according to the file:

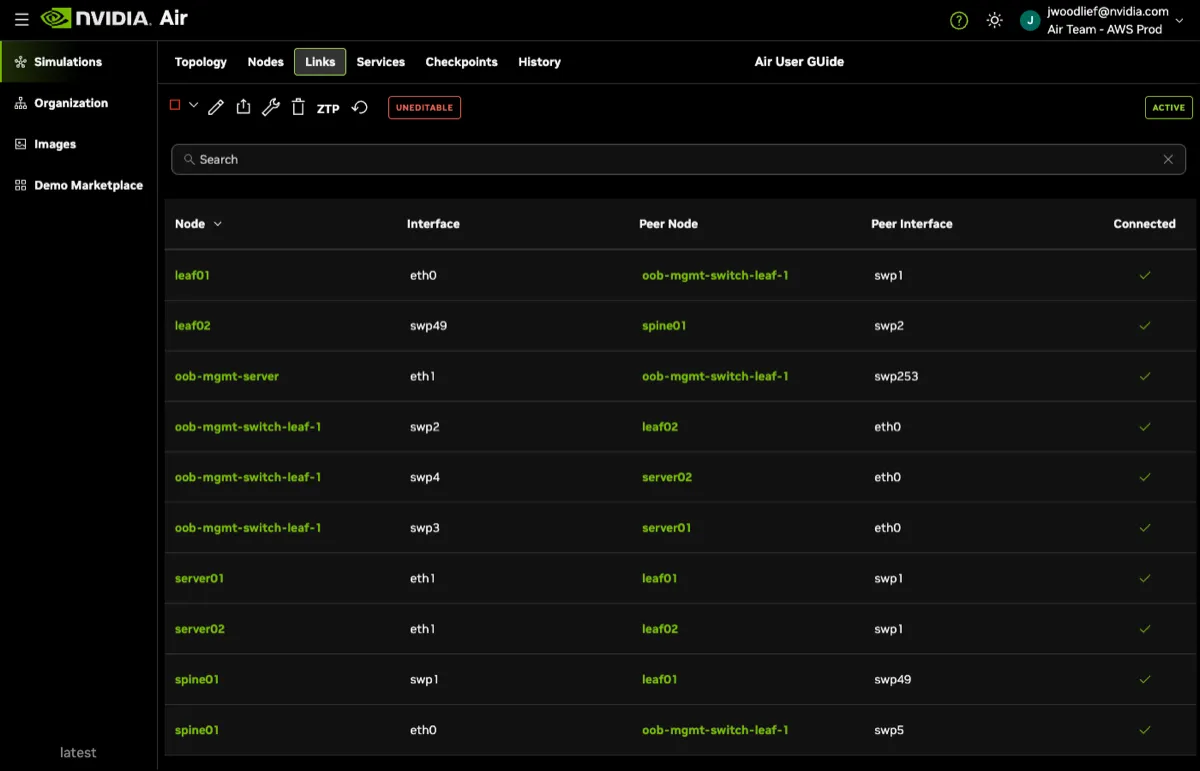

When you view the links within Air after starting the simulation, notice that the nodes are connected based on the file, and also connected to the out-of-band management network:

Custom OOB Management Network Resources

You can specify an oob-mgmt-switch and oob-mgmt-server to customize allocated resources.

{
    "format": "JSON",
    "title": "Demo",
    "ztp": null,
    "content": {
        "nodes": {
           ...
        },
        "links": [
            ...
        ],
        "oob": {
            "nodes": {
                "oob-mgmt-server": {
                    "cpu": 3,
                    "memory": 3072,
                    "storage": 21

                },
                "oob-mgmt-switch": {
                    "cpu": 2,
                    "memory": 4096,
                    "storage": 20
                }
            }
        }
    }
}

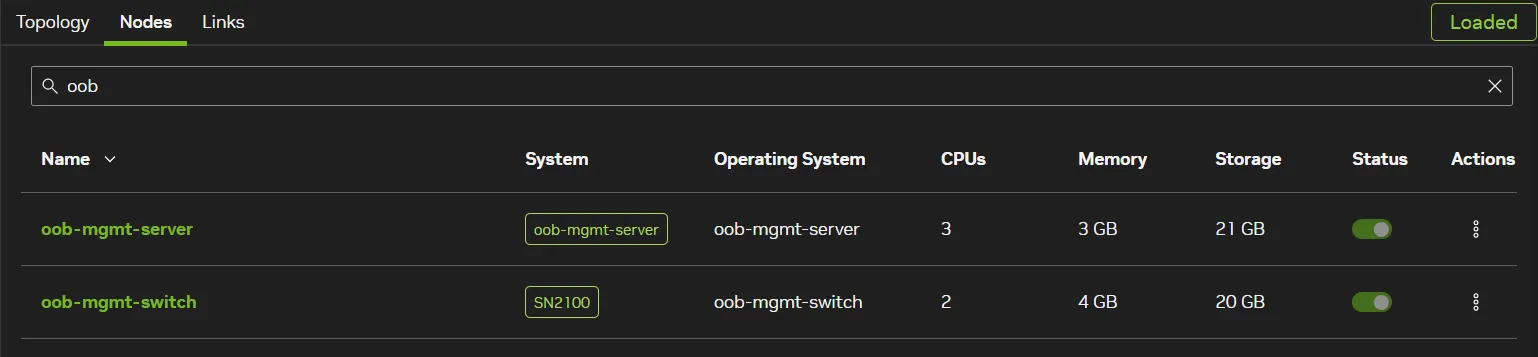

When viewing the nodes within Air after starting the simulation, notice that the resources are allocated based on the file:

Boot Order

A node accepts an optional boot attribute that controls which device the node attempts to boot from. It accepts either of two forms:

• Single device (string) — a single boot device, for example "hd", "network", or "cdrom". The default is "hd".
• Boot order (list) — a list of up to 3 unique boot devices tried in order. Firmware attempts each device in the order listed and falls through to the next if the previous device does not boot. Accepted device literals are hd (the boot disk), cdrom (the first user-supplied CD-ROM), and network (every network interface, tried in sequence).

When you supply a list, only the devices you name receive a boot preference; any device not named is left to firmware-level fall-through. The network literal expands to every NIC on the node, each assigned a consecutive boot position. Listing a device that the node does not have (for example network on a node with no NIC) is ignored — the node still boots from the remaining devices.

The following example makes host1 try its disk first, then fall through to network boot:

{
    "format": "JSON",
    "name": "Boot Order",
    "ztp": null,
    "content": {
        "nodes": {
            "host1": {
                "os": "generic/ubuntu2204",
                "boot": ["hd", "network"]
            }
        },
        "links": []
    }
}

CD-ROM

A node accepts an optional cdrom attribute that inserts an image into the node’s CD-ROM drive. Set it to the name (or ID) of an image your organization can read. A CD-ROM must be attached whenever the node’s boot order includes cdrom.

{
    "format": "JSON",
    "name": "CD-ROM Boot",
    "ztp": null,
    "content": {
        "nodes": {
            "host1": {
                "os": "generic/ubuntu2204",
                "cdrom": "cdrom-nonbootable",
                "boot": ["cdrom", "hd"]
            }
        },
        "links": []
    }
}

DOT Files

You can also create custom topologies in Air using a DOT file, which is the file type used with the open-source graph visualization software, Graphviz. DOT files are simple, customizable, text-based files. DOT files use the .dot file extension.

The following is an example of a simple topology with 1 spine, 2 leaf nodes, and 2 servers connected to each leaf:

graph "Demo" {
  "spine01" [ function="spine" memory="4096" os="cumulus-vx-5.16.1" cpu="2" ]
  "leaf01" [ function="leaf" memory="4096" os="cumulus-vx-5.16.1" cpu="2" nic_model="e1000"]
  "leaf02" [ function="leaf" memory="4096" os="cumulus-vx-5.16.1" cpu="2" secureboot="true"]
  "server01" [ function="server" memory="2048" os="generic/ubuntu2404" cpu="2"]
  "server02" [ function="server" memory="2048" os="generic/ubuntu2204" cpu="3" storage="20"]
    "leaf01":"swp1" -- "server01":"eth1"
    "leaf02":"swp1" -- "server02":"eth1"
    "leaf01":"swp2" -- "spine01":"swp1"
    "spine01":"swp2" -- "leaf02":"swp2"
}

The following sections provide examples for common DOT file customizations.

Operating System

You can set the operating system of the node with the os option:

"server" [os="cumulus-vx-5.16.1"]

Disk Space

By default, nodes in Air have 10 GB of hard disk space. You can increase the space (in GB) by using the storage option:

"server" [os="generic/ubuntu2404" storage="20"]

CPU

You can customize the number of allocated CPUs with the cpu option:

"server" [os="generic/ubuntu2404" cpu="4"]

Boot Order

You can set the boot device(s) with the boot option. Provide a single device (hd, network, or cdrom), or a comma-separated list of up to 3 unique devices for ordered fall-through:

"server" [os="generic/ubuntu2404" boot="network,hd"]

Create Connections

You can create port connections by defining the node and its port with another node and port.

"leaf01":"swp49" -- "leaf02":"swp49"
"leaf01":"swp50" -- "leaf02":"swp50"

Memory

You can customize RAM (in MB) with the memory option:

"server" [os="generic/ubuntu2404"  memory="2048"]

Example Topology Files

Labs in the Demo Marketplace are maintained with external GitLab repositories. Here you can find the topology.dot or topology.json file used to build the lab and use it as a reference. To access the files, select Documentation on any lab in the Demo Marketplace. It will direct you to the demo’s GitLab repository, where you can download the file used for the demo topology.

You can also launch a copy of a lab in the Demo Marketplace and then export the JSON file.

Import a Topology

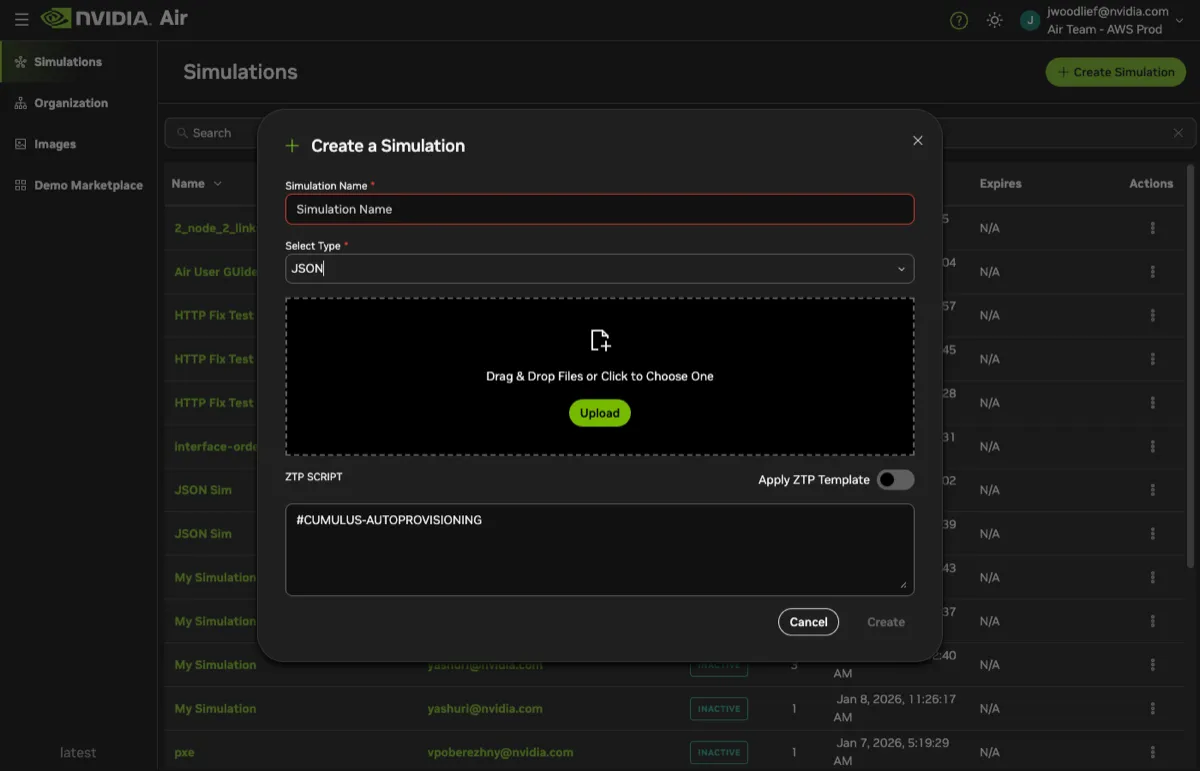

To import and upload a DOT or JSON topology file to Air, navigate to dsx-air.nvidia.com/simulations.

1. Click Create Simulation.
2. Provide a name for the simulation.
3. Select your desired file type.
4. Upload the file to the UI.
5. (Optional) Add a ZTP script. Alternately, you can apply a ZTP script within the file.
   1. Select Apply ZTP Template.
   2. Enter your ZTP script. A default script is prefilled to help you get started.
6. (Optional) Click Advanced and provide an out-of-band management server configuration script that executes on the oob-mgmt-server when the simulation starts.
7. Click Create.

Air redirects you to the topology builder, where you can continue to make adjustments.

Import a Topology with the API

You can import JSON formatted topologies through the API.

{
    "nodes": {
        "node-1": {
            "os": "generic/ubuntu2204"
        },
        "node-2": {
            "os": "generic/ubuntu2204"
        }
    },
    "links": [
        [{"node": "node-1", "interface": "eth1"}, {"node": "node-2", "interface": "eth1"}]
    ]
}

For additional schemas, refer to the API documentation.

Export a Topology

You can export the topology for any existing simulation as a JSON file. From the Topology tab, click the Export icon in the toolbar to download the topology file.

Export a Topology with the API

You can export existing simulations into a JSON representation using the API. Refer to the API documentation for additional schema details.

Storage Limits

If you increase the storage of a node higher than its default, and Air does not recognize the increased storage, run the following commands on the affected node (not the oob-mgmt-server) to extend the partition and resize the file system:

sudo growpart /dev/vda 1
sudo resize2fs /dev/vda1

Verify the change:

df -h | grep vda1
/dev/vda1        20G  2.1G   18G  11% /
