Planner Benchmark Example#

This guide shows an example of benchmarking LocalPlanner performance with synthetic data. In this example, we focus on 8x H100 SXM GPU and deepseek-ai/DeepSeek-R1-Distill-Llama-8B model with TP1 prefill and decode engine.

Synthetic Data Generation#

We first generate synthetic data with varying request rate from 0.75 to 3 using the provided generate_synthetic_data.py script.

python sin_synth.py \
    --time-duration 600 \
    --request-rate-min 5 \
    --request-rate-max 20 \
    --request-rate-period 150 \
    --isl1 3000 \
    --osl1 150 \
    --isl2 3000 \
    --osl2 150

This will generate a mooncake style trace with

  • duration = 600 seconds

  • isl/osl = 3000/150

  • request rate varies sinusoidally from 0.75 to 3 requests with a period of 150 seconds

For other models and GPU SKUs, adjust the request rate ranges accordingly to match the load.

Run the Benchmark#

To measure the performance of dynamo with planner, we start from a 1p1d deployment and set planner to make adjustments every 10 seconds:

cd examples/llm
dynamo serve graphs.disagg:Frontend -f <path to disagg_1p1d.yml in this folder> --enable-local-planner

# in terminal 2
PYTHONPATH=/workspace/examples/llm python components/planner.py \
    --metric-pulling-interval 1 \
    --adjustment-interval 10 \
    --prefill-queue-scale-down-threshold 0.2 \
    --prefill-queue-scale-up-threshold 10 \
    --decode-kv-scale-down-threshold 0.3 \
    --decode-kv-scale-up-threshold 0.6 \
    --log-dir log/planner

# in terminal 3
genai-perf profile \
    --tokenizer deepseek-ai/DeepSeek-R1-Distill-Llama-8B \
    -m deepseek-ai/DeepSeek-R1-Distill-Llama-8B \
    --service-kind openai \
    --endpoint-type chat \
    --url http://localhost:8000 \
    --streaming \
    --input-file payload:sin_b512_t600_rr5.0-20.0-150.0_io3000150-3000150-0.2-0.8-10.jsonl

To view the performance metrics and planner decisions, launch tensorboard with

tensorboard --logdir log

and open http://localhost:6006 in your browser. The following metrics are available:

  • average_kv_load: the average KV load in decode workers

  • prefill_queue_size: the size of the prefill queue

  • num_queued_request: the number of requests queued in decode workers

  • num_prefill_workers: the number of prefill workers

  • num_decode_workers: the number of decode workers

  • num_gpu: the total number of GPUs used

The benchmark results will be printed out in terminal 3 that runs the genai-perf command.

In this example, we use a fixed 2p2d engine as baseline. Planner provides a --no-operation flag to watch and log the metrics without making any adjustments:

# in terminal 1
dynamo serve --enable-local-planner graphs.disagg:Frontend -f disagg_2p2d.yml

# in terminal 2 (optional)
PYTHONPATH=/workspace/examples/llm python components/planner.py --no-operation --log-dir log/2p2d

# in terminal 3
genai-perf profile --tokenizer deepseek-ai/DeepSeek-R1-Distill-Llama-8B -m deepseek-ai/DeepSeek-R1-Distill-Llama-8B --service-kind openai --endpoint-type chat --url http://localhost:8000 --streaming --input-file payload:sin_b512_t600_rr5.0-20.0-150.0_io3000150-3000150-0.2-0.8-10.jsonl

Results#

The below two figures show the performance comparison between planner and the baseline 2p2d deployment. Planner achieves 1.5x speedup while using 7.4% less GPU resources.

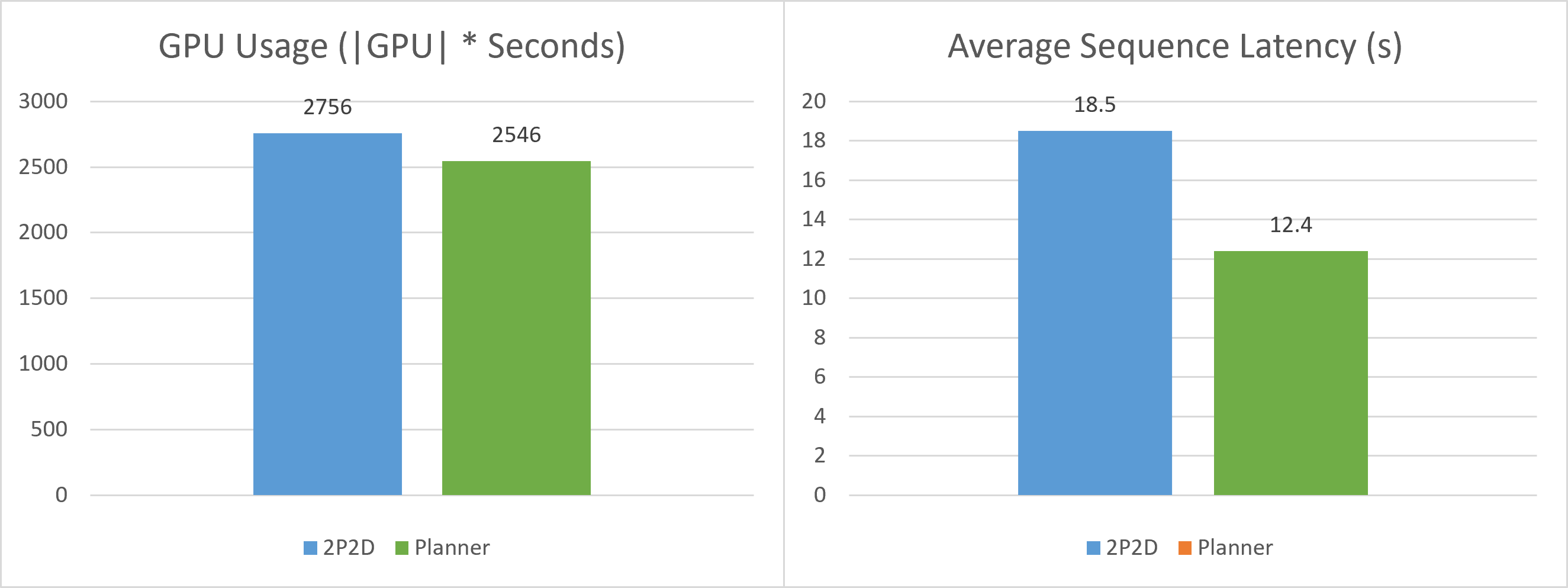

Planner Performance Comparison

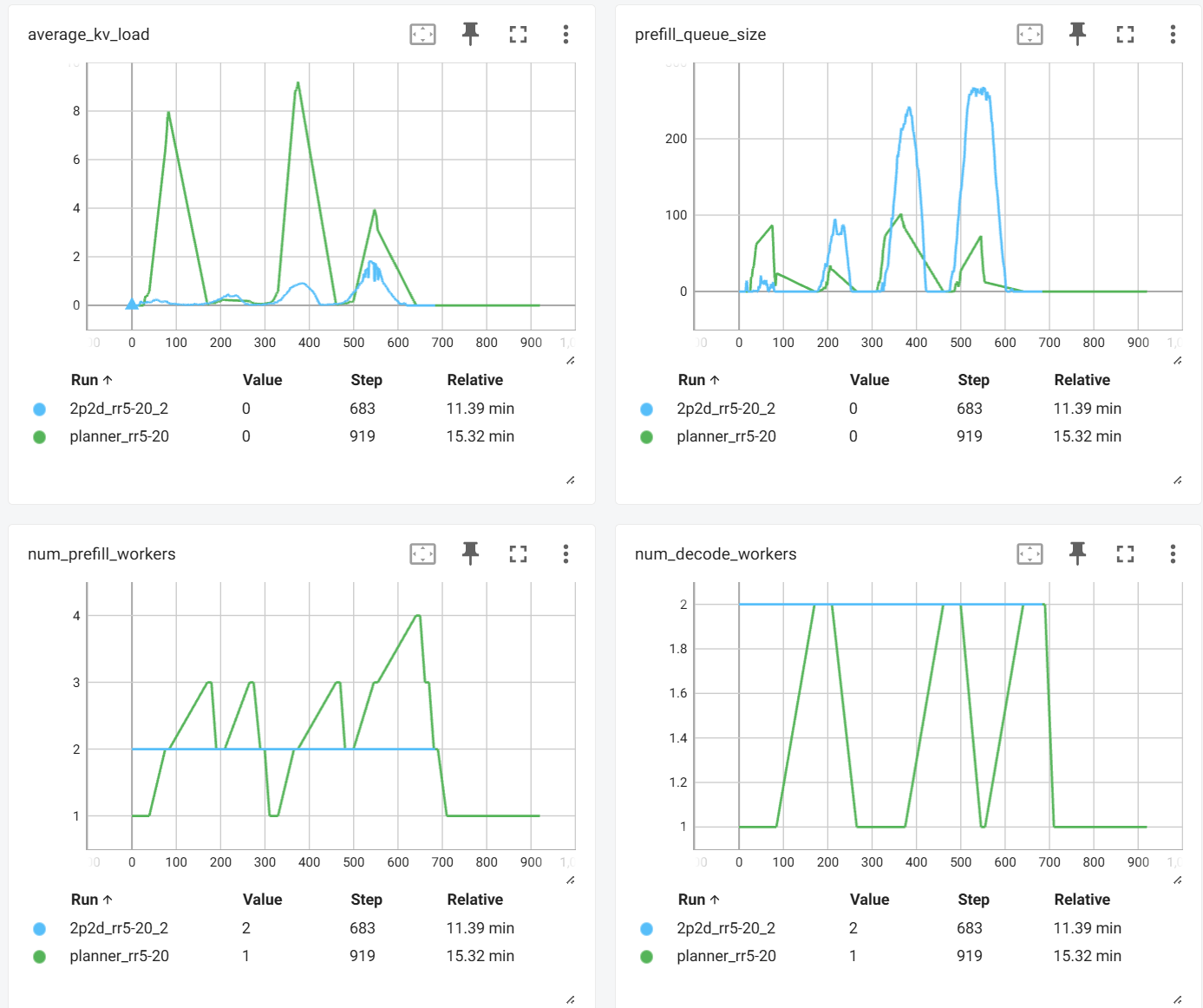

Planner Tensorboard
