07_video_convert (NvBufSurface conversion)

• Overview
• Building and Running
• Key Structure and Classes

---

Overview

The video scaling and color format conversion sample video_convert demonstrates how to use the NvBufSurface APIs defined in nvbufsurface.h and nvbufsurftransform.h for image color formatting and buffer layout conversion.

NVIDIA^® Jetson^® provides pitch linear and block linear memory format support. The block-linear memory format complies with Jetson hardware.

This sample creates one or more threads to do conversion, each thread reads frame data from local file and write converted frame data to local file. For a better parallel scheduling, each thread creates its own session when '-s' or '–create-session' option are speficied.

This sample can also been used for video convert performance benchmark. When '–perf' option is speficied, each thread do video conversion in a loop (3000 times) after reading frame data from local file. To reduce benchmark deviation from file IO, input file should be image data instead of video data.

Since this sample needs to read frame data from local file and write converted frame data to local file, pitch linear memory is used in this sample(CPU cannot access block linear buffer).

This sample does not require a camera.

---

Building and Running

Prerequisites

• You have followed Steps 1-3 in Building and Running.
• If you are building from your host Linux PC (x86), you have followed Step 4 in Building and Running.

To build:

• Enter:

   $ cd jetson_multimedia_api/samples/07_video_convert
   $ make


To run

• Enter:

   $ ./video_convert <in-file> <in-width> <in-height> <in-format> <out-file-prefix> <out-width> <out-height> <out-format> [OPTIONS]


Example

   $ ./video_convert ../../data/Picture/nvidia-logo.yuv 1920 1080 YUV420 test.yuv 1920 1080 YUYV

Note

The video_convert sample consumes a YUV file. If you do not already have a YUV file, you can use the jpeg_decode sample to generate one. For example:

 $ cd jetson_multimedia_api/samples/06_jpeg_decode/
 $ ./jpeg_decode num_files 1 ../../data/Picture/nvidia-logo.jpg ../../data/Picture/nvidia-logo.yuv

Flow

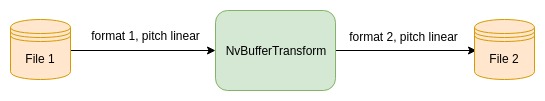

The following diagram shows the flow of data through the sample.

---

Key Structure and API

To convert the color by using the NvBufSurface APIs, the nvbufsurface.h and nvbufsurftransform.h file define the key structures and APIs

Structure

Structure	Description
NvBufSurfaceAllocateParams	Holds the input parameters for hardware buffer creation.
NvBufSurfaceParams	Holds parameters for a hardware buffer.
NvBufSurfTransformParams	Holds parameters for buffer transform functions.
NvBufSurfTransformRect	Holds coordinates for a rectangle.

API

Method	Description
NvBufSurfaceAllocate()	Allocates a hardware buffer.
NvBufSurfaceDestroy()	Destroys a hardware buffer.
NvBufSurfTransformSetSessionParams()	Sets the user-defined session parameters for the parallel scheduling of buffer transformations and compositions.
NvBufSurfaceFromFd()	Gets the NvBufSurface from the DMABUF FD.
NvBufSurfaceMap()	Gets the memory-mapped virtual address of the plane.
NvBufSurfaceUnMap()	Unmaps the mapped virtual address of the plane.
NvBufSurfaceSyncForDevice()	Syncs the hardware memory cache sync for the device.
NvBufSurfaceSyncForCpu()	Syncs the hardware memory cache for the CPU.
NvBufSurfTransform()	Transforms one DMA buffer to another DMA buffer.
