Overview#

This guide provides system administrators with the information needed to manage and maintain NVIDIA Mission Control clusters across different system architectures. It covers deployment, configuration, monitoring, and troubleshooting procedures for DGX B300, DGX B200, GB300, and GB200 systems.

Target Audience#

This guide is intended for:

  • System administrators responsible for deploying and managing Mission Control clusters

  • Infrastructure engineers configuring GPU computing environments

  • Operations teams monitoring and maintaining production systems

  • Technical staff performing system updates and troubleshooting

Prerequisites#

Before using this guide, you should have:

  • Familiarity with Linux system administration

  • Basic understanding of Kubernetes concepts and container orchestration

  • Knowledge of networking fundamentals (InfiniBand, Ethernet, NVLink where applicable)

  • Experience with storage systems (NFS, HFS)

  • Understanding of your specific system architecture (B300, B200, GB300, or GB200)

System Design#

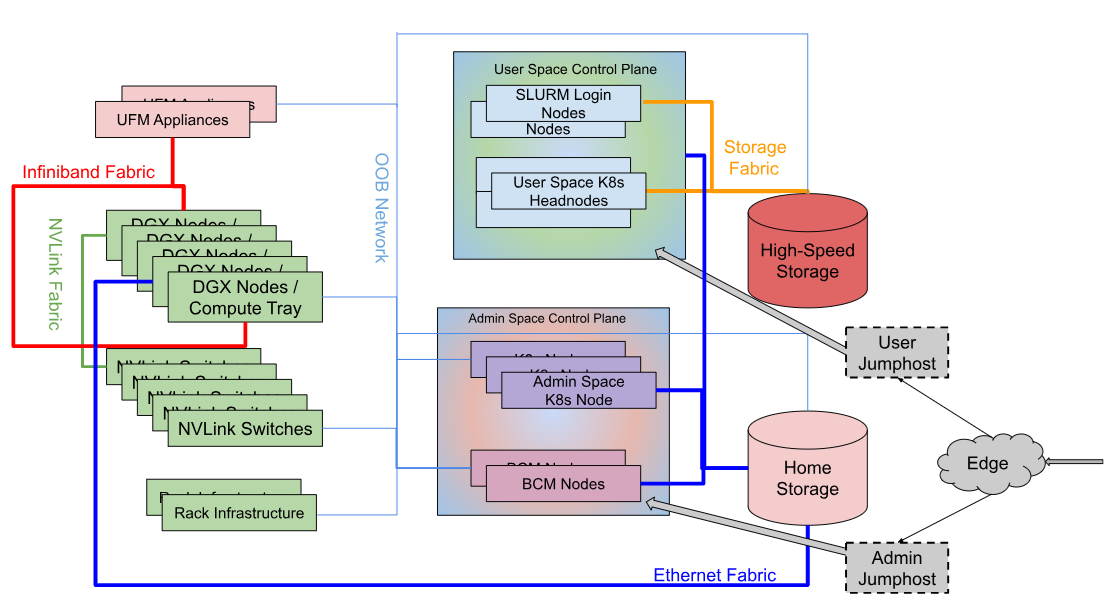

The following diagram shows the logical design of the DGX SuperPOD:

The components shown in the diagram are described below:

Table 1 Component Descriptions#

DGX SuperPOD Component

Description

User Jumphost

The User Jumphost is the gateway into the DGX SuperPOD intended to provide a single entry-point into the cluster and additional security when required. It is not actually a part of the DGX SuperPOD, but of the corporate IT environment. This function is defined and provided by local IT requirements.

DGX Nodes / Compute Trays

The compute trays are where the user work gets done on the system. For DGX B-series systems (B300, B200), each DGX unit is a traditional GPU server in a standard rack configuration. For GB-series systems (GB300, GB200), compute resources are organized as compute trays within NVL72 racks, with each tray containing integrated CPU/GPU units.

Management Nodes

The management nodes provide the services necessary to support operation and monitoring of the DGX SuperPOD. Services, configured in high availability (HA) mode where needed, provide the highest system availability. See the Management Servers section below for details of each node and its function.

High-Speed Storage

High-speed storage provides shared storage to all nodes in the DGX SuperPOD. This is where datasets, checkpoints, and other large files should be stored. High-speed storage typically holds large datasets that are being actively operated on by the DGX SuperPOD jobs. Data on the high-speed storage is a subset of all data housed in a data lake outside of the DGX SuperPOD.

Home & High Speed Storage

Shared storage on a network file system (NFS) is allocated for user home directories as well for cluster services.

InfiniBand Fabric Compute

The Compute InfiniBand Fabric is the high-speed network fabric connecting all compute nodes together to allow high-bandwidth and low-latency communication between nodes and racks.

InfiniBand Fabric Storage

The Storage InfiniBand Fabric is the high-speed network fabric dedicated for storage traffic. Storage traffic is dedicated to its own fabric to remove interference with the node-to-node application traffic that can degrade overall performance.

In-Band Network Fabric

The In-band Network Fabric provides fast Ethernet connectivity between all nodes in the DGX SuperPOD. The In-band fabric is used for TCP/IP-based communication and services for provisioning and inband management.

Out-of-Band Network Fabric

The out-of-band Ethernet network is used for system management using the BMC and provides connectivity to manage all networking equipment.

NVLink

NVIDIA NVLink is a high-speed interconnect that allows multiple GPUs to communicate directly. Multi-Node NVLink is a capability enabled over an NVLink Switch network where multiple systems are interconnected to form a large GPU memory fabric also known as an NVLink Domain. Available on GB300 and GB200 systems.

Management Servers#

The following describes the function and services running on the management servers:

Table 2 DGX SuperPOD Management Servers#

Server Function

Services

Head Node

Head nodes serve various functions:

  • Provisioning: Centrally store and deploy OS images of the compute, management nodes, and other various services. This ensures that there is a single authoritative source defining what should be on each node, and a way to re-provision if the node needs to be reimaged.

  • Workload Management: Resource management and orchestration services that organize the resources and coordinate the scheduling of user jobs across the cluster.

  • Metrics: System monitoring and reporting that gather all telemetry from each of the nodes. The data can be explored and analyzed through web services so better insight to the system can be studied and reported.

Login/Slurm Nodes

Entry point to the DGX SuperPOD for users. CPU-based nodes that are Slurm clients with filesystems mounted to support development, job submission, job monitoring, and file management. Multiple nodes are included for redundancy and supporting user workloads. These hosts can also be used for container caching.

UFM Appliance

NVIDIA Unified Fabric Manager (UFM) for both storage and compute InfiniBand fabric. Manages InfiniBand switches and fabric topology.

NVLink Management Software

NVLink Management Software (NMX) is an integrated platform for management and monitoring of NVLink connections. Available on GB300 and GB200 systems.

Admin/User Service Nodes

Kubernetes control plane nodes that host infrastructure services (admin space) and user workload orchestration services (user space). Configuration varies by architecture - see architecture-specific sections below.

Mission Control Architecture Overview#

Mission Control consists of three primary operational planes:

Control Plane#

The control plane manages cluster operations and provides administrative interfaces. It includes:

  • Base Command Manager (BCM): Central management platform with GUI, CLI, and API interfaces

  • Kubernetes Infrastructure: Container orchestration for services and workloads

  • Management Services: Monitoring, observability, health checking, and automated recovery

Architecture-Specific Notes:

  • DGX B300/B200: x86-based BCM Head Nodes and Run:AI Management Nodes

  • GB300: Arm64-based BCM Head Nodes with x86 Admin Kubernetes Nodes

  • GB200: Separated Admin Control Plane (x86) and User Control Plane (Arm64/x86 hybrid)

User Access Plane#

The user access plane provides interfaces for job submission and workload management:

  • Slurm Nodes: Traditional HPC workload submission via Slurm workload manager

  • User Kubernetes Nodes: Direct access to Kubernetes for containerized workloads (GB300/GB200)

  • Run:AI Interface: AI-specific workload orchestration and GPU resource management

Architecture-Specific Notes:

  • DGX B300/B200: x86-based Slurm Nodes for user access

  • GB300: Arm64-based Slurm Nodes and dedicated User Kubernetes Nodes

  • GB200: Arm64 Slurm Nodes with x86 User Service Nodes running Run:AI

Compute Plane#

The compute plane executes workloads on GPU-accelerated resources:

  • DGX B300: 1SU configuration with 64-72 DGX units per superunit

  • DGX B200: 1SU configuration with 32 DGX units per superunit

  • GB300: Rack-based configuration with 8 racks per superunit, organized in compute trays

  • GB200: Rack-based configuration with 8 racks per superunit, organized in compute trays

Each compute node runs Slurm worker processes and provides GPU resources to scheduled workloads.

Key Components by Architecture#

DGX B300 (v2.1.0)#

Control Infrastructure:

  • BCM Head Nodes (x86) - x2: Cluster deployment, management, and monitoring

  • Run:AI Management Nodes (x86) - x3: AI workload orchestration with integrated Kubernetes and common services

  • Admin Kubernetes Nodes (x86) - x3: BCM-integrated infrastructure services including AHR, AJR, NetQ, and Observability Stack

User Access:

  • Slurm Nodes (x86) - x2: Job submission interface with BCM-provisioned Slurm software

Compute:

  • DGX B300 - 1SU: High-density GPU compute with either 72 DGX per SU (InfiniBand configuration) or 64 DGX per SU (Spectrum Ethernet configuration)

New Features in v2.1.0:

  • NetQ network monitoring integration

  • Enhanced Observability Stack for comprehensive system monitoring

  • Autonomous Hardware Recovery (AHR) and Autonomous Job Recovery (AJR) capabilities

  • Separate Admin Kubernetes Nodes for infrastructure services

DGX B200 (v2.0.0)#

Control Infrastructure:

  • BCM Head Nodes (x86) - x2: Cluster management with GUI, CLI (CMSH), and API interfaces

  • Run:AI Management Nodes (x86) - x3: AI workload scheduling with integrated Kubernetes services including Run:AI control plane, scheduler, and common Kubernetes services (GPU Operator, Network Operator)

User Access:

  • Slurm Nodes (x86) - x2: Job submission interface with BCM-provisioned Slurm software

Compute:

  • DGX B200 - 1SU: Production-scale GPU compute with 32 DGX per SU

Key Characteristics:

  • Streamlined architecture focused on core orchestration without separate admin infrastructure nodes

  • CMSH CLI for Base Command Manager operations

  • Balanced configuration for production AI workloads

  • Run:AI Management Nodes serve dual purpose: AI orchestration and common Kubernetes services

  • BCM-provisioned Kubernetes and Slurm infrastructure

GB300 (v2.1.0)#

Control Infrastructure:

  • BCM Head Nodes (Arm64) - x2: Cluster management with CMSH CLI on Arm64 architecture

  • Admin Kubernetes Nodes (x86) - x3: BCM-integrated services including AHR, AJR, NetQ, NMX, and Observability Stack

User Access:

  • Slurm Nodes (Arm64) - x2: Job submission interface on Arm64 architecture

  • User Kubernetes Nodes (Arm64) - x3: Run:AI orchestration and user-space Kubernetes workloads on Arm64 architecture

Compute:

  • GB300 Rack: 8 racks per SU organized in compute trays with CPU/GPU units in NVL72 configuration

Key Characteristics:

  • Hybrid Arm64/x86 architecture: Arm64 for BCM head nodes and user access, x86 for admin infrastructure services

  • NVLink switches for high-speed GPU interconnect within and across racks

  • Customer-provided BMS integration via API-compliant interface

  • Advanced leak monitoring and control capabilities

  • Rack and inventory management for NVL72 systems

  • NetQ for comprehensive network fabric monitoring

GB200 (v2.0.0)#

Admin Control Plane:

  • Head Nodes (x86) - x2: Cluster deployment and management

  • Admin Service Nodes (x86) - x3: BCM-integrated infrastructure services including NMX Manager, Observability Stack, Autonomous Hardware Recovery (AHR), and Autonomous Job Recovery (AJR)

User Control Plane:

  • Slurm Nodes (Arm64) - x2: Job submission interface on Arm64 architecture

  • User Service Nodes (x86) - x3: Run:AI orchestration (control plane and scheduler), common Kubernetes services (GPU Operator, DRA, Network Operator), and user workloads

Compute:

  • GB200 Rack: 8 racks per SU in compute tray configuration with NVL72 architecture

Key Characteristics:

  • Separated admin and user control planes for enhanced security and operational isolation

  • Admin plane (x86) handles all infrastructure services and system management

  • User plane (Arm64 + x86) provides workload submission and AI orchestration

  • Autonomous Hardware Recovery (AHR) and Autonomous Job Recovery (AJR) on admin plane

  • NMX Manager for NVLink fabric management and monitoring

  • NVLink switches for high-speed GPU communication within compute trays

  • Customer-provided BMS integration via API-compliant interface

  • Advanced leak monitoring and control capabilities

  • Rack and inventory management for NVL72 systems

Infrastructure Services#

Base Command Manager (BCM)#

BCM provides comprehensive cluster management capabilities:

Management Interfaces:

  • GUI: Web-based Base Command View for visual cluster administration

  • CLI: Command-line interface (CMSH) for scripting and automation

  • API: RESTful API for programmatic integration

Core Capabilities:

  • OS provisioning and deployment

  • Firmware and software updates

  • Network provisioning and configuration

  • Health checking and monitoring

  • Inventory management

  • Power profile management

  • Integration with observability tools

Architecture Notes:

  • Available on all architectures with architecture-specific CLI variants

  • x86-based on DGX B300/B200 and GB200 admin plane

  • Arm64-based on GB300 head nodes

Kubernetes Services#

Mission Control leverages Kubernetes for service orchestration:

BCM-Provisioned Kubernetes:

All architectures include BCM-managed Kubernetes infrastructure for system services.

Common Kubernetes Services:

  • GPU Operator for GPU resource management

  • Network Operator for network fabric configuration

  • Loki for log aggregation

  • Prometheus for metrics collection

  • Additional operators as needed for the specific architecture

Architecture-Specific Deployment:

  • DGX B300: Run:AI Management Nodes and Admin Kubernetes Nodes

  • DGX B200: Run:AI Management Nodes only

  • GB300: Admin Kubernetes Nodes (x86) and User Kubernetes Nodes (Arm64)

  • GB200: Admin Service Nodes and User Service Nodes with separated control

Run:AI Orchestration#

Run:AI provides AI-specific workload management:

Capabilities:

  • Control plane for AI workload scheduling

  • Intelligent GPU resource allocation

  • Scheduler for job prioritization and fairness

  • Integration with common K8s services

  • Workload monitoring and optimization

Deployment:

  • Runs on dedicated Run:AI Management Nodes (DGX B300/B200)

  • Integrated into User Kubernetes Nodes (GB300)

  • Deployed on User Service Nodes (GB200)

Slurm Workload Manager#

BCM-provisioned Slurm enables traditional HPC workflows:

Features:

  • Job scheduling and resource allocation

  • Queue management

  • Integration with existing HPC environments

  • Slurm submission software on dedicated Slurm nodes

Architecture Deployment:

  • x86 Slurm Nodes on DGX B300/B200

  • Arm64 Slurm Nodes on GB300/GB200

  • BCM-provisioned Slurm workflow software

Advanced Features#

Autonomous Hardware Recovery (AHR)#

AHR provides automated hardware fault detection and recovery:

Capabilities:

  • Continuous hardware health monitoring

  • Automatic fault detection and isolation

  • Self-healing capabilities for recoverable issues

  • Integration with BCM for administrative actions

Availability:

  • DGX B300 (v2.1.0): Available on Admin Kubernetes Nodes

  • GB300 (v2.1.0): Available on Admin Kubernetes Nodes

  • GB200 (v2.0.0): Available on Admin Service Nodes

  • DGX B200 (v2.0.0): Not available in this architecture

Autonomous Job Recovery (AJR)#

AJR enables automatic job restart and recovery:

Capabilities:

  • Job state monitoring

  • Automatic job restart on recoverable failures

  • Checkpoint and restart support

  • Integration with Slurm and Kubernetes schedulers

Availability:

  • DGX B300 (v2.1.0): Available on Admin Kubernetes Nodes

  • GB300 (v2.1.0): Available on Admin Kubernetes Nodes

  • GB200 (v2.0.0): Available on Admin Service Nodes

  • DGX B200 (v2.0.0): Not available in this architecture

Observability Stack#

Comprehensive monitoring and observability infrastructure:

Components:

  • Metrics collection and aggregation

  • Log management and analysis

  • Health and performance dashboards

  • Alert management and notification

Availability:

  • DGX B300 (v2.1.0): On Admin Kubernetes Nodes

  • GB300 (v2.1.0): On Admin Kubernetes Nodes

  • GB200 (v2.0.0): On Admin Service Nodes

  • DGX B200 (v2.0.0): Integrated into Run:AI Management Nodes

Network Management#

NetQ (v2.1.0):

Network fabric monitoring and troubleshooting for modern data center networks.

  • DGX B300 (v2.1.0): Available on Admin Kubernetes Nodes

  • GB300 (v2.1.0): Available on Admin Kubernetes Nodes

  • Not available on v2.0.0 architectures (B200, GB200)

NMX Manager:

NVLink fabric management and configuration for NVL72 rack systems.

  • GB300 (v2.1.0): Available on Admin Kubernetes Nodes

  • GB200 (v2.0.0): Available on Admin Service Nodes

  • Not applicable to B-series systems (B300, B200)

NVLink Switches:

High-speed GPU interconnect for direct GPU-to-GPU communication.

  • GB300: NVLink switches for GPU communication within and across racks

  • GB200: NVLink switches integrated with network fabric within compute trays

  • Not applicable to B-series systems which use traditional InfiniBand/Ethernet interconnect

Network and Storage Infrastructure#

Networking#

Mission Control integrates with enterprise network infrastructure:

InfiniBand:

  • IB Switches and Unified Fabric Manager (UFM)

  • High-bandwidth, low-latency interconnect for HPC and AI workloads

  • Available on all architectures

Ethernet:

  • Ethernet switches for management and data networks

  • Available on all architectures

NVLink:

  • NVLink switches for GPU interconnect (GB300, GB200)

  • High-speed GPU-to-GPU communication within compute trays

Storage Systems#

NFS Storage:

  • Network File System for shared storage

  • Home directories, shared datasets, and application data

  • Available on all architectures

HFS Storage:

  • High-performance file system for demanding workloads

  • Optimized for large-scale data processing

  • Available on all architectures

Additional Systems#

Customer-Provided BMS:

  • Baseboard Management System integration for GB-series systems (GB300, GB200)

  • API-compliant BMS for enhanced hardware management and control

  • Customer-provided component that integrates with BCM via API interface

  • Not applicable to B-series systems (B300, B200)

Administrative Tasks#

Common administrative tasks covered in this guide include:

Deployment and Configuration:

  • Initial cluster deployment

  • Network and storage configuration

  • User access setup

  • Service configuration and tuning

Monitoring and Maintenance:

  • System health monitoring

  • Performance analysis

  • Log management

  • Firmware and software updates

User Management:

  • User account provisioning

  • Access control configuration

  • Resource quota management

  • Job submission access

Troubleshooting:

  • Diagnostic procedures

  • Common issues and resolutions

  • Log analysis

  • Hardware fault isolation

Architecture Selection Guide#

Choose the appropriate architecture based on your requirements:

DGX B300:

  • Highest GPU density: 72 DGX per SU (InfiniBand) or 64 DGX per SU (Ethernet)

  • Advanced monitoring with NetQ (v2.1.0)

  • Autonomous recovery features (AHR/AJR) in v2.1.0

  • Traditional DGX node architecture in standard racks

  • x86-based infrastructure throughout

  • Separate Admin Kubernetes Nodes for infrastructure services

DGX B200:

  • Balanced production configuration: 32 DGX per SU

  • Proven v2.0.0 architecture

  • Streamlined deployment without separate admin infrastructure nodes

  • Traditional DGX node architecture in standard racks

  • x86-based infrastructure throughout

  • Cost-effective for production AI workloads

GB300:

  • Next-generation NVL72 rack-based system

  • Hybrid Arm64/x86 architecture: Arm64 for control and user access, x86 for admin services

  • NVLink high-speed interconnect for GPU fabric

  • Separate User Kubernetes Nodes for user workloads

  • Advanced features: NetQ, NMX, AHR, AJR (v2.1.0)

  • Compute tray organization with 8 racks per SU

GB200:

  • Enterprise NVL72 rack-based system with highest isolation

  • Separated admin and user control planes for security

  • Hybrid Arm64/x86 architecture: x86 admin plane, Arm64 Slurm nodes, x86 user services

  • Advanced autonomous recovery (AHR, AJR) in v2.0.0

  • NMX Manager for NVLink fabric management

  • Compute tray organization with 8 racks per SU

  • Ideal for multi-tenant environments requiring strong isolation

Document Conventions#

This guide uses the following conventions:

  • Bold text: UI elements, buttons, menu items

  • Monospace text: Commands, file paths, configuration values

  • Italic text: New terms, emphasis

Note

Architecture-specific procedures are clearly marked throughout the guide.

Warning

Always verify compatibility with your specific hardware configuration before making changes.

Tip

Consult the release notes for version-specific features and known issues.
