Observing a Workflow with Dynatrace#

This guide shows how to stream OpenTelemetry (OTel) traces from your NVIDIA NeMo Agent toolkit workflows to the OpenTelemetry Protocol (OTLP) ingest API, which in turn provides the ability to have full visibility into the performance of LLMs and agent interactions​.

In this guide, you will learn how to:

  • Deploy a Dynatrace OpenTelemetry Collector with a configuration that exports traces into Dynatrace

  • Configure your workflow (YAML) or Python script to send traces to the OTel collector.

  • Run the workflow and view traces within Dynatrace

Step 1: Dynatrace Account#

You will need access to your Dynatrace environment. If you don’t have one you can sign up to get one at https://www.dynatrace.com/signup/.

Step 2: Dynatrace API Token#

Dynatrace APIs use token based authentication. To generate an access token:

  1. Go to Access tokens.

  2. Select Generate new token.

  3. Enter a name for your token.

  4. Select these required scopes for the OTLP API:

    • openTelemetryTrace.ingest

    • metrics.ingest

    • logs.ingest

  5. Select Generate token.

  6. Copy the generated token to the clipboard. Store the token in a password manager for future use and for the configuration below.

Step 3: Configure OTel Collector#

Configure an OTel Collector configuration file using an otlphttp exporter to the Dynatrace OTLP API as shown in the example below. Refer to the Dynatrace documentation as required.

receivers:
  otlp:
    protocols:
      grpc:
        endpoint: 0.0.0.0:4317
      http:
        endpoint: 0.0.0.0:4318
processors:
  cumulativetodelta:
exporters:
  otlphttp:
    endpoint: "https://<YOUR-DYNATRACE-ENVIRONMENT>.live.dynatrace.com/api/v2/otlp"
    headers:
      Authorization: "Api-Token <YOUR-DYNATRACE-TOKEN>"
service:
  pipelines:
    traces:
      receivers: [otlp]
      processors: []
      exporters: [otlphttp]
    metrics:
      receivers: [otlp]
      processors: [cumulativetodelta]
      exporters: [otlphttp]
    logs:
      receivers: [otlp]
      processors: []
      exporters: [otlphttp]

Step 4: Install and run your configured OTel Collector#

There are many ways to deploy an OTel Collector but for this example, an OTel Collector is created using Docker with the configuration from the previous step into a file named otelcollectorconfig.yaml with the Dynatrace distribution of the OpenTelemetry Collector.

docker run -d -v "$(pwd)"/otelcollectorconfig.yaml:/etc/otelcol/config.yaml \
-p 4318:4318 \
dynatrace/dynatrace-otel-collector:latest

Once running, the collector endpoint is: http://localhost:4318.

Step 5: Install the NeMo Agent toolkit OpenTelemetry Subpackages#

# Install specific telemetry extras required for Dynatrace
uv pip install -e '.[opentelemetry]'

Step 6: Modify NeMo Agent toolkit Workflow Configuration#

Update your workflow configuration file to include the telemetry settings.

Example configuration:

general:
  telemetry:
    tracing:
      otelcollector:
        _type: otelcollector
        # The endpoint where you have deployed the otel collector
        endpoint: http://localhost:4318/v1/traces
        project: your_project_name

Step 7: Run the workflow#

From the root directory of the NeMo Agent toolkit library, install dependencies and run the pre-configured simple_web_query example.

Example:

# Install the workflow and plugins
uv pip install -e examples/getting_started/simple_web_query

# Run the workflow with OTel+Dynatrace telemetry settings
nat run --config_file examples/getting_started/simple_web_query/configs/config.yml --input "What is LangSmith?"

As the workflow runs, telemetry data will start showing up in Dynatrace.

Step 8: View spans#

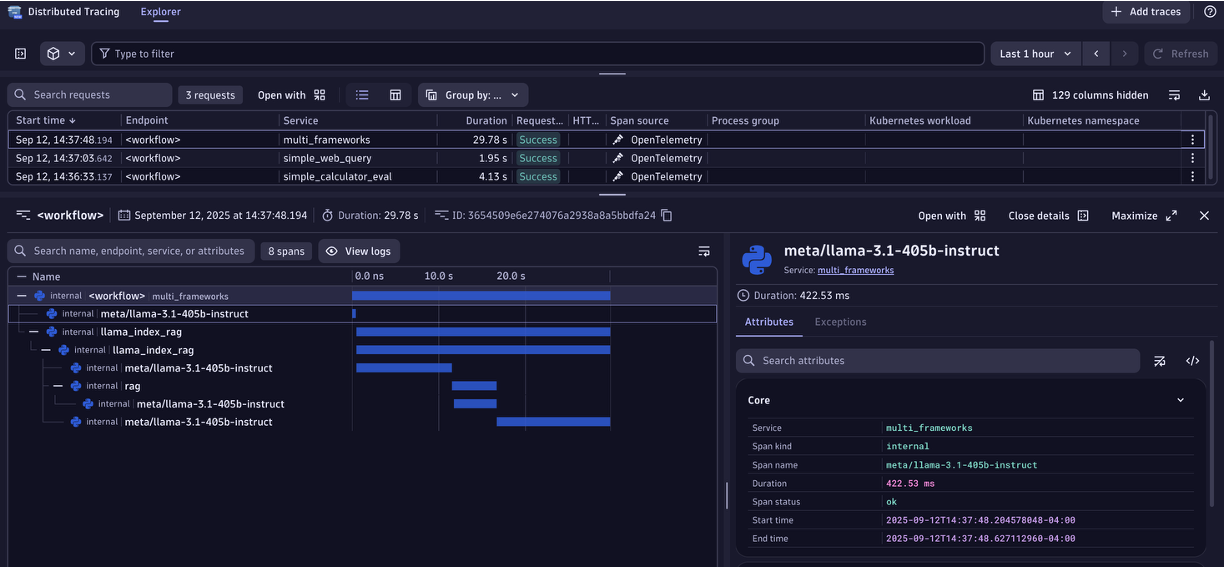

View the exported traces within the Dynatrace Distributed Tracing App as shown below.

Dynatrace trace screenshot
