Integrate NetQ with Grafana

The NetQ integration with Grafana allows you to create customized dashboards and to visualize metrics across your network devices. To view data in Grafana, first configure security between NetQ and OTel clients, configure OpenTelemetry (OTel) on the devices in your network, then configure the data sources in Grafana.

Requirements and Support

• Switches must have a Spectrum-2 or later ASIC
• DPUs and ConnectX hosts must be running DOCA Telemetry Service (DTS) version 1.18-1.20
• Before you get started with the steps below, install Grafana and start the Grafana server
• NetQ allows you to retrieve data from up to seven days in the past

Secure OpenTelemetry Export

NetQ is configured with OTLP secure mode with TLS by default and expects clients to secure data with a certificate. You can configure NetQ and your client devices to use your own generated CA certificate, NetQ’s self-signed certificate, or set the connections to insecure mode as outlined below.

TLS with a CA Certificate

NVIDIA recommends using your own generated CA certificate. To configure a CA certificate, follow the steps below:

1. Copy your certificate files to the NetQ server in the /mnt/admin directory. For example, copy the certificate and key to /mnt/admin/certs/server.crt and /mnt/admin/certs/server.key

2. Import your certificate on your switches using the nv action import system security ca-certificate <cert-id> [data <data> | uri <path>] command. Define the name of the certificate in <cert-id> and either provide the raw PEM string of the certificate as <data> or provide a path to the certificate file containing the public key as <path>.

3. After importing your certificate, set OTLP insecure mode to disabled on your switches:

   nvidia@switch:~$ nv set system telemetry export otlp grpc insecure disabled
   nvidia@switch:~$ nv config apply


TLS with NetQ’s Self-signed Certificate

To run on the switch in secure mode with NetQ’s self-signed certificate:

1. From the NetQ server, display the certificate using netq show otlp tls-ca-cert dump command. Copy the certificate from the output.

2. On the switch, import the certificate with the nv action import system security ca-certificate <cert-id> data <data> command. Define the name of the certificate in <cert-id> and replace <data> with the certificate data you generated in the preceding step.

3. Configure the certificate to secure the OTel connection. Replace ca-certificate with the name of your certificate; this is the <cert-id> from the previous step.

   nvidia@switch:~$ nv set system telemetry export otlp grpc cert-id <ca-certificate>
   nvidia@switch:~$ nv config apply


4. Next, disable insecure mode and apply the change:

   nvidia@switch:~$ nv set system telemetry export otlp grpc insecure disabled
   nvidia@switch:~$ nv config apply


5. Run nv show system telemetry health to display the destination port and IP address, along with connectivity status.

Insecure Mode

To use insecure mode and disable TLS:

1. On your NetQ server, run the netq set otlp security-mode insecure command.

2. On your switches, configure insecure mode:

   nvidia@switch:~$ nv set system telemetry export otlp grpc insecure disabled
   nvidia@switch:~$ nv config apply


Configure and Enable OpenTelemetry on Devices

Configure your client devices to send OpenTelemetry data to NetQ.

open-telemetry-receiver=http://<TS-IP>:30009/v1/metrics

Configure an External TSDB

OpenTelemetry data is stored in the NetQ TSDB. In addition to NetQ’s local storage, you can configure NetQ to also send the collected data to your own external TSDB:

1. If the connection to your external TSDB is secured with TLS, copy the certificate to the NetQ server in the /mnt/admin/ directory, and reference the full path to the file with the netq set otlp endpoint-ca-cert tsdb-name <text-tsdb-endpoint> ca-cert <text-path-to-ca-crt> command.

2. From the NetQ server, add the OTel endpoint of your time-series database (TSDB). Replace text-tsdb-endpoint and text-tsdb-endpoint-url with the name and IP address of your TSDB, respectively. Include the export true option to begin exporting data immediately. Set security-mode to tls if you configured a certificate to secure the connection, otherwise use security-mode insecure.

nvidia@netq-server:~$ netq add otlp endpoint tsdb-name <text-tsdb-endpoint> tsdb-url <text-tsdb-endpoint-url> [export true | export false] [security-mode <text-mode>]

3. If you set the export option to true in the previous step, the TSDB will begin receiving the time-series data for the metrics that you configured on the switch. Use the netq show otlp endpoint command to view the TSDB endpoint configuration.

Configure Data Sources in Grafana

1. Generate and copy an authentication token using the NetQ CLI. You can adjust time at which the token will expire with the expiry option. For example, the following command generates a token that expires after 40 days. If you do not set an expiry option, the token expires after 5 days. The maximum number of days allowed is 180.

nvidia@netq-server:~$ netq show vm-token expiry 40

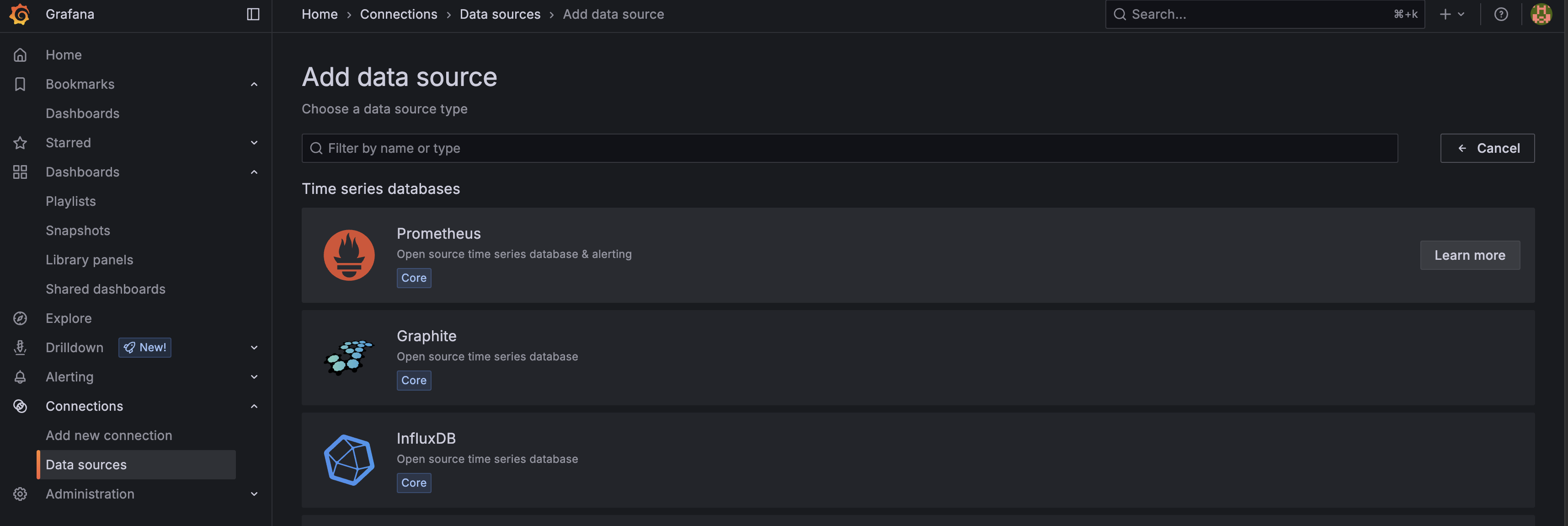

2. Navigate to your Grafana dashboard. From the menu, select Connections and then Data sources. Select Add new data source and add the Prometheus TSDB:

3. Continue through the steps to configure the data source. In the Connection field, enter the IP address of your NetQ server followed by /api/netq/vm/, for example https://10.255.255.255/api/netq/vm/. In a cluster deployment, enter the virtual IP address in this field (followed by /api/netq/vm/).

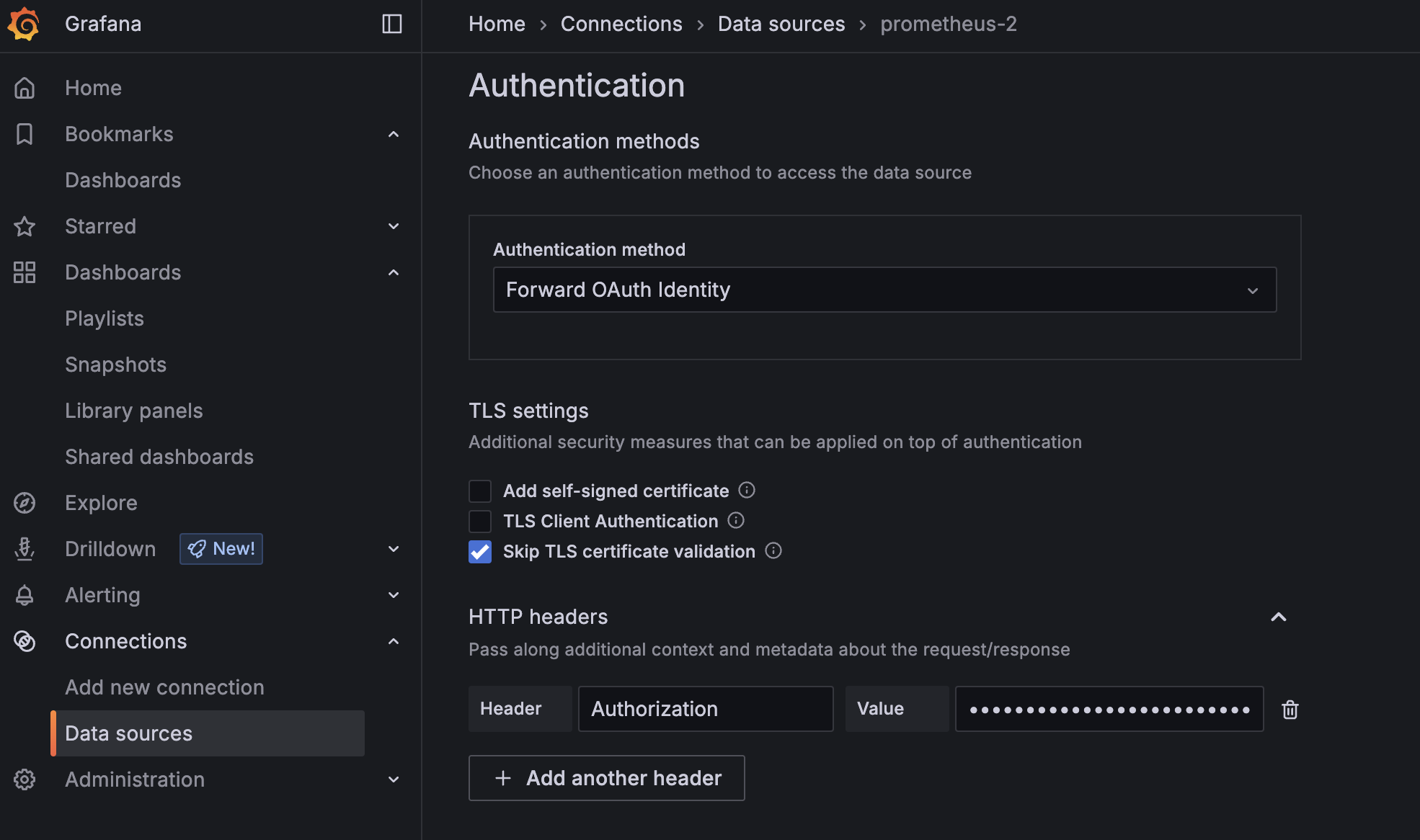

4. On the same page, navigate to the Authentication section. In the HTTP headers section, select Add header. In the Header field, enter Authorization. In the Value field, enter the token that you generated in step one of this section.

5. Select Save & test. If the operation was successful, you will begin to see metrics in your Grafana dashboard.

Grafana Best Practices

If data retrieval with Grafana is slow, you might need to adjust your dashboard settings. Fabric-wide queries on large networks (over 1000 switches) can generate millions of data points, which can significantly degrade performance. You can improve performance by optimizing queries, reducing data volume, and simplifying panel rendering.

Avoid plotting all time-series data at once. To visualize the data in different ways:

• Aggregate time-series data
• Add labels to your time-series data
• Add interval variables
• Use aggregation operators such as count and topk

Retrieve Metrics with the NetQ API

If you want to view or export the time-series database data without using Grafana, you can use curl commands to directly query the NetQ TSDB. These commands typically complete in fewer than 30 seconds, whereas Grafana can take longer to process and display data.

1. Generate an access token. Replace <username> and <password> with your NetQ username and password. Copy the access token generated by this command. You will use it in the next step.

curl 'https://10.237.212.61/api/netq/auth/v1/login' -H 'content-type: application/json' --data-raw '{"username":"<username>","password":"<password>"}' --insecure

2. Generate a JSON Web Token (JWT). Replace <access_token> with the token generated from the previous step. Copy the resulting token generated by this command. You will use it in the next step.

curl -k -X GET "https://10.237.212.61/api/netq/auth/v1/vm-access-token?expiryDays=10" -H "Authorization: Bearer <access_token>"

3. Fetch a complete list of metrics. Replace <vm-jwt> with the token generated from the previous step. You can use this list to create queries based on metrics you’re interested in.

export token=<vm-jwt>
curl -k "https://10.237.212.61/api/netq/vm/api/v1/label/__name__/values" -H "Authorization: Bearer $token"

export token=<vm-jwt>
curl -k "https://10.237.212.61/api/netq/vm/api/v1/query" -H "Authorization: Bearer $token" --get --data-urlencode 'query=rx_errors'

export token=<vm-jwt>
curl -k "https://10.237.212.61/api/netq/vm/api/v1/query_range" -H "Authorization: Bearer $token" --get --data-urlencode 'query= rx_errors' --data-urlencode "start=$(date -u -d '15 minutes ago' +%Y-%m-%dT%H:%M:%SZ)" --data-urlencode "end=$(date -u +%Y-%m-%dT%H:%M:%SZ)" --data-urlencode 'step=60s'

Additional Commands

• netq modify otlp endpoint
• netq show otlp commands
