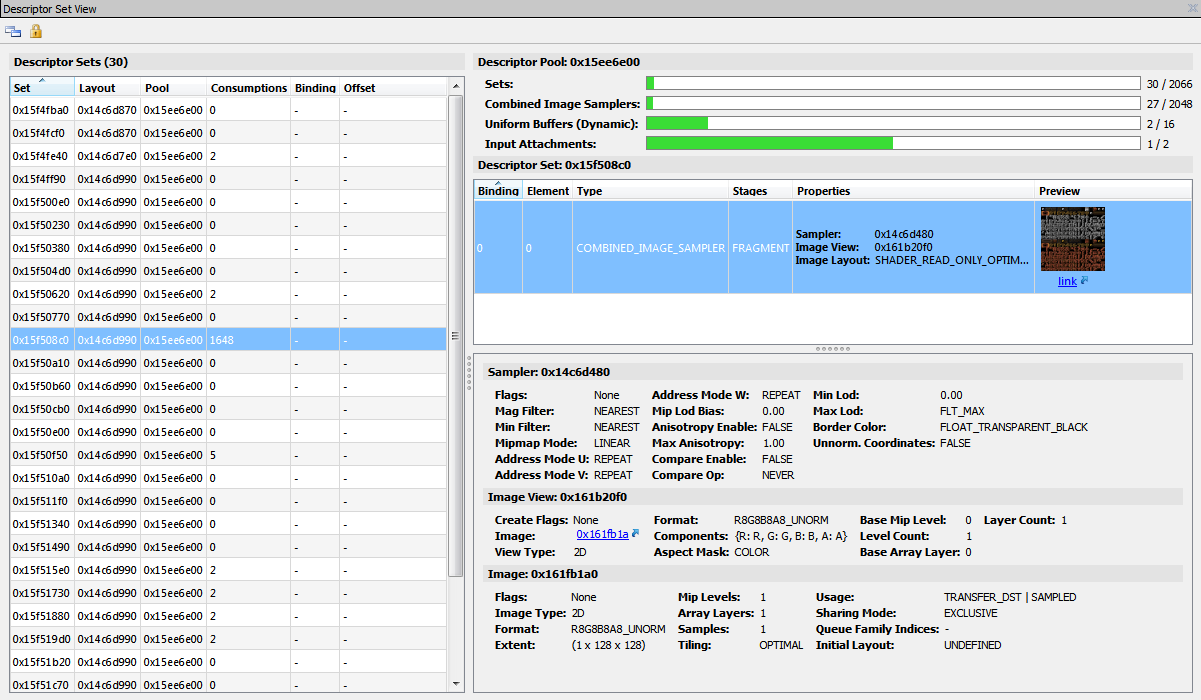

The Descriptor Set view displays all of the descriptor sets currently allocated and bound by the application at the current event.
To access the Descriptor Set view, go to Nsight > Windows > Descriptor Sets.
The left pane displays a selectable list of descriptor sets along with their layout, pool, consumption counts, and dynamics offsets.
When a set is selected, the right pane will display the resources currently associated with this descriptor set, as well as information related to the pool from which this descriptor set was allocated. In addition, clicking on a resource within the descriptor set will display more detailed information about that specific resource.
Note that if you click the hyperlink in the Preview column, it will bring up the Resources view associated with this image or buffer.
