Use NuRec for Autonomous Vehicles#

To use NuRec to reconstruct real-world scenes as 3D simulations, follow the steps in this guide.

Before you begin, make sure you have the right hardware and software setup to run NuRec and prepared your data.

Download the NuRec Container#

To download the NuRec container, run the following command:

docker pull nvcr.io/nvidia/nre/nre-ga:latest

Tip

Tip: Make sure you have converted your dataset to the NCore format and have generated required auxiliary data (using the nre-tools container). See Prepare Your Data for more details.

Run the Docker Base Command#

All NuRec operations use the same Docker base command. The only differences between training, validation, and export are the NuRec-specific arguments appended after the container name.

                      docker run --shm-size=64g --rm --gpus all \
  -e NGC_API_KEY=${NGC_API_KEY} \
  --volume <DATASET_DIR>:/workdir/dataset \
  --volume <OUTPUT_DIR>:/workdir/output \
  nvcr.io/nvidia/nre/nre-ga:latest \
  <NUREC ARGUMENTS>



Replace <DATASET_DIR> with the path to the directory containing your NCore .json manifest, .zarr.itar files, and auxiliary .aux.*.zarr files. Replace <OUTPUT_DIR> with the path where you want NuRec to write output.

Launch the Reconstruction Model Training#

To begin training, append the following NuRec arguments to the Docker base command:

                      docker run --shm-size=64g --rm --gpus all \
  -e NGC_API_KEY=${NGC_API_KEY} \
  --volume <DATASET_DIR>:/workdir/dataset \
  --volume <OUTPUT_DIR>:/workdir/output \
  nvcr.io/nvidia/nre/nre-ga:latest \
  mode=train \
  out_dir=/workdir/output \
  --config-name=configs/apps/prod/Hyperion-8.1/car2sim_6cam.yaml \
  dataset.path=/workdir/dataset/pai_<clip_id>.json \
  dataset.camera_ids=[<CAM1>,<CAM2>,<CAM3>] \
  dataset.lidar_ids=[lidar_top_360fov] \
  dataset.aux_data=True



The key parameters are:

--config-name: The training configuration file. The example above uses a multi-camera AV configuration. See Customize NuRec Configuration for available configs and overrides.
dataset.path: Path to the NCore .json manifest file, relative to the dataset volume mount.
dataset.camera_ids: Comma-separated list of camera IDs to use for training (no spaces).
dataset.aux_data=True: Enables loading of auxiliary data generated by the nre-tools container.

Working Example Using HuggingFace Sample Data#

The following example uses a clip from the NVIDIA NCore-converted Physical AI dataset. After downloading the clip and generating auxiliary data, your dataset directory should contain the .json manifest, .zarr.itar files, and .aux.*.zarr files together.

                        docker run --shm-size=64g --rm --gpus all \
  -e NGC_API_KEY=${NGC_API_KEY} \
  --volume /home/user/nurec/data:/workdir/dataset \
  --volume /home/user/nurec/output:/workdir/output \
  nvcr.io/nvidia/nre/nre-ga:latest \
  mode=train \
  out_dir=/workdir/output \
  --config-name=configs/apps/prod/Hyperion-8.1/car2sim_6cam.yaml \
  dataset.path=/workdir/dataset/pai_100ae358-f548-49b8-af4d-c0afdbcfe9ed.json \
  dataset.camera_ids=[camera_front_wide_120fov,camera_cross_left_120fov,camera_cross_right_120fov,camera_rear_left_70fov,camera_rear_right_70fov] \
  dataset.lidar_ids=[lidar_top_360fov] \
  dataset.aux_data=True



Notes:

Copy the auxiliary .aux.*.zarr files (generated by nre-tools) into the same directory as the .zarr.itar and .json files before training.
The config-name flag should point to the configuration file for the model you want to train. You can find more configuration files in the configs/apps/prod/ folder. For more information, see Customize NuRec Configuration.

Run NuRec on Multi-GPU Systems#

To run NuRec on multi-GPU systems, append the following flags to the launch command:

                        trainer.world_size=<NUM_GPUS> trainer.num_nodes=<NUM_NODES>



Notes:

<NUM_GPUS> is the number of GPUs to use for training.
<NUM_NODES> is the number of nodes to use for training.
You can assign four tasks per node, and 1 GPU per task, so, if you have 8 GPUs, you can use 2 nodes.
By default, NuRec uses only the first visible GPUs. When you set trainer.world_size=0 and trainer.num_nodes=0, NuRec will try to utilize all the visible GPUs and compute nodes (operating as a SLURM environment). To limit the visible GPUs, use the CUDA_VISIBLE_DEVICES environment variable and identify the GPUs by ID.
If you specify the available GPUs, the trainer.world_size flag pulls the GPUs in the order they are specified in the CUDA_VISIBLE_DEVICES environment variable. For example, if you have 6 GPUs and you specify CUDA_VISIBLE_DEVICES=1,2,3,4,5,0 and pass the trainer.world_size=4 flag, NuRec uses the GPUs that correspond to the IDs 1,2,3,4.
Using Fixer at training time is not supported with multi-GPU training. Use NuRec on a single GPU to enable training-time Fixer or use Fixer at inference time.

Optional Configuration#

There are multiple modes available for the reconstruction: train, val, trainval.
- train: Runs training steps for reconstruction
- val: Runs validation using a trained checkpoint
- trainval: Runs both training and validation steps
The number of training epochs is set to 30 by default. Append the following option to override the epoch value:
trainer.max_epochs=N
For reconstruction on a subset of cameras, append the following option at the end of the launch command:
dataset.camera_ids="['<ID1>','<ID2>','<ID3>']"
Note: There should not be any space between the IDs and commas.
Increase the debug log level by appending the following option at the end of the launch command:
+log_level=N
Where N can be any of the following options:
- For FATAL errors only, use 0
- For ERROR messages and fatal errors, use 1
- For WARNING (and errors), use 2
- For INFO (and lower verbosity levels), use 3
- For DEBUG (all logs), use 4

Details about the artifacts from the training#

The training pipeline creates two types of artifacts:

The full configuration used for training, named parsed.yaml
Checkpoints from the training epochs

The validation pipeline creates three types of artifacts:

A metrics.yaml file containing per-frame metrics and other details
A depth map per frame and its corresponding video file
An opacity map per frame and its corresponding video file
A segmentation map per frame and its corresponding video file

There is also a folder with log files from both the training and validation pipelines.

Reconstruct Novel Views via Validation Pipeline#

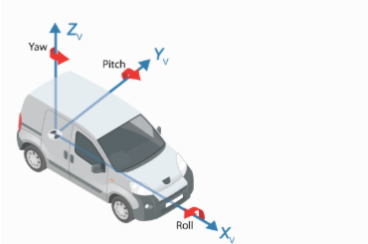

You can also generate novel views, using the X-, Y-, and Z-axis shifts, as shown in the following figure.

To run validation on the trained model on your docker container, use the following command:

                      docker run --shm-size=64g --rm --gpus all \
  -e NGC_API_KEY=${NGC_API_KEY} \
  --volume /path/to/dataset:/workdir/dataset \
  --volume /path/to/output/:/workdir/output \
  nvcr.io/nvidia/nre/nre-ga:latest \
  --config-name=/workdir/output/config/parsed.yaml \
  mode=val \
  resume=/workdir/output/checkpoints/last.ckpt \
  out_dir=/workdir/output \
  dataset.val_sensor_transl_delta_m="[0,2,0]"



Note:

Here the /path/to/output is different from the training step. It should point to the internal top directory containing the artifacts from the training.
This step may ask you to configure wandb. You may select option (3) to skip the configuration step.

For novel view synthesis:

You can use dataset.val_sensor_transl_delta_m="[x,y,z]" to provide shifts in translation. It accepts values in meters. There should not be any space between the values.
You can use dataset.val_sensor_rot_delta_deg="[degree1, degree2, degree3]" to provide roll-pitch-yaw Euler angles relative to the car as shown in the picture above. There shouldn’t be any space between the values.

Details about the artifacts from the training#

The validation pipeline creates the following artifacts:

Validation creates a file named metrics.yaml in the /path/to/output/val directory to store metrics.
You can check the PSNR vs training view in metrics.yaml. It should be under the test/psnr field in the YAML file.
MP4 files to show the base reconstruction, depth map, opacity.
Individual images to show the base reconstruction, depth map, opacity per frame.

Help#

You can run help command to get more information about training, validation, and the export utilities.

                      docker run --shm-size=64g --rm --gpus all \
 -e NGC_API_KEY=${NGC_API_KEY} \
 nvcr.io/nvidia/nre/nre-ga:latest --help



                      docker run --shm-size=64g --rm --gpus all \
 -e NGC_API_KEY=${NGC_API_KEY} \
 nvcr.io/nvidia/nre/nre-ga:latest \
 <export-utility-name> \
 --help
