Render the NuRec-trained Physical AI Dataset#
NVIDIA Omniverse NuRec builds photorealistic 3D renderings of real-world scenarios captured from sensor data. To expedite developers hoping to render scenes with NuRec, the NVIDIA NuRec-trained Physical AI dataset on HuggingFace offers pre-reconstructed scenes ready for use in a simulation platform. However, the key challenge when working with the Physical AI dataset is to properly handle the coordinate system transformations between different reference frames.
The reference frames and their corresponding coordinate systems are as follows:
ECEF: Earth-Centered, Earth-Fixed coordinates using WGS84 datum
ENU: East-North-Up local coordinates defined by OpenDRIVE georeference
OpenDRIVE Map Space: Local ENU coordinate system with origin defined by proj string
NuRec Space: Reconstruction coordinate system where frame 0 has identity transform
The NuRec coordinate system is fundamentally defined by the first frame having an identity transform, with T_rig_ecef representing the ECEF pose at frame 0 in the trajectories included in the Physical AI dataset. The complete transformation chain follows NuRec Space → ECEF → ENU (OpenDRIVE Map Space), where OpenDRIVE maps contain strings that define the local ENU origin. The critical transformation matrix T_nurec_map = T_ecef_enu @ T_rig_ecef aligns NuRec and map coordinate systems, enabling bidirectional conversion using T_nurec_map for NuRec→Map and its inverse for Map→NuRec. All transformations go through ECEF as the common reference frame, and you can use the NuRec gRPC API to render custom trajectories in NuRec coordinate space. NuRec space is defined relative to the first frame’s ECEF position, making T_rig_ecef the bridge between the reconstruction coordinate system and global ECEF coordinates.
This guide provides the foundation for working with pre-reconstructed NVIDIA Physical AI dataset scenes in custom simulation environments while maintaining proper coordinate alignment for photorealistic neural rendering.
Load and Extract Data Assets#
Before you can transform the coordinate systems and leverage the NuRec gRPC API to render them on a simulation platform, you must first load the assets and extract their data and references. Follow the steps in this section.
Load USDZ File#
The NuRec datasets are USDZ package files containing the following files and corresponding information:
Neural reconstruction data
data_info.json: Scenario metadata including time ranges and sequence inforig_trajectories.json: Camera calibrations, ego trajectory, andT_world_basetransformsequence_tracks.json: Object track data with poses, timestamps, and labelsmap.xodr: OpenDRIVE map file defining the road network
In your script, load the files and extract their contents for later reference.
import zipfile
import json
def load_nurec_scenario(usdz_path: str):
"""Load NuRec scenario data from USDZ file."""
scenario_data = {}
with zipfile.ZipFile(usdz_path, "r") as zip_ref:
# Extract scenario metadata
with zip_ref.open("data_info.json") as metadata_file:
scenario_data["metadata"] = json.load(metadata_file)
# Extract rig trajectories and camera calibrations
with zip_ref.open("rig_trajectories.json") as rig_file:
scenario_data["rig_trajectories"] = json.load(rig_file)
# Extract object tracks data
with zip_ref.open("sequence_tracks.json") as tracks_file:
scenario_data["sequence_tracks"] = json.load(tracks_file)
# Extract map data
with zip_ref.open("map.xodr") as xodr_file:
scenario_data["xodr_data"] = xodr_file.read().decode("utf-8")
return scenario_data
# Load scenario
usdz_path = "path/to/your/scenario.usdz"
scenario = load_nurec_scenario(usdz_path)
Unzip and Extract Map Data#
The USDZ file contains an OpenDRIVE map that defines the road network. Set up your script to automatically extract the map data on loading the scenario:
import zipfile
def extract_map_from_usdz(usdz_path: str) -> str:
"""Extract OpenDRIVE map data from USDZ file."""
with zipfile.ZipFile(usdz_path, "r") as zip_ref:
with zip_ref.open("map.xodr") as xodr_file:
xodr_data = xodr_file.read().decode("utf-8")
return xodr_data
# Usage
xodr_data = extract_map_from_usdz(usdz_path)
Load Trajectory Data#
NuRec scenarios contain pre-recorded trajectories for all actors (vehicles, pedestrians) including the ego vehicle. Define these trajectories in your script, as follows:
import numpy as np
def parse_trajectory_data(scenario_data):
"""Parse trajectory data from loaded scenario."""
metadata = scenario_data["metadata"]
rig_trajectories = scenario_data["rig_trajectories"]
sequence_tracks = scenario_data["sequence_tracks"]
# Get time range
start_time = metadata["pose-range"]["start-timestamp_us"]
end_time = metadata["pose-range"]["end-timestamp_us"]
duration_seconds = (end_time - start_time) / 1_000_000
# Parse ego trajectory from rig_trajectories
ego_poses = rig_trajectories["rig_trajectories"][0]["T_rig_worlds"]
ego_timestamps = rig_trajectories["rig_trajectories"][0]["T_rig_world_timestamps_us"]
# Parse object tracks from sequence_tracks
tracks_data = sequence_tracks["dummy_chunk_id"]["tracks_data"]
track_ids = tracks_data["tracks_id"]
object_tracks = {}
for i, track_id in enumerate(track_ids):
track_poses = tracks_data["tracks_poses"][i]
track_timestamps = tracks_data["tracks_timestamps_us"][i]
track_label = tracks_data["tracks_label_class"][i]
object_tracks[track_id] = {
"poses": track_poses,
"timestamps": track_timestamps,
"label": track_label
}
return start_time, end_time, {
"ego": {"poses": ego_poses, "timestamps": ego_timestamps},
"objects": object_tracks
}
# Usage
start_time, end_time, trajectories = parse_trajectory_data(scenario)
Load Map and Extract Georeference#
The OpenDRIVE map defines the local ENU coordinate system through its georeference, as follows:
import xml.etree.ElementTree as ET
def parse_opendrive_georeference(xodr_data: str):
"""Extract georeference information from OpenDRIVE map."""
tree = ET.fromstring(xodr_data)
geo_reference = tree.find(".//geoReference")
# Parse proj string
# Example: "+proj=tmerc +lat_0=37.4419 +lon_0=-122.1430 +k=1 +x_0=0 +y_0=0 +ellps=WGS84"
proj_parts = geo_reference.text.split(" ")
georeference = {}
for part in proj_parts:
if part.startswith("+lat_0="):
georeference["latitude"] = float(part[7:])
elif part.startswith("+lon_0="):
georeference["longitude"] = float(part[7:])
elif part.startswith("+alt_0="):
georeference["altitude"] = float(part[7:])
elif part.startswith("+proj="):
georeference["projection"] = part[6:]
georeference.setdefault("altitude", 0.0)
return georeference
# Parse georeference from loaded map
georeference = parse_opendrive_georeference(scenario["xodr_data"])

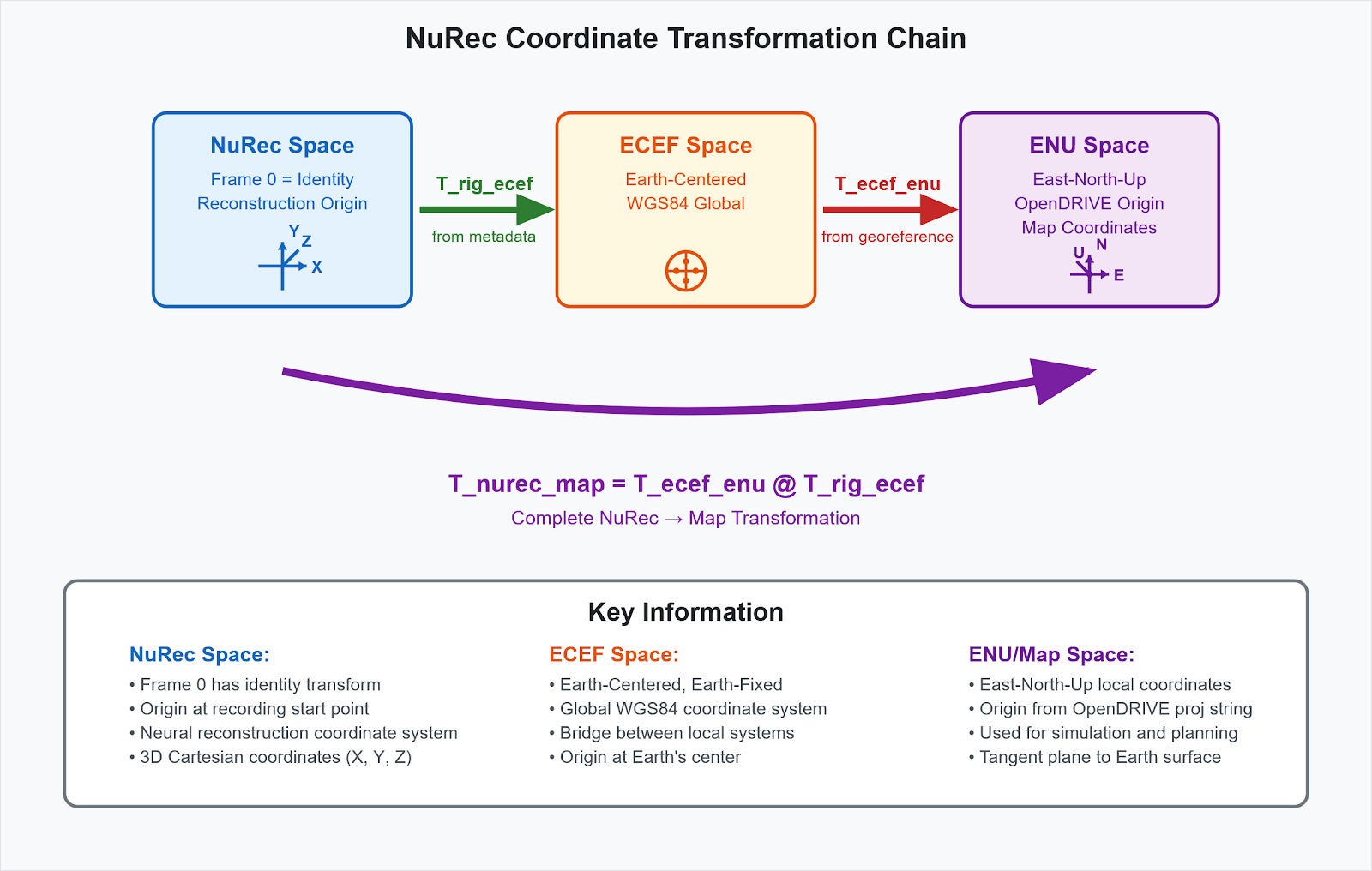

Transform the Coordinate Systems#
Once you’ve loaded the assets and defined them in your script, you can transform the coordinates from NuRec Space to Earth-Centered, Earth-Fixed (ECEF) Space, to OpenDRIVE Map Space (East-North-Up, or ENU space).
NuRec Space: The reconstruction coordinate system where frame 0 (first frame) has an identity transformation matrix. This is defined as the inverse of the ECEF matrix at the first frame.
T_rig_ecef: The ECEF pose of the first frame. Converting from NuRec space to ECEF is achieved using the formula ECEF_pose = NuRec_pose × T_rig_ecef.
OpenDRIVE ENU: Local East-North-Up coordinate system with origin defined by the proj string in the map’s georeference.
The transformation pipeline follows the sequence: NuRec Space → ECEF → ENU (OpenDRIVE Map Space)
Tip
NuRec space is defined such that frame 0 transforms to identity, making T_rig_ecef the ECEF pose of the recording start point.
Add the Transform Calculation#
The following snippet shows a detailed transform calculation from NuRec Space to ECEF Space to OpenDRIVE Map Space (ENU):
import numpy as np
import math
def lat_lng_alt_to_ecef(lat_lng_alt: np.ndarray) -> np.ndarray:
"""Convert GPS coordinates to ECEF using WGS84 ellipsoid."""
# WGS84 parameters
a = 6378137.0 # Semi-major axis
flattening = 1.0 / 298.257223563
b = a * (1.0 - flattening) # Semi-minor axis
phi = np.deg2rad(lat_lng_alt[:, 0])
gamma = np.deg2rad(lat_lng_alt[:, 1])
cos_phi = np.cos(phi)
sin_phi = np.sin(phi)
cos_gamma = np.cos(gamma)
sin_gamma = np.sin(gamma)
e_square = (a * a - b * b) / (a * a)
N = a / np.sqrt(1 - e_square * sin_phi * sin_phi)
x = (N + lat_lng_alt[:, 2]) * cos_phi * cos_gamma
y = (N + lat_lng_alt[:, 2]) * cos_phi * sin_gamma
z = (N * (b * b) / (a * a) + lat_lng_alt[:, 2]) * sin_phi
return np.column_stack([x, y, z])
def ecef_to_enu_transform(lat_lon_alt: np.ndarray) -> np.ndarray:
"""Compute transformation matrix from ECEF to local ENU frame."""
# Convert reference point to ECEF
ecef_origin = lat_lng_alt_to_ecef(lat_lon_alt)
# Extract latitude and longitude in radians
lat_rad = np.deg2rad(lat_lon_alt[0, 0])
lon_rad = np.deg2rad(lat_lon_alt[0, 1])
# ENU rotation matrix
rotation_matrix = np.array([
[-np.sin(lon_rad), np.cos(lon_rad), 0],
[-np.sin(lat_rad) * np.cos(lon_rad), -np.sin(lat_rad) * np.sin(lon_rad), np.cos(lat_rad)],
[np.cos(lat_rad) * np.cos(lon_rad), np.cos(lat_rad) * np.sin(lon_rad), np.sin(lat_rad)],
])
# Build 4x4 transformation matrix
t_ecef_enu = np.eye(4)
t_ecef_enu[:3, :3] = rotation_matrix
t_ecef_enu[:3, 3] = -rotation_matrix @ ecef_origin.T.flatten()
return t_ecef_enu
def calculate_nurec_to_map_transform(scenario_data, georeference):
"""
Calculate complete transformation from NuRec space to OpenDRIVE map space.
Args:
scenario_data: Loaded scenario containing T_rig_ecef
georeference: Parsed georeference from OpenDRIVE map
Returns:
t_nurec_map: 4x4 transformation from NuRec to map coordinates
"""
# Step 1: Get T_rig_ecef from rig trajectories
# This is the ECEF pose at frame 0 (first frame) - T_world_base
t_rig_ecef = np.array(scenario_data["rig_trajectories"]["T_world_base"])
# Step 2: Create transformation from ECEF to OpenDRIVE ENU
map_origin = np.array([[
georeference["latitude"],
georeference["longitude"],
georeference["altitude"]
]])
t_ecef_enu = ecef_to_enu_transform(map_origin)
# Step 3: Combine transformations: NuRec → ECEF → ENU
# NuRec space coordinates × T_rig_ecef = ECEF coordinates
# ECEF coordinates × T_ecef_enu = ENU coordinates
# Therefore: NuRec coordinates × T_rig_ecef × T_ecef_enu = ENU coordinates
t_nurec_map = t_ecef_enu @ t_rig_ecef
return t_nurec_map, t_rig_ecef, t_ecef_enu
# Calculate the complete transformation
t_nurec_map, t_rig_ecef, t_ecef_enu = calculate_nurec_to_map_transform(scenario, georeference)
Simulation in Map Space#
Once you’ve completed the transform calculation, you can run your own simulation using the map coordinate system:
def create_custom_trajectory(start_time, end_time, dt=50000):
"""Create a custom trajectory in map ENU coordinates."""
times = np.arange(start_time, end_time, dt) # 50ms intervals
trajectory = []
for i, t in enumerate(times):
# Example: Simple straight line motion
x = i * 0.5 # Move 0.5m per step (10 m/s at 50ms intervals)
y = 0.0
z = 0.0
# Example orientation (facing forward along x-axis)
pose_matrix = np.eye(4)
pose_matrix[0, 3] = x
pose_matrix[1, 3] = y
pose_matrix[2, 3] = z
trajectory.append({
'timestamp_us': t,
'pose_matrix': pose_matrix,
'position': [x, y, z],
'orientation': [0, 0, 0, 1] # quaternion [x, y, z, w]
})
return trajectory
def simulate_in_map_space(scenario_data, t_nurec_map):
"""Example of custom simulation in map coordinate space."""
# Get scenario time bounds
start_time = scenario_data["metadata"]["pose-range"]["start-timestamp_us"]
end_time = scenario_data["metadata"]["pose-range"]["end-timestamp_us"]
# Create custom trajectory in map coordinates
map_trajectory = create_custom_trajectory(start_time, end_time)
return map_trajectory
# Run custom simulation
custom_trajectory = simulate_in_map_space(scenario, t_nurec_map)
Convert Coordinates Back to NuRec Space#
When you have new poses from your simulation, convert them back to NuRec space for rendering:
def map_pose_to_nurec(map_pose_matrix: np.ndarray, t_nurec_map: np.ndarray) -> np.ndarray:
"""Convert map ENU pose to NuRec coordinate system."""
# To go from map coordinates back to NuRec coordinates, use inverse transform
t_map_nurec = np.linalg.inv(t_nurec_map)
# Apply coordinate transformation
nurec_pose = t_map_nurec @ map_pose_matrix
return nurec_pose
def convert_trajectory_to_nurec(map_trajectory, t_nurec_map):
"""Convert entire trajectory from map space to NuRec space."""
t_map_nurec = np.linalg.inv(t_nurec_map)
nurec_trajectory = []
for point in map_trajectory:
map_pose = point['pose_matrix']
nurec_pose = t_map_nurec @ map_pose
nurec_point = {
'timestamp_us': point['timestamp_us'],
'pose_matrix': nurec_pose,
'nurec_position': nurec_pose[:3, 3],
'original_map_position': point['position']
}
nurec_trajectory.append(nurec_point)
return nurec_trajectory
# Convert custom trajectory to NuRec coordinates for rendering
nurec_trajectory = convert_trajectory_to_nurec(custom_trajectory, t_nurec_map)
Render Using NuRec gRPC API#
Finally, render sensor data using the NuRec gRPC service. For custom trajectories, create render requests for the NuRec service, as shown in the following snippet:
def setup_camera_specifications(scenario_data):
"""Define camera specifications from scenario calibrations."""
camera_specs = {}
# Extract camera calibrations from rig_trajectories.json
camera_calibrations = scenario_data["rig_trajectories"]["camera_calibrations"]
for camera_id, calibration in camera_calibrations.items():
logical_name = calibration["logical_sensor_name"]
camera_model = calibration["camera_model"]
params = camera_model["parameters"]
camera_specs[logical_name] = {
"type": camera_model["type"],
"resolution_w": params["resolution"][0],
"resolution_h": params["resolution"][1],
"intrinsics": {
"principal_point_x": params["principal_point"][0],
"principal_point_y": params["principal_point"][1],
"max_angle": params["max_angle"],
"pixeldist_to_angle_poly": params["pixeldist_to_angle_poly"],
"angle_to_pixeldist_poly": params["angle_to_pixeldist_poly"],
"reference_poly": params["reference_poly"]
},
"T_sensor_rig": calibration["T_sensor_rig"]
}
return camera_specs
# Setup camera specifications for gRPC rendering
camera_specs = setup_camera_specifications(scenario)
Programmatically Render with the gRPC API#
Use the NuRec gRPC API for programmatic rendering:
import grpc
from grpc_proto.sensorsim_pb2_grpc import SensorsimServiceStub
from grpc_proto.sensorsim_pb2 import RGBRenderRequest, ImageFormat, CameraSpec, PosePair
from grpc_proto.common_pb2 import Empty as EmptyRequest
import numpy as np
def render_with_grpc_api(usdz_path, nurec_trajectory, camera_specs, scenario_data, output_dir):
"""Render using gRPC API directly."""
# Start NuRec render service
with NuRecRenderService(usdz_path, port=2000) as render_service:
# Setup gRPC connection
channel = grpc.insecure_channel("localhost:2000")
client = SensorsimServiceStub(channel)
for i, point in enumerate(nurec_trajectory):
timestamp = point["timestamp_us"]
pose_matrix = point["pose_matrix"]
# Get camera specification (use first available camera)
camera_name = list(camera_specs.keys())[0]
camera_spec = camera_specs[camera_name]
# Create gRPC camera spec
grpc_camera_spec = CameraSpec(
logical_id=camera_name,
resolution_h=camera_spec["resolution_h"],
resolution_w=camera_spec["resolution_w"],
ftheta_param=camera_spec["intrinsics"]
)
# Create pose pair for gRPC
pose_pair = PosePair(
start_pose=pose_matrix,
end_pose=pose_matrix
)
# Create render request
render_request = RGBRenderRequest(
scene_id=scenario_data["metadata"]["sequence_id"],
resolution_h=camera_spec["resolution_h"],
resolution_w=camera_spec["resolution_w"],
camera_intrinsics=grpc_camera_spec,
frame_start_us=timestamp,
frame_end_us=timestamp + 1,
sensor_pose=pose_pair,
dynamic_objects=[],
image_format=ImageFormat.JPEG,
image_quality=95
)
# Render frame via gRPC
response = client.render_rgb(render_request)
# Save image
output_path = f"{output_dir}/frame_{i:06d}_{timestamp}.jpg"
with open(output_path, 'wb') as f:
f.write(response.image_bytes)
# Render using gRPC API
render_with_grpc_api(usdz_path, nurec_trajectory, camera_specs, scenario, "output_images/")
