AeroJEPA — Tutorial Recipe#

This example trains and evaluates the AeroJEPA (Giral et al.) model on the SuperWing 3D aerodynamic dataset.

AeroJEPA is a Joint-Embedding Predictive Architecture. Rather than mapping geometry directly to a flow field, it predicts a latent representation of the flow from a latent representation of the geometry and operating conditions, and reconstructs the field through a continuous implicit decoder when needed. This recipe walks through the full workflow, from dataset download through training, inference, and CL/CD estimation.

SuperWing is a more tutorial-friendly dataset (a parametric wing family at varying angle of attack and mach number).

Tutorial Process#

Setup
Get the SuperWing dataset
Train
Inference and field plots
Field-accuracy metrics
CL, CD and CM estimation
Adding a new dataset

1. Setup#

The `requirements.txt <requirements.txt>`__ file lists the additional dependencies for this example, including Hugging Face Hub for dataset download and utilities for plotting and post-processing.

# Inside an environment with physicsnemo installed:
pip install -r requirements.txt

2. Get the SuperWing Dataset#

The dataset lives on the Hugging Face Hub at `yunplus/SuperWing <https://huggingface.co/datasets/yunplus/SuperWing>`__. The bundled download script pulls a configurable subset:

python -m src.datapipes.download_superwing \
    --output-dir /path/to/SuperWing_Dataset \
    --include configs.dat data.npy index.npy origingeom.npy geom0.npy

Expected layout after download:

SuperWing_Dataset/
├── configs.dat        # Geometry parameters (LHC sweep)
├── data.npy           # Surface flow fields (Cp, Cf)
├── index.npy          # Group info and macroscopic coefficients (CL, CD, …)
├── origingeom.npy     # Reference surface mesh (grid points)
└── geom0.npy          # Reference surface mesh (cell centers)

3. Train#

python train.py data.path=/path/to/SuperWing_Dataset

Default config: `conf/config.yaml <conf/config.yaml>`__ (composes conf/data/superwing.yaml, conf/model/aerojepa.yaml, conf/training/superwing.yaml).

Checkpoints are written to outputs/<run-name>/checkpoints/ under PhysicsNeMo’s standard Hydra-driven output layout.

Paper-scale configuration#

conf/config.yaml is a tutorial-scale baseline that trains on a single GPU in minutes. To reproduce the paper’s capacity — token_dim=256, max_point_tokens=1024, six transformer/decoder/predictor layers, and 16384 sample points — use `conf/config_paper.yaml <conf/config_paper.yaml>`__ (which composes conf/data/superwing_paper.yaml and conf/model/aerojepa_paper.yaml):

python train.py --config-name config_paper data.path=/path/to/SuperWing_Dataset

Multi-GPU / multi-node runs use torchrun with PhysicsNeMo’s DistributedManager (data-parallel with coalesced gradient all-reduce), e.g.:

torchrun --nproc_per_node=8 train.py --config-name config_paper \
    data.path=/path/to/SuperWing_Dataset

The paper-scale run is heavy (16384 points, six 256-dim layers, 200 epochs), so plan for multiple nodes and long walltime; training.resume lets a run continue across scheduler windows.

4. Inference and Field Plots#

After training, decode the predicted surface field on test cases:

python inference.py \
    checkpoint=outputs/<run-name>/checkpoints/best.pt \
    data.path=/path/to/SuperWing_Dataset \
    output_dir=outputs/<run-name>/inference

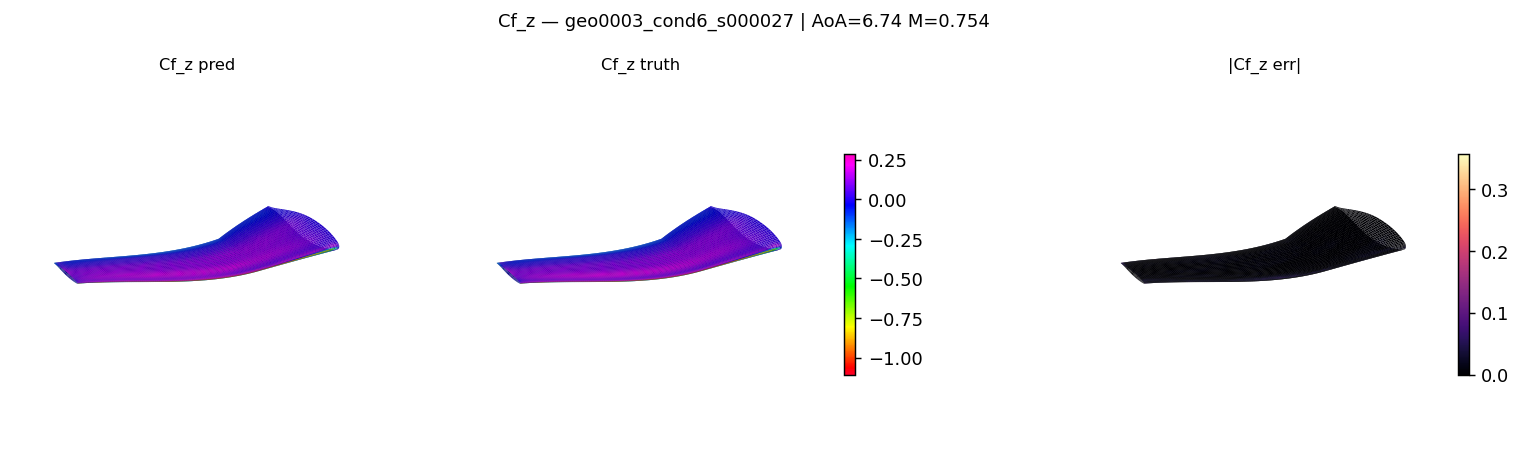

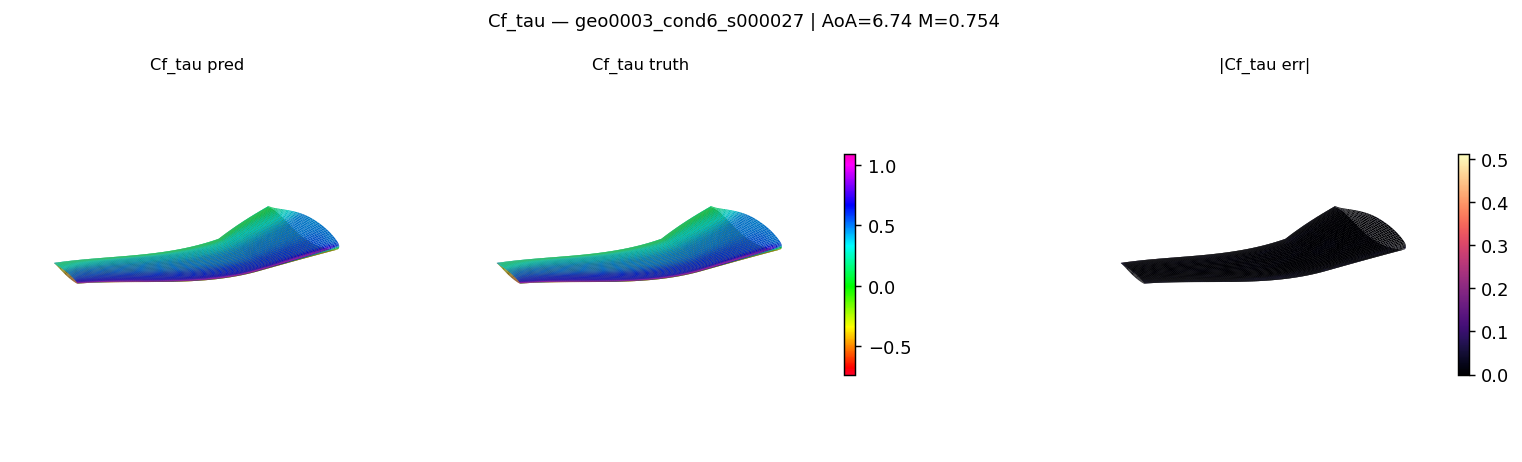

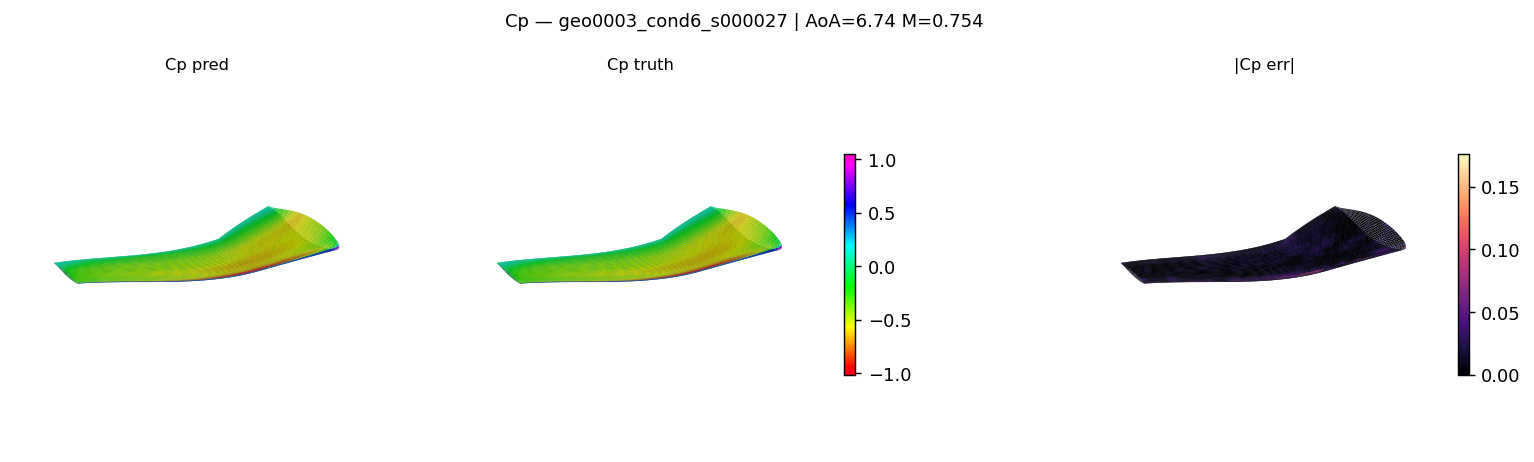

Example output on a held-out wing, showing ground truth, prediction, and absolute error for each surface channel (Cp, Cf_tau, Cf_z):

Multi-GPU inference#

Inference is embarrassingly parallel over test cases. Launch with torchrun and each rank runs a disjoint stride of the test split; the results are gathered onto rank 0, which writes the single predictions.npz. The GPU count comes from the launcher — no config and no merge step:

torchrun --nproc_per_node=<#GPUs> inference.py \
    checkpoint=outputs/<run-name>/checkpoints/best.pt \
    data.path=/path/to/SuperWing_Dataset \
    output_dir=outputs/<run-name>/inference

The output is identical in schema to a single-GPU run, so the scoring scripts below run on it unchanged.

5. Field-Accuracy Metrics#

The predictions.npz written by inference is scored against ground truth with:

python -m src.postprocessing.superwing_metrics \
    --predictions outputs/<run-name>/inference/predictions.npz \
    --output outputs/<run-name>/inference/metrics.csv

This writes per-case metrics to metrics.csv and a metrics_summary.txt next to it with the per-channel (Cp, Cf_tau, Cf_z) mean / median / std of the paper’s six field metrics: relative L2, relative L1, RMSE and MAE normalised by the ground-truth max magnitude (rmse_over_gtmax, mae_over_gtmax), and raw RMSE and MAE.

The Mean TFLOPs column (per-geometry inference cost) is measured separately, on a GPU node in the container:

python -m src.postprocessing.superwing_flops \
    data.path=/path/to/SuperWing_Dataset \
    checkpoint=outputs/<run-name>/checkpoints/best.pt   # optional

This mirrors the inference forward (encode once, predict tokens, decode the full 128 x 256 grid) under torch.profiler and reports TFLOPs per geometry. FLOPs depend only on the architecture and point counts, so the checkpoint is optional. The count sums the matmul-dominated aten ops; custom point ops (kNN, farthest-point sampling) have no FLOP formula and are not included, so it is a lower bound on the true total.

Benchmark#

The paper reports AeroJEPA on the SuperWing test split (mean ± std over the test cases). Geometry is encoded once and the field is decoded continuously from the latent representation. The first block is the paper’s reported numbers; the second is this recipe’s tutorial-scale run.

Model	Field	Rel L2	Rel L1	RMSE / GT Max	MAE / GT Max	RMSE	MAE
AeroJEPA (paper)	Cf,τ	0.0548 ± 0.0258	0.0302 ± 0.0121	0.0186 ± 0.0074	0.0090 ± 0.0029	0.0543 ± 0.0245	0.0261 ± 0.0092
	Cf,z	0.1084 ± 0.0513	0.0768 ± 0.0284	0.0156 ± 0.0087	0.0077 ± 0.0035	0.1097 ± 0.0664	0.0531 ± 0.0254
	Cp	0.0644 ± 0.0258	0.0473 ± 0.0179	0.0200 ± 0.0082	0.0116 ± 0.0041	0.0630 ± 0.0266	0.0365 ± 0.0133
AeroJEPA (this recipe, paper-scale)	Cf,τ	0.0491 ± 0.0313	0.0220 ± 0.0114	0.0166 ± 0.0094	0.0065 ± 0.0029	0.0215 ± 0.0133	0.0083 ± 0.0040
	Cf,z	0.1086 ± 0.0660	0.0636 ± 0.0324	0.0157 ± 0.0116	0.0063 ± 0.0040	0.0193 ± 0.0149	0.0077 ± 0.0051
	Cp	0.0595 ± 0.0316	0.0369 ± 0.0176	0.0209 ± 0.0109	0.0101 ± 0.0045	0.0268 ± 0.0148	0.0129 ± 0.0059

The last block is this recipe’s tutorial-scale run over the 2871-case test split (from metrics_summary.txt).

Note: the tutorial-scale defaults are smaller than the paper configuration, so the metrics and TFLOPs land in the paper’s ballpark rather than matching it exactly. Scaling up model.* (token dim, number of tokens, layers) and the point budget closes the gap.

6. CL, CD, and CM Estimation#

The surface field is integrated to lift, drag, and momentum coefficients using:

python -m src.postprocessing.superwing_forces \
    --predictions outputs/<run-name>/inference/predictions.npz \
    --output outputs/<run-name>/inference/forces.csv

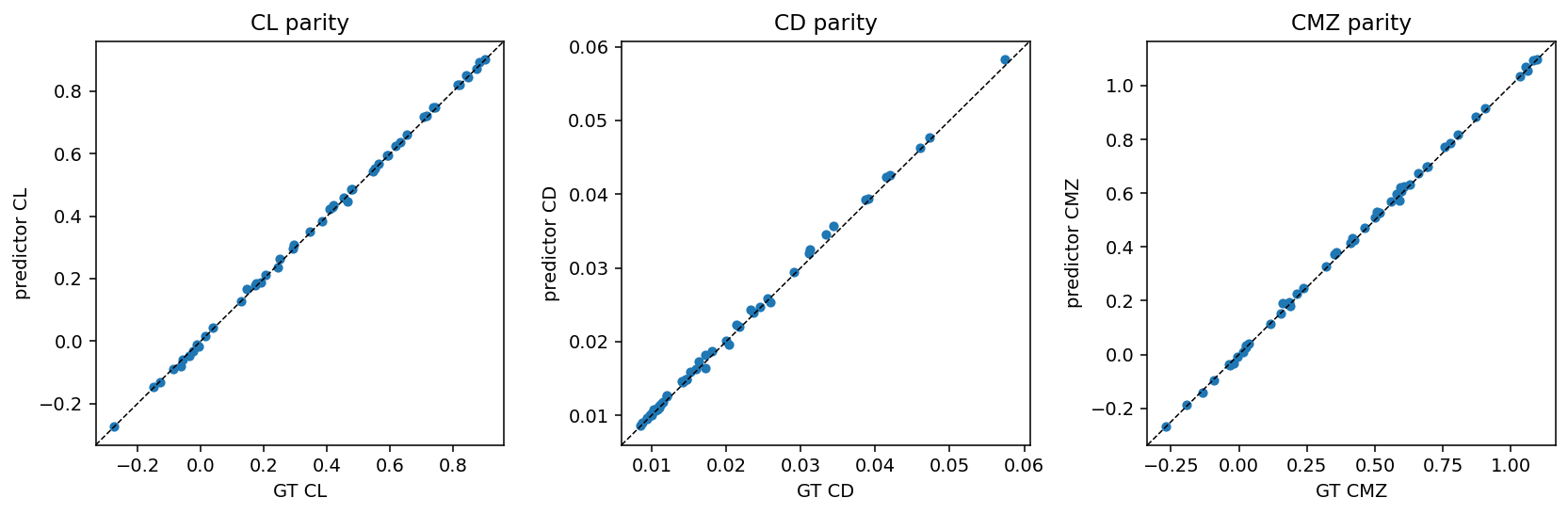

Predicted compared to ground-truth coefficients on the SuperWing test split:

7. Adding a New Dataset#

The recipe is structured so that dropping in a new dataset (HiLift, DrivAerStar, your own h5 corpus) is a two-file change:

Add src/datapipes/<your_dataset>.py exposing a Dataset class with the same interface as superwing.py.
Add conf/data/<your_dataset>.yaml that points _target_: at your dataset class.

Then python train.py data=<your_dataset> picks it up. No edits to train.py, inference.py, or any other code needed.

References#

Giral et al., “AeroJEPA: Learning Semantic Latent Representations for Scalable 3D Aerodynamic Field Modeling”, preprint arXiv:2605.05586 (2026).

Yang et al., “SuperWing: a comprehensive transonic wing dataset for data-driven aerodynamic design”, preprint arXiv:2512.14397 (2025).
