Radiation Transport with Transolver

A PhysicsNeMo example that trains a Transolver surrogate model for the 2-D linear radiation transport benchmark defined in Reference solutions for linear radiation transport: the Hohlraum and Lattice benchmarks. [1] The pipeline learns the final-time mapping from the initial flux snapshot to the final scalar flux, using a physics-informed training objective that can combine void/material- weighted MSE with a quantity-of-interest (QoI) penalty based on absorption in key regions.

The dataset used for this example was generated using KiT-RT, [2] curated into the PhysicsNeMo Mesh format, and published on Hugging Face: Linear Radiation Transport.

---

1. The science

The model approximates the final-time scalar flux φ(x) of the 2-D linear radiative-transfer equation. The simulator is run forward in time and the training target is the last snapshot — the underlying transport problem is not run to convergence. Inputs to the surrogate are:

• Coordinates (x, y) per cell, normalized to [-1, 1] and augmented with Fourier features (3 frequencies × 2 axes × {sin, cos} = 12 extra channels).

• Material properties per cell: absorption coefficient σ_a, scattering coefficient σ_s, total cross-section σ_t, and particle source Q. Q is non-zero for source cells in the lattice case and zero in the hohlraum case. Boundary input flux may be present in upstream simulation data, but it is not used as a model input in this example.

The surrogate predicts the z-score-of-log scalar flux, which is then inverted via transforms.denormalize_flux to recover the physical flux.

1.1 Lattice benchmark

A square domain partitioned into a 7×7 grid of material blocks. The material layout contains blue absorbing blocks, red scattering/source blocks, and a white scattering background. The model has to capture sharp flux discontinuities at material interfaces and reproduce the integrated absorption in the absorbing regions.

QoI — matches QoI-3 of the reference paper (Schotthöfer et al. 2025, §3.1): the final-time radiation absorption over the absorbing blocks B:

\[\mathrm{QoI}_{\mathrm{Lattice}} = \int_{B} \sigma_a(x)\,\phi(x, T)\,dx.\]

In code this is cur_absorption, computed as Σ_{c ∈ B} σ_a,c · φ_c · A_c over absorber cells.

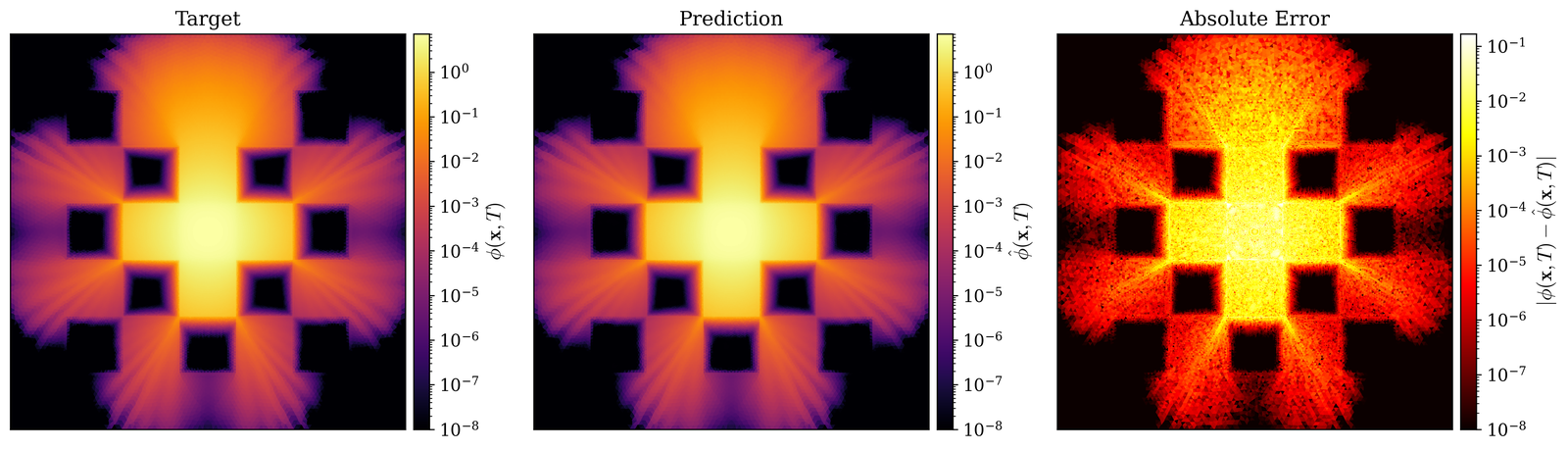

Lattice: target, prediction, absolute error of final-time flux

1.2 Hohlraum benchmark

A symmetric 2-D hohlraum-style cavity benchmark with interior void regions, red wall strips, and a center insert/capsule region. There is no interior particle source — flux enters from boundary conditions and propagates through the cavity. Geometry varies across simulations through eight scalar parameters:

• ulr, llr: upper/lower extent of the left red wall strip

• urr, lrr: upper/lower extent of the right red wall strip

• hlr, hrr: left/right horizontal wall-strip positions

• cx, cy: center insert/capsule offsets

QoI — variation of QoI-2 of the reference paper (Schotthöfer et al. 2025, §3.2): final-time absorption evaluated separately over three regions:

\[\mathrm{QoI}_{\mathrm{Hohlraum}, S} = \int_{S} \sigma_a(x)\,\phi(x, T)\,dx.\]

In the PhysicsNeMo evaluator, the three regions are labeled cur_absorption_{center, vertical, horizontal} and each is computed as Σ_{c ∈ S} σ_a,c · φ_c · A_c.

The training-time physics loss evaluates relative-squared-error losses for the three component absorptions and adds a fourth total loss on the sum of those three component absorptions. The QoI penalty is the mean of these four loss terms. Inference reports the three component QoIs only.

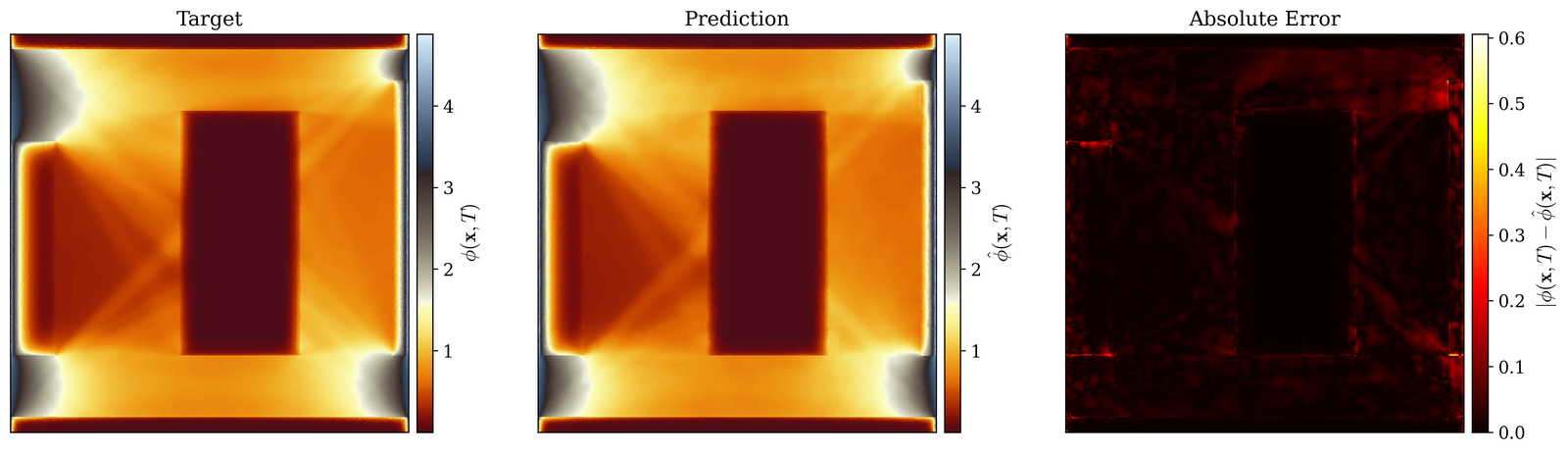

Hohlraum: target, prediction, absolute error of final-time flux

---

2. Installation

Prerequisites:

• PhysicsNeMo — install the host repo with [model-extras,datapipes-extras] to get physicsnemo.models.transolver.Transolver and the tensordict-based data utilities.

From the PhysicsNeMo repo root, install the example dependencies:

uv pip install -e ".[model-extras,datapipes-extras]" tensorboard

---

3. Dataset

3.1 Data source

The curated dataset is available on Hugging Face: Linear Radiation Transport. Raw simulations can be regenerated or curated using the KiT-RT solver and the CharmKiT workflow scripts.

3.2 Expected on-disk layout

The runtime data format is the PhysicsNeMo Mesh memmap layout. Each simulation lives in a <name>.pmsh/ directory next to a <name>.attrs.json sidecar, loaded via physicsnemo.mesh.Mesh.load(<name>.pmsh).

Set <DATA_ROOT> to the directory that directly contains the lattice/, hohlraum/, splits/, and stats/ directories. If using the Hugging Face tarballs exactly as published, this may be the extracted mesh/ directory rather than the parent download directory.

<DATA_ROOT>/
├── lattice/
│   ├── lattice_abs<a>_scatter<s>_p<p>_q<q>.pmsh/
│   ├── lattice_abs<a>_scatter<s>_p<p>_q<q>.attrs.json
│   └── ...
├── hohlraum/
│   ├── hohlraum_variable_cl<...>_q<...>_ulr<...>_llr<...>_<...>.pmsh/
│   ├── hohlraum_variable_cl<...>_q<...>_ulr<...>_llr<...>_<...>.attrs.json
│   └── ...
├── splits/
│   ├── lattice_splits.json     # train/val/test split lists
│   └── hohlraum_splits.json
└── stats/
    ├── lattice_flux_stats.yaml
    ├── lattice_material_stats.yaml
    ├── hohlraum_flux_stats.yaml
    └── hohlraum_material_stats.yaml

3.3 What’s in each mesh store

Each *.pmsh/ directory is one simulation written via physicsnemo.mesh.Mesh.save(...). The flux series is stored as just the first and final snapshots (T = 2); only those are used.

Cell-center coordinates and per-cell areas are derived from the mesh topology via mesh.cell_centroids and mesh.cell_areas.

Mesh.cell_data (per-cell tensors the loader requires):

Key	Shape	Dtype	Notes
scalar_flux	(N, 2)	float32	flux at first / final snapshot, cells-first
material_id	(N,)	int64	region IDs mapped by the material-property transforms
sigma_a, sigma_s, sigma_t	(N,)	float32	absorption / scattering / total cross-section
Q	(N,)	float32	particle source; non-zero in lattice source cells, zero in hohlraum

Mesh.global_data: the loader consumes only sim_time (shape (2,), simulation time of each flux snapshot). Other simulation diagnostics shipped with the data (cur_absorption, total_absorption, mass, …) are ignored at training time, but may be useful for other downstream tasks.

<name>.attrs.json (sidecar): JSON with case_type, simulation_params, solver_config, and mesh_info. The dataset exposes sidecar-derived metadata alongside each loaded sample.

N is the number of cells per simulation (~tens of thousands). In the published dataset, lattice samples use a fixed cell count, while hohlraum samples may have different N; point-cloud collation handles variable-size meshes.

3.4 Splits file format

The dataset reader (dataset._load_split_from_file) expects a wrapped JSON document with a "splits" key:

{
  "case_type": "lattice",
  "split_name": "default",
  "total_samples": 707,
  "train_size": 494,
  "val_size": 106,
  "test_size": 107,
  "splits": {
    "train": ["lattice_abs52.5_scatter4.6_p0.015_q6", "..."],
    "val":   ["lattice_abs85.0_scatter9.1_p0.015_q6", "..."],
    "test":  ["lattice_abs77.5_scatter4.1_p0.015_q6", "..."]
  }
}

Filenames in the splits arrays may be basenames with no suffix or filenames ending in .pmsh; the reader normalizes entries to .pmsh when opening stores.

If the splits file is named with a different suffix, point at it explicitly:

... case.split_file=<DATA_ROOT>/splits/my_split_file.json

3.5 Computing normalization stats

The Hugging Face dataset includes both flux and material-property statistics under stats/. If <DATA_ROOT>/stats/<case>_{flux,material}_stats.yaml are missing after custom curation or relocation, regenerate them with:

python src/compute_normalizations.py \
    --data_path /Datasets/lattice \
    --case_type lattice \
    --split_file /Datasets/splits/lattice_splits.json \
    --output_dir /Datasets/stats

python src/compute_normalizations.py \
    --data_path /Datasets/hohlraum \
    --case_type hohlraum \
    --split_file /Datasets/splits/hohlraum_splits.json \
    --output_dir /Datasets/stats

--split_file is required so stats are computed over the same train split used by training.

The flux stats YAML contains the log-flux mean/std/min/max + clip_threshold, used by RTEFluxLogClip and denormalize_flux. The material stats YAML contains per-channel mean/std/min/max for {σ_a, σ_s, σ_t, Q}.

---

4. Training

4.1 Quick start

Full-mesh training used at least a 48 GB GPU during development (RTX6000 Ada).

Lattice:

python src/train.py case=lattice data=lattice \
    case.data_root=<DATA_ROOT> \
    case.split_file=./path/to/lattice_splits.json

Hohlraum:

python src/train.py case=hohlraum data=hohlraum \
    case.data_root=<DATA_ROOT> \
    case.split_file=./path/to/hohlraum_splits.json

Single-process default: 500 epochs, AMP-bf16, cosine LR with 10 warmup epochs, peak LR 3e-5, physics loss enabled at weight 0.005 (lattice) / 0.01 (hohlraum).

4.2 Multi-GPU

torchrun --nproc_per_node=N src/train.py \
    case=lattice data=lattice case.data_root=<DATA_ROOT>

Use torchrun for DDP. A plain python src/train.py ... launch runs as a single process.

4.3 Common overrides

Override	Effect
train.epochs=200	Shorter run
train.optimizer.type=muon	Use torch.optim.Muon for 2-D weights, Adam for biases / norms
train.amp=false	Disable mixed precision (debug / numerical parity)
train.physics_loss.weight=0.0	Pure MSE training (disables QoI penalty)
train.max_grad_norm=1.0	Tighter gradient L2-norm clip (default 10.0)
train.dataloader.num_streams=4	CUDA streams used by physicsnemo.datapipes.DataLoader for prefetch overlap (no CPU fork workers)
train.dataloader.use_streams=false	Disable CUDA-stream prefetching — useful for debugging or CPU-only runs
train.dataloader.prefetch_factor=4	How many batches to prefetch ahead
model.num_spatial_points=8192	Subsample cells per training step (-1 = use all)
model.n_layers=12 model.n_hidden=384	Bigger Transolver
model.use_te=true	Use NVIDIA TransformerEngine layers (requires [model-extras])
train.resume_checkpoint=.../checkpoints/best_model	Resume from a checkpoint directory

4.4 Output structure

Per run, under outputs/${project.name}/${case.type}/${exp_tag}/:

outputs/RTE_Transolver/lattice/transolver/
├── hydra/
│   ├── config.yaml          # resolved Hydra config (canonical record of the run)
│   ├── hydra.yaml
│   └── overrides.yaml
├── checkpoints/
│   └── best_model/                 # the lowest-val_loss snapshot to date
│       ├── checkpoint.0.0.pt       # training state (optimizer, scheduler, scaler, metadata)
│       └── Transolver.0.0.mdlus    # model state dict
├── tensorboard/             # TB event files (open with `tensorboard --logdir tensorboard/`)
└── train.log

Inference defaults to checkpoints/best_model/ — the single best-by-val_loss checkpoint maintained during training. No periodic, rolling, or per-epoch snapshots are kept.

---

5. Evaluation

5.1 Run inference

Inference is Hydra-driven; supply the checkpoint path, data root, and split file as standard Hydra overrides:

RUN=outputs/RTE_Transolver/lattice/transolver
python src/inference.py \
    case=lattice data=lattice \
    case.data_root=/path/to/data_root \
    case.split_file=/path/to/splits.json \
    inference.checkpoint_path=$RUN/checkpoints/best_model \
    inference.output_dir=$RUN/evaluation

The flux normalization stats file is read from cfg.data.flux_normalization_stats_file (interpolated from case.data_root by default); override it directly via data.flux_normalization_stats_file=<PATH> if you keep stats elsewhere.

Inference-specific config keys (under inference.*):

Key	Effect
inference.checkpoint_path	Required. Directory containing Transolver.0.0.mdlus + checkpoint.0.0.pt. Point at the best_model/ directory under the run’s checkpoints/.
inference.output_dir	Required. Where to write metrics.yaml, qoi_metrics.yaml, and figures/.
inference.num_samples	Cap on the number of test simulations (default: null = all).
inference.num_plot_samples	Number of flux_panels_<idx>.png figures to write (default: 3, evenly sampled across the test set).
inference.device	Override torch device (default: null = CUDA if available).
inference.use_amp	Autocast in eval; bf16 on CUDA, off on CPU (default: true).

The case (lattice / hohlraum) is selected the same way as in training: case=<name> data=<name>. The dataset root, split file, and material/flux stats paths interpolate from case.data_root exactly as during training.

5.2 Outputs

<output_dir>/
├── metrics.yaml             # field-level metrics over the whole test set
├── qoi_metrics.yaml         # per-region QoI relative error
└── figures/
    ├── flux_panels_0000.png # target / prediction / error 3-panel per plotted sample
    ├── ...
    └── qoi_true_vs_pred.png # predicted vs ground-truth QoI scatter (one panel per region)

5.3 Metric definitions

metrics.yaml::overall is computed once over all evaluation samples flattened together (denormalized to physical flux):

Key	Definition
mse	mean((pred − target)^2)
rmse	sqrt(mse)
mae	mean(|pred − target|)
l2_relative_error	‖pred − target‖₂ / ‖target‖₂ — the headline number
relative_error	mean(|pred − target| / |target|) — sensitive to near-zero target cells, often dominated by void regions
max_error	max(|pred − target|)

metrics.yaml::per_sample_aggregate reports {mean, std, min, max} of each metric across simulations — useful for catching outliers (one bad simulation dominating the mean).

qoi_metrics.yaml reports per-region:

Key	Definition
mae	mean absolute error of the integrated QoI scalar
rmse	RMSE of the integrated QoI scalar
max_error	worst single-simulation QoI error
mean_relative_error_pct	mean of 100 · |Q_pred − Q_true| / |Q_true|
median_relative_error_pct	median of the same
max_relative_error_pct	worst single-simulation relative error

For lattice, the only region is cur_absorption. For hohlraum, inference reports cur_absorption_{center, vertical, horizontal} when geometry metadata is available on the sample. The training-time physics loss additionally includes a synthesized total loss on the sum of those three component absorptions; inference does not report this total term.

5.4 Comparing runs

The single most useful comparison is ``qoi_metrics.yaml::<region>::mean_relative_error_pct``. On the default randomized splits, a well-trained surrogate should reach low single-digit percent QoI error.

For field-level comparisons, use metrics.yaml::overall::l2_relative_error, which helps interpret global flux structure and sharp interface features.

---

6. Interpreting model performance

6.1 What “good” looks like

A converged model on either benchmark typically reaches l2_relative_error in the 1–2% range and per-region QoI mean_relative_error_pct below 1%.

6.2 Reading the training log

Each epoch logs train/validation loss and any per-component sub-losses present (mse, qoi, qoi_<region>, …) followed by the current learning rate. A typical line looks like:

Epoch 500: train_loss=1.7081e-05, val_loss=2.0973e-05,
    train_mse=1.7032e-05, val_mse=2.0900e-05,
    train_qoi=9.8040e-06, val_qoi=1.4658e-05, lr=1.00e-06

A best_model/ checkpoint is written whenever val_loss improves; no periodic per-epoch snapshots are kept.

6.3 Reading the inference figures

• ``flux_panels_<idx>.png`` — three panels per sample: target, prediction, absolute error.

• ``qoi_true_vs_pred.png`` — predicted vs ground-truth QoI scatter, one panel per region. Points should lie close to the y = x diagonal across the full test set.

---

7. Configuration reference

All training hyperparameters live under src/conf/, composed by Hydra:

src/conf/
├── config.yaml             # root: composes case / data / model / train / inference
├── case/{lattice,hohlraum}.yaml
├── data/{lattice,hohlraum}.yaml
├── model/transolver.yaml
├── train/base.yaml
└── inference/default.yaml

config.yaml defaults list:

defaults:
  - case: lattice
  - data: lattice
  - model: transolver
  - train: base
  - inference: default
  - _self_

CLI overrides follow Hydra’s standard syntax:

python src/train.py \
    case=hohlraum data=hohlraum \
    case.data_root=/path/to/data \
    train.epochs=300 \
    train.optimizer.type=muon \
    train.physics_loss.weight=0.02 \
    model.n_layers=12 model.n_hidden=384

The Hydra group structure means case=hohlraum swaps the entire case/hohlraum.yaml (including physics_loss_weight, include_q_in_embedding, and embedding_dim_override). The downstream train/base.yaml and model/transolver.yaml interpolate from ${case.*} so case-specific overrides propagate automatically.

---

References

@article{kitrt2023,
  title     = {KiT-RT: An extendable framework for radiative transfer and therapy},
  author    = {Kusch, Jonas and Schotth{\"o}fer, Steffen and Stammer, Pia
               and Wolters, Jannick and Xiao, Tianbai},
  journal   = {ACM Transactions on Mathematical Software},
  volume    = {49},
  number    = {4},
  pages     = {1--24},
  year      = {2023},
  publisher = {ACM New York, NY}
}

@misc{schotthoefer2025reference,
  title         = {Reference solutions for linear radiation transport:
                   the Hohlraum and Lattice benchmarks},
  author        = {Schotthoefer, Steffen and Hauck, Cory},
  year          = {2025},
  eprint        = {2505.17284},
  archivePrefix = {arXiv},
  primaryClass  = {physics.comp-ph},
  url           = {https://arxiv.org/abs/2505.17284}
}

[1]

Schotthoefer, S., & Hauck, C. (2025). “Reference solutions for linear radiation transport: the Hohlraum and Lattice benchmarks.” arXiv preprint arXiv:2505.17284.

[2]

Kusch, J., Schotthöfer, S., Stammer, P., Wolters, J., & Xiao, T. (2023). “KiT-RT: An extendable framework for radiative transfer and therapy.” ACM Transactions on Mathematical Software, 49(4), 1–24.
