RAPIDS Accelerator on Databricks

This guide shows how to set up the RAPIDS Accelerator for Apache Spark 3.x on Databricks. It will enable you to run a sample Apache Spark application on NVIDIA GPUs on Databricks.

Select a version of the Databricks Machine Learning runtime with GPU support and GPU-accelerated worker nodes that is compatible with RAPIDS Accelerator. See the section Software Requirements for a complete list of Databricks runtime versions supported by RAPIDS Accelerator.

  1. When you create a GPU-accelerated cluster, the Databricks UI requires the driver node to be a GPU node. However, you can use the Databricks API to create a cluster with a CPU driver node. The plug-in does not require a GPU driver node to operate because workloads are ran on GPU workers.

  2. On a multi-GPU node, RAPIDS Accelerator can use only one GPU. This is due to a Databricks limitation.

    Although it is possible to set spark.executor.resource.gpu.amount=1 in the Spark Configuration tab, Databricks overrides this to spark.executor.resource.gpu.amount=N (where N is the number of GPUs per node). This results in failed executors when you start the cluster.

  3. Parquet rebase mode is set to LEGACY by default.

    The following Spark configuration settings have the value LEGACY by default on Databricks:

    Copy
    Copied!


    spark.sql.legacy.parquet.datetimeRebaseModeInWrite spark.sql.legacy.parquet.int96RebaseModeInWrite

    These settings cause a CPU fallback for Parquet writes involving dates and timestamps. If you do not need LEGACY write semantics, change these settings to EXCEPTION, which is the default value in Apache Spark 3.0+.

  4. Databricks makes changes to existing runtimes by applying patches without notification. Issue-3098 is one example of this. NVIDIA runs regular integration tests on the Databricks environment to catch these issues and fix them when detected.

  5. Databricks 11.3 returns an incorrect result for window frames defined by a range in case of DecimalTypes with precision greater than 38. There is a bug filed in Apache Spark for it here, whereas when Databricks uses the plug-in it returns the correct result.

Each user has a Home directory in their workspace (/Workspace/Users/user@domain). Navigate to your Home directory in the UI by selecting Workspace > Home from the left navigation panel. Right click on the Home folder icon and select Create > File from the dropdown menu to create an init.sh script with the following content:

Copy
Copied!


#!/bin/bash sudo wget -O /databricks/jars/rapids-4-spark_2.12-23.12.1.jar https://repo1.maven.org/maven2/com/nvidia/rapids-4-spark_2.12/23.12.1/rapids-4-spark_2.12-23.12.1.jar

Then create a Databricks cluster by going to Compute and clicking Create compute. Ensure that the cluster meets the prerequisites listed above by configuring it like this:

  1. Select a Databricks Runtime Version from the list of supported runtimes in the Prerequisites section.

  2. Set the number of workers equal to the number of GPUs you want to use.

  3. Select a worker type.

    • For AWS, use nodes with one GPU each, such as p3.2xlarge or g4dn.xlarge.

    • For Azure, choose GPU nodes such as Standard_NC6s_v3.

    • For GCP, choose N1 or A2 instance types with GPUs.

  4. Select the driver type. Generally you may set this to the same value as the worker.

  5. Click the Edit button, then navigate down to the Advanced Options section. Select the Init Scripts tab in the advanced options section and paste the workspace path into the initialization script:/Users/user@domain/init.sh, then click Add.

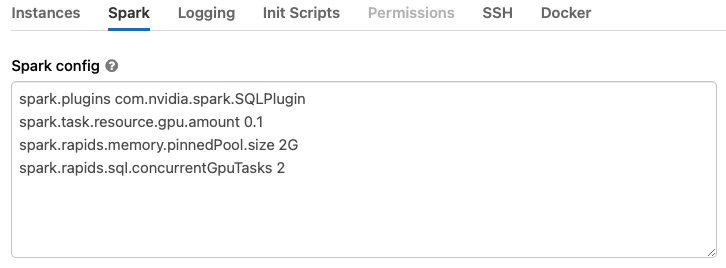

  6. Select the Spark tab and paste the following configuration options into the Spark Config section. Change the configuration values based on the workers you choose. See the documentation for Apache Spark configuration and RAPIDS Accelerator for Apache Spark descriptions for descriptions of the configuration settings.

    The spark.task.resource.gpu.amount configuration defaults to 1 in Databricks. That means that only one task can run on an executor with one GPU. This is limiting, especially for reads and writes from Parquet. Set the value 1/cores, where cores is the number of cores per executor. This will allow multiple tasks to run in parallel as they do on the CPU side. You may also use a value smaller than 1/cores if you wish.

    Copy
    Copied!


    spark.plugins com.nvidia.spark.SQLPlugin spark.task.resource.gpu.amount 0.1 spark.rapids.memory.pinnedPool.size 2G spark.rapids.sql.concurrentGpuTasks 2


    If you are running Pandas UDFs with GPU support from the plug-in, you need at least three additional options:

    • The option spark.python.daemon.module specifies the Python daemon module that Databricks is to use. On Databricks the Python runtime requires different parameters than the one for Spark, so you must create a dedicated Python deamon module rapids.daemon_databricks and specify it here.

    • Set the option spark.rapids.sql.python.gpu.enabled to true to enable GPU support for Python.

    • Add the path of the plug-in JAR (supposing it is placed under /databricks/jars/) to the spark.executorEnv.PYTHONPATH option. For more details, see GPU Scheduling For Pandas UDF.

    Copy
    Copied!


    spark.rapids.sql.python.gpu.enabled true spark.python.daemon.module rapids.daemon_databricks spark.executorEnv.PYTHONPATH /databricks/jars/rapids-4-spark_2.12-23.12.1.jar:/databricks/spark/python

    Note that because the Python memory pool requires installing the cudf library, you must install the cudf library in each of the worker nodes (enter pip install cudf-cu11 --extra-index-url=https://pypi.nvidia.com) or disable the Python memory pool (set spark.rapids.python.memory.gpu.pooling.enabled=false).

  7. Click Create Cluster. Create Cluster creates a GPU-accelerated cluster that is ready for use. Creating the cluser typically takes a few minutes.

The GitHub repo spark-rapids-container provides the Dockerfile and scripts to build custom Docker containers with RAPIDS Accelerator for Apache Spark.

See the Databricks documentation for more details.

Import the example notebook from the repo into your workspace, then open the notebook. GitHub provides download instructions for the dataset.

Copy
Copied!


%sh USER_ID=<your_user_id> wget http://rapidsai-data.s3-website.us-east-2.amazonaws.com/notebook-mortgage-data/mortgage_2000.tgz -P /Users/${USER_ID}/ mkdir -p /dbfs/FileStore/tables/mortgage mkdir -p /dbfs/FileStore/tables/mortgage_parquet_gpu/perf mkdir /dbfs/FileStore/tables/mortgage_parquet_gpu/acq mkdir /dbfs/FileStore/tables/mortgage_parquet_gpu/output tar xfvz /Users/${USER_ID}/mortgage_2000.tgz --directory /dbfs/FileStore/tables/mortgage

In Cell 3, update the data paths if necessary. The example notebook merges the columns and prepares the data for XGBoost training. The temporary and final output results are written back to the Databricks File System (dbfs).

Copy
Copied!


orig_perf_path='dbfs:///FileStore/tables/mortgage/perf/*' orig_acq_path='dbfs:///FileStore/tables/mortgage/acq/*' tmp_perf_path='dbfs:///FileStore/tables/mortgage_parquet_gpu/perf/' tmp_acq_path='dbfs:///FileStore/tables/mortgage_parquet_gpu/acq/' output_path='dbfs:///FileStore/tables/mortgage_parquet_gpu/output/'

To run the notebook, click Run All.

Spark logs in Databricks are removed upon cluster shutdown. It is possible to save logs in a cloud storage location using Databricks cluster log delivery. Enable this option before starting the cluster to capture the logs.
