Bilateral Image Filter

Overview

A Bilateral Image Filter is a non-linear, edge-preserving smoothing filter that is commonly used in Computer Vision as a simple noise-reduction stage in a pipeline. It calculates the intensity of each output pixel as a weighted average of intensity values from nearby pixels in the input image. Crucially, the weights depend not only on the Euclidean distance between current and neighbor pixels, but also on the radiometric differences (e.g., color intensity differences) between them. The outcome is that edges are preserved while regions with similar intensities are smoothed out.

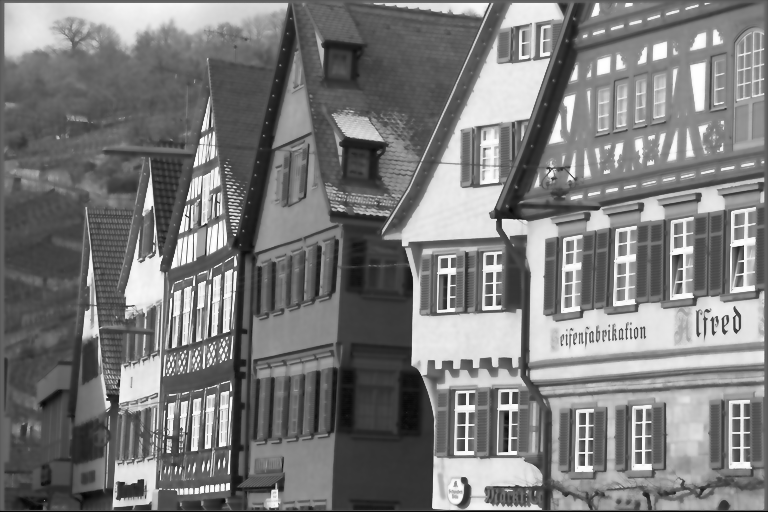

Input Parameters Output

\begin{align*} \mathit{kernelSize} &= 7x7 \\ \sigma_s &= 1.7 \\ \sigma_r &= 50 \end{align*}

Implementation

The bilateral image filter is defined as:

\[ I'(p) = \frac{1}{W_p} \sum_{q\in\Omega}I(p)k_r(\|I(q) - I(p)\|)k_s(\|p-q\|) \]

and the normalization term, W, is defined as:

\[ W_p = \sum_{q\in\Omega}k_r(\|I(p)-I(q)\|)k_s(\|p-q\|) \]

where

  • \(I\) and \(I'\) are the input and output images, respectively.
  • \(k_r\) and \(k_s\) are the range and space kernels, respectively, defined as the following non-normalized Gaussian functions:

    \begin{align*} k_r(p) &= e^{-\frac{\|p\|^2}{2\sigma_r^2}} \\ k_s(p) &= e^{-\frac{\|p\|^2}{2\sigma_s^2}} \end{align*}

  • \(\sigma_r\) controls the intensity range that is smoothed out. Higher values will lead to larger regions being smoothed out. The \(\sigma_r\) value should be selected with the dynamic range of the image pixel values in mind.
  • \(\sigma_s\) controls smoothing factor. Higher values will lead to more smoothing.

Usage

  1. Initialization phase
    1. Include the header that defines the Gaussian filter function.
    2. Define the stream on which the algorithm will be executed, the input and output images.
      VPIStream stream = /*...*/;
      VPIImage input = /*...*/;
    3. Create the output image.
      uint32_t w,h;
      vpiImageGetSize(input, &w, &h);
      vpiImageGetType(input, &type);
      VPIImage output;
      vpiImageCreate(w, h, type, 0, &output);
  2. Processing phase
    1. Submit the algorithm to the stream, along with all parameters. Here we're using a 7x7 kernel with \(\sigma_r=50\) and \(\sigma_s=1.7\).
      vpiSubmitBilateralImageFilter(stream, input, output, 7, 50, 1.7, VPI_BOUNDARY_COND_ZERO);
    2. Optionally, wait until the processing is done.
      vpiStreamSync(stream);

Limitations and Constraints

Constraints for specific backends supersede the ones specified for all backends.

All Backends

PVA

  • Not implemented
