Pyramid.h File Reference
Functions and structures for dealing with VPI pyramids. More...
#include "Export.h"#include "Image.h"#include "Status.h"#include "Types.h"#include "Version.h"#include <stdint.h>

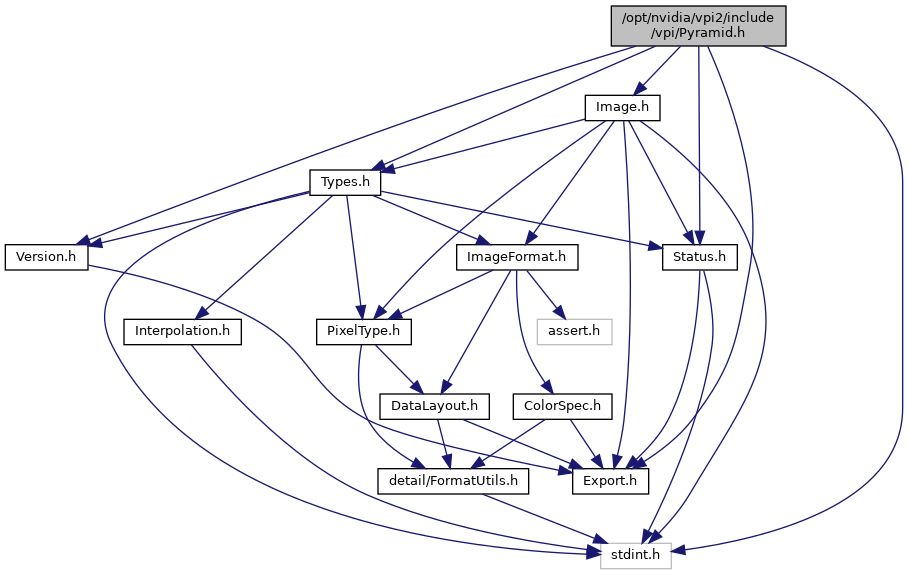

Include dependency graph for Pyramid.h:

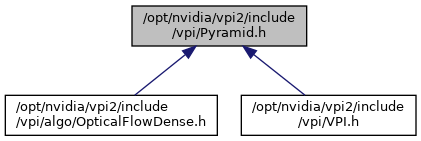

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | VPIPyramidData |
| Stores the pyramid contents. More... | |
Macros | |
| #define | VPI_MAX_PYRAMID_LEVEL_COUNT (10) |
| Maximum number of pyramid levels. | |
Functions | |
| VPIStatus | vpiPyramidCreate (int32_t width, int32_t height, VPIImageFormat fmt, int32_t numLevels, float scale, uint64_t flags, VPIPyramid *pyr) |
| Create an empty image pyramid instance with the specified flags. More... | |
| void | vpiPyramidDestroy (VPIPyramid pyr) |
| Destroy an image pyramid instance as well as all resources it owns. More... | |
| VPIStatus | vpiPyramidGetFlags (VPIPyramid pyr, uint64_t *flags) |
| Returns the flags associated with the pyramid. More... | |
| VPIStatus | vpiPyramidGetFormat (VPIPyramid pyr, VPIImageFormat *fmt) |
| Returns the image format of the pyramid levels. More... | |
| VPIStatus | vpiPyramidGetNumLevels (VPIPyramid pyr, int32_t *numLevels) |
| Get the image pyramid level count. More... | |
| VPIStatus | vpiPyramidGetSize (VPIPyramid pyr, int32_t outSize, int32_t *outWidth, int32_t *outHeight) |
| Get the image width and height in pixels (for all levels at once). More... | |
| VPIStatus | vpiPyramidGetScale (VPIPyramid pyr, float *scale) |
| Returns the scale factor of the pyramid levels. More... | |
| VPIStatus | vpiPyramidLock (VPIPyramid pyr, VPILockMode lock) |
| Acquires the lock on an pyramid object. More... | |
| VPIStatus | vpiPyramidLockData (VPIPyramid pyr, VPILockMode lock, VPIImageBufferType bufType, VPIPyramidData *out) |
| Acquires the lock on a pyramid object and returns host-accessible pointers to each level of the pyramid. More... | |
| VPIStatus | vpiPyramidUnlock (VPIPyramid pyr) |
| Releases the lock on a image pyramid object. More... | |
| VPIStatus | vpiImageCreateWrapperPyramidLevel (VPIPyramid pyr, int32_t level, VPIImage *img) |
| Creates an image that wraps one pyramid level. More... | |
Detailed Description
Functions and structures for dealing with VPI pyramids.
Definition in file Pyramid.h.
