Using pyAerial for PUSCH decoding on Aerial Data Lake data#
This example shows how to use the pyAerial bindings to run cuPHY GPU accelerated PUSCH decoding for 5G NR PUSCH. The 5G NR PUSCH data is read from an example over the air captured PUSCH dataset collected and stored using Aerial Data Lake. Building a PUSCH receiver using pyAerial is demonstrated in two ways, first by using a fully fused, complete, PUSCH receiver called from Python using just a single function call. The same is then achieved by building the complete PUSCH receiver using individual separate Python function calls to individual PUSCH receiver components.
Note: This example requires that the clickhouse server is running and that the example data has been stored in the database. Refer to the Aerial Data Lake documentation on how to do this.
[1]:
# Check platform.
import platform
if platform.machine() not in ['x86_64', 'aarch64']:
raise SystemExit("Unsupported platform!")
Imports#
[2]:
import math
import os
os.environ["CUDA_VISIBLE_DEVICES"] = "0"
import numpy as np
import pandas as pd
from IPython.display import Markdown
from IPython.display import display
# Connecting to clickhouse on remote server
import clickhouse_connect
# Plotting with Bokeh.
import matplotlib.pyplot as plt
# pyAerial imports
from aerial.phy5g.algorithms import ChannelEstimator
from aerial.phy5g.algorithms import ChannelEqualizer
from aerial.phy5g.algorithms import NoiseIntfEstimator
from aerial.phy5g.algorithms import Demapper
from aerial.phy5g.ldpc import LdpcDeRateMatch
from aerial.phy5g.ldpc import LdpcDecoder
from aerial.phy5g.ldpc import CrcChecker
from aerial.phy5g.pusch import PuschRx
from aerial.util.cuda import get_cuda_stream
from aerial.util.fapi import dmrs_fapi_to_bit_array
# Hide log10(10) warning
_ = np.seterr(divide='ignore', invalid='ignore')
Create the PUSCH pipelines#
This is a PUSCH receiver pipeline made up of separately called pyAerial PUSCH receiver components.
[3]:
# Whether to plot intermediate results within the PUSCH pipeline, such as channel estimates and equalized symbols.
plot_figures = True
num_ues = 1
num_tx_ant = 2 # UE antennas
num_rx_ant = 4 # gNB antennas
cell_id = 41 # Physical cell ID
enable_pusch_tdi = 0 # Enable time interpolation for equalizer coefficients
eq_coeff_algo = 1 # Equalizer algorithm
# The PUSCH receiver chain built from separately called pyAerial Python components is defined here.
class PuschRxSeparate:
"""PUSCH receiver class.
This class encapsulates the whole PUSCH receiver chain built using
pyAerial components.
"""
def __init__(self,
num_rx_ant,
enable_pusch_tdi,
eq_coeff_algo,
plot_figures):
"""Initialize the PUSCH receiver."""
self.cuda_stream = get_cuda_stream()
# Build the components of the receiver.
self.channel_estimator = ChannelEstimator(
num_rx_ant=num_rx_ant,
cuda_stream=self.cuda_stream)
self.channel_equalizer = ChannelEqualizer(
num_rx_ant=num_rx_ant,
enable_pusch_tdi=enable_pusch_tdi,
eq_coeff_algo=eq_coeff_algo,
cuda_stream=self.cuda_stream)
self.noise_intf_estimator = NoiseIntfEstimator(
num_rx_ant=num_rx_ant,
eq_coeff_algo=eq_coeff_algo,
cuda_stream=self.cuda_stream)
self.derate_match = LdpcDeRateMatch(
enable_scrambling=True,
cuda_stream=self.cuda_stream)
self.decoder = LdpcDecoder(cuda_stream=self.cuda_stream)
self.crc_checker = CrcChecker(cuda_stream=self.cuda_stream)
# Whether to plot the intermediate results.
self.plot_figures = plot_figures
def run(
self,
rx_slot,
num_ues,
slot,
num_dmrs_cdm_grps_no_data,
dmrs_scrm_id,
start_prb,
num_prbs,
dmrs_syms,
dmrs_max_len,
dmrs_add_ln_pos,
start_sym,
num_symbols,
scids,
layers,
dmrs_ports,
rntis,
data_scids,
code_rates,
mod_orders,
tb_sizes
):
"""Run the receiver."""
# Channel estimation.
ch_est = self.channel_estimator.estimate(
rx_slot=rx_slot,
num_ues=num_ues,
slot=slot,
num_dmrs_cdm_grps_no_data=num_dmrs_cdm_grps_no_data,
dmrs_scrm_id=dmrs_scrm_id,
start_prb=start_prb,
num_prbs=num_prbs,
prg_size=1,
num_ul_streams=1,
dmrs_syms=dmrs_syms,
dmrs_max_len=dmrs_max_len,
dmrs_add_ln_pos=dmrs_add_ln_pos,
start_sym=start_sym,
num_symbols=num_symbols,
scids=scids,
layers=layers,
dmrs_ports=dmrs_ports
)
# Noise and interference estimation.
lw_inv, noise_var_pre_eq = self.noise_intf_estimator.estimate(
rx_slot=rx_slot,
channel_est=ch_est,
num_ues=num_ues,
slot=slot,
num_dmrs_cdm_grps_no_data=num_dmrs_cdm_grps_no_data,
dmrs_scrm_id=dmrs_scrm_id,
start_prb=start_prb,
num_prbs=num_prbs,
dmrs_syms=dmrs_syms,
dmrs_max_len=dmrs_max_len,
dmrs_add_ln_pos=dmrs_add_ln_pos,
start_sym=start_sym,
num_symbols=num_symbols,
scids=scids,
layers=layers,
dmrs_ports=dmrs_ports
)
# Channel equalization and soft demapping. The first return value are the LLRs,
# second are the equalized symbols. We only want the LLRs now.
llrs, sym = self.channel_equalizer.equalize(
rx_slot=rx_slot,
channel_est=ch_est,
lw_inv=lw_inv,
noise_var_pre_eq=noise_var_pre_eq,
num_ues=num_ues,
num_dmrs_cdm_grps_no_data=num_dmrs_cdm_grps_no_data,
start_prb=start_prb,
num_prbs=num_prbs,
dmrs_syms=dmrs_syms,
dmrs_max_len=dmrs_max_len,
dmrs_add_ln_pos=dmrs_add_ln_pos,
start_sym=start_sym,
num_symbols=num_symbols,
layers=layers,
mod_orders=mod_orders
)

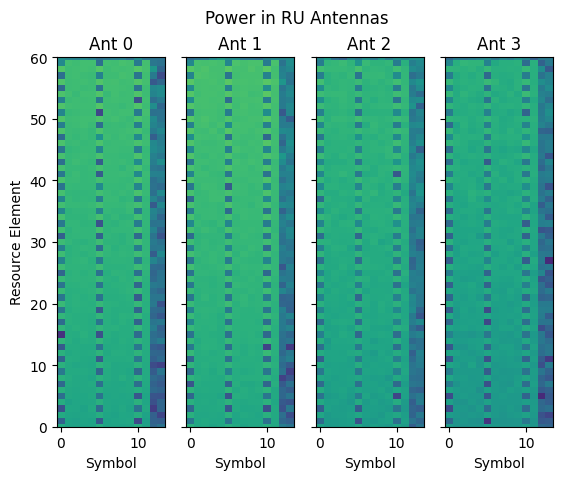

if self.plot_figures:

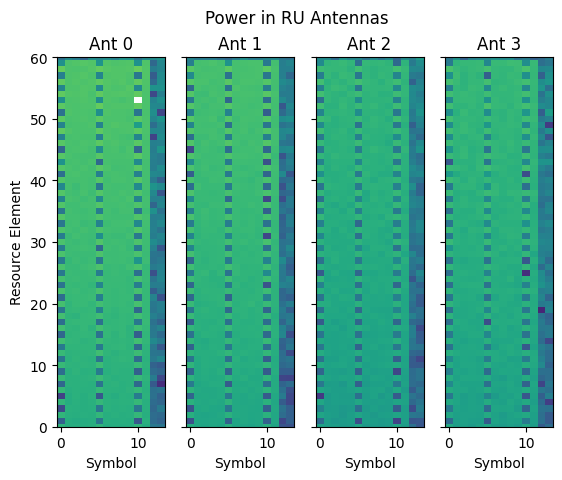

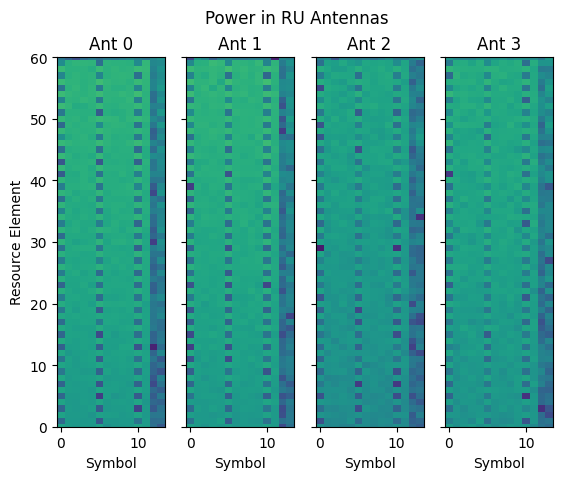

fig, axs = plt.subplots(1,4)
for ant in range(4):
axs[ant].imshow(10*np.log10(np.abs(rx_slot[:, :, ant]**2)), aspect='auto')
axs[ant].set_ylim([pusch_record.rbStart * 12, pusch_record.rbSize * 12])
axs[ant].set_title('Ant ' + str(ant))
axs[ant].set(xlabel='Symbol', ylabel='Resource Element')
axs[ant].label_outer()
fig.suptitle('Power in RU Antennas')

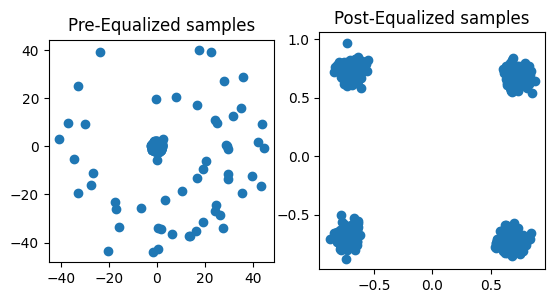

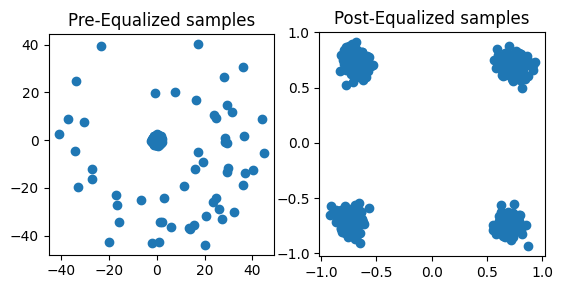

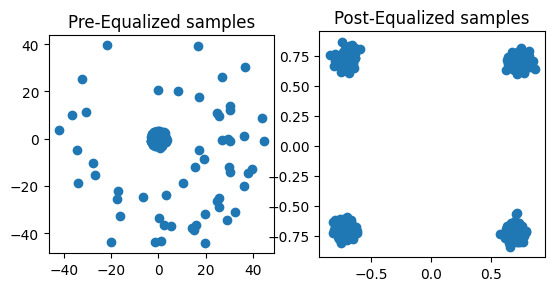

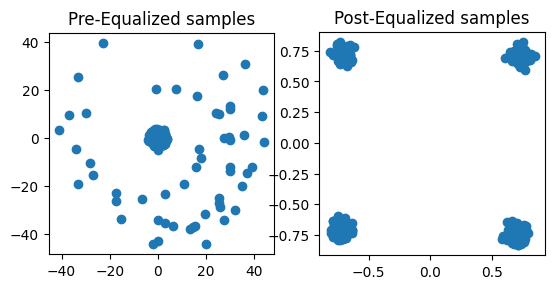

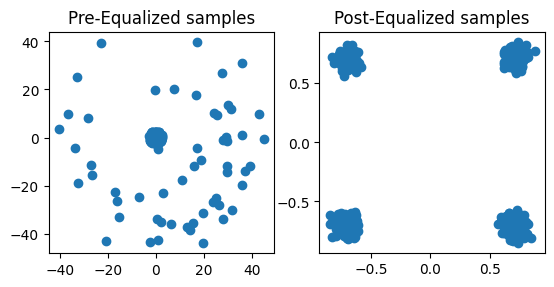

fig, axs = plt.subplots(1,2)
axs[0].scatter(rx_slot.reshape(-1).real, rx_slot.reshape(-1).imag)
axs[0].set_title("Pre-Equalized samples")
axs[0].set_aspect('equal')
axs[1].scatter(np.array(sym).reshape(-1).real, np.array(sym).reshape(-1).imag)
axs[1].set_title("Post-Equalized samples")
axs[1].set_aspect('equal')

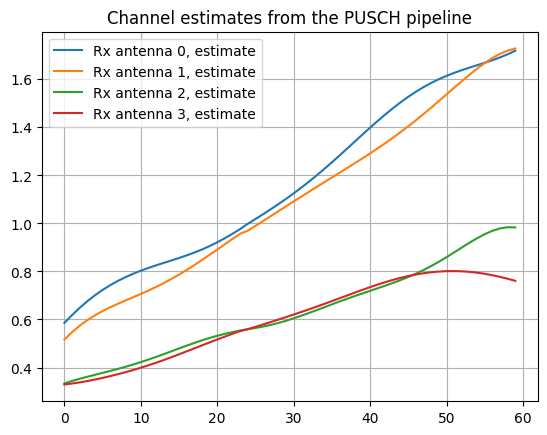

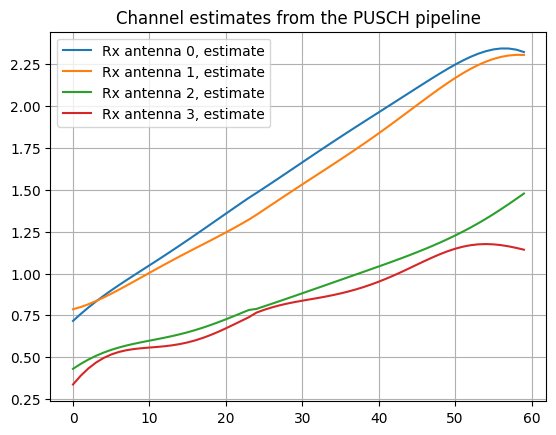

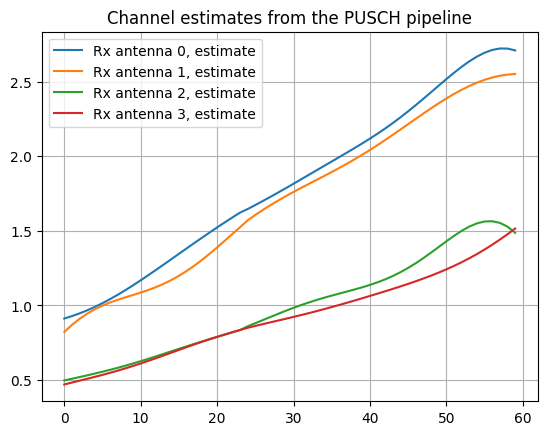

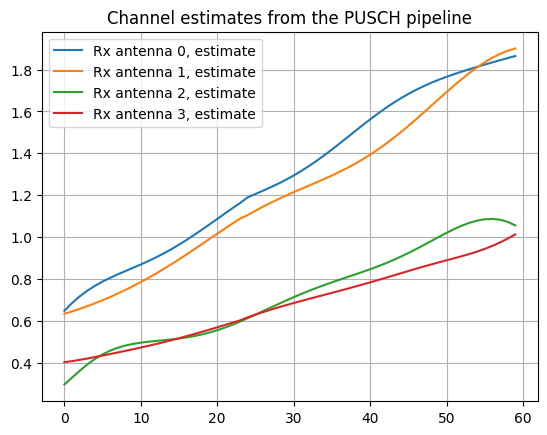

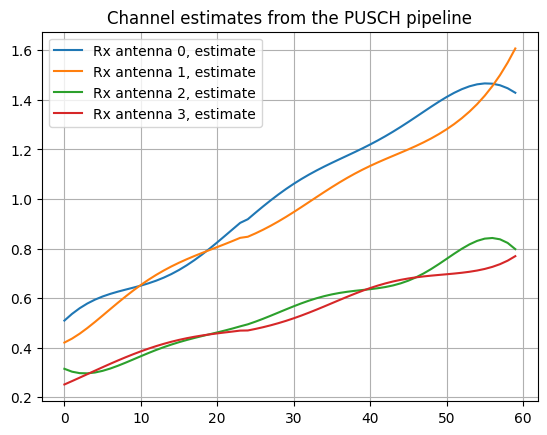

fig, axs = plt.subplots(1)
axs.set_title("Channel estimates from the PUSCH pipeline")
for ant in range(4):
axs.plot(np.abs(ch_est[0][ant, 0, :, 0]))
axs.legend(["Rx antenna 0, estimate",
"Rx antenna 1, estimate",
"Rx antenna 2, estimate",
"Rx antenna 3, estimate"])
axs.grid(True)
plt.show()
num_data_sym = (np.array(dmrs_syms[start_sym:start_sym + num_symbols]) == 0).sum()
cinits = [(rntis[ue] << 15) + data_scids[ue] for ue in range(num_ues)]
rate_match_lengths = [num_data_sym * mod_orders[ue] * num_prbs * 12 * layers[ue]
for ue in range(num_ues)]
tb_sizes = [s * 8 for s in tb_sizes]
code_rates = [c / 1024. for c in code_rates]
rvs = [0,] * num_ues
ndis = [1,] * num_ues
coded_blocks = self.derate_match.derate_match(
input_llrs=llrs,
tb_sizes=tb_sizes,
code_rates=code_rates,
rate_match_lengths=rate_match_lengths,
mod_orders=mod_orders,
num_layers=layers,
redundancy_versions=rvs,
ndis=ndis,
cinits=cinits
)
code_blocks = self.decoder.decode(
input_llrs=coded_blocks,
tb_sizes=tb_sizes,
code_rates=code_rates,
redundancy_versions=rvs,
rate_match_lengths=rate_match_lengths
)
decoded_tbs, tb_crcs = self.crc_checker.check_crc(
input_bits=code_blocks,
tb_sizes=tb_sizes,
code_rates=code_rates
)
return decoded_tbs
pusch_rx_separate = PuschRxSeparate(
num_rx_ant=num_rx_ant,
enable_pusch_tdi=enable_pusch_tdi,
eq_coeff_algo=eq_coeff_algo,
plot_figures=plot_figures
)
# This is the fully fused PUSCH receiver chain.
pusch_rx = PuschRx(
cell_id=cell_id,
num_rx_ant=num_rx_ant,
num_tx_ant=num_rx_ant,
enable_pusch_tdi=enable_pusch_tdi,
eq_coeff_algo=eq_coeff_algo
)
Querying the database#
Below shows how to connect to the clickhouse database and querying the data from it.
[4]:
# Connect to the local database
client = clickhouse_connect.get_client(host='localhost')
# Pick a packet from the database
pusch_records = client.query_df('select * from fapi where mcsIndex != 0 order by TsTaiNs limit 10')
Extract the PUSCH parameters and run the pipelines#
[5]:
for index, pusch_record in pusch_records.iterrows():
query = f"""select TsTaiNs,fhData from fh where
TsTaiNs == {pusch_record.TsTaiNs.timestamp()}
"""
fh = client.query_df(query)
display(Markdown("### Example {} - SFN.Slot {}.{} from time {}"
.format(index + 1, pusch_record.SFN, pusch_record.Slot, pusch_record.TsTaiNs
)))
# Make sure that the fronthaul database is complete for the SFN.Slot we've chosen
if fh.index.size < 1:
pusch_records = pusch_records.drop(index)
continue;
fh_samp = np.array(fh['fhData'][0], dtype=np.float32)
rx_slot = np.swapaxes(fh_samp.view(np.complex64).reshape(4, 14, 273 * 12), 2, 0)
# Extract all the needed parameters from the PUSCH record.
slot = int(pusch_record.Slot)
rntis = [pusch_record.rnti]
layers = [pusch_record.nrOfLayers]
start_prb = pusch_record.rbStart
num_prbs = pusch_record.rbSize
start_sym = pusch_record.StartSymbolIndex
num_symbols = pusch_record.NrOfSymbols
scids = [int(pusch_record.SCID)]
data_scids = [pusch_record.dataScramblingId]
dmrs_scrm_id = pusch_record.ulDmrsScramblingId
num_dmrs_cdm_grps_no_data = pusch_record.numDmrsCdmGrpsNoData
dmrs_syms = dmrs_fapi_to_bit_array(int(pusch_record.ulDmrsSymbPos))
dmrs_ports = [pusch_record.dmrsPorts]
dmrs_max_len = 1
dmrs_add_ln_pos = 2
mcs_tables = [pusch_record.mcsTable]
mcs_indices = [pusch_record.mcsIndex]
coderates = [pusch_record.targetCodeRate / 10.]
tb_sizes = [pusch_record.TBSize]
mod_orders = [pusch_record.qamModOrder]
tb_input = np.array(pusch_record.pduData)
# Run the receiver built from separately called components.
tbs = pusch_rx_separate.run(
rx_slot=rx_slot,
num_ues=num_ues,
slot=slot,
num_dmrs_cdm_grps_no_data=num_dmrs_cdm_grps_no_data,
dmrs_scrm_id=dmrs_scrm_id,
start_prb=start_prb,
num_prbs=num_prbs,
dmrs_syms=dmrs_syms,
dmrs_max_len=dmrs_max_len,
dmrs_add_ln_pos=dmrs_add_ln_pos,
start_sym=start_sym,
num_symbols=num_symbols,
scids=scids,
layers=layers,
dmrs_ports=dmrs_ports,
rntis=rntis,
data_scids=data_scids,
code_rates=coderates,
mod_orders=mod_orders,
tb_sizes=tb_sizes
)
if np.array_equal(tbs[0][:tb_input.size], tb_input):
display(Markdown("**Separated kernels PUSCH decoding success** for SFN.Slot {}.{} from time {}".format(pusch_record.SFN, pusch_record.Slot, pusch_record.TsTaiNs)))
else:
display(Markdown("**Separated kernels PUSCH decoding failure**"))
print("Output bytes:")
print(tbs[0][:tb_input.size])
print("Expected output:")
print(tb_input)
# Run the fused PUSCH receiver.
# Note that this is where we set the dynamically changing parameters.
tb_crcs, tbs = pusch_rx.run(
rx_slot=rx_slot,
num_ues=num_ues,
slot=slot,
num_dmrs_cdm_grps_no_data=num_dmrs_cdm_grps_no_data,
dmrs_scrm_id=dmrs_scrm_id,
start_prb=start_prb,
num_prbs=num_prbs,
dmrs_syms=dmrs_syms,
dmrs_max_len=dmrs_max_len,
dmrs_add_ln_pos=dmrs_add_ln_pos,
start_sym=start_sym,
num_symbols=num_symbols,
scids=scids,
layers=layers,
dmrs_ports=dmrs_ports,
rntis=rntis,
data_scids=data_scids,
code_rates=coderates,
mod_orders=mod_orders,
tb_sizes=tb_sizes
)
if np.array_equal(tbs[0][:tb_input.size], tb_input):
display(Markdown("**Fused PUSCH decoding success** for SFN.Slot {}.{} from time {}".format(pusch_record.SFN, pusch_record.Slot, pusch_record.TsTaiNs)))
else:
display(Markdown("**Fused PUSCH decoding failure**"))
print("Output bytes:")
print(tbs[0][:tb_input.size])
print("Expected output:")
print(tb_input)
Example 1 - SFN.Slot 192.4 from time 2024-03-21 12:18:39.162000#
Separated kernels PUSCH decoding success for SFN.Slot 192.4 from time 2024-03-21 12:18:39.162000
Fused PUSCH decoding success for SFN.Slot 192.4 from time 2024-03-21 12:18:39.162000
Example 2 - SFN.Slot 194.14 from time 2024-03-21 12:18:39.187000#
Separated kernels PUSCH decoding success for SFN.Slot 194.14 from time 2024-03-21 12:18:39.187000
Fused PUSCH decoding success for SFN.Slot 194.14 from time 2024-03-21 12:18:39.187000
Example 3 - SFN.Slot 195.4 from time 2024-03-21 12:18:39.192000#
Separated kernels PUSCH decoding success for SFN.Slot 195.4 from time 2024-03-21 12:18:39.192000
Fused PUSCH decoding success for SFN.Slot 195.4 from time 2024-03-21 12:18:39.192000
Example 4 - SFN.Slot 201.4 from time 2024-03-21 12:18:39.252000#
Separated kernels PUSCH decoding success for SFN.Slot 201.4 from time 2024-03-21 12:18:39.252000
Fused PUSCH decoding success for SFN.Slot 201.4 from time 2024-03-21 12:18:39.252000
Example 5 - SFN.Slot 209.4 from time 2024-03-21 12:18:39.332000#
Separated kernels PUSCH decoding success for SFN.Slot 209.4 from time 2024-03-21 12:18:39.332000
Fused PUSCH decoding success for SFN.Slot 209.4 from time 2024-03-21 12:18:39.332000
