Architecture Overview#

The NVIDIA AI-Q Blueprint is a multi-agent research system built on the NVIDIA NeMo Agent Toolkit. It uses a two-tier research architecture that keeps simple queries fast while reserving multi-phase deep research for complex topics.

System Flow#

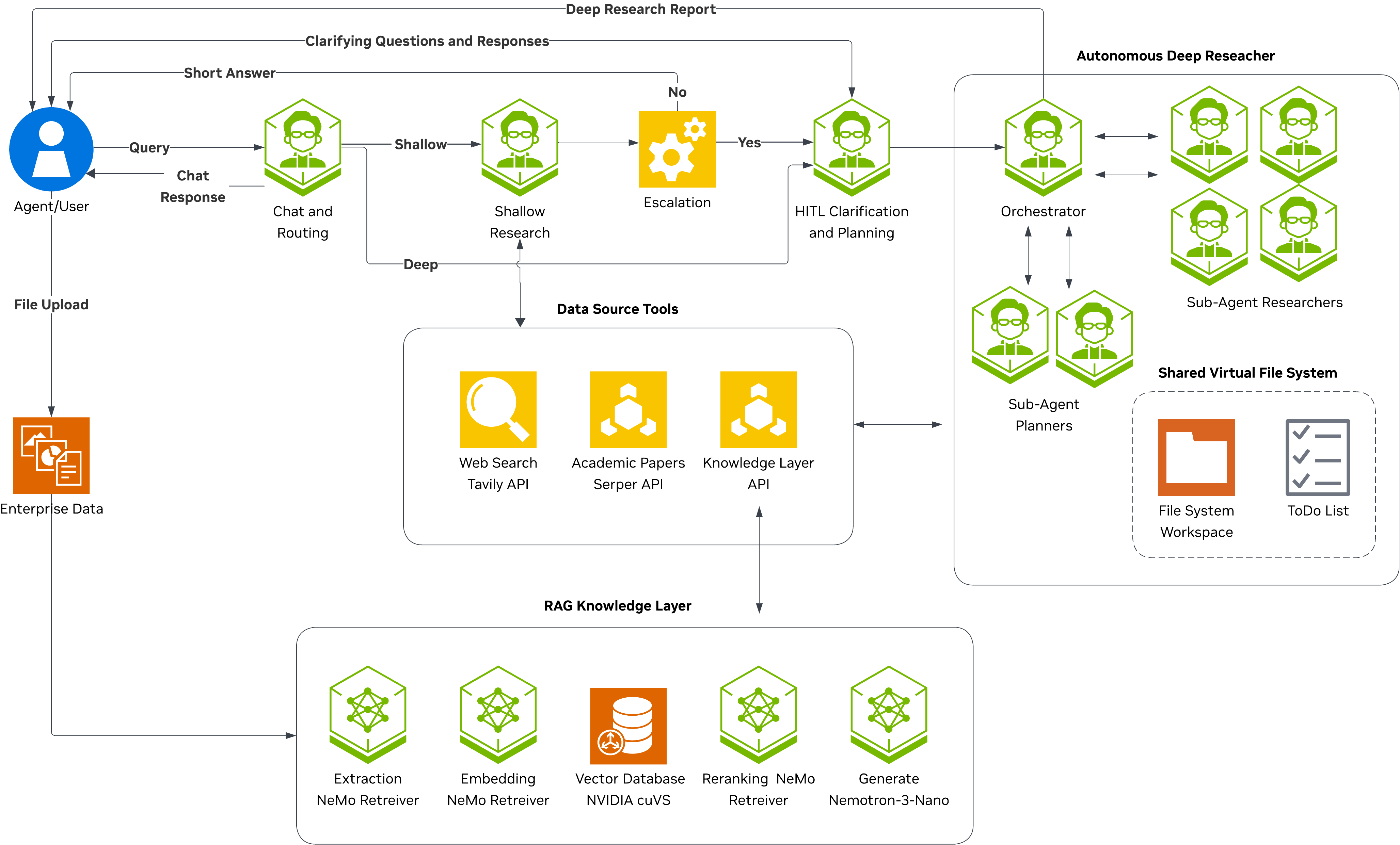

The following diagram shows the full request lifecycle from user query to final response. Every query enters through the Intent Classifier, which decides whether to respond directly (meta), perform a quick tool-augmented lookup (shallow), or initiate a comprehensive multi-agent investigation (deep).

AI-Q Architecture

Core Components#

Component

Role

Location

Intent Classifier

Single LLM call: classifies intent (meta/research) and depth (shallow/deep)

agents/chat_researcher/nodes/intent_classifier.py

Clarifier Agent

Optionally gathers missing context and the requested output type before deep research

agents/clarifier/agent.py

Shallow Researcher

Fast, bounded tool-augmented research

agents/shallow_researcher/agent.py

Deep Researcher

Orchestrates optional source routing, structured planning, concurrent research workers, and writer-first synthesis

agents/deep_researcher/agent.py

Chat Researcher Orchestrator

LangGraph state machine coordinating all agents

agents/chat_researcher/agent.py

Orchestrator State Machine#

The ChatResearcherAgent builds a LangGraph StateGraph over ChatResearcherState with four nodes and conditional edges:

graph LR IC[intent_classifier] -->|meta| END_NODE[END] IC -->|"research/deep"| CL[clarifier] IC -->|"research/shallow"| SR[shallow_research] SR -->|"escalate"| CL SR -->|"done"| END_NODE CL --> DR[deep_research] DR --> END_NODE style IC fill:#fff3e0 style SR fill:#f3e5f5 style CL fill:#fce4ec style DR fill:#e8eaf6

Routing logic:

  1. route_after_orchestration – After the intent classifier runs, the graph inspects state.user_intent.intent. If meta, the response is already in state.messages and the graph routes to END. If research, it checks state.depth_decision.decision to choose shallow_research or clarifier.

  2. should_escalate – After shallow research completes, the graph evaluates whether the response warrants escalation to deep research. It checks for empty responses and escalation keywords (“unable to find”, “need more research”, “i don’t have enough information”) in the last 800 characters of the AI response. When escalation triggers, the graph routes to the clarifier node (not directly to deep_research), so it can gather any missing context or output-shape preference before research. Research planning then occurs inside the deep-research workflow. Escalation is gated by the enable_escalation config flag.

ChatResearcherState#

The central state model carries data through the entire workflow:

Field

Type

Purpose

messages

list[AnyMessage]

Conversation history (LangGraph message reducer)

user_info

dict or None

Authenticated user information for personalization

data_sources

list[str] or None

Hard per-request filter for registry-mapped source tools. Unmapped configured or utility tools remain active.

user_intent

IntentResult or None

Classification result: meta or research

depth_decision

DepthDecision or None

Routing decision: shallow or deep

final_report

str or None

Final report output from deep research

shallow_result

ShallowResult or None

Result from shallow research path

clarifier_result

str or None

Clarification log containing missing context or output-shape preferences

original_query

str or None

Preserved user query for deep research

available_documents

list[AvailableDocument] or None

User-uploaded documents with summaries

Design Decisions#

  • Two-tier routing: Keeps common queries fast (single tool-calling loop) while reserving multi-stage deep research for complex cases. The intent classifier makes the routing decision in a single LLM call to minimize latency.

  • LangGraph state machine: Provides explicit, testable routing with conversation checkpointing using InMemorySaver or persistent backends (SQLite, PostgreSQL).

  • Separated coordination and execution: The deep-research orchestrator invokes optional source-router, planner, and writer task subagents. Research queries run through run_research_batch as concurrent invocations of a reusable researcher worker, not as task() subagents. The writer is the normative final-synthesis stage. If /shared/output.md is missing, the runtime can defensively accept a substantive orchestrator-authored Markdown report, but rejects short workflow chatter.

  • Toolkit-independent agents: All agents receive dependencies through constructor injection for testability. NeMo Agent Toolkit registration is a thin layer in register.py files.

  • Data source filtering: data_sources filters tools mapped in the data source registry before the active research agents are constructed. Unmapped configured tools remain active and are absent from the router catalog. Routing is advisory, and ResearchQuery preferred and fallback tool names are prompt guidance, while workers remain bound to the full request-filtered set.

  • Evaluation-driven defaults: Routing and research budgets are tuned through benchmarks (FreshQA, Deep Research Bench) and can evolve as evaluation scores improve.

  • Citation verification and auditability: Research paths capture sources for deterministic citation checks and URL sanitization. Deep-research citation verification is enabled by default and configurable with enable_citation_verification; it is not an unconditional workflow stage. Refer to Deep Researcher – Citation Verification for details.
