Launching the NVIDIA Agent Intelligence Toolkit API Server and User Interface#

NVIDIA Agent Intelligence (AIQ) toolkit provides a user interface for interacting with your running workflow.

User Interface Features#

  • Chat history

  • Interact with Workflow via HTTP API

  • Interact with Workflow via WebSocket

  • Enable or disable Workflow intermediate steps

  • Expand all Workflow intermediate steps by default

  • Override intermediate steps with the same ID

Walk-through#

This walk-through guides you through the steps to set up and configure the AIQ toolkit user interface. Refer to examples/simple_calculator/README.md to set up the simple calculator workflow demonstrated in the following walk-through properly.

The AIQ toolkit UI is located in a git submodule at external/aiqtoolkit-opensource-ui. Ensure you have checked out all of the git submodules by running the following:

git submodule update --init --recursive

Start the AIQ Toolkit Server#

You can start the AIQ toolkit server using the aiq serve command with the appropriate configuration file.

aiq serve --config_file=examples/simple_calculator/configs/config.yml

Running this command will produce the expected output as shown below:

2025-03-07 12:54:20,394 - aiq.cli.commands.start - INFO - Starting AIQ toolkit from config file: 'examples/simple_calculator/configs/config.yml'
WARNING:  Current configuration will not reload as not all conditions are met, please refer to documentation.
INFO:     Started server process [47250]
INFO:     Waiting for application startup.
2025-03-07 12:54:20,730 - aiq.profiler.decorators - INFO - Langchain callback handler registered
2025-03-07 12:54:21,313 - aiq.agent.react_agent.agent - INFO - Filling the prompt variables "tools" and "tool_names", using the tools provided in the config.
2025-03-07 12:54:21,313 - aiq.agent.react_agent.agent - INFO - Initialized ReAct Agent Graph
2025-03-07 12:54:21,316 - aiq.agent.react_agent.agent - INFO - ReAct Graph built and compiled successfully
INFO:     Application startup complete.
INFO:     Uvicorn running on http://localhost:8000 (Press CTRL+C to quit)
  Current configuration will not reload as not all conditions are met, please refer to documentation.
INFO:     Started server process [47250]
INFO:     Waiting for application startup.
2025-03-07 12:54:20,730 - aiq.profiler.decorators - INFO - Langchain callback handler registered
2025-03-07 12:54:21,313 - aiq.agent.react_agent.agent - INFO - Filling the prompt variables "tools" and "tool_names", using the tools provided in the config.
2025-03-07 12:54:21,313 - aiq.agent.react_agent.agent - INFO - Initialized ReAct Agent Graph
2025-03-07 12:54:21,316 - aiq.agent.react_agent.agent - INFO - ReAct Graph built and compiled successfully
INFO:     Application startup complete.
INFO:     Uvicorn running on http://localhost:8000 (Press CTRL+C to quit)

Verify the AIQ Toolkit Server is Running#

After the server is running, you can make HTTP requests to interact with the workflow.

curl --request POST \
  --url http://localhost:8000/generate \
  --header 'Content-Type: application/json' \
  --data '{
    "input_message": "Is 4 + 4 greater than the current hour of the day?",
    "use_knowledge_base": true
}'

Running this command will produce the following expected output:

Note: The response depends on the current time of day the command executes.

{
  "value": "No, 8 is less than the current hour of the day (4)."
}

Launch the AIQ Toolkit User Interface#

After the AIQ toolkit server starts, launch the web user interface. Launching the UI requires that Node.js v18+ is installed. Instructions for downloading and installing Node.js can be found in the official Node.js documentation.

cd external/aiqtoolkit-opensource-ui
npm install
npm run dev

After the web development server starts, open a web browser and navigate to http://localhost:3000/. Port 3001 is an alternative port if port 3000 (default) is in use.

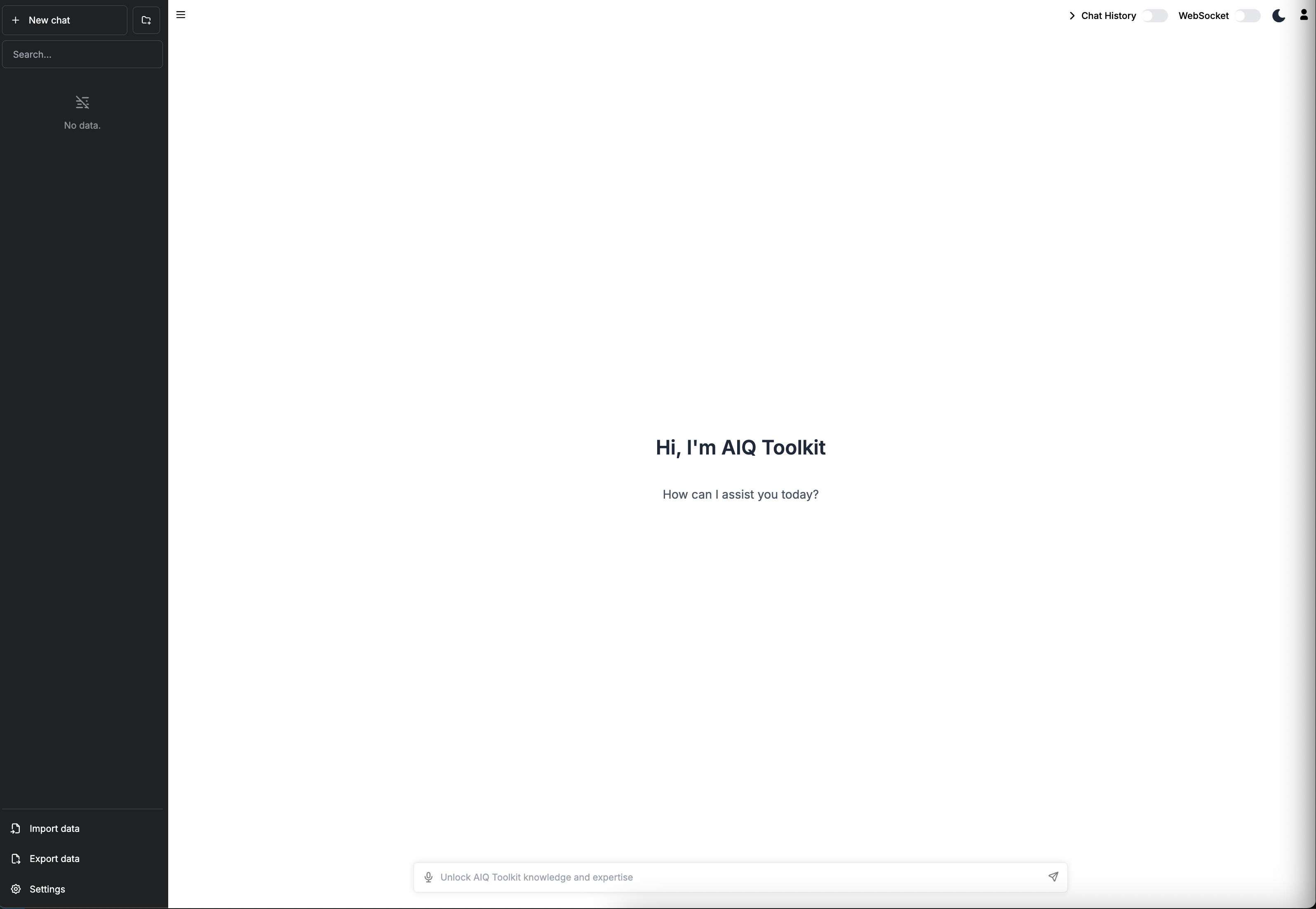

AIQ toolkit Web User Interface

Connect the User Interface to the AIQ Toolkit Server Using HTTP API#

Configure the settings by selecting the Settings icon located on the bottom left corner of the home page.

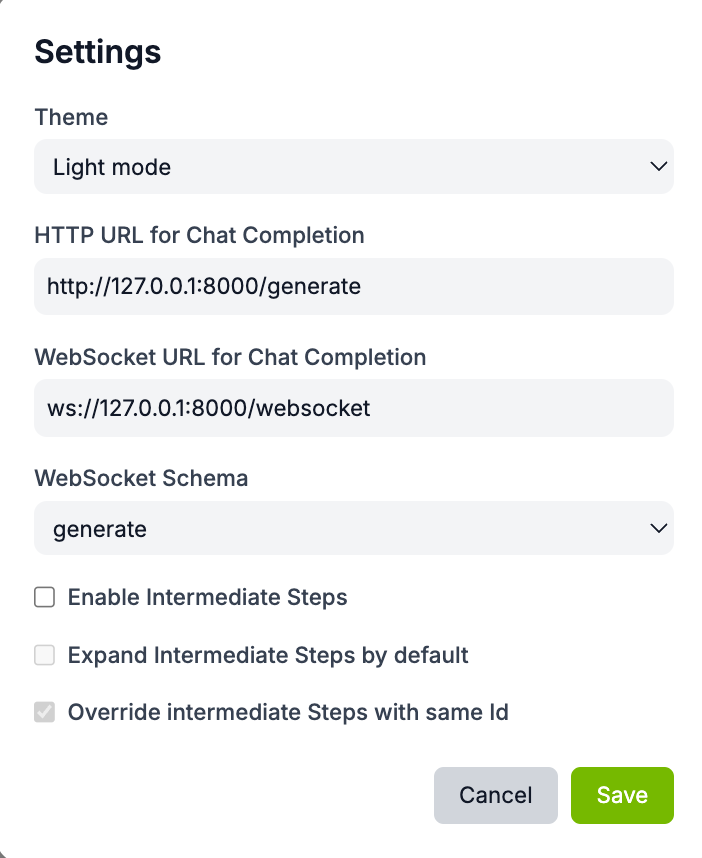

AIQ toolkit Web UI Settings

Settings Options#

Note: It is recommended to select /chat/stream for intermediate results streaming.

  • Theme: Light or Dark Theme.

  • HTTP URL for Chat Completion: REST API enpoint.

    • /generate

    • /generate/stream

    • /chat

    • /chat/stream

  • WebSocket URL for Completion: WebSocket URL to connect to running AIQ toolkit server.

  • WebSocket Schema - Workflow schema type over WebSocket connection.

Simple Calculator Example Conversation#

Interact with the chat interface by prompting the Agent with the message: Is 4 + 4 greater than the current hour of the day?

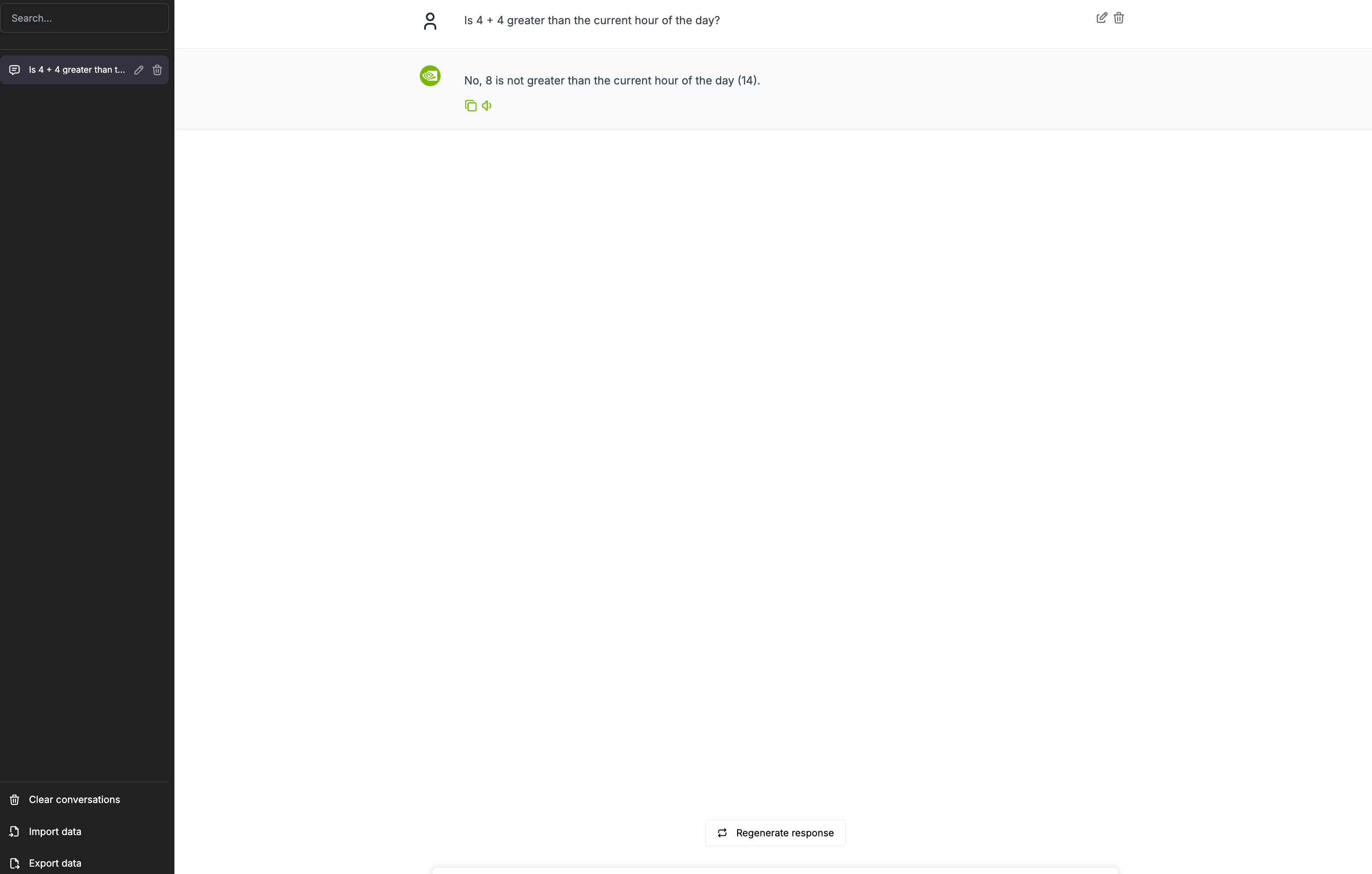

AIQ toolkit Web UI Workflow Result
