NvMediaISPRadialTF Struct Reference

Detailed Description

Defines a radial transform.

Definition at line 134 of file nvmedia_isp_stat.h.

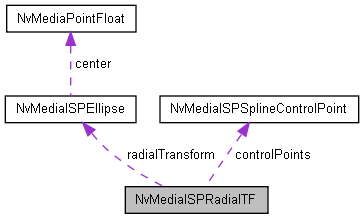

Collaboration diagram for NvMediaISPRadialTF:

Data Fields
NvMediaISPEllipse	radialTransform
	Holds ellipse for radial transform. More...
NvMediaISPSplineControlPoint	controlPoints [NVM_ISP_RADTF_POINTS]
	Defines spline control point for radial transfer function. More...

Field Documentation

NvMediaISPSplineControlPoint NvMediaISPRadialTF::controlPoints[NVM_ISP_RADTF_POINTS]

Defines spline control point for radial transfer function.

• Supported values for X coordinate of spline control point : [0.0, 2.0]
• Supported values for Y coordinate of spline control point : [0.0, 2.0]
• Supported values for slope of spline control point : \([-2^{16}, 2^{16}]\)

Definition at line 154 of file nvmedia_isp_stat.h.

NvMediaISPEllipse NvMediaISPRadialTF::radialTransform

Holds ellipse for radial transform.

Coordinates of image top left and bottom right points are (0, 0) & (width, height) respectively.

• Supported values for X coordinate of the center: [0, input width]
• Supported values for Y coordinate of the center: [0, input height]
• Supported values for horizontal axis: [16, 2 x input width]
• Supported values for vertical axis: [16, 2 x input height]
• Supported values for angle: [0.0, 360.0]

Definition at line 147 of file nvmedia_isp_stat.h.

---

The documentation for this struct was generated from the following file:

• nvmedia_isp_stat.h
