Planner Design

Tier 3 design documentation for contributors and architects. For user-facing docs, see docs/components/planner/.

Overview

The Planner is Dynamo’s autoscaling controller. It supports two scaling modes: throughput-based (using profiling data and traffic prediction) and load-based (using real-time engine metrics and online regression). This document covers the internal architecture, algorithms, and design trade-offs for both modes.

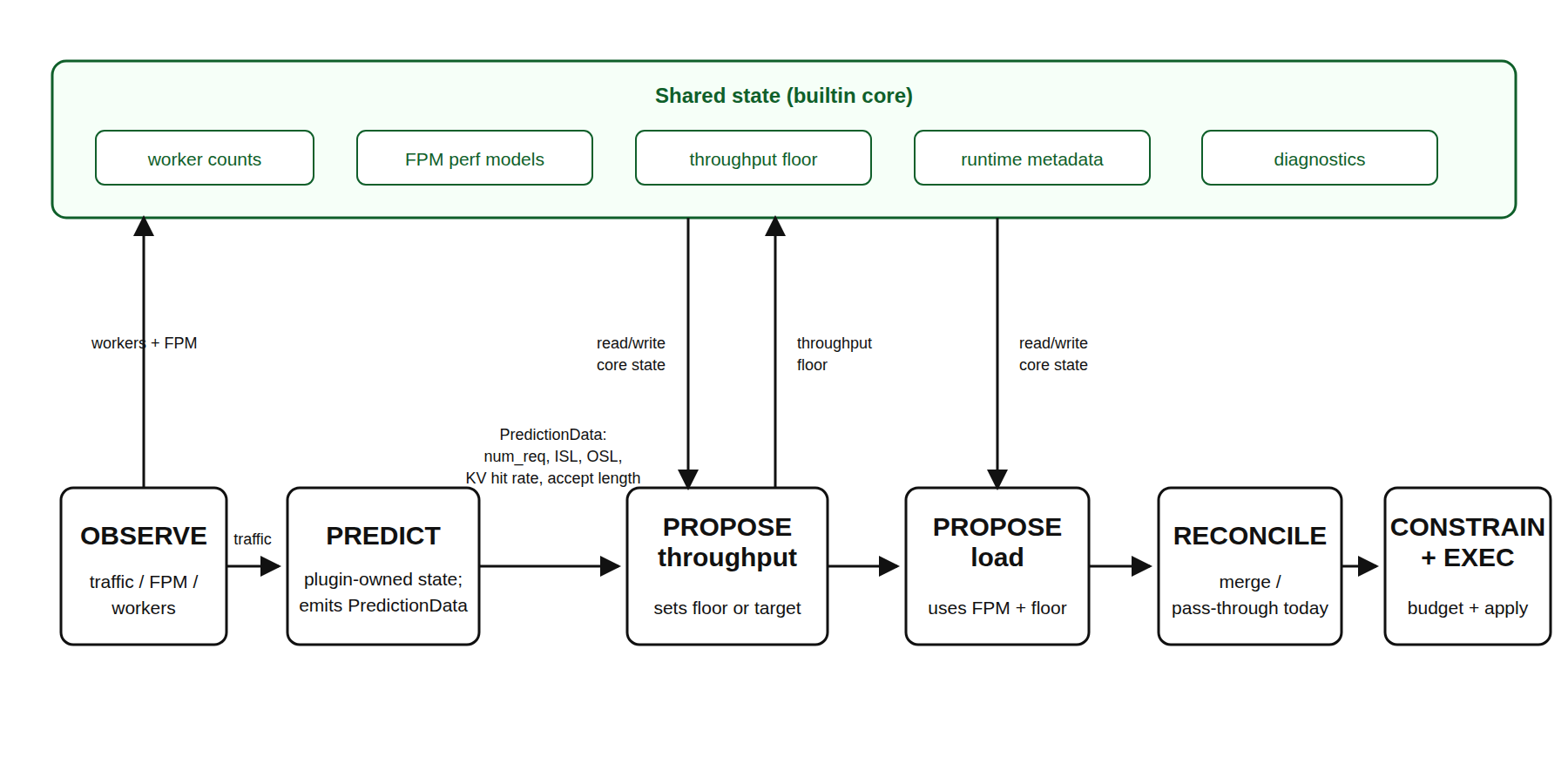

Runtime Pipeline

The runtime planner is driven by OrchestratorEngineAdapter, which wraps the local scaling algorithms as builtin plugins and runs the same plugin pipeline used by external gRPC plugins.

1. OBSERVE: NativePlannerBase and the engine adapter collect worker counts, traffic metrics, and forward-pass metrics. Observations are exposed through PipelineContext.observations.
2. PREDICT: builtin_load_predict runs on the throughput interval. It consumes traffic observations and emits predicted request count, ISL, OSL, KV hit rate, and speculative accept length for this tick.
3. PROPOSE: builtin_throughput_propose consumes same-tick predictions and updates the throughput lower bound. builtin_load_propose consumes FPM and worker observations and applies the load-based +/-1 scaling algorithm.
4. RECONCILE / CONSTRAIN: The generic pipeline merges proposals from builtin and external plugins. After CONSTRAIN, the engine adapter applies the local planner’s final min_endpoint and GPU-budget invariants before returning any scaling effect.
5. EXECUTE: The adapter returns PlannerEffects.scale_to; NativePlannerBase applies those targets through the configured connector.

For compatibility with existing configs and DGDR-generated planner payloads, load_adjustment_interval_seconds and throughput_adjustment_interval_seconds still define the builtin plugin fire intervals. The base scheduling.scale_interval_seconds defaults to the greatest common divisor of those enabled intervals, so existing load and throughput fire times are preserved.

Why Two Scaling Loops?

The two builtin scaling loops serve different control horizons. Throughput-based scaling is the slower predictive capacity loop: it uses a longer traffic window, load prediction, and profiling or perf-model capacity estimates to provision for sustained demand. This avoids reacting to short-lived metric noise and gives scale-out enough time to complete before the predicted load arrives.

Load-based scaling is the faster reactive SLA-correction loop. It uses current FPM, queue, worker-count, and online perf-model observations to handle short-term overload, prediction or profiling error, runtime metadata changes such as KV hit rate or speculative accept length, and the actual state observed after previous scaling actions.

When both loops are enabled, throughput-based scaling sets the replica lower bound, and load-based scaling runs more frequently above that floor. This keeps capacity that was predicted for near-future demand from being removed because of short idle periods, while still allowing the planner to react faster than the throughput interval when real-time SLA pressure appears.

Builtin Shared State

The pipeline context is a per-tick data plane: observations, predictions, and proposals are produced for the current tick and passed through the public plugin API. The builtin local planner also needs cross-tick state to preserve existing planner behavior. That state is kept in PlannerScalingState, which is private to the builtin plugins and the engine adapter rather than exposed as a public gRPC plugin contract.

PlannerScalingState stores:

• Worker inventory: current ready prefill/decode counts, expected counts, and whether a prefill or decode scale operation is still in progress.
• Perf models: prefill, decode, or aggregated PlannerEnginePerfModel instances, including pre-deployment benchmark FPMs and online FPM updates.
• Throughput lower bounds: the current prefill/decode floor produced by throughput-based scaling. Load-based scaling can scale above this floor but cannot scale below it.
• Runtime metadata: last observed KV hit rate and speculative accept length. These use last-value semantics and are input features for capacity estimation.
• Per-tick diagnostics scratch: estimated TTFT/ITL, predicted traffic shape, engine RPS, decision reasons, lower bounds, and execution/audit metadata used by metrics and HTML reports.
• Worker capabilities and budget inputs: component GPU counts and runtime capabilities used to clamp final targets to min_endpoint and GPU budgets.

Predictor history is intentionally not stored in PlannerScalingState. builtin_load_predict owns the request-count, ISL, and OSL predictor state and passes same-tick output through PredictionData. This keeps PREDICT -> PROPOSE dependencies explicit while allowing the builtin proposer plugins to share the state that is inherently cross-tick, such as perf-model fitting and throughput floors.

Throughput-Based Scaling

Throughput-based scaling is implemented by two builtin plugins: builtin_load_predict and builtin_throughput_propose.

Step 1: Traffic Observation

On throughput-cadence ticks, the engine adapter queries Prometheus for traffic metrics from either the frontend or router, depending on throughput_metrics_source:

• request count
• average input sequence length (ISL)
• average output sequence length (OSL)
• KV hit rate
• speculative decode accept length

The observation window is throughput_adjustment_interval_seconds, while the outer pipeline cadence remains scheduling.scale_interval_seconds.

Step 2: Load Prediction

The planner forecasts three traffic-shape values for the next interval:

• next_num_req: Number of requests
• next_isl: Average input sequence length
• next_osl: Average output sequence length

Four predictor implementations are available:

All predictors support warm-starting from trace files (--load-predictor-warmup-trace).

Runtime metadata that describes engine/router behavior is not forecast with these predictors. KV hit rate and speculative decode accept length use last-value semantics: the planner stores the latest valid Prometheus observation and reuses it until a newer valid value arrives. Cold start falls back to no KV hit-rate discount and accept length 1.0.

Step 3: Capacity Estimation

builtin_throughput_propose consumes same-tick predictions and asks the planner perf model for prefill/decode capacity under the configured SLA targets. The perf model is bootstrapped from the first available source:

1. worker get_perf_metrics self-benchmark data
2. AI Configurator interpolation when aic_interpolation is present
3. profile_results_dir NPZ/JSON fallback data
4. live FPM regression warmup when no pre-deployment data is available

The Rust perf shim can use native AIC estimates and online FPM tuning. Runtime metadata such as KV hit rate and speculative accept length are applied as input features, not as persistent correction-factor flags.

Step 4: Proposal and Lower Bound

The throughput proposer converts predicted load and per-engine capacity into replica targets. When both throughput and load scaling are enabled, throughput-based scaling writes a lower bound; the faster load-based proposer can scale above that bound but will not scale below it.

Step 5: Scaling Execution

The merged pipeline result becomes PlannerEffects.scale_to. The runtime base then calls the configured connector to apply component replica targets.

Connector Design

Interface

1
class PlannerConnector(ABC):
2
    async def add_component(self, component_name)
3
    async def remove_component(self, component_name)
4
    # Extended interface (not on ABC, but implemented by both connectors):
5
    async def set_component_replicas(self, targets, blocking)
6
    async def validate_deployment(self, ...)
7
    async def wait_for_deployment_ready(self)

KubernetesConnector

Directly PATCHes the DGD resource to update replica counts. The operator watches for DGD changes and reconciles component deployments.

Design decisions:

• Uses DYN_PARENT_DGD_K8S_NAME to find its parent DGD (injected by operator)
• Resolves services by subComponentType field (prefill/decode), with fallback to legacy component names
• Validates deployment structure on startup: checks that prefill and decode services exist and model names match

VirtualConnector

For non-native environments (e.g., custom orchestrators). Writes scaling decisions to the distributed runtime via VirtualConnectorCoordinator (Rust binding). External systems use VirtualConnectorClient to poll decisions and report completion.

Scaling decision flow:

1. Planner writes (num_prefill, num_decode, decision_id) to runtime
2. External system reads decision via client.wait()
3. External system executes scaling
4. External system reports completion via client.complete(decision)
5. Planner sees scaled_decision_id >= decision_id and proceeds

Timeout: If scaling isn’t acknowledged within 1800s (configurable), the planner proceeds with new decisions anyway.

Performance Interpolation

The planner uses pre-deployment profiling data (NPZ files) to map (throughput, ISL/OSL, context_length) -> (TTFT, ITL). This data comes from the SLA-driven profiling process (either online GPU profiling or AI Configurator estimation).

Two interpolators are maintained:

• Prefill interpolator: Maps (throughput_per_gpu, ISL) -> TTFT
• Decode interpolator: Maps (throughput_per_gpu, context_length) -> ITL

The interpolators use the profiling sweep granularity to determine precision. Finer granularity means more profiling samples but more accurate interpolation.

Initialization

The python -m dynamo.planner entrypoint loads PlannerConfig, constructs the mode-specific planner wrapper, and then initializes the selected connector. The runtime base validates worker topology, discovers worker capabilities, installs any available pre-deployment FPMs into the perf model, bootstraps builtin and configured plugins, and enters the tick loop.

Performance Considerations

• Adjustment interval sizing: The plugin execution interval must be long enough for scaling operations to complete. If load_adjustment_interval_seconds or throughput_adjustment_interval_seconds is shorter than the time to add/remove a worker (which includes pod scheduling, model loading, and registration), scaling decisions may observe an in-progress replica transition and hold until it completes.
• Perf-model bootstrap quality: Throughput-based scaling can start from worker self-benchmark data, AI Configurator interpolation, profile_results_dir files, or live FPM regression. Missing bootstrap data is allowed, but early decisions may hold until enough live FPM observations arrive.
• Interpolation accuracy vs profiling cost: Higher prefillInterpolationGranularity and decodeInterpolationGranularity in the profiler sweep produce more accurate bootstrap data but increase profiling time linearly. Default granularity (16 prefill, 6 decode) balances accuracy with profiling duration.
• Predictor warm-up period: All predictors need observation history before making reliable forecasts. ARIMA and Prophet need multiple adjustment intervals of data. Kalman starts forecasting after --kalman-min-points observations. During warm-up, the planner uses the constant predictor as fallback.

Load-Based Scaling

The load-based mode uses ForwardPassMetrics (FPM) from the Dynamo event plane to make SLA-aware scaling decisions without requiring profiling data or the KV Router.

Metrics

Each engine emits per-iteration ForwardPassMetrics via ZMQ -> FpmEventRelay -> event plane. The planner subscribes via FpmEventSubscriber with automatic engine discovery and MDC-based lifecycle tracking. Key fields used:

• wall_time: per-iteration execution time (regression target)
• scheduled_requests.sum_prefill_tokens: prefill regression input
• scheduled_requests.sum_decode_kv_tokens: decode regression input
• queued_requests: queued prefill/decode load for TTFT/ITL simulation
• Idle heartbeats (wall_time=0) are skipped

Diagnostics

Each tick, the scaling state machine fills TickDiagnostics with intermediate decision data—estimated latencies, predicted load, per-engine RPS, and decision reasons—via internal _diag_* fields. The adapter layer reads this from PlannerEffects.diagnostics and:

• Sets Prometheus gauges (e.g. dynamo_planner_estimated_ttft_ms and related estimates)
• Records enum metrics for load-scaling decision reasons (dynamo_planner_load_scaling_decision)
• Feeds DiagnosticsRecorder, which accumulates per-tick snapshots and emits Plotly-based HTML reports on a schedule

Per-engine FPM queue depths from _collect_fpm() are exported as labeled Prometheus gauges.

Regression Models

Three specialized regression models live under components/src/dynamo/planner/core/perf_model/:

• PrefillRegressionModel: 1D regression sum_prefill_tokens -> wall_time. Estimates TTFT by simulating chunked prefill scheduling (chunks of max_num_batched_tokens).
• DecodeRegressionModel: 1D regression sum_decode_kv_tokens -> wall_time. Estimates ITL for total decode load (scheduled + queued + avg decode length).
• AggRegressionModel: 2D regression (sum_prefill_tokens, sum_decode_kv_tokens) -> wall_time. Estimates both TTFT (simulated prefill with piggybacked decode) and ITL (decode with average piggybacked prefill).

Scaling Decisions

• Prefill/Decode: Scale up if ALL engines’ estimated TTFT/ITL > SLA; scale down if ALL < SLA * sensitivity
• Agg: Scale up if (ALL TTFT > SLA) OR (ALL ITL > SLA); scale down if (ALL TTFT < SLA * sensitivity) AND (ALL ITL < SLA * sensitivity)
• Only scales by +/-1 per interval (non-blocking with pending-desired guard: metrics continue to be observed while scaling is in progress, but no new scaling action is issued until the previous one completes)

Co-existence with Throughput-Based Scaling

When both modes are enabled, throughput-based scaling (longer interval) sets a lower bound on replicas while load-based scaling (shorter interval) handles real-time adjustments above that floor.

Aggregated Mode

In aggregated mode (--mode agg), engines handle both prefill and decode via chunked prefill. The planner maintains both TTFT and ITL regression models but uses per-worker time-averaged metrics (not instantaneous) for regression training to smooth out chunked prefill noise. Scale up if either prefill or decode signals overload; scale down only if both signal underload.

Known Limitations

1. Adjustment interval vs scaling latency: If a plugin interval is shorter than the time to scale, later ticks may observe an in-progress transition and hold rather than stacking new replica changes.
2. Average-based prediction: Throughput-based scaling uses average ISL/OSL, which may not represent bimodal or heavy-tailed distributions well.
3. Single DGD scope: Each planner instance manages exactly one DGD. Multi-model/multi-DGD coordination is not supported.

Future Work

• Multi-DGD coordination for shared-cluster scenarios
• Distribution-aware interpolation (beyond mean ISL/OSL)
• Adaptive adjustment interval based on observed scaling latency
