🚀 Dynamo Cloud Kubernetes Platform (Dynamo Deploy)#

The Dynamo Cloud platform is a comprehensive solution for deploying and managing Dynamo inference graphs (also referred to as pipelines) in Kubernetes environments. It provides a streamlined experience for deploying, scaling, and monitoring your inference services. You can interface with Dynamo Cloud using the deploy subcommand available in the Dynamo CLI (e.g dynamo deploy)

📋 Overview#

The Dynamo cloud platform consists of several key components:

  • Dynamo Operator: A Kubernetes operator that manages the lifecycle of Dynamo inference graphs from build ➡️ deploy.

  • API Store: Stores and manages service configurations and metadata related to Dynamo deployments. Needs to be exposed externally.

  • Custom Resources: Kubernetes custom resources for defining and managing Dynamo services

These components work together to provide a seamless deployment experience, handling everything from containerization to scaling and monitoring.

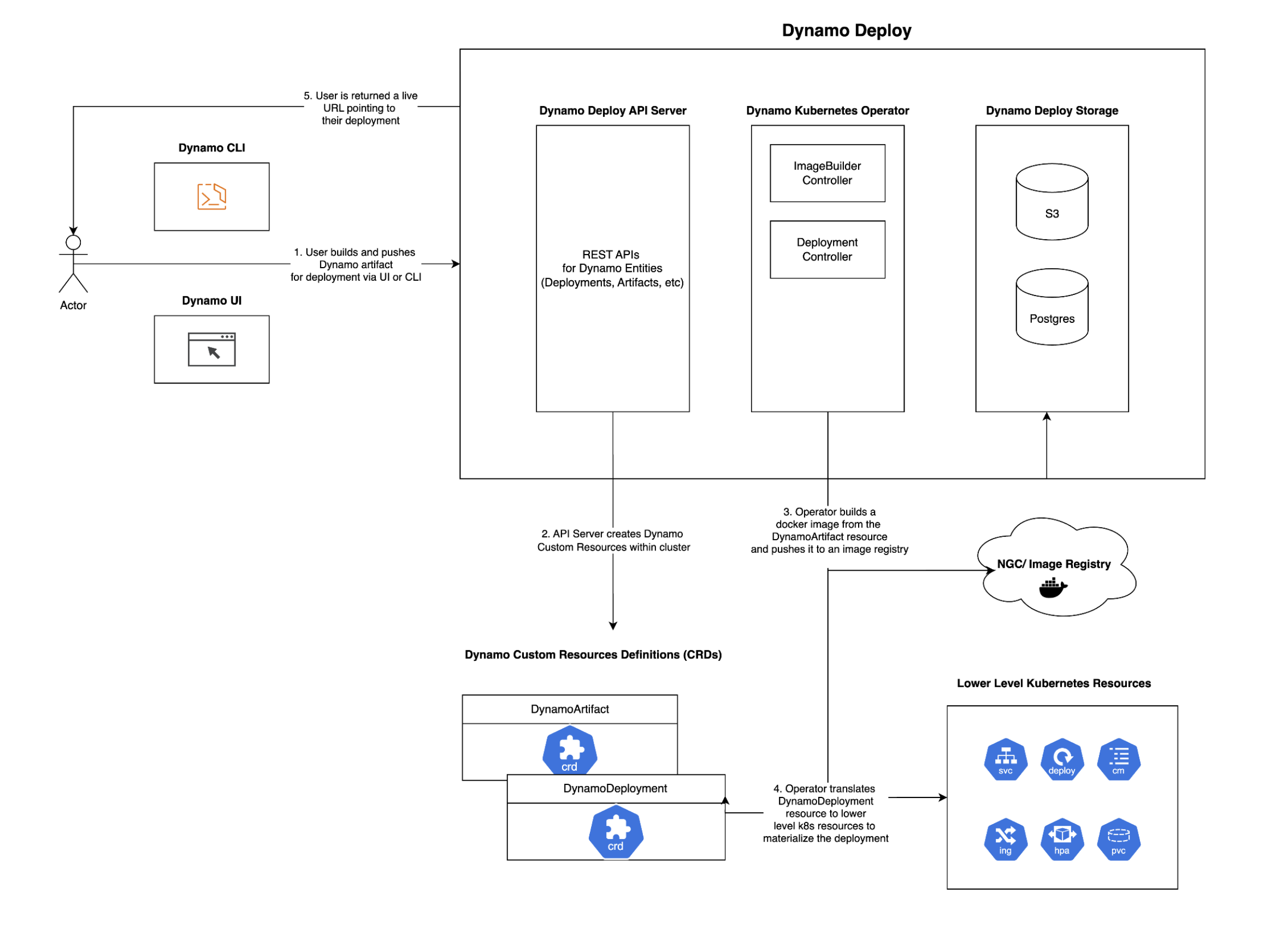

Dynamo Deploy

🎯 Prerequisites#

Before getting started with the Dynamo cloud platform, ensure you have:

  • A Kubernetes cluster (version 1.24 or later)

  • Earthly installed for building components

  • Docker installed and running

  • Access to a container registry (e.g., Docker Hub, NVIDIA NGC, etc.)

  • kubectl configured to access your cluster

  • Helm installed (version 3.0 or later)

[!TIP] Don’t have a Kubernetes cluster? Check out our Minikube setup guide to set up a local environment! 🏠

🏗️ Building Docker Images for Dynamo Cloud Components#

The Dynamo cloud platform components need to be built and pushed to a container registry before deployment. You can build these components individually or all at once.

⚙️ Setting Up Environment Variables#

First, set the required environment variables for building and pushing images:

# Set your container registry
export DOCKER_SERVER=<CONTAINER_REGISTRY>
# Set the image tag (e.g., latest, 0.0.1, etc.)
export IMAGE_TAG=<TAG>

Where:

  • <CONTAINER_REGISTRY>: Your container registry (e.g., nvcr.io, docker.io/<your-username>, etc.)

  • <TAG>: The version tag for your images (e.g., latest, 0.0.1, v1.0.0)

[!IMPORTANT] Make sure you’re logged in to your container registry before pushing images:

docker login <CONTAINER_REGISTRY>

🛠️ Building Components#

You can build and push all platform components at once:

earthly --push +all-docker --DOCKER_SERVER=$DOCKER_SERVER --IMAGE_TAG=$IMAGE_TAG

🚀 Deploying the Dynamo Cloud Platform#

Once you’ve built and pushed the components, you can deploy the platform to your Kubernetes cluster.

📋 Prerequisites#

Before deploying Dynamo Cloud, ensure your Kubernetes cluster meets the following requirements:

1. 🛡️ Istio Installation#

Dynamo Cloud requires Istio for service mesh capabilities. Verify Istio is installed and running:

# Check if Istio is installed
kubectl get pods -n istio-system

# Expected output should show running Istio pods
# istiod-* pods should be in Running state

2. 💾 PVC Support with Default Storage Class#

Dynamo Cloud requires Persistent Volume Claim (PVC) support with a default storage class. Verify your cluster configuration:

# Check if default storage class exists
kubectl get storageclass

# Expected output should show at least one storage class marked as (default)
# Example:
# NAME                 PROVISIONER             RECLAIMPOLICY   VOLUMEBINDINGMODE      ALLOWVOLUMEEXPANSION   AGE
# standard (default)   kubernetes.io/gce-pd    Delete          Immediate              true                   1d

📥 Installation#

  1. Set the required environment variables:

export DOCKER_USERNAME=<your-docker-username>
export DOCKER_PASSWORD=<your-docker-password>
export DOCKER_SERVER=<your-docker-server>
export IMAGE_TAG=<TAG>  # Use the same tag you used when building the images
export NAMESPACE=dynamo-cloud    # change this to whatever you want!

[!NOTE] DOCKER_USERNAME and DOCKER_PASSWORD are optional and only needed if you want to pull docker images from a private registry. A docker image pull secret will be created automatically if these variables are set. Its name will be docker-imagepullsecret unless overridden by the DOCKER_SECRET_NAME environment variable.

The Dynamo Cloud Platform auto-generates docker images for pipelines and pushes them to a container registry. By default, the platform will use the same container registry as the platform components (specified by DOCKER_SERVER). However, you can specify a different container registry for pipelines by additionally setting the following environment variables:

export PIPELINES_DOCKER_SERVER=<your-docker-server>
export PIPELINES_DOCKER_USERNAME=<your-docker-username>
export PIPELINES_DOCKER_PASSWORD=<your-docker-password>

  1. [One-time Action] Create a new kubernetes namespace and set it as your default.

cd deploy/dynamo/helm
kubectl create namespace $NAMESPACE
kubectl config set-context --current --namespace=$NAMESPACE

  1. Deploy the helm chart using the deploy script:

./deploy.sh

if you wish to be guided through the deployment process, you can run the deploy script with the --interactive flag:

./deploy.sh --interactive

  1. 🌐 Expose Dynamo Cloud Externally

[!NOTE] The script will automatically display information about the endpoint you can use to access Dynamo Cloud. In our docs, we refer to this externally available endpoint as DYNAMO_CLOUD.

The simplest way to expose the dynamo-store service within the namespace externally is to use a port-forward:

kubectl port-forward svc/dynamo-store <local-port>:80 -n $NAMESPACE
export DYNAMO_CLOUD=http://localhost:<local-port>

🎯 Next Steps#

After deploying the Dynamo cloud platform, you can:

  1. Deploy your first inference graph using the Dynamo CLI

  2. Deploy Dynamo LLM pipelines to Kubernetes using the Dynamo CLI!

  3. Manage your deployments using the Dynamo CLI

For more detailed information about deploying inference graphs, see the Dynamo Deploy Guide.
