SDK Samples¶

How to build/run sample project¶

Goto the directory samples/build
Select the directory with the visual studio version and if you want 32 or 64 bit
Open HairWorks_Samples.sln - this contains the sub projects for all of the samples
Build and run the FurSampleXXX project
Choose a sample by right clicking on the subproject and select ‘Set As StartUp Project’

FurSampleCommon¶

All the codes that are not directly related to HairWorks are encapsulated in common sources. To simplify D3D runtime management, we use DXUT for camera control and DX device management. However, DXUT is not needed when HairWorks is used in your own DirectX 11 based application.

Feel free to modify/copy/adapt codes in the sample codes to suit your need. All the sample functions are implemented for illustration purpose only, and does not represent how certain features should be implemented in any way.

In the codes, all the HairWorks data types start with GFSDK_* (classes) or gfsdk_* (simple types) prefix.

Each sample project has its own hair shader, HairWorksSampleShader.hlsl in the src/ directory.

Loading Hair SDK¶

All the sample codes use the following convenience function to load SDK:

GFSDK_HairSDK* FurSample_LoadHairWorksDLL(void)
{
        // Load HairWorks dll
#ifdef _WIN64
        const char* coreDLLPath = "GFSDK_HairWorks.win64.dll";
#else
        const char* coreDLLPath = "GFSDK_HairWorks.win32.dll";
#endif
        return GFSDK_LoadHairSDK(coreDLLPath, GFSDK_HAIRWORKS_VERSION);
}

FurSampleSimple¶

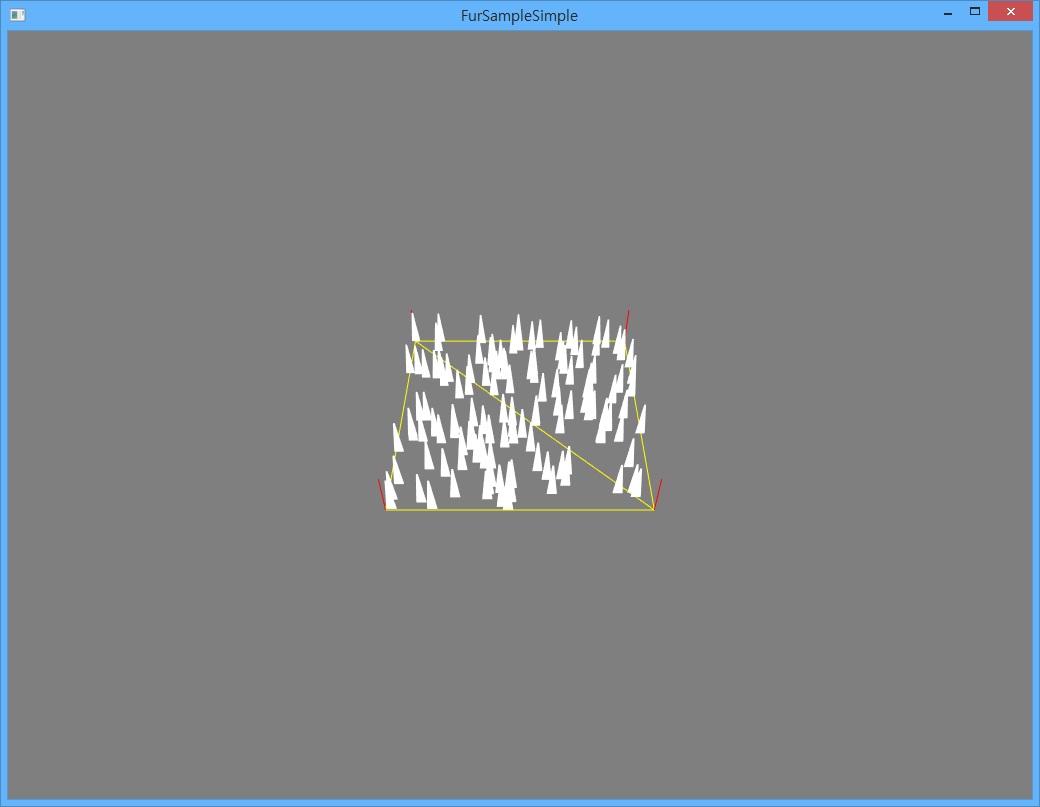

Screenshot of FurSampleSimple sample.

Summary¶

This sample creates a simple hair asset made of two triangles (a quad), and creates a hair instance out of the asset. A very simple hair asset made of a quad with 2 triangles and 4 guide hairs are created. Once hair assets are created, we use HairWorks to render hairs on the faces of the growth mesh.

Each rendered hair is drawn in white, and the guide hairs are visualized in red. The growth mesh is drawn as yellow triangles, using default visualization features of HairWorks.

Illustrated Features¶

This code sample shows

How to initialize and cleanup the HairWorks runtime
How to create a hair asset and modify the parameter (instance descriptor)
How to set camera information
How to draw hairs with minimal rendering
How to draw visualization for guide hairs and the growth mesh

Running Instructions¶

Camer Zoom : Mouse Wheel
Camera Orbit : RMB

Details¶

Declaring HairWorks variables¶

We declare a few global variables to maintain HairWorks related variables. In actual game integration, these need to be maintained as part of HairWorks runtime integration:

namespace {
        GFSDK_HairSDK*                  g_hairSDK = NULL; // HairWorks SDK runtime
        GFSDK_HairAssetDescriptor       g_hairAssetDescriptor;          // hair asset descriptor
        GFSDK_HairAssetID               g_hairAssetID = GFSDK_HairAssetID_NULL; // hair asset ID
        GFSDK_HairInstanceDescriptor    g_hairInstanceDescriptor;       // hair instance descriptor
        GFSDK_HairInstanceID            g_hairInstanceID = GFSDK_HairInstanceID_NULL; // hair instance ID

        ID3D11PixelShader*              g_customHairWorksShader = NULL; // custom pixel shader
}

Upon D3D device creation¶

When the D3D device is created, we first load HairWorks runtime, then create a hair asset and an instance.

This sample manually creates hair asset by filling in the GFSDK_HairAssetDescriptor struct in InitHairAssetDescriptor().

Note also that we create a simple pixel shader that renders every hair color white.

HRESULT CALLBACK OnD3D11CreateDevice(ID3D11Device* device, const DXGI_SURFACE_DESC* backBufferSurfaceDesc, void* userContext)
{
        HRESULT hr;
        .....

        // load HairWorks dll
        g_hairSDK = FurSample_LoadHairWorksDLL();
        if (g_hairSDK == NULL)
                return E_FAIL;

        // Initialize hair asset descriptor and hair instance descriptor
        InitHairAssetDescriptor(g_hairAssetDescriptor);
        InitHairInstanceDescriptor(g_hairInstanceDescriptor);

        // Create the hair asset
        g_hairSDK->CreateHairAsset(g_hairAssetDescriptor, &g_hairAssetID);

        // Create custom hair shader
        hr = FurSample_CreatePixelShader(device, "samples\\FurSampleSimple\\HairWorksSampleShader.hlsl", &g_customHairWorksShader);
        if (FAILED(hr))
                return hr;

        // Initialize DirectX settings for HairWorks runtime
        g_hairSDK->InitRenderResources(device);

        // Create hair instance.
        g_hairSDK->CreateHairInstance(g_hairAssetID, &g_hairInstanceID);

        // Update instance descriptor
        g_hairSDK->UpdateInstanceDescriptor(g_hairInstanceID, g_hairInstanceDescriptor);

        .....

}

Rendering each frame¶

At each frame, we render hairs and visualization.

The first step is to set device context and camera info.

Then, we set our pixel shader and call render APIs.

void CALLBACK OnD3D11FrameRender(ID3D11Device* device, ID3D11DeviceContext* context, double time, float elapsedTime, void* yserContext)
{
        .....

        // Set render context for HairWorks
        g_hairSDK->SetCurrentContext(context);

        // Set view matrix and projection matrix
        XMMATRIX projection = FurSampleAppBase::GetCameraProjection();
        XMMATRIX view = FurSampleAppBase::GetCameraViewMatrix();
        g_hairSDK->SetViewProjection((const gfsdk_float4x4*)&view,(const gfsdk_float4x4*)&projection, GFSDK_HAIR_LEFT_HANDED);

        // Set your hair pixel shader before rendering hairs
        g_hairSDK->PSSetShader(g_customHairWorksShader, NULL, 0);

        // Render the hair instance
        g_hairSDK->RenderHairs(g_hairInstanceID);

        // Render visualization the hair instance
        g_hairSDK->RenderVisualization(g_hairInstanceID);

        .....
}

Example shader¶

FurSampleSimple\HairWorksSampleShader.hlsl is a very simple pixel shader that returns a constant color.

Note that we include the common shader header file GFSDK_HairWorks_ShaderCommon.h.

This header provides all the functions needed to implement HairWorks related shading functions.

//////////////////////////////////////////////////////////////////////////////
// HairWorks shader header file must be included
//////////////////////////////////////////////////////////////////////////////
#include "GFSDK_HairWorks_ShaderCommon.h"

//////////////////////////////////////////////////////////////////////////////////////////////
// Simple pixel shader that returns white color for all hair fragments
//////////////////////////////////////////////////////////////////////////////////////////////
[earlydepthstencil] float4 ps_main(GFSDK_Hair_PixelShaderInput input) : SV_Target
{
        return float4(1.0f, 1.0f, 1.0f, 1.0f);
}

FurSampleShading¶

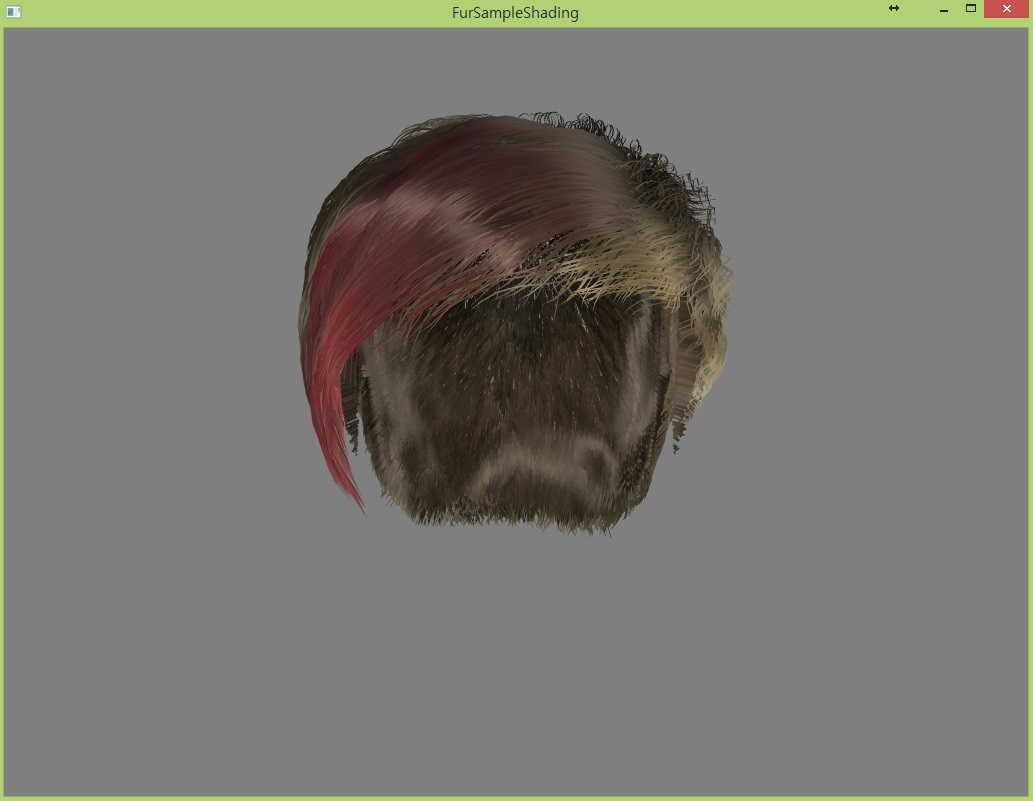

Screenshot of FurSampleShading sample.

Summary¶

The sample loads a hair asset from .apx file and textures. It also creates a custom pixel shader to render hair with textures. Then it simulates and renders hairs.

Illustrated Features¶

This code sample shows

How to load a hair asset from .apx file and modify the parameters.
How to create and set up custom pixel shader for hair rendering
How to set up hair control textures

Running Instructions¶

Camer Zoom : Mouse Wheel
Camera Orbit : RMB

Details¶

Code structures are similar to previous sample.

We add a few more API calls to load hair asset and set up textures, etc.

Upon D3D device creation¶

Note that we now use file load API to load hair asset from .apx file.

As the sample asset file was exported in DCC that uses different coordinate system, we provide conversion settings when we load the .apx file.

We also copy default instance descriptor from the asset for later updates.

HRESULT CALLBACK OnD3D11CreateDevice(ID3D11Device* device, const DXGI_SURFACE_DESC* backBufferSurfaceDesc, void* userContext)
{
        .....

        // conversion settings to load apx file into.  We use l.h.s / y-up camera in this example.
        GFSDK_HairConversionSettings conversionSettings;
        {
                conversionSettings.m_targetHandednessHint       = GFSDK_HAIR_LEFT_HANDED;
                conversionSettings.m_targetUpAxisHint           = GFSDK_HAIR_Y_UP;
                conversionSettings.m_targetSceneUnit            = 1.0 ; // centimeter
        }

        // Load hair asset from .apx file
        if (GFSDK_HAIR_RETURN_OK != g_hairSDK->LoadHairAssetFromFile(g_apxFilePath, &g_hairAssetID, 0, &conversionSettings))
                return E_FAIL;

        // Copy default instance descriptor from the loaded asset
        if (GFSDK_HAIR_RETURN_OK != g_hairSDK->CopyDefaultInstanceDescriptor(g_hairAssetID, g_hairInstanceDescriptor))
                return E_FAIL;

        .....
}

Setting up texture resources¶

Once the hair asset is loaded, we get texture file names from the asset, and create texture resources.

These shader resources are then set to HairWorks runtime.

The process is implemented in FurSampleCommon/FurSampleHairWorksHelper.cpp.

In the function FurSample_SetupTextureResource(), we go through each known hair texture type:

for (int t = 0; t < GFSDK_HAIR_NUM_TEXTURES; ++t)
{
        ...

In each loop, we use GetTextureName() API to retrieve texture file name:

if (GFSDK_HAIR_RETURN_OK != hairSDK->GetTextureName(assetID, (GFSDK_HAIR_TEXTURE_TYPE)t, textureFileName))
        continue;

Then we create a shader resource view for the texture, and set it for HairWorks runtime:

ID3D11ShaderResourceView* textureSRV = NULL;
FurSample_CreateTextureSRV(device, textureFilePath, &textureSRV);

if (GFSDK_HAIR_RETURN_OK != hairSDK->SetTextureSRV(instanceID,
        (GFSDK_HAIR_TEXTURE_TYPE)t, textureSRV))
        return E_FAIL;

SAFE_RELEASE(textureSRV);

Note that texture shader resource may be separately maintained by the game engine.

In that case, one may implement different mechanism to identify and retreive shader resources.

Rendering each frame¶

At each frame, we render hairs and visualization.

void CALLBACK OnD3D11FrameRender(ID3D11Device* device, ID3D11DeviceContext* context, double time, float elapsedTime, void* userContext)
{
        .....

        // Set render context for HairWorks
        g_hairSDK->SetCurrentContext(context);

        // Set view matrix and projection matrix
        XMMATRIX projection = FurSampleAppBase::GetCameraProjection();
        XMMATRIX view = FurSampleAppBase::GetCameraViewMatrix();
        g_hairSDK->SetViewProjection((const gfsdk_float4x4*)&view,(const gfsdk_float4x4*)&projection, GFSDK_HAIR_LEFT_HANDED);

        .....

First, we set d3d context and camera info, as in previous sample.

Note that HairWorks does not change D3D state such as sampler, shader resource, etc., so users must provide such resources when needed.

GetShaderResources() call returns standard shader attributes such as tangents, normals, etc. As our shader needs such resources for proper lighting, we get the resources from HairWorks and pass them to our shader by the standard D3D PSSetShaderResources() call.

In addition, we map two texture (root color and tip color) resources to our shader.

.....

// set texture sampler for texture color in hair shader
ID3D11SamplerState* states[] = { FurSampleAppBase::GetSamplerLinear() };
context->PSSetSamplers( 0, 1, states );

// get standard shader resources for attribute interpolation
ID3D11ShaderResourceView* srvs[GFSDK_HAIR_NUM_SHADER_RESOUCES];
g_hairSDK->GetShaderResources(g_hairInstanceID, srvs);

// set to resource slot for our shader
context->PSSetShaderResources( 0, GFSDK_HAIR_NUM_SHADER_RESOUCES, srvs);

// set textures
ID3D11ShaderResourceView* textureSRVs[2];

g_hairSDK->GetTextureSRV(g_hairInstanceID, GFSDK_HAIR_TEXTURE_ROOT_COLOR, &textureSRVs[0]);
g_hairSDK->GetTextureSRV(g_hairInstanceID, GFSDK_HAIR_TEXTURE_TIP_COLOR, &textureSRVs[1]);

// set to resource slot for our shader
context->PSSetShaderResources( GFSDK_HAIR_NUM_SHADER_RESOUCES, 2, textureSRVs);

.....

Example shader¶

The provided example shader in FurSampleShading/HairWorksSampleShader.hlsl shows a complete hair shader that can be used to render textured hairs.

First we declare standard shader resource that we mapped in above C++ code. (GetShaderResources()):

GFSDK_HAIR_DECLARE_SHADER_RESOURCES(t0, t1, t2); // shader resources

This defines resources that are needed for a HairWorks shader to retrieve standard attributes such as tangents and normals.

Then we define two texture buffers, one for root and another for tip color:

Texture2D       g_rootHairColorTexture: register(t3); // texture map for hair root colors
Texture2D       g_tipHairColorTexture : register(t4); // texture map for hair tip colors

The next block defines a cbuffer variable bound at b0 (default location for HairWorks constant buffer):

cbuffer cbPerFrame : register(b0)
{
        GFSDK_Hair_ConstantBuffer       g_hairConstantBuffer; // HairWorks portion of constant buffer data
}

In this sample, the content of HairWorks constant buffer is automatically filled and contains all the data necessary to render hairs. (see FurSampleShadow to see how users can customize cbuffer definitions.)

As the shader needs to sample textures, we provide a default sampler:

SamplerState texSampler: register(s0); // we use a texture sampler for hair textures in this sample

In the ps_main() function, we see

// get all the attibutes needed for hair shading with this function
GFSDK_Hair_ShaderAttributes attr = GFSDK_Hair_GetShaderAttributes(input, g_hairConstantBuffer);

// set up hair material.
GFSDK_Hair_Material mat = g_hairConstantBuffer.defaultMaterial;

The variable GFSDK_Hair_ShaderAttributes contains all the per fragment attribute required for shading, such as world space location, normal, tex coords, etc.

The variable GFSDK_Hair_Material are a part of the constant buffer that contains shared material properties.

All subsequent calls to hairworks shader functions require these data structures.

We now see:

// sample hair color from textures
float3 hairColor = GFSDK_Hair_SampleHairColorTex(mat, texSampler, g_rootHairColorTexture, g_tipHairColorTexture, attr.texcoords);

This returns blended hair color based on the two textures and control variables. In PBR context, one may think of this as the ‘albedo’ color for hair. Certain engines that require linear space lighting may apply gamma conversion to this color.

In the main loop, we accumulate contribution from each light:

float4 color = float4(0.0f, 0.0f, 0.0f, 1.0f);

[unroll]
for (int i = 0; i < NUM_LIGHTS; i++)
{
        float3 Lcolor = lightColor[i];
        float3 Ldir = normalize(lightDir[i]); // light direction defined from shaded point toward the light

        color.rgb += GFSDK_Hair_ComputeHairShading(Lcolor, Ldir, attr, mat, hairColor.rgb);
}

The shader function GFSDK_Hair_ComputeHairShading() computes hair color based on light color, direction, and sampled hair texture color.

Note that light must be pointing away from the shaded point, not into it.

FurSampleShadow¶

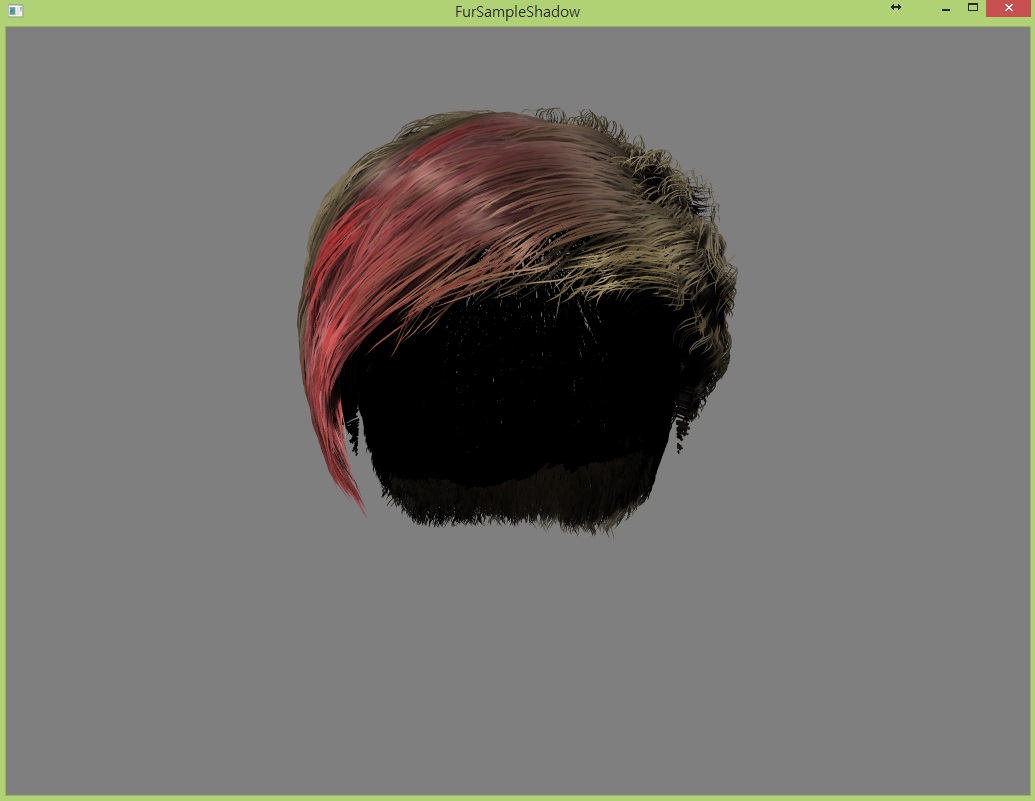

Screenshot of the FurSampleShadow sample.

Summary¶

This sample renders hairs to a user provided shadow map and render hairs with shadows.

Illustrated Features¶

This code sample shows

How to use custom constant buffer
How to render hairs to user’s own shadow map
How to compute hair shadows in the hair shader

Running Instructions¶

Camer Zoom : Mouse Wheel
Camera Orbit : RMB
‘v’ : toggle on/off shadow map visualization
‘s’ : turn on/off shadow rendering

Details¶

This sample adds new data structures and codes for custom shader resource management and controls.

Global variables¶

This sample addes another shader for shadow rendering pass:

// custom pixel shader for shadowmap rendering pass
ID3D11PixelShader*      g_customHairWorksShadowShader = NULL;

We also declare custom constant buffer for use with our shader:

// custom constant buffer for use with custom pixel shader
ID3D11Buffer*           g_hairShaderConstantBuffer = NULL;

Our custom constant buffer adds 2 new variables to the standard HairWorks constant buffer:

struct MyConstantBuffer
{
        XMMATRIX        lightView;
        XMMATRIX        lightWorldToTex;

        GFSDK_HairShaderConstantBuffer  hairShaderConstantBuffer;
};

These are used to pass light matrices to the hair shader.

Upon D3D device creation¶

We create 2 shaders, one for hair shading and another for shadow pass. We also create custom constant buffer.

HRESULT hr;
...

// Create custom pixel shader for hair rendering
hr = FurSample_CreatePixelShader(device, "samples\\FurSampleShadow\\HairWorksSampleShader.hlsl", &g_customHairWorksShader);
if (FAILED(hr))
        return hr;

// Create custom pixel shader for hair shadow pass
hr = FurSample_CreatePixelShader(device, "samples\\FurSampleShadow\\HairWorksSampleShadowShader.hlsl", &g_customHairWorksShadowShader);
if (FAILED(hr))
        return hr;

// create constant buffer for custom hair shader
hr = FurSample_CreateConstantBuffer(device, &g_hairShaderConstantBuffer, sizeof(MyConstantBuffer));
if (FAILED(hr))
        return hr;

...

Rendering hairs to shadow map¶

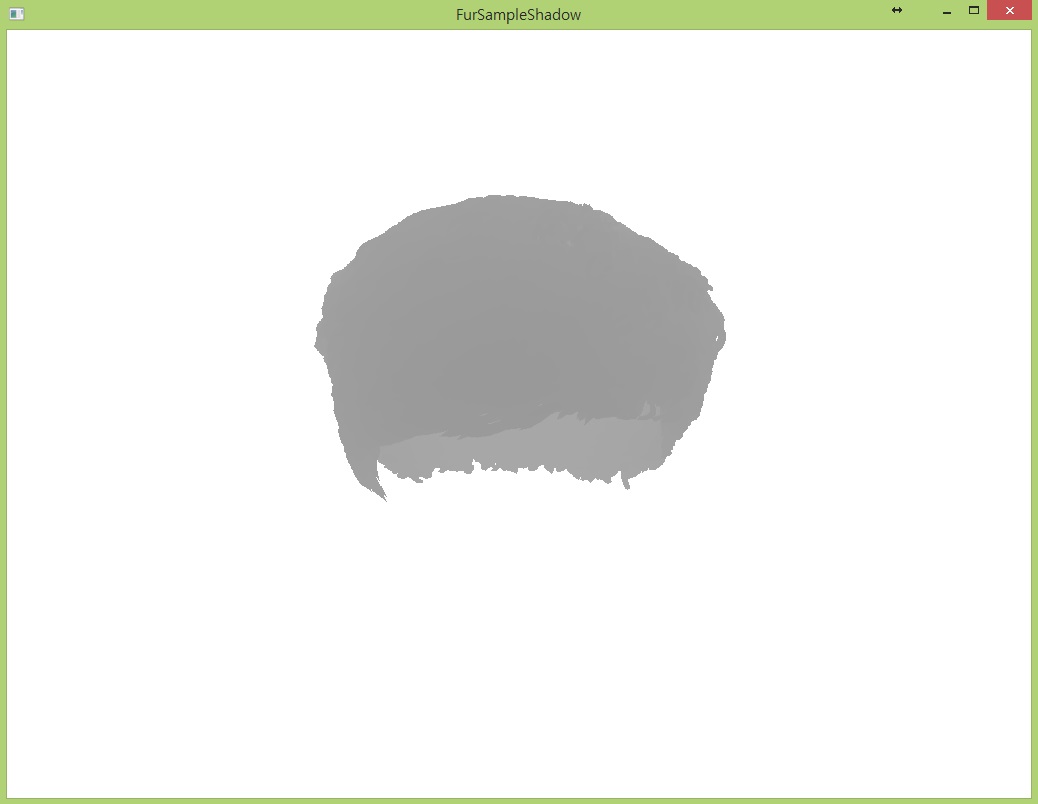

_images/HairWorks_FurSampleShadowMap.jpg

Visualization of shadow map.

The OnD3D11FrameRender() function consists of two steps. First, it renders hairs to a user prepared shadow render target. Then, it renders hair colors to the final render target.

The shadow map typically contatins all the scene objects. If we have multiple hair instances, we use the same buffer so that hairs can cast shadows between them or from/to other scene objects.

In shadow rendering pass, we set shadow camera’s view projection matrix:

XMMATRIX projection   = FurSampleAppBase::GetLightProjection();
XMMATRIX view         = FurSampleAppBase::GetLightViewMatrix();
g_hairSDK->SetViewProjection((const gfsdk_float4x4*)&view,(const gfsdk_float4x4*)&projection, GFSDK_HAIR_LEFT_HANDED);

Note that we use left handed system for shadow camera in this sample, so we provide the hint to SetViewProjection call. If your shadow camera is different, change it accordingly.

We use GFSDK_HairShaderSettings to indicate we are rendering hairs for shadow map:

// use custom shadow pass shader
context->PSSetShader(g_customHairWorksShadowShader, NULL, 0);

// render hairs to shadow buffer
GFSDK_HairShaderSettings settings;

settings.m_useCustomConstantBuffer = false; // let HairWorks fill the cbuffer
settings.m_shadowPass = true; // this is shadow pass

g_hairSDK->RenderHairs(g_hairInstanceID, &settings);

Note that we defined m_useCustomConstantBuffer to be false in the above shader settings, so the constant buffer used in this shader is automatically filled by HairWorks.

Shadow shaders are shown below:

#include "GFSDK_HairWorks_ShaderCommon.h"

//////////////////////////////////////////////////////////////////////////////
// constant buffer for render parameters
//////////////////////////////////////////////////////////////////////////////
cbuffer cbPerFrame : register(b0)
{
        GFSDK_Hair_ConstantBuffer       g_hairConstantBuffer; // hairworks portion of constant buffer data
}

//////////////////////////////////////////////////////////////////////////////////
// Pixel shader for shadow rendering pass
//////////////////////////////////////////////////////////////////////////////////
float ps_main(GFSDK_Hair_PixelShaderInput input) : SV_Target0
{
        return GFSDK_Hair_ScreenToView(input.position, g_hairConstantBuffer).z;
}

This shader simply computes linear depth (distance from camera) and write this value to the render target.

Preparing custom constant buffers¶

The second half of OnD3D11FrameRender() function renders hairs with shadows.

As we now use custom constant buffer, we have to copy the buffer using standard D3D APIs:

D3D11_MAPPED_SUBRESOURCE MappedResource;
context->Map( g_hairShaderConstantBuffer, 0, D3D11_MAP_WRITE_DISCARD, 0, &MappedResource );

MyConstantBuffer* constantBuffer = ( MyConstantBuffer* )MappedResource.pData;
{
        // copy additional data we defined (light matrices)
        constantBuffer->lightView          = FurSampleAppBase::GetLightViewMatrix();
        constantBuffer->lightWorldToTex    = FurSampleAppBase::GetLightWorldToTex();

        // use HairWorks API to fill the HairWorks portion of constant buffer
        g_hairSDK->PrepareShaderConstantBuffer(g_hairInstanceID, &constantBuffer->hairShaderConstantBuffer);
}

context->Unmap(g_hairShaderConstantBuffer,0);

context->PSSetConstantBuffers(0, 1, &g_hairShaderConstantBuffer);

Note that we use the PrepareShaderConstantBuffer() API to fill HairWorks portion of the constant buffer.

In addition, we copy our own data (light matrices) to the constant buffer as well.

This maps to the cbuffer definition of our hair shader:

cbuffer cbPerFrame : register(b0)
{
        // light projection matrices added for shadow map sampling
        row_major float4x4      g_lightView;
        row_major float4x4      g_lightWorldToTex;

        // hairworks portion of constant buffer data
        GFSDK_Hair_ConstantBuffer       g_hairConstantBuffer;
}

Preparing custom shader resources¶

As in FurSampleShading sample, we set shader resources for the pixel shader manually.

First we set the standard shader attribute resources.

ID3D11ShaderResourceView* srvs[GFSDK_HAIR_NUM_SHADER_RESOUCES];
g_hairSDK->GetShaderResources(g_hairInstanceID, srvs);
context->PSSetShaderResources( 0, GFSDK_HAIR_NUM_SHADER_RESOUCES, srvs);

We also set color texture resources as well as shadow textures.

ID3D11ShaderResourceView* textureSRVs[3];

g_hairSDK->GetTextureSRV(g_hairInstanceID, GFSDK_HAIR_TEXTURE_ROOT_COLOR, &textureSRVs[0]);
g_hairSDK->GetTextureSRV(g_hairInstanceID, GFSDK_HAIR_TEXTURE_TIP_COLOR, &textureSRVs[1]);

// shadow srv, which is user side creation
textureSRVs[2] = FurSampleAppBase::GetShadowSRV();

context->PSSetShaderResources( GFSDK_HAIR_NUM_SHADER_RESOUCES, 3, textureSRVs);

We also set two texture samplers, one for color (linear) and another for shadow (point).

ID3D11SamplerState* states[2] = {
        FurSampleAppBase::GetSamplerLinear(),
        FurSampleAppBase::GetSamplerPointClamp()
};
context->PSSetSamplers( 0, 2, states );

Once constant buffers and resources are set, we now render hairs:

// set your hair pixel shader before rendering hairs
context->PSSetShader(g_customHairWorksShader, NULL, 0);

// set shader settings
GFSDK_HairShaderSettings settings;
settings.m_useCustomConstantBuffer = true;

// Render the hair instance
g_hairSDK->RenderHairs(g_hairInstanceID, &settings);

Note this example fully utilizes custom constant buffer as well as custom shader resources.

Computing shadows in the shader¶

The shader for this sample defines the following function:

float GetShadowFactor(GFSDK_Hair_ShaderAttributes attr, GFSDK_Hair_Material mat)
{
        // texcoord of sample point in shadow texture
        float2 shadowTexcoords = mul(float4(attr.P, 1), g_lightWorldToTex).xy;

        // depth of this point in light's view space
        float viewSpaceDepth = mul(float4(attr.P, 1), g_lightView).z;

        // apply PCF filtering of absorption depth from linear depth texture
        // use gain = 1.0f for right handed shadow camera.
        float gain = -1.0f; // left handed shadow camera.

        float filteredDepth = GFSDK_Hair_ShadowFilterDepth(
                g_shadowTexture, shadowSampler, shadowTexcoords, viewSpaceDepth, gain);

        // convert absorption depth into lit factor
        float lit = GFSDK_Hair_ShadowLitFactor(mat, filteredDepth);

        return lit;
}

We compute hair shadows (lit factor) in the following steps.

First get the world space position of our hair fragment (attr.P)
Using the light matrix, we get corresponding texture coord of the point (shadowTexcoords).
We also computes view space depth of the point using light camera used to generate the shadow map.
We now compute penetration distance from the hair surface using GFSDK_Hair_ShadowFilterDepth().
Finally, we convert the depth to soft shadows using GFSDK_Hair_ShadowLitFactor().

Note that this function may be completely bypassed if users wish to implement their own shadow sampling function, especially when other shadow sampling schemes are defined and widely used throughout their game engine. In that case, replace above function with any of such scehemes.

FurSampleSkinning¶

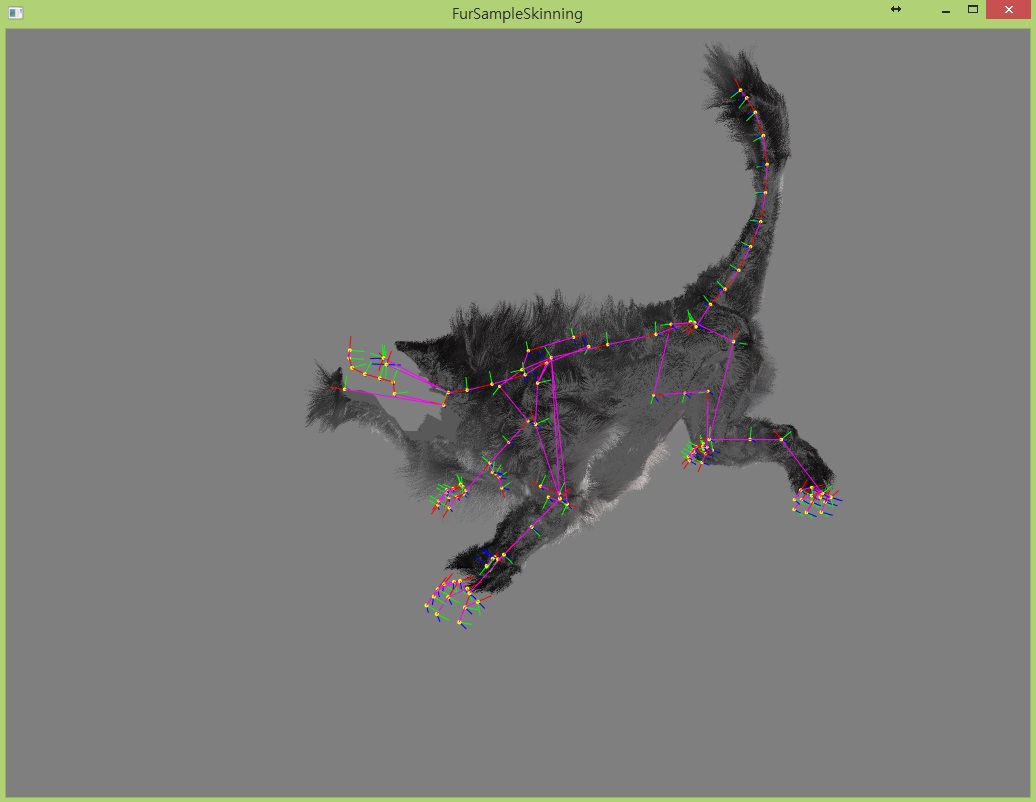

Skinned animation of the monster sample character.

Summary¶

This sample shows how to setup skinning matrices for HairWorks.

Illustrated Features¶

This sample updates the skinning matrices using UpdateSkinningMatrices() API.
This sample uses bone visualization feature.

Running Instructions¶

Camer Zoom : Mouse Wheel
Camera Orbit : RMB
‘p’ : toggle on/off animation
‘b’ : toggle on/off bone hierarchy visualization
‘g’ : toggle on/off growth mesh visualization
‘h’ : toggle on/off hair rendering
‘s’ : toggle on/off hair simulation

Details¶

At each frame, this sample updates skinning matrices of the hair asset and run hair simulation.

This sample uses precomputed skinning matrices g_skinningMatrices that are stored in SkinningMatrices.h.

void CALLBACK OnFrameMove(double time, float elapsedTime, void* userContext)
{
        ....

        // Set simulation context for HairWorks
        g_hairSDK->SetCurrentContext(context);

        ... update frame index and frame time ...

        // Update skinning matrices for the frame
        g_hairSDK->UpdateSkinningMatrices(g_hairInstanceID, g_numSkinningBones, g_skinningMatrices[s_frame]);

        // run simulation for all hairs
        g_hairSDK->StepSimulation(elapsedTime);
}

This sample also uses several query API to construct growth mesh from a hairworks asset.

......
// Fill the vertices info (root of each hair == vertex of the mesh)
if (GFSDK_HAIR_RETURN_OK != g_hairSDK->GetRootVertices(g_hairAssetID, (gfsdk_float3*)meshData.m_positions.data()))
{
        return E_FAIL;
}

// Fill the bone indices info
if (GFSDK_HAIR_RETURN_OK != g_hairSDK->GetBoneIndices(g_hairAssetID, (gfsdk_float4*)meshData.m_boneIndices.data()))
{
        return E_FAIL;
}

// Fille the bone weights info
if (GFSDK_HAIR_RETURN_OK != g_hairSDK->GetBoneWeights(g_hairAssetID, (gfsdk_float4*)meshData.m_boneWeights.data()))
{
        return E_FAIL;
}

// Fill the face indices info
if (GFSDK_HAIR_RETURN_OK != g_hairSDK->GetFaceIndices(g_hairAssetID, meshData.m_indices.data()))
{
        return E_FAIL;
}

......

Note that this is only for illustration purpose - usual game engines would have character mesh drawing/mangement in a separate code block.

Number of bones and bone order should match between HairWorks asset and character.

If that’s not the case, please refer to the SetBoneRemapping() API in the header.

Table Of Contents

Previous topic

Next topic

Quick search

SDK Samples¶

How to build/run sample project¶

FurSampleCommon¶

Loading Hair SDK¶

FurSampleSimple¶

Summary¶

Illustrated Features¶

Running Instructions¶

Details¶

Declaring HairWorks variables¶

Upon D3D device creation¶

Rendering each frame¶

Example shader¶

FurSampleShading¶

Summary¶

Illustrated Features¶

Running Instructions¶

Details¶

Upon D3D device creation¶

Setting up texture resources¶

Rendering each frame¶

Example shader¶

FurSampleShadow¶

Summary¶

Illustrated Features¶

Running Instructions¶

Details¶

Global variables¶

Upon D3D device creation¶

Rendering hairs to shadow map¶

Preparing custom constant buffers¶

Preparing custom shader resources¶

Computing shadows in the shader¶

FurSampleSkinning¶

Summary¶

Illustrated Features¶

Running Instructions¶

Details¶
