PxVehicleDriveSimDataNW Class Reference

Data structure describing configuration data of a vehicle with up to PX_MAX_NB_WHEELS driven equally through the differential. The vehicle has an engine, clutch, gears, autobox, differential. More...

#include <PxVehicleDriveNW.h>

Inheritance diagram for PxVehicleDriveSimDataNW:

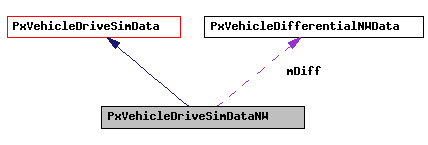

Collaboration diagram for PxVehicleDriveSimDataNW:

Public Member Functions
	PxVehicleDriveSimDataNW ()
const PxVehicleDifferentialNWData &	getDiffData () const
	Return the data describing the differential of a vehicle with up to PX_MAX_NB_WHEELS driven wheels. More...
void	setDiffData (const PxVehicleDifferentialNWData &diff)
	Set the data describing the differential of a vehicle with up to PX_MAX_NB_WHEELS driven wheels. The differential data describes the set of wheels that are driven by the differential. More...
	PxVehicleDriveSimDataNW (const PxEMPTY &)
Public Member Functions inherited from PxVehicleDriveSimData
PX_FORCE_INLINE const PxVehicleEngineData &	getEngineData () const
	Return the engine data. More...
void	setEngineData (const PxVehicleEngineData &engine)
	Set the engine data. More...
PX_FORCE_INLINE const PxVehicleGearsData &	getGearsData () const
	Return the gears data. More...
void	setGearsData (const PxVehicleGearsData &gears)
	Set the gears data. More...
PX_FORCE_INLINE const PxVehicleClutchData &	getClutchData () const
	Return the clutch data. More...
void	setClutchData (const PxVehicleClutchData &clutch)
	Set the clutch data. More...
PX_FORCE_INLINE const PxVehicleAutoBoxData &	getAutoBoxData () const
	Return the autobox data. More...
void	setAutoBoxData (const PxVehicleAutoBoxData &autobox)
	Set the autobox data. More...
	PxVehicleDriveSimData ()
	PxVehicleDriveSimData (const PxEMPTY &)

Static Public Member Functions
static void	getBinaryMetaData (PxOutputStream &stream)
Static Public Member Functions inherited from PxVehicleDriveSimData
static void	getBinaryMetaData (PxOutputStream &stream)

Private Member Functions
bool	isValid () const
	Test if the NW-drive simulation data has been setup with legal data. Call only after setting all components. More...

Private Attributes
PxVehicleDifferentialNWData	mDiff
	Differential simulation data. More...

Friends
class	PxVehicleDriveNW

Additional Inherited Members
Protected Member Functions inherited from PxVehicleDriveSimData
bool	isValid () const
	Test that a PxVehicleDriveSimData instance has been configured with legal data. Call only after setting all components with setEngineData,setGearsData,setClutchData,setAutoBoxData. More...
Protected Attributes inherited from PxVehicleDriveSimData
PxVehicleEngineData	mEngine
PxVehicleGearsData	mGears
PxVehicleClutchData	mClutch
PxVehicleAutoBoxData	mAutoBox

Detailed Description

Data structure describing configuration data of a vehicle with up to PX_MAX_NB_WHEELS driven equally through the differential. The vehicle has an engine, clutch, gears, autobox, differential.

See Also

PxVehicleDriveSimData

Constructor & Destructor Documentation

PxVehicleDriveSimDataNW::PxVehicleDriveSimDataNW ( )

inline

PxVehicleDriveSimDataNW::PxVehicleDriveSimDataNW ( const PxEMPTY &  )

inline

Member Function Documentation

static void PxVehicleDriveSimDataNW::getBinaryMetaData ( PxOutputStream &  stream )

static

const PxVehicleDifferentialNWData& PxVehicleDriveSimDataNW::getDiffData ( ) const

inline

Return the data describing the differential of a vehicle with up to PX_MAX_NB_WHEELS driven wheels.

bool PxVehicleDriveSimDataNW::isValid ( ) const

private

Test if the NW-drive simulation data has been setup with legal data. Call only after setting all components.

See Also

setEngineData, setClutchData, setGearsData, setAutoboxData, setDiffData, setAckermannGeometryData

void PxVehicleDriveSimDataNW::setDiffData

(

const PxVehicleDifferentialNWData &

diff

)

Set the data describing the differential of a vehicle with up to PX_MAX_NB_WHEELS driven wheels. The differential data describes the set of wheels that are driven by the differential.

Friends And Related Function Documentation

friend class PxVehicleDriveNW

friend

Member Data Documentation

PxVehicleDifferentialNWData PxVehicleDriveSimDataNW::mDiff

private

Differential simulation data.

See Also

setDiffData, getDiffData

---

The documentation for this class was generated from the following file:

• PxVehicleDriveNW.h
