PxContactPair Struct Reference

Contact report pair information. More...

#include <PxSimulationEventCallback.h>

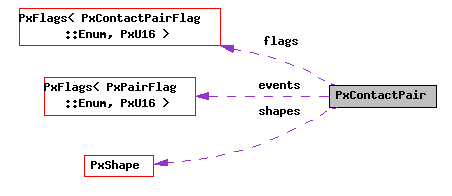

Collaboration diagram for PxContactPair:

Public Member Functions
PX_INLINE	PxContactPair ()
PX_INLINE PxU32	extractContacts (PxContactPairPoint *userBuffer, PxU32 bufferSize) const
	Extracts the contact points from the stream and stores them in a convenient format. More...
PX_INLINE void	bufferContacts (PxContactPair *newPair, PxU8 *bufferMemory) const
	Helper method to clone the contact pair and copy the contact data stream into a user buffer. More...

Public Attributes
PxShape *	shapes [2]
	The two shapes that make up the pair. More...
const PxU8 *	contactStream
	Contact stream containing contact point data. More...
PxU32	requiredBufferSize
	Size of the contact stream [bytes] including force buffer. More...
PxU16	contactCount
	Number of contact points stored in the contact stream. More...
PxU16	contactStreamSize
	Size of the contact stream [bytes] not including force buffer. More...
PxContactPairFlags	flags
	Additional information on the contact report pair. More...
PxPairFlags	events
	Flags raised due to the contact. More...
PxU32	internalData [2]

Detailed Description

Contact report pair information.

Instances of this class are passed to PxSimulationEventCallback.onContact(). If contact reports have been requested for a pair of shapes (see PxPairFlag), then the corresponding contact information will be provided through this structure.

See Also

PxSimulationEventCallback.onContact()

Constructor & Destructor Documentation

PX_INLINE PxContactPair::PxContactPair ( )

inline

Member Data Documentation

PxU16 PxContactPair::contactCount

Number of contact points stored in the contact stream.

const PxU8* PxContactPair::contactStream

Contact stream containing contact point data.

This pointer is only valid if contact point information has been requested for the contact report pair (see PxPairFlag::eNOTIFY_CONTACT_POINTS). Use extractContacts() as a reference for the data layout of the stream.

Referenced by bufferContacts().

PxU16 PxContactPair::contactStreamSize

Size of the contact stream [bytes] not including force buffer.

PxPairFlags PxContactPair::events

Flags raised due to the contact.

The events field is a combination of:

• PxPairFlag::eNOTIFY_TOUCH_FOUND,
• PxPairFlag::eNOTIFY_TOUCH_PERSISTS,
• PxPairFlag::eNOTIFY_TOUCH_LOST,
• PxPairFlag::eNOTIFY_TOUCH_CCD,
• PxPairFlag::eNOTIFY_THRESHOLD_FORCE_FOUND,
• PxPairFlag::eNOTIFY_THRESHOLD_FORCE_PERSISTS,
• PxPairFlag::eNOTIFY_THRESHOLD_FORCE_LOST

See the documentation of PxPairFlag for an explanation of each.

Note

eNOTIFY_TOUCH_CCD can get raised even if the pair did not request this event. However, in such a case it will only get raised in combination with one of the other flags to point out that the other event occured during a CCD pass.

See Also

PxPairFlag

PxContactPairFlags PxContactPair::flags

Additional information on the contact report pair.

See Also

PxContactPairFlag

PxU32 PxContactPair::internalData[2]

PxU32 PxContactPair::requiredBufferSize

Size of the contact stream [bytes] including force buffer.

PxShape* PxContactPair::shapes[2]

The two shapes that make up the pair.

Note

The shape pointers might reference deleted shapes. This will be the case if PxPairFlag::eNOTIFY_TOUCH_LOST or PxPairFlag::eNOTIFY_THRESHOLD_FORCE_LOST events were requested for the pair and one of the involved shapes gets deleted. Check the flags member to see whether that is the case. Do not dereference a pointer to a deleted shape. The pointer to a deleted shape is only provided such that user data structures which might depend on the pointer value can be updated.

See Also

PxShape

---

The documentation for this struct was generated from the following file:

• PxSimulationEventCallback.h
