BSP Setup#
BSP Installation#

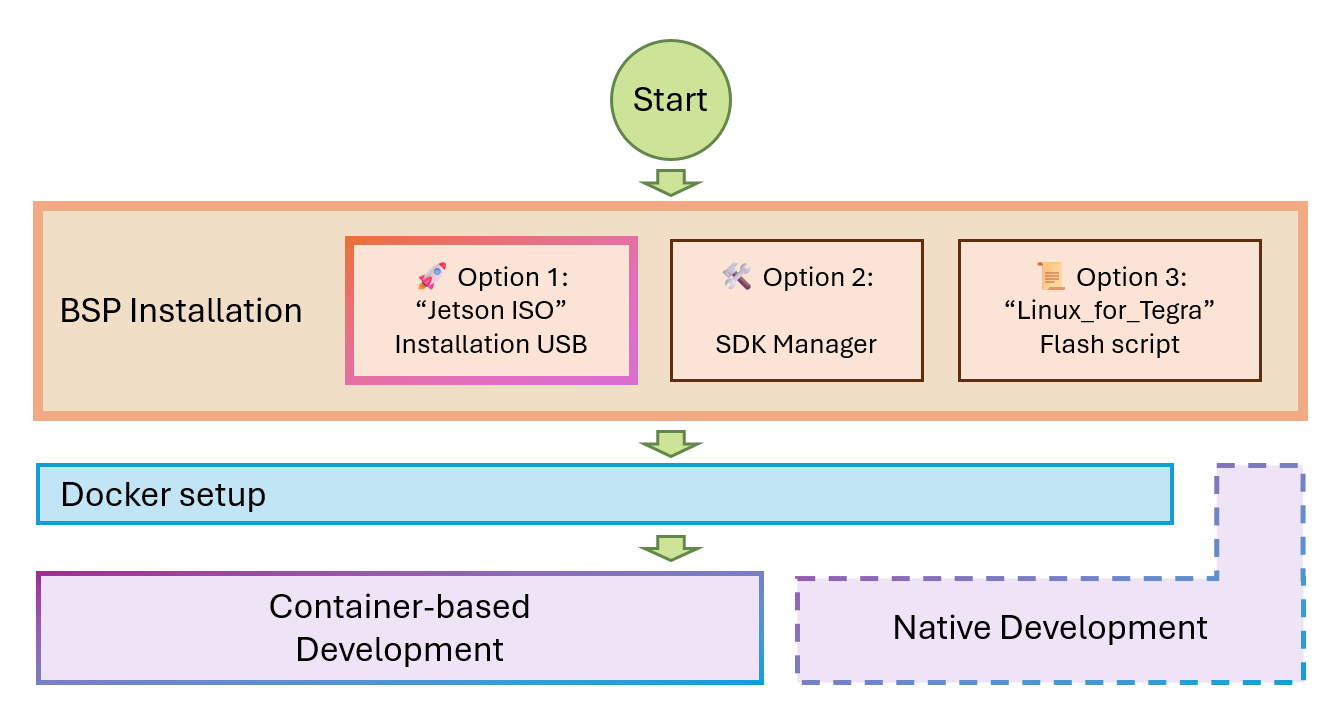

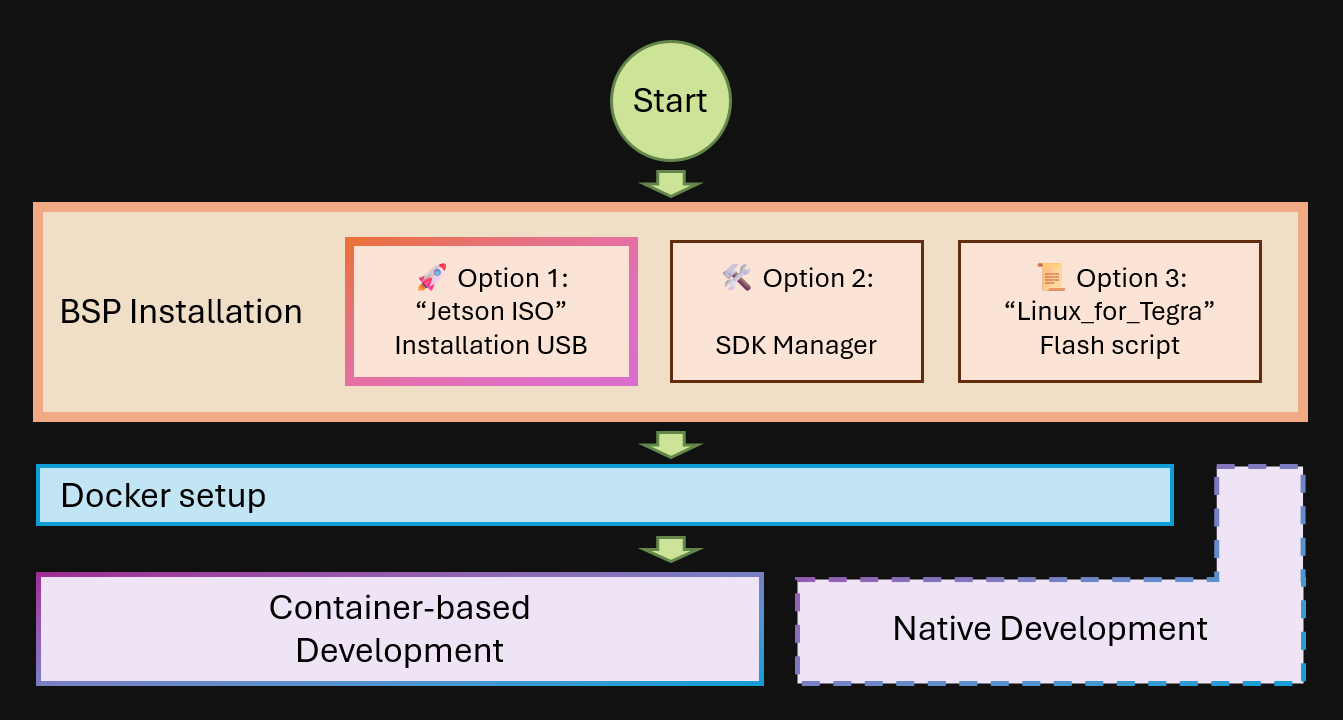

Installation Options#
Comparison#
🚀 Jetson ISO |
🛠️ SDK Manager |
📜 Flash script |
|
|---|---|---|---|
📋 Short Summary |
USB installation disk to flash BSP (plus alpha) |
GUI software to flash BSP and install JetPack packages |
Ubuntu script to flash BSP |
🖥️ Ubuntu Host PC |
❌ Not required |
✅ Required |
✅ Required |
⏱️ Flash time |
⚡ Less than 15 min |
⌛ About 30 min |
⌛ About 30 min |
🔧 Install BSP? |
✅ Yes |
✅ Yes |
✅ Yes |
🐳 Install Docker? |
✅ Yes |
💡 Yes, when chosen in 2nd stage |
❌ No |
📦 Install JetPack components |
❌ No |
💡 Yes, when chosen in 2nd stage |
❌ No |
👥 Who is this for? |
🌟 Everybody including beginner |
🧑💻 Who has an Ubuntu PC |
🛠️ Product Developers |
Option 1. 🚀 “Jetson ISO” Installation USB#
Recommended for everybody.
This method is what’s illustrated in the Quick Start Guide.
Option 2. 🛠️ NVIDIA SDK Manager#
See Jetson section of SDK Manager documentation.
https://docs.nvidia.com/sdk-manager/install-with-sdkm-jetson/index.html
Option 3. 📜 “Linux_for_Tegra” flash script#
See Jetson Linux Developer Guide.
https://docs.nvidia.com/jetson/archives/r38.4/DeveloperGuide/IN/QuickStart.html https://docs.nvidia.com/jetson/archives/r38.4/DeveloperGuide/SD/FlashingSupportJetsonThor.html
BSP Upgrade#
This section covers how to upgrade your BSP to a newer L4T revision using APT.
See also
For more details on the update mechanism, see the official Jetson Linux Developer Guide:
Upgrading from r38.2.x to r38.4.x#
Follow these steps to upgrade your Jetson Thor from L4T r38.2.x to r38.4.x.
1. Check the Current L4T Revision#
First, verify your current L4T version:
cat /etc/nv_tegra_release
You should see output indicating R38 (release), REVISION: 2.x.
2. Backup and Update the APT Source List#
Before modifying the source list, create a backup:
sudo cp /etc/apt/sources.list.d/nvidia-l4t-apt-source.list /etc/apt/sources.list.d/nvidia-l4t-apt-source.list.bak
Update the source list to point to r38.4:
sudo sed -i 's/r38\.2/r38.4/g' /etc/apt/sources.list.d/nvidia-l4t-apt-source.list
Verify the change was applied correctly:
tail -n5 /etc/apt/sources.list.d/nvidia-l4t-apt-source.list
3. Perform the Upgrade#
Update the package list and upgrade:
sudo apt update && sudo apt upgrade -y
4. Reboot#
Reboot to apply the changes:
sudo reboot
5. Verify the Upgrade#
After reboot, confirm the upgrade was successful:
cat /etc/nv_tegra_release
You should now see R38 (release), REVISION: 4.x.
Tip
If something goes wrong during the upgrade, you can restore the original source list from the backup:
sudo cp /etc/apt/sources.list.d/nvidia-l4t-apt-source.list.bak /etc/apt/sources.list.d/nvidia-l4t-apt-source.list
