This sample demonstrates how to use libargus to set up the camera class components for a capture operation. An EGLStream is also created to connect to the V4L2 video encoder to allow for capturing encoded video streams to a file.
$ cd /usr/src/jetson_multimedia_api/samples/10_argus_camera_recording $ makeThe sample creates the H.264 video file in the current directory.
$ ./argus_camera_recording [OPTIONS]
$ ./argus_camera_recording -h

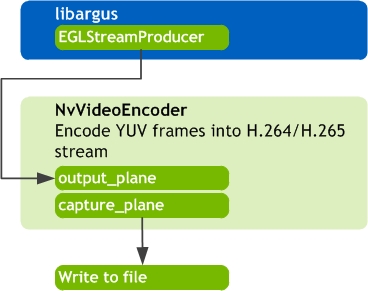

The following diagram shows the flow of data through this sample.
This sample demonstrates the camera producer and consumer programming model. The image output is performed using the EGLStream. This is an efficient and zero-copy output to various EGLStream consumers. Possible consumers include:
The following classes are used. For more information on libargus and the EGLStream, refer to the libargus documentation.
Classes | Description |
---|---|
class NvVideoEncoder | The class contains all the video encode related elements and functions. |
The NvVideoEncoder
class packages all the video encoding related elements and functions. The key members used in the sample are as follows:
NvVideoEncoder | Description |
---|---|
output_plane | V4L2 output plane. |
capture_plane | V4L2 capture plane. |
createVideoEncoder | Static function to create video encode object. |
setExtControls | Sets the external control to the V4L2 device. |
setOutputPlaneFormat | Sets the output plane format. |
setCapturePlaneFormat | Sets the capture plane format. |
isInError | Checks if under an error state. |
The NvVideoEncoder
class contains two key elements:
output_plane
capture_plane
The NvVideoEncoder object is derived from the following class type:
The key members used in the sample are as follows:
NvV4l2ElementPlane | Description |
---|---|
setupPlane | Sets up the plane of the V4L2 element. |
deinitPlane | Destroys the plane of the V4L2 element. |
setStreamStatus | Starts/stops the stream. |
setDQThreadCallback | Sets the callback function of the dqueue buffer thread. |
startDQThread | Starts the thread of the dqueue buffer. |
stopDQThread | Stops the thread of the dqueue buffer. |
qBuffer | Queues the V4L2 buffer. |
dqBuffer | Dqueue the V4L2 buffer. |
getNumBuffers | Gets the number of V4L2 buffers. |
getNthBuffer | Gets the nth number V4L2 buffer. |
