v4l2_ctrl_videodec_dpbinfometadata_ Struct Reference
Detailed Description
Holds the decoder DPB info metadata.
Definition at line 1951 of file v4l2_nv_extensions.h.

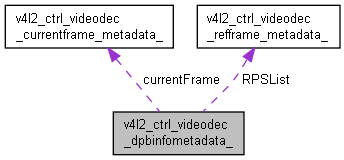

Collaboration diagram for v4l2_ctrl_videodec_dpbinfometadata_:
Data Fields | |
| v4l2_ctrl_videodec_currentframe_metadata | currentFrame |
| Metadata for the current decoded frame. More... | |
| __u32 | nActiveRefFrames |
| Number of active frames present in the DPB. More... | |
| v4l2_ctrl_videodec_refframe_metadata | RPSList [16] |
| An array of metadatas for the active frames in the DPB. More... | |
| __u8 | reserved [64] |
| Reserved fields are added for extensibility. More... | |
Field Documentation
◆ currentFrame
| v4l2_ctrl_videodec_currentframe_metadata v4l2_ctrl_videodec_dpbinfometadata_::currentFrame |
Metadata for the current decoded frame.
Definition at line 1954 of file v4l2_nv_extensions.h.
◆ nActiveRefFrames
| __u32 v4l2_ctrl_videodec_dpbinfometadata_::nActiveRefFrames |
Number of active frames present in the DPB.
Definition at line 1956 of file v4l2_nv_extensions.h.
◆ reserved
| __u8 v4l2_ctrl_videodec_dpbinfometadata_::reserved[64] |
Reserved fields are added for extensibility.
Definition at line 1961 of file v4l2_nv_extensions.h.
◆ RPSList
| v4l2_ctrl_videodec_refframe_metadata v4l2_ctrl_videodec_dpbinfometadata_::RPSList[16] |
An array of metadatas for the active frames in the DPB.
Only nActiveRefFrames elements in the array are valid.
Definition at line 1959 of file v4l2_nv_extensions.h.
The documentation for this struct was generated from the following file:
