Detailed Description

Hold the information of single buffer in the batch.

Definition at line 232 of file nvbufsurface.h.

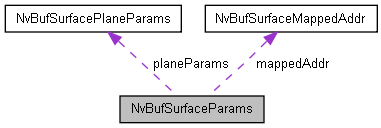

Collaboration diagram for NvBufSurfaceParams:

Data Fields
uint32_t	width
	width of buffer More...

uint32_t	height
	height of buffer More...

uint32_t	pitch
	pitch of buffer More...

NvBufSurfaceColorFormat	colorFormat
	color format More...

NvBufSurfaceLayout	layout
	BL or PL for Jetson, ONLY PL in case of dGPU. More...

uint64_t	bufferDesc
	dmabuf fd in case of NVBUF_MEM_SURFACE_ARRAY and NVBUF_MEM_HANDLE type memory. More...

uint32_t	dataSize
	size of allocated memory More...

void *	dataPtr
	pointer to allocated memory, Not valid for NVBUF_MEM_SURFACE_ARRAY and NVBUF_MEM_HANDLE More...

NvBufSurfacePlaneParams	planeParams
	plane wise info (w, h, p, offset etc.) More...

NvBufSurfaceMappedAddr	mappedAddr
	pointers of mapped buffers. More...

void *	_reserved [STRUCTURE_PADDING]

Field Documentation

void* NvBufSurfaceParams::_reserved[STRUCTURE_PADDING]

Definition at line 258 of file nvbufsurface.h.

uint64_t NvBufSurfaceParams::bufferDesc

dmabuf fd in case of NVBUF_MEM_SURFACE_ARRAY and NVBUF_MEM_HANDLE type memory.

Invalid for other types.

Definition at line 246 of file nvbufsurface.h.

NvBufSurfaceColorFormat NvBufSurfaceParams::colorFormat

color format

Definition at line 240 of file nvbufsurface.h.

void* NvBufSurfaceParams::dataPtr

pointer to allocated memory, Not valid for NVBUF_MEM_SURFACE_ARRAY and NVBUF_MEM_HANDLE

Definition at line 252 of file nvbufsurface.h.

uint32_t NvBufSurfaceParams::dataSize

size of allocated memory

Definition at line 248 of file nvbufsurface.h.

uint32_t NvBufSurfaceParams::height

height of buffer

Definition at line 236 of file nvbufsurface.h.

NvBufSurfaceLayout NvBufSurfaceParams::layout

BL or PL for Jetson, ONLY PL in case of dGPU.

Definition at line 242 of file nvbufsurface.h.

NvBufSurfaceMappedAddr NvBufSurfaceParams::mappedAddr

pointers of mapped buffers.

Null Initialized values.

Definition at line 256 of file nvbufsurface.h.

uint32_t NvBufSurfaceParams::pitch

pitch of buffer

Definition at line 238 of file nvbufsurface.h.

NvBufSurfacePlaneParams NvBufSurfaceParams::planeParams

plane wise info (w, h, p, offset etc.)

Definition at line 254 of file nvbufsurface.h.

uint32_t NvBufSurfaceParams::width

width of buffer

Definition at line 234 of file nvbufsurface.h.

The documentation for this struct was generated from the following file:
