Detailed Description

Holds the information inferred by the network on one frame.

Definition at line 424 of file nvdsinfer_context.h.

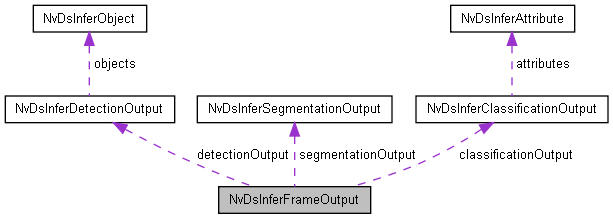

Collaboration diagram for NvDsInferFrameOutput:

[legend]

Data Fields
NvDsInferNetworkType	outputType
	Output type indicating the valid member in the union. More...

union {
NvDsInferDetectionOutput detectionOutput
	Detector output. More...

NvDsInferClassificationOutput classificationOutput
	Classifier output. More...

NvDsInferSegmentationOutput segmentationOutput
	Classifier output. More...

};
	Union of the various outputs supported. More...

Field Documentation

union { ... }

Union of the various outputs supported.

Valid member is based on the outputType.

NvDsInferClassificationOutput NvDsInferFrameOutput::classificationOutput

Classifier output.

Valid when outputType is NvDsInferNetworkType_Classifier.

Definition at line 436 of file nvdsinfer_context.h.

NvDsInferDetectionOutput NvDsInferFrameOutput::detectionOutput

Detector output.

Valid when outputType is NvDsInferNetworkType_Detector.

Definition at line 434 of file nvdsinfer_context.h.

NvDsInferNetworkType NvDsInferFrameOutput::outputType

Output type indicating the valid member in the union.

This is basically the network type.

Definition at line 428 of file nvdsinfer_context.h.

NvDsInferSegmentationOutput NvDsInferFrameOutput::segmentationOutput

Classifier output.

Valid when outputType is NvDsInferNetworkType_Classifier.

Definition at line 438 of file nvdsinfer_context.h.

The documentation for this struct was generated from the following file:
