Detailed Description

Holds the text parameters of the text to be overlayed.

Definition at line 111 of file nvll_osd_struct.h.

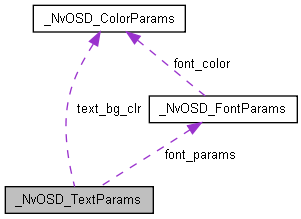

Collaboration diagram for _NvOSD_TextParams:

Data Fields
char *	display_text
	Holds the text to be overlayed. More...

unsigned int	x_offset
	Holds horizontal offset w.r.t top left pixel of the frame. More...

unsigned int	y_offset
	Holds vertical offset w.r.t top left pixel of the frame. More...

NvOSD_FontParams	font_params
	font_params. More...

int	set_bg_clr
	Boolean to indicate text has background color. More...

NvOSD_ColorParams	text_bg_clr
	Background color for text. More...

Field Documentation

char* _NvOSD_TextParams::display_text

Holds the text to be overlayed.

Definition at line 112 of file nvll_osd_struct.h.

NvOSD_FontParams _NvOSD_TextParams::font_params

font_params.

Definition at line 119 of file nvll_osd_struct.h.

int _NvOSD_TextParams::set_bg_clr

Boolean to indicate text has background color.

Definition at line 121 of file nvll_osd_struct.h.

NvOSD_ColorParams _NvOSD_TextParams::text_bg_clr

Background color for text.

Definition at line 123 of file nvll_osd_struct.h.

unsigned int _NvOSD_TextParams::x_offset

Holds horizontal offset w.r.t top left pixel of the frame.

Definition at line 114 of file nvll_osd_struct.h.

unsigned int _NvOSD_TextParams::y_offset

Holds vertical offset w.r.t top left pixel of the frame.

Definition at line 116 of file nvll_osd_struct.h.

The documentation for this struct was generated from the following file:
