NVIDIA DeepStream SDK API Reference
6.4 Release
Public Member Functions | Data Fields
NvDsBatchBufferWrapper Class Referenceabstract

Detailed Description

Definition at line 119 of file nvstreammux_batch.h.

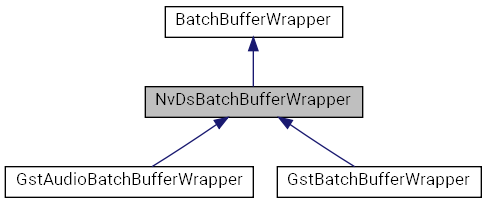

Inheritance diagram for NvDsBatchBufferWrapper:
Inheritance graph
[legend]
Collaboration diagram for NvDsBatchBufferWrapper:
Collaboration graph
[legend]

Public Member Functions

 NvDsBatchBufferWrapper (unsigned int size)

virtual ~NvDsBatchBufferWrapper ()

virtual unsigned int copy_buf (std::shared_ptr< BufferWrapper > buf, unsigned int pos)=0
 Copy input buffer (buf) to this NvDsBatchBufferWrapper. More...

virtual void copy_meta (unsigned int id, std::shared_ptr< BufferWrapper > src_buffer, unsigned int batch_id, unsigned int frame_number, unsigned int num_surfaces_per_frame, NvDsBatchMeta *dest_batch_meta, unsigned int source_id)

virtual void unref ()

virtual unsigned int copy (void *buf, unsigned int pos, unsigned int num_surfaces)

virtual bool push (SourcePad *pad, TimePoint play_start, NanoSecondsType accum_dur)

virtual bool push (SourcePad *pad, unsigned long pts)


Data Fields

unsigned int batch_size

void * batch


Constructor & Destructor Documentation

◆ NvDsBatchBufferWrapper()

NvDsBatchBufferWrapper::NvDsBatchBufferWrapper ( unsigned int  size)

◆ ~NvDsBatchBufferWrapper()

virtual NvDsBatchBufferWrapper::~NvDsBatchBufferWrapper ( )
virtual

Member Function Documentation

◆ copy()

virtual unsigned int BatchBufferWrapper::copy ( void *  buf,
unsigned int  pos,
unsigned int  num_surfaces
)
inlinevirtualinherited

Definition at line 107 of file nvstreammux_batch.h.

◆ copy_buf()

virtual unsigned int NvDsBatchBufferWrapper::copy_buf ( std::shared_ptr< BufferWrapper >  buf,
unsigned int  pos
)
pure virtual

Copy input buffer (buf) to this NvDsBatchBufferWrapper.

Parameters
buf[IN] BufferWrapper object with a streammux input buffer
pos[IN] The index at which the input buf is copied to the output NvBufSurface->surfaceList[] for video;

Implemented in GstBatchBufferWrapper, and GstAudioBatchBufferWrapper.

◆ copy_meta()

virtual void NvDsBatchBufferWrapper::copy_meta ( unsigned int  id,
std::shared_ptr< BufferWrapper >  src_buffer,
unsigned int  batch_id,
unsigned int  frame_number,
unsigned int  num_surfaces_per_frame,
NvDsBatchMeta *  dest_batch_meta,
unsigned int  source_id
)
inlinevirtual

Reimplemented in GstBatchBufferWrapper, and GstAudioBatchBufferWrapper.

Definition at line 133 of file nvstreammux_batch.h.

◆ push() [1/2]

virtual bool BatchBufferWrapper::push ( SourcePad *  pad,
TimePoint  play_start,
NanoSecondsType  accum_dur
)
inlinevirtualinherited

Reimplemented in GstBatchBufferWrapper, and GstAudioBatchBufferWrapper.

Definition at line 111 of file nvstreammux_batch.h.

◆ push() [2/2]

virtual bool BatchBufferWrapper::push ( SourcePad *  pad,
unsigned long  pts
)
inlinevirtualinherited

Reimplemented in GstBatchBufferWrapper, and GstAudioBatchBufferWrapper.

Definition at line 112 of file nvstreammux_batch.h.

◆ unref()

virtual void NvDsBatchBufferWrapper::unref ( )
inlinevirtual

Reimplemented from BatchBufferWrapper.

Reimplemented in GstBatchBufferWrapper, and GstAudioBatchBufferWrapper.

Definition at line 134 of file nvstreammux_batch.h.

Field Documentation

◆ batch

void* BatchBufferWrapper::batch
inherited

Definition at line 113 of file nvstreammux_batch.h.

Referenced by GstAudioBatchBufferWrapper::GstAudioBatchBufferWrapper(), and GstBatchBufferWrapper::GstBatchBufferWrapper().

◆ batch_size

unsigned int NvDsBatchBufferWrapper::batch_size

Definition at line 134 of file nvstreammux_batch.h.

The documentation for this class was generated from the following file:
