AppCtx Struct Reference

Detailed Description

REST server application context.

Definition at line 57 of file nvds_appctx_server.h.

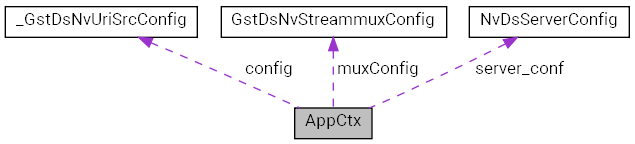

Collaboration diagram for AppCtx:

Data Fields
GstElement *	pipeline
GstElement *	multiuribin
GstElement *	sink
GstElement *	pgie
GstElement *	queue1
GstElement *	queue2
GstElement *	queue3
GstElement *	queue4
GstElement *	queue5
GstElement *	nvvidconv
GstElement *	tiler
GstElement *	nvdslogger
GstElement *	preprocess
GstElement *	nvosd
GstElement *	nvvidconv2
GstElement *	encoder
GstElement *	parser
GstElement *	queue_post_encoder
void *	restServer
NvDsServerConfig	server_conf
gchar *	httpIp
gchar *	httpPort
GMutex	bincreator_lock
NvDst_Handle_NvMultiUriSrcCreator	nvmultiurisrcbinCreator
GstDsNvStreammuxConfig	muxConfig
GstDsNvUriSrcConfig	config
guint	sourceIdCounter
gchar *	uri_list

Field Documentation

bincreator_lock

GMutex AppCtx::bincreator_lock

Definition at line 83 of file nvds_appctx_server.h.

config

GstDsNvUriSrcConfig AppCtx::config

Definition at line 86 of file nvds_appctx_server.h.

encoder

GstElement* AppCtx::encoder

Definition at line 74 of file nvds_appctx_server.h.

httpIp

gchar* AppCtx::httpIp

Definition at line 80 of file nvds_appctx_server.h.

httpPort

gchar* AppCtx::httpPort

Definition at line 81 of file nvds_appctx_server.h.

multiuribin

GstElement* AppCtx::multiuribin

Definition at line 60 of file nvds_appctx_server.h.

muxConfig

GstDsNvStreammuxConfig AppCtx::muxConfig

Definition at line 85 of file nvds_appctx_server.h.

nvdslogger

GstElement* AppCtx::nvdslogger

Definition at line 70 of file nvds_appctx_server.h.

nvmultiurisrcbinCreator

NvDst_Handle_NvMultiUriSrcCreator AppCtx::nvmultiurisrcbinCreator

Definition at line 84 of file nvds_appctx_server.h.

nvosd

GstElement* AppCtx::nvosd

Definition at line 72 of file nvds_appctx_server.h.

nvvidconv

GstElement* AppCtx::nvvidconv

Definition at line 68 of file nvds_appctx_server.h.

nvvidconv2

GstElement* AppCtx::nvvidconv2

Definition at line 73 of file nvds_appctx_server.h.

parser

GstElement* AppCtx::parser

Definition at line 75 of file nvds_appctx_server.h.

pgie

GstElement* AppCtx::pgie

Definition at line 62 of file nvds_appctx_server.h.

pipeline

GstElement* AppCtx::pipeline

Definition at line 59 of file nvds_appctx_server.h.

preprocess

GstElement* AppCtx::preprocess

Definition at line 71 of file nvds_appctx_server.h.

queue1

GstElement* AppCtx::queue1

Definition at line 63 of file nvds_appctx_server.h.

queue2

GstElement* AppCtx::queue2

Definition at line 64 of file nvds_appctx_server.h.

queue3

GstElement* AppCtx::queue3

Definition at line 65 of file nvds_appctx_server.h.

queue4

GstElement* AppCtx::queue4

Definition at line 66 of file nvds_appctx_server.h.

queue5

GstElement* AppCtx::queue5

Definition at line 67 of file nvds_appctx_server.h.

queue_post_encoder

GstElement* AppCtx::queue_post_encoder

Definition at line 76 of file nvds_appctx_server.h.

restServer

void* AppCtx::restServer

Definition at line 78 of file nvds_appctx_server.h.

server_conf

NvDsServerConfig AppCtx::server_conf

Definition at line 79 of file nvds_appctx_server.h.

sink

GstElement* AppCtx::sink

Definition at line 61 of file nvds_appctx_server.h.

sourceIdCounter

guint AppCtx::sourceIdCounter

Definition at line 87 of file nvds_appctx_server.h.

tiler

GstElement* AppCtx::tiler

Definition at line 69 of file nvds_appctx_server.h.

uri_list

gchar* AppCtx::uri_list

Definition at line 88 of file nvds_appctx_server.h.

---

The documentation for this struct was generated from the following file:

• nvds_appctx_server.h
