_NvOSD_FrameCircleParams Struct Reference
Detailed Description
Holds information about the circles in a frame.
Definition at line 136 of file nvll_osd_api.h.

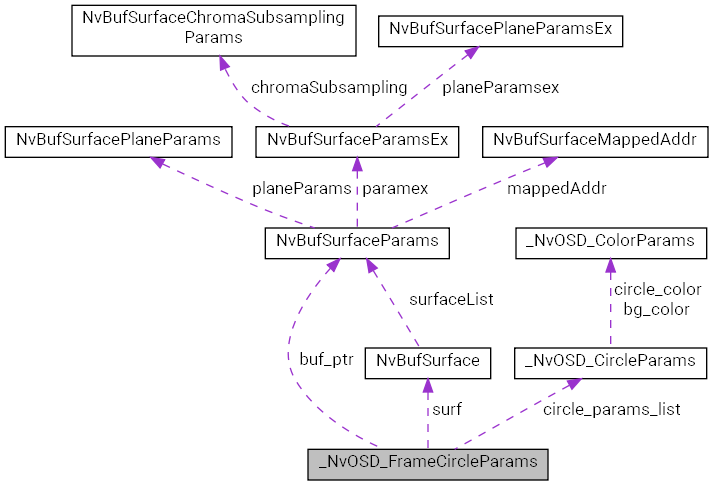

Collaboration diagram for _NvOSD_FrameCircleParams:
Data Fields | |
| NvBufSurfaceParams * | buf_ptr |
| Holds a pointer to the buffer containing the frame. More... | |
| NvOSD_Mode | mode |
| Holds the OSD mode to be used for processing. More... | |
| int | num_circles |
| Holds the number of circles. More... | |
| NvOSD_CircleParams * | circle_params_list |
| Holds the parameters of the circles. More... | |
| NvBufSurface * | surf |
| Holds information about batched buffers. More... | |
Field Documentation
◆ buf_ptr
| NvBufSurfaceParams* _NvOSD_FrameCircleParams::buf_ptr |
Holds a pointer to the buffer containing the frame.
buf_ptr is deprecated. Use NvBufSurface *surf instead
Definition at line 140 of file nvll_osd_api.h.
◆ circle_params_list
| NvOSD_CircleParams* _NvOSD_FrameCircleParams::circle_params_list |
Holds the parameters of the circles.
Definition at line 146 of file nvll_osd_api.h.
◆ mode
| NvOSD_Mode _NvOSD_FrameCircleParams::mode |
Holds the OSD mode to be used for processing.
Definition at line 142 of file nvll_osd_api.h.
◆ num_circles
| int _NvOSD_FrameCircleParams::num_circles |
Holds the number of circles.
Definition at line 144 of file nvll_osd_api.h.
◆ surf
| NvBufSurface* _NvOSD_FrameCircleParams::surf |
Holds information about batched buffers.
Definition at line 148 of file nvll_osd_api.h.
The documentation for this struct was generated from the following file:
