_NvOSD_FrameTextParams Struct Reference
Detailed Description
Holds information about the text in a frame.
Definition at line 54 of file nvll_osd_api.h.

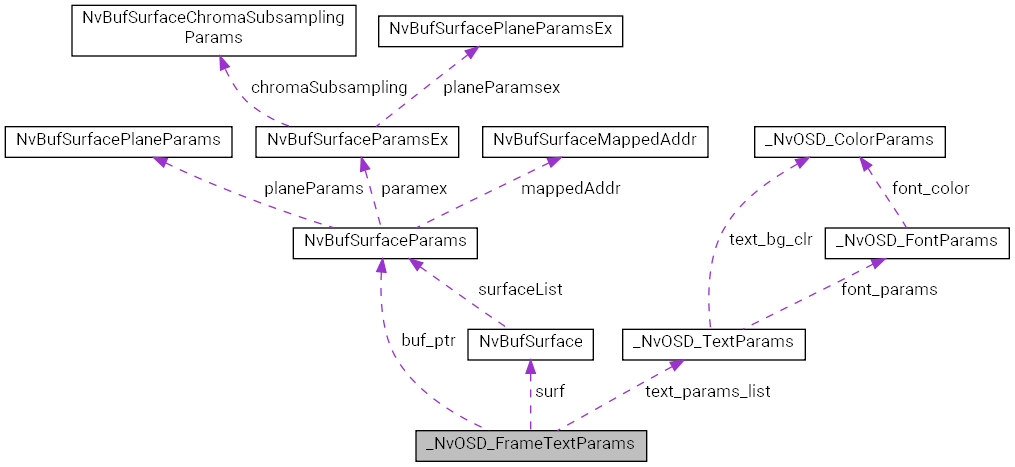

Collaboration diagram for _NvOSD_FrameTextParams:
Data Fields | |
| NvBufSurfaceParams * | buf_ptr |
| Holds a pointer to a buffer containing a frame. More... | |
| NvOSD_Mode | mode |
| Holds the OSD mode to be used for processing. More... | |
| int | num_strings |
| Holds the number of strings. More... | |
| NvOSD_TextParams * | text_params_list |
| Holds the strings' text parameters. More... | |
| NvBufSurface * | surf |
| Holds information about batched buffers. More... | |
Field Documentation
◆ buf_ptr
| NvBufSurfaceParams* _NvOSD_FrameTextParams::buf_ptr |
Holds a pointer to a buffer containing a frame.
buf_ptr is deprecated. Use NvBufSurface *surf instead
Definition at line 58 of file nvll_osd_api.h.
◆ mode
| NvOSD_Mode _NvOSD_FrameTextParams::mode |
Holds the OSD mode to be used for processing.
Definition at line 60 of file nvll_osd_api.h.
◆ num_strings
| int _NvOSD_FrameTextParams::num_strings |
Holds the number of strings.
Definition at line 62 of file nvll_osd_api.h.
◆ surf
| NvBufSurface* _NvOSD_FrameTextParams::surf |
Holds information about batched buffers.
Definition at line 66 of file nvll_osd_api.h.
◆ text_params_list
| NvOSD_TextParams* _NvOSD_FrameTextParams::text_params_list |
Holds the strings' text parameters.
Definition at line 64 of file nvll_osd_api.h.
The documentation for this struct was generated from the following file:
