GstBatchBufferWrapper Class Reference

Detailed Description

TODO re-design GstBatchBufferWrapper to be video specific and NvDsBatchBufferWrapper generic ; Also rename the new data-structures according to the media they contain.

The GStreamer wrapper code for NvDsBatchBufferWrapper which represent one batched buffer. NOTE: None of the APIs in this class are thread-safe

Definition at line 127 of file gstnvstreammux_impl.h.

Inheritance diagram for GstBatchBufferWrapper:

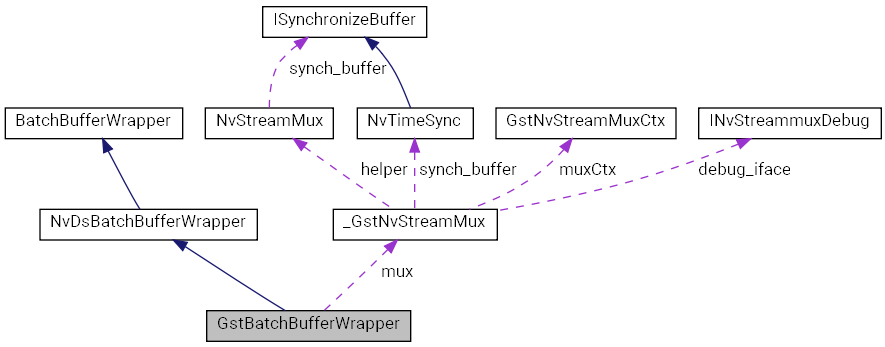

Collaboration diagram for GstBatchBufferWrapper:

Public Member Functions
	GstBatchBufferWrapper (GstNvStreamMux *mux, unsigned int size, bool is_raw)
void	unref () override
void	reset_batch ()
void	copy_meta (unsigned int id, std::shared_ptr< BufferWrapper > src_buffer, unsigned int batch_id, unsigned int frame_number, unsigned int num_surfaces_per_frame, NvDsBatchMeta *dest_batch_meta, unsigned int source_id) override
unsigned int	copy_buf (std::shared_ptr< BufferWrapper > src, unsigned int pos) override
bool	push (SourcePad *src_pad, TimePoint current_play_start, NanoSecondsType accum_dur) override
bool	push (SourcePad *src_pad, unsigned long pts) override
void	unref_gst_bufs ()
virtual unsigned int	copy (void *buf, unsigned int pos, unsigned int num_surfaces)

Data Fields
GstBufferList *	raw_batch
GstBuffer *	gst_buffer
bool	is_raw
GstNvStreamMux *	mux
std::vector< std::shared_ptr< GstBufferWrapper > >	gst_in_bufs
unsigned int	batch_size
void *	batch

Constructor & Destructor Documentation

GstBatchBufferWrapper()

GstBatchBufferWrapper::GstBatchBufferWrapper ( GstNvStreamMux *  mux, unsigned int  size, bool  is_raw  )

inline

Definition at line 131 of file gstnvstreammux_impl.h.

References BatchBufferWrapper::batch, gst_buffer, is_raw, mem_buf_unref_callback(), NVBUF_MEM_DEFAULT, and raw_batch.

Member Function Documentation

copy()

virtual unsigned int BatchBufferWrapper::copy ( void *  buf, unsigned int  pos, unsigned int  num_surfaces  )

inlinevirtualinherited

Definition at line 96 of file nvstreammux_batch.h.

copy_buf()

unsigned int GstBatchBufferWrapper::copy_buf ( std::shared_ptr< BufferWrapper >  src, unsigned int  pos  )

overridevirtual

Implements NvDsBatchBufferWrapper.

copy_meta()

void GstBatchBufferWrapper::copy_meta ( unsigned int  id, std::shared_ptr< BufferWrapper >  src_buffer, unsigned int  batch_id, unsigned int  frame_number, unsigned int  num_surfaces_per_frame, NvDsBatchMeta *  dest_batch_meta, unsigned int  source_id  )

overridevirtual

Reimplemented from NvDsBatchBufferWrapper.

push() [1/2]

bool GstBatchBufferWrapper::push ( SourcePad *  src_pad, TimePoint  current_play_start, NanoSecondsType  accum_dur  )

overridevirtual

Reimplemented from BatchBufferWrapper.

push() [2/2]

bool GstBatchBufferWrapper::push ( SourcePad *  src_pad, unsigned long  pts  )

overridevirtual

Reimplemented from BatchBufferWrapper.

reset_batch()

void GstBatchBufferWrapper::reset_batch

(

)

unref()

void GstBatchBufferWrapper::unref ( )

overridevirtual

Reimplemented from NvDsBatchBufferWrapper.

unref_gst_bufs()

void GstBatchBufferWrapper::unref_gst_bufs

(

)

Referenced by mem_buf_unref_callback().

Field Documentation

batch

void* BatchBufferWrapper::batch

inherited

Definition at line 102 of file nvstreammux_batch.h.

Referenced by GstAudioBatchBufferWrapper::GstAudioBatchBufferWrapper(), and GstBatchBufferWrapper().

batch_size

unsigned int NvDsBatchBufferWrapper::batch_size

inherited

Definition at line 123 of file nvstreammux_batch.h.

gst_buffer

GstBuffer* GstBatchBufferWrapper::gst_buffer

Definition at line 162 of file gstnvstreammux_impl.h.

Referenced by GstBatchBufferWrapper().

gst_in_bufs

std::vector<std::shared_ptr<GstBufferWrapper> > GstBatchBufferWrapper::gst_in_bufs

Definition at line 165 of file gstnvstreammux_impl.h.

is_raw

bool GstBatchBufferWrapper::is_raw

Definition at line 163 of file gstnvstreammux_impl.h.

Referenced by GstBatchBufferWrapper().

mux

GstNvStreamMux* GstBatchBufferWrapper::mux

Definition at line 164 of file gstnvstreammux_impl.h.

raw_batch

GstBufferList* GstBatchBufferWrapper::raw_batch

Definition at line 161 of file gstnvstreammux_impl.h.

Referenced by GstBatchBufferWrapper().

---

The documentation for this class was generated from the following file:

• gstnvstreammux_impl.h
