NVIDIA DeepStream SDK API Reference
7.0 Release
Public Types | Public Member Functions | Protected Member Functions
ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, > Class Template Referenceabstract

Detailed Description

template<class abiDataProcessorT, _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
class ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >

BaseProcessIF could be abiDataLoader/abiDataRender/abiDataFilter or any others abi interface that derived from abiProcess.

Definition at line 27 of file impl_dataprocess.h.

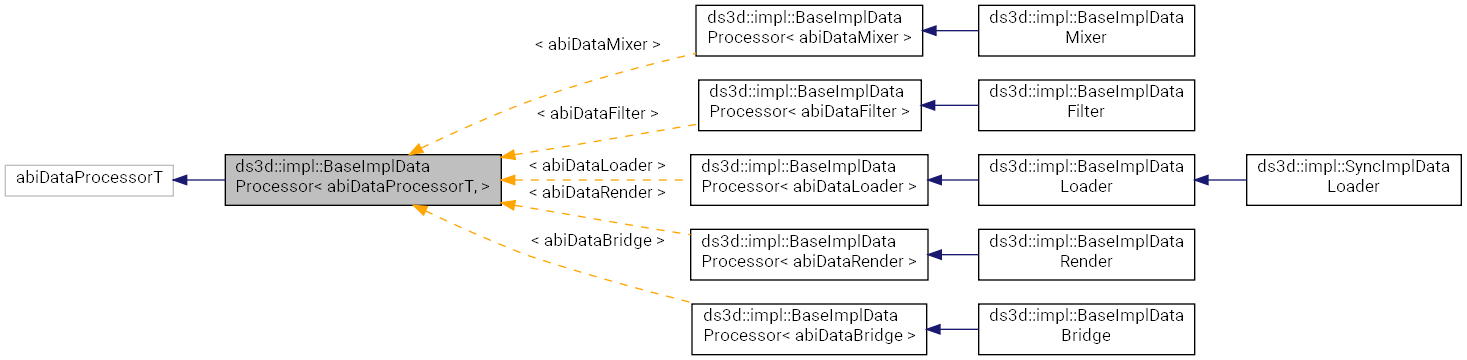

Inheritance diagram for ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >:
Inheritance graph
[legend]
Collaboration diagram for ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >:
Collaboration graph
[legend]

Public Types

using OnGuardDataCBImpl = std::function< void(ErrCode, GuardDataMap)>

using OnGuardBridgeDataCBImpl = std::function< void(ErrCode, const struct VideoBridge2dInput *)>

using ImplMutex = std::recursive_mutex


Public Member Functions

 BaseImplDataProcessor ()

 ~BaseImplDataProcessor () override

void setUserData_i (const abiRefAny *userdata) final

const abiRefAny * getUserData_i () const final

void setErrorCallback_i (const abiErrorCB &cb) final

ErrCode start_i (const char *configStr, uint32_t strLen, const char *path) override

const char * getCaps_i (CapsPort p) const final

ErrCode flush_i () override

ErrCode stop_i () override

State state_i () const final


Protected Member Functions

virtual ErrCode startImpl (const std::string &content, const std::string &path)=0

virtual ErrCode stopImpl ()=0

virtual ErrCode flushImpl ()=0

void setOutputCaps (const std::string &caps)

void setInputCaps (const std::string &caps)

void emitError (ErrCode code, const std::string &msg)

State getStateSafe () const

void setStateSafe (State flag)

ImplMutex & mutex () const


Member Typedef Documentation

◆ ImplMutex

template<class abiDataProcessorT , _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
using ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >::ImplMutex = std::recursive_mutex

Definition at line 31 of file impl_dataprocess.h.

◆ OnGuardBridgeDataCBImpl

template<class abiDataProcessorT , _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
using ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >::OnGuardBridgeDataCBImpl = std::function<void(ErrCode, const struct VideoBridge2dInput*)>

Definition at line 30 of file impl_dataprocess.h.

◆ OnGuardDataCBImpl

template<class abiDataProcessorT , _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
using ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >::OnGuardDataCBImpl = std::function<void(ErrCode, GuardDataMap)>

Definition at line 29 of file impl_dataprocess.h.

Constructor & Destructor Documentation

◆ BaseImplDataProcessor()

template<class abiDataProcessorT , _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >::BaseImplDataProcessor ( )
inline

Definition at line 33 of file impl_dataprocess.h.

◆ ~BaseImplDataProcessor()

template<class abiDataProcessorT , _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >::~BaseImplDataProcessor ( )
inlineoverride

Definition at line 34 of file impl_dataprocess.h.

Member Function Documentation

◆ emitError()

template<class abiDataProcessorT , _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
void ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >::emitError ( ErrCode  code,
const std::string &  msg
)
inlineprotected

Definition at line 105 of file impl_dataprocess.h.

◆ flush_i()

template<class abiDataProcessorT , _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
ErrCode ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >::flush_i ( )
inlineoverride

Definition at line 72 of file impl_dataprocess.h.

◆ flushImpl()

template<class abiDataProcessorT , _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
virtual ErrCode ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >::flushImpl ( )
protectedpure virtual

Implemented in ds3d::impl::SyncImplDataLoader.

Referenced by ds3d::impl::BaseImplDataProcessor< abiDataBridge >::flush_i().

◆ getCaps_i()

template<class abiDataProcessorT , _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
const char* ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >::getCaps_i ( CapsPort  p) const
inlinefinal

Definition at line 62 of file impl_dataprocess.h.

◆ getStateSafe()

template<class abiDataProcessorT , _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
State ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >::getStateSafe ( ) const
inlineprotected

Definition at line 112 of file impl_dataprocess.h.

Referenced by ds3d::impl::BaseImplDataProcessor< abiDataBridge >::flush_i(), ds3d::impl::BaseImplDataProcessor< abiDataBridge >::start_i(), ds3d::impl::BaseImplDataProcessor< abiDataBridge >::state_i(), and ds3d::impl::BaseImplDataProcessor< abiDataBridge >::stop_i().

◆ getUserData_i()

template<class abiDataProcessorT , _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
const abiRefAny* ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >::getUserData_i ( ) const
inlinefinal

Definition at line 48 of file impl_dataprocess.h.

◆ mutex()

template<class abiDataProcessorT , _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
ImplMutex& ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >::mutex ( ) const
inlineprotected

Definition at line 125 of file impl_dataprocess.h.

◆ setErrorCallback_i()

template<class abiDataProcessorT , _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
void ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >::setErrorCallback_i ( const abiErrorCB &  cb)
inlinefinal

Definition at line 49 of file impl_dataprocess.h.

◆ setInputCaps()

template<class abiDataProcessorT , _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
void ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >::setInputCaps ( const std::string &  caps)
inlineprotected

Definition at line 103 of file impl_dataprocess.h.

◆ setOutputCaps()

template<class abiDataProcessorT , _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
void ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >::setOutputCaps ( const std::string &  caps)
inlineprotected

Definition at line 101 of file impl_dataprocess.h.

◆ setStateSafe()

template<class abiDataProcessorT , _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
void ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >::setStateSafe ( State  flag)
inlineprotected

Definition at line 118 of file impl_dataprocess.h.

Referenced by ds3d::impl::BaseImplDataProcessor< abiDataBridge >::start_i(), and ds3d::impl::BaseImplDataProcessor< abiDataBridge >::stop_i().

◆ setUserData_i()

template<class abiDataProcessorT , _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
void ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >::setUserData_i ( const abiRefAny *  userdata)
inlinefinal

Definition at line 40 of file impl_dataprocess.h.

◆ start_i()

template<class abiDataProcessorT , _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
ErrCode ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >::start_i ( const char *  configStr,
uint32_t  strLen,
const char *  path
)
inlineoverride

Definition at line 50 of file impl_dataprocess.h.

◆ startImpl()

template<class abiDataProcessorT , _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
virtual ErrCode ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >::startImpl ( const std::string &  content,
const std::string &  path
)
protectedpure virtual

Referenced by ds3d::impl::BaseImplDataProcessor< abiDataBridge >::start_i().

◆ state_i()

template<class abiDataProcessorT , _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
State ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >::state_i ( ) const
inlinefinal

Definition at line 92 of file impl_dataprocess.h.

◆ stop_i()

template<class abiDataProcessorT , _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
ErrCode ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >::stop_i ( )
inlineoverride

Definition at line 80 of file impl_dataprocess.h.

Referenced by ds3d::impl::BaseImplDataRender::stop_i().

◆ stopImpl()

template<class abiDataProcessorT , _EnableIfBaseOf< abiProcess, abiDataProcessorT > = true>
virtual ErrCode ds3d::impl::BaseImplDataProcessor< abiDataProcessorT, >::stopImpl ( )
protectedpure virtual

Referenced by ds3d::impl::BaseImplDataProcessor< abiDataBridge >::stop_i().

The documentation for this class was generated from the following file:
