NvBufSurfaceParamsEx Struct Reference
Detailed Description
Hold the information(extended) of single buffer in the batch.
Definition at line 455 of file nvbufsurface.h.

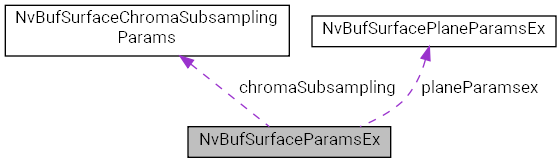

Collaboration diagram for NvBufSurfaceParamsEx:
Data Fields | |
| int32_t | startofvaliddata |
| offset in bytes from the start of the buffer to the first valid byte. More... | |
| int32_t | sizeofvaliddatainbytes |
| size of the valid data from the first to the last valid byte. More... | |
| NvBufSurfaceChromaSubsamplingParams | chromaSubsampling |
| chroma subsampling parameters. More... | |
| bool | is_protected |
| get buffer vpr information. More... | |
| NvBufSurfacePlaneParamsEx | planeParamsex |
| plane wise extended info More... | |
| void * | _reserved [STRUCTURE_PADDING] |
Field Documentation
◆ _reserved
| void* NvBufSurfaceParamsEx::_reserved[STRUCTURE_PADDING] |
Definition at line 470 of file nvbufsurface.h.
◆ chromaSubsampling
| NvBufSurfaceChromaSubsamplingParams NvBufSurfaceParamsEx::chromaSubsampling |
chroma subsampling parameters.
(Applicable for NVBUF_MEM_SURFACE_ARRAY)
Definition at line 464 of file nvbufsurface.h.
◆ is_protected
| bool NvBufSurfaceParamsEx::is_protected |
get buffer vpr information.
Definition at line 466 of file nvbufsurface.h.
◆ planeParamsex
| NvBufSurfacePlaneParamsEx NvBufSurfaceParamsEx::planeParamsex |
plane wise extended info
Definition at line 468 of file nvbufsurface.h.
◆ sizeofvaliddatainbytes
| int32_t NvBufSurfaceParamsEx::sizeofvaliddatainbytes |
size of the valid data from the first to the last valid byte.
(Applicable for NVBUF_MEM_HANDLE)
Definition at line 461 of file nvbufsurface.h.
◆ startofvaliddata
| int32_t NvBufSurfaceParamsEx::startofvaliddata |
offset in bytes from the start of the buffer to the first valid byte.
(Applicable for NVBUF_MEM_HANDLE)
Definition at line 458 of file nvbufsurface.h.
The documentation for this struct was generated from the following file:
