NvDsAppPerfStructInt Struct Reference
Detailed Description
Definition at line 64 of file deepstream_perf.h.

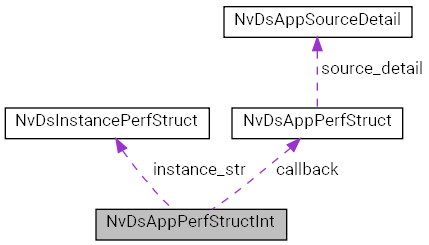

Collaboration diagram for NvDsAppPerfStructInt:
Data Fields | |
| gulong | measurement_interval_ms |
| gulong | perf_measurement_timeout_id |
| guint | num_instances |
| gboolean | stop |
| gpointer | context |
| GMutex | struct_lock |
| perf_callback | callback |
| GstPad * | sink_bin_pad |
| gulong | fps_measure_probe_id |
| NvDsInstancePerfStruct | instance_str [MAX_SOURCE_BINS] |
| guint | dewarper_surfaces_per_frame |
| GHashTable * | FPSInfoHash |
| gboolean | stream_name_display |
| gboolean | use_nvmultiurisrcbin |
Field Documentation
◆ callback
| perf_callback NvDsAppPerfStructInt::callback |
Definition at line 72 of file deepstream_perf.h.
◆ context
| gpointer NvDsAppPerfStructInt::context |
Definition at line 70 of file deepstream_perf.h.
◆ dewarper_surfaces_per_frame
| guint NvDsAppPerfStructInt::dewarper_surfaces_per_frame |
Definition at line 76 of file deepstream_perf.h.
◆ fps_measure_probe_id
| gulong NvDsAppPerfStructInt::fps_measure_probe_id |
Definition at line 74 of file deepstream_perf.h.
◆ FPSInfoHash
| GHashTable* NvDsAppPerfStructInt::FPSInfoHash |
Definition at line 77 of file deepstream_perf.h.
◆ instance_str
| NvDsInstancePerfStruct NvDsAppPerfStructInt::instance_str[MAX_SOURCE_BINS] |
Definition at line 75 of file deepstream_perf.h.
◆ measurement_interval_ms
| gulong NvDsAppPerfStructInt::measurement_interval_ms |
Definition at line 66 of file deepstream_perf.h.
◆ num_instances
| guint NvDsAppPerfStructInt::num_instances |
Definition at line 68 of file deepstream_perf.h.
◆ perf_measurement_timeout_id
| gulong NvDsAppPerfStructInt::perf_measurement_timeout_id |
Definition at line 67 of file deepstream_perf.h.
◆ sink_bin_pad
| GstPad* NvDsAppPerfStructInt::sink_bin_pad |
Definition at line 73 of file deepstream_perf.h.
◆ stop
| gboolean NvDsAppPerfStructInt::stop |
Definition at line 69 of file deepstream_perf.h.
◆ stream_name_display
| gboolean NvDsAppPerfStructInt::stream_name_display |
Definition at line 78 of file deepstream_perf.h.
◆ struct_lock
| GMutex NvDsAppPerfStructInt::struct_lock |
Definition at line 71 of file deepstream_perf.h.
◆ use_nvmultiurisrcbin
| gboolean NvDsAppPerfStructInt::use_nvmultiurisrcbin |
Definition at line 79 of file deepstream_perf.h.
The documentation for this struct was generated from the following file:
