_NvOSD_FrameLineParams Struct Reference
Detailed Description
Holds information about the lines in a frame.
Definition at line 105 of file nvll_osd_api.h.

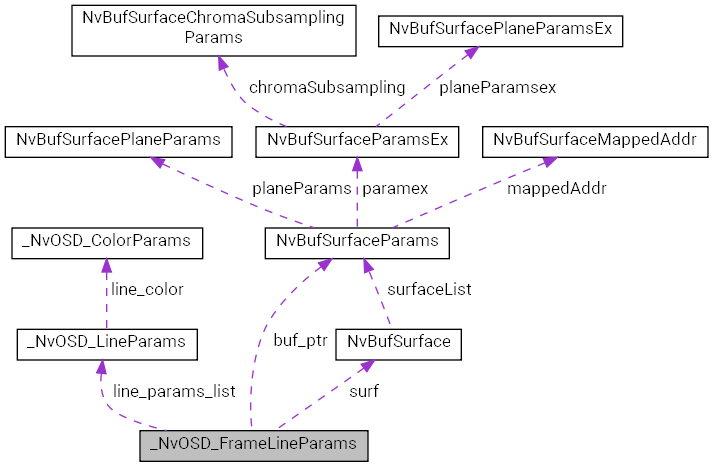

Collaboration diagram for _NvOSD_FrameLineParams:
Data Fields | |
| NvBufSurfaceParams * | buf_ptr |
| Holds a pointer to the buffer containing the frame. More... | |
| NvOSD_Mode | mode |
| Holds the OSD mode to be used for processing. More... | |
| int | num_lines |
| Holds the number of lines. More... | |
| NvOSD_LineParams * | line_params_list |
| Holds the lines' parameters. More... | |
| NvBufSurface * | surf |
| Holds information about batched buffers. More... | |
Field Documentation
◆ buf_ptr
| NvBufSurfaceParams* _NvOSD_FrameLineParams::buf_ptr |
Holds a pointer to the buffer containing the frame.
buf_ptr is deprecated. Use NvBufSurface *surf instead
Definition at line 109 of file nvll_osd_api.h.
◆ line_params_list
| NvOSD_LineParams* _NvOSD_FrameLineParams::line_params_list |
Holds the lines' parameters.
Definition at line 115 of file nvll_osd_api.h.
◆ mode
| NvOSD_Mode _NvOSD_FrameLineParams::mode |
Holds the OSD mode to be used for processing.
Definition at line 111 of file nvll_osd_api.h.
◆ num_lines
| int _NvOSD_FrameLineParams::num_lines |
Holds the number of lines.
Definition at line 113 of file nvll_osd_api.h.
◆ surf
| NvBufSurface* _NvOSD_FrameLineParams::surf |
Holds information about batched buffers.
Definition at line 117 of file nvll_osd_api.h.
The documentation for this struct was generated from the following file:
