_NvOSD_FrameSegmentMaskParams Struct Reference
Detailed Description
Holds information about the rectangles in a frame.
Definition at line 87 of file nvll_osd_api.h.

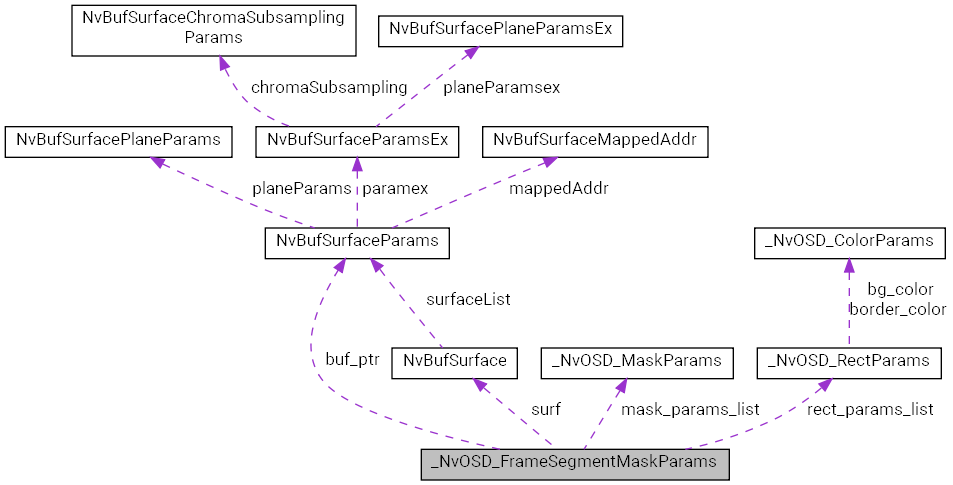

Collaboration diagram for _NvOSD_FrameSegmentMaskParams:
Data Fields | |
| NvBufSurfaceParams * | buf_ptr |
| Holds a pointer to the buffer containing the frame. More... | |
| NvOSD_Mode | mode |
| Holds the OSD mode to be used for processing. More... | |
| int | num_segments |
| Holds the number of rectangles. More... | |
| NvOSD_RectParams * | rect_params_list |
| Holds the rectangles' parameters. More... | |
| NvOSD_MaskParams * | mask_params_list |
| Holds mask parameters. More... | |
| NvBufSurface * | surf |
| Holds information about batched buffers. More... | |
Field Documentation
◆ buf_ptr
| NvBufSurfaceParams* _NvOSD_FrameSegmentMaskParams::buf_ptr |
Holds a pointer to the buffer containing the frame.
buf_ptr is deprecated. Use NvBufSurface *surf instead
Definition at line 91 of file nvll_osd_api.h.
◆ mask_params_list
| NvOSD_MaskParams* _NvOSD_FrameSegmentMaskParams::mask_params_list |
Holds mask parameters.
Definition at line 99 of file nvll_osd_api.h.
◆ mode
| NvOSD_Mode _NvOSD_FrameSegmentMaskParams::mode |
Holds the OSD mode to be used for processing.
Definition at line 93 of file nvll_osd_api.h.
◆ num_segments
| int _NvOSD_FrameSegmentMaskParams::num_segments |
Holds the number of rectangles.
Definition at line 95 of file nvll_osd_api.h.
◆ rect_params_list
| NvOSD_RectParams* _NvOSD_FrameSegmentMaskParams::rect_params_list |
Holds the rectangles' parameters.
Definition at line 97 of file nvll_osd_api.h.
◆ surf
| NvBufSurface* _NvOSD_FrameSegmentMaskParams::surf |
Holds information about batched buffers.
Definition at line 101 of file nvll_osd_api.h.
The documentation for this struct was generated from the following file:
