NVIDIA DeepStream SDK API Reference
8.0 Release
Public Member Functions | Data Fields
GstAudioBatchBufferWrapper Class Reference

Detailed Description

The GStreamer wrapper code for NvDsBatchBufferWrapper which represent one batched buffer.

NOTE: None of the APIs in this class are thread-safe

Definition at line 38 of file sources/gst-plugins/gst-nvmultistream2/gstnvstreammux_audio.h.

Inheritance diagram for GstAudioBatchBufferWrapper:
Inheritance graph
[legend]

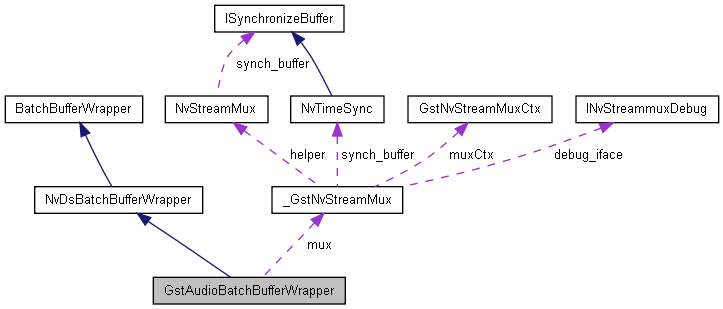

Collaboration diagram for GstAudioBatchBufferWrapper:
Collaboration graph
[legend]

Public Member Functions

 GstAudioBatchBufferWrapper (GstNvStreamMux *mux, unsigned int size, bool is_raw)

void unref () override

void reset_batch ()

void dummy ()

void copy_meta (unsigned int id, std::shared_ptr< BufferWrapper > src_buffer, unsigned int batch_id, unsigned int frame_number, unsigned int num_surfaces_per_frame, NvDsBatchMeta *dest_batch_meta, unsigned int source_id) override

unsigned int copy_buf (std::shared_ptr< BufferWrapper > src, unsigned int pos) override

bool push (SourcePad *src_pad, TimePoint current_play_start, NanoSecondsType accum_dur) override

bool push (SourcePad *src_pad, unsigned long pts) override

void unref_gst_bufs ()

 GstAudioBatchBufferWrapper (GstNvStreamMux *mux, unsigned int size, bool is_raw)

void unref () override

void reset_batch ()

void dummy ()

void copy_meta (unsigned int id, std::shared_ptr< BufferWrapper > src_buffer, unsigned int batch_id, unsigned int frame_number, unsigned int num_surfaces_per_frame, NvDsBatchMeta *dest_batch_meta, unsigned int source_id) override

unsigned int copy_buf (std::shared_ptr< BufferWrapper > src, unsigned int pos) override

bool push (SourcePad *src_pad, TimePoint current_play_start, NanoSecondsType accum_dur) override

bool push (SourcePad *src_pad, unsigned long pts) override

void unref_gst_bufs ()

virtual unsigned int copy (void *buf, unsigned int pos, unsigned int num_surfaces)

virtual unsigned int copy (void *buf, unsigned int pos, unsigned int num_surfaces)


Data Fields

GstBufferList * raw_batch

GstBuffer * gst_buffer

bool is_raw

GstNvStreamMux * mux

std::vector< std::shared_ptr< GstBufferWrapper > > gst_in_bufs

unsigned int batch_size

void * batch


Constructor & Destructor Documentation

◆ GstAudioBatchBufferWrapper() [1/2]

GstAudioBatchBufferWrapper::GstAudioBatchBufferWrapper ( GstNvStreamMux *  mux,
unsigned int  size,
bool  is_raw
)
inline

Definition at line 42 of file sources/gst-plugins/gst-nvmultistream2/gstnvstreammux_audio.h.

References audio_mem_buf_unref_callback(), BatchBufferWrapper::batch, gst_buffer, is_raw, and raw_batch.

◆ GstAudioBatchBufferWrapper() [2/2]

GstAudioBatchBufferWrapper::GstAudioBatchBufferWrapper ( GstNvStreamMux *  mux,
unsigned int  size,
bool  is_raw
)
inline

Definition at line 42 of file 9.0/sources/gst-plugins/gst-nvmultistream2/gstnvstreammux_audio.h.

References audio_mem_buf_unref_callback(), BatchBufferWrapper::batch, gst_buffer, is_raw, and raw_batch.

Member Function Documentation

◆ copy() [1/2]

virtual unsigned int BatchBufferWrapper::copy ( void *  buf,
unsigned int  pos,
unsigned int  num_surfaces
)
inlinevirtualinherited

Definition at line 96 of file sources/libs/nvstreammux/include/nvstreammux_batch.h.

◆ copy() [2/2]

virtual unsigned int BatchBufferWrapper::copy ( void *  buf,
unsigned int  pos,
unsigned int  num_surfaces
)
inlinevirtualinherited

Definition at line 96 of file 9.0/sources/libs/nvstreammux/include/nvstreammux_batch.h.

◆ copy_buf() [1/2]

unsigned int GstAudioBatchBufferWrapper::copy_buf ( std::shared_ptr< BufferWrapper >  src,
unsigned int  pos
)
overridevirtual

Implements NvDsBatchBufferWrapper.

◆ copy_buf() [2/2]

unsigned int GstAudioBatchBufferWrapper::copy_buf ( std::shared_ptr< BufferWrapper >  src,
unsigned int  pos
)
overridevirtual

Implements NvDsBatchBufferWrapper.

◆ copy_meta() [1/2]

void GstAudioBatchBufferWrapper::copy_meta ( unsigned int  id,
std::shared_ptr< BufferWrapper >  src_buffer,
unsigned int  batch_id,
unsigned int  frame_number,
unsigned int  num_surfaces_per_frame,
NvDsBatchMeta *  dest_batch_meta,
unsigned int  source_id
)
overridevirtual

Reimplemented from NvDsBatchBufferWrapper.

◆ copy_meta() [2/2]

void GstAudioBatchBufferWrapper::copy_meta ( unsigned int  id,
std::shared_ptr< BufferWrapper >  src_buffer,
unsigned int  batch_id,
unsigned int  frame_number,
unsigned int  num_surfaces_per_frame,
NvDsBatchMeta *  dest_batch_meta,
unsigned int  source_id
)
overridevirtual

Reimplemented from NvDsBatchBufferWrapper.

◆ dummy() [1/2]

void GstAudioBatchBufferWrapper::dummy ( )
inline

Definition at line 65 of file sources/gst-plugins/gst-nvmultistream2/gstnvstreammux_audio.h.

◆ dummy() [2/2]

void GstAudioBatchBufferWrapper::dummy ( )
inline

Definition at line 65 of file 9.0/sources/gst-plugins/gst-nvmultistream2/gstnvstreammux_audio.h.

◆ push() [1/4]

bool GstAudioBatchBufferWrapper::push ( SourcePad *  src_pad,
TimePoint  current_play_start,
NanoSecondsType  accum_dur
)
overridevirtual

Reimplemented from BatchBufferWrapper.

◆ push() [2/4]

bool GstAudioBatchBufferWrapper::push ( SourcePad *  src_pad,
TimePoint  current_play_start,
NanoSecondsType  accum_dur
)
overridevirtual

Reimplemented from BatchBufferWrapper.

◆ push() [3/4]

bool GstAudioBatchBufferWrapper::push ( SourcePad *  src_pad,
unsigned long  pts
)
overridevirtual

Reimplemented from BatchBufferWrapper.

◆ push() [4/4]

bool GstAudioBatchBufferWrapper::push ( SourcePad *  src_pad,
unsigned long  pts
)
overridevirtual

Reimplemented from BatchBufferWrapper.

◆ reset_batch() [1/2]

void GstAudioBatchBufferWrapper::reset_batch ( )

◆ reset_batch() [2/2]

void GstAudioBatchBufferWrapper::reset_batch ( )

◆ unref() [1/2]

void GstAudioBatchBufferWrapper::unref ( )
overridevirtual

Reimplemented from NvDsBatchBufferWrapper.

◆ unref() [2/2]

void GstAudioBatchBufferWrapper::unref ( )
overridevirtual

Reimplemented from NvDsBatchBufferWrapper.

◆ unref_gst_bufs() [1/2]

void GstAudioBatchBufferWrapper::unref_gst_bufs ( )

Referenced by audio_mem_buf_unref_callback().

◆ unref_gst_bufs() [2/2]

void GstAudioBatchBufferWrapper::unref_gst_bufs ( )

Field Documentation

◆ batch

void * BatchBufferWrapper::batch
inherited

Definition at line 102 of file sources/libs/nvstreammux/include/nvstreammux_batch.h.

Referenced by GstAudioBatchBufferWrapper(), and GstBatchBufferWrapper::GstBatchBufferWrapper().

◆ batch_size

unsigned int NvDsBatchBufferWrapper::batch_size
inherited

Definition at line 123 of file sources/libs/nvstreammux/include/nvstreammux_batch.h.

◆ gst_buffer

GstBuffer * GstAudioBatchBufferWrapper::gst_buffer

Definition at line 73 of file sources/gst-plugins/gst-nvmultistream2/gstnvstreammux_audio.h.

Referenced by GstAudioBatchBufferWrapper().

◆ gst_in_bufs

std::vector< std::shared_ptr< GstBufferWrapper > > GstAudioBatchBufferWrapper::gst_in_bufs

Definition at line 76 of file sources/gst-plugins/gst-nvmultistream2/gstnvstreammux_audio.h.

◆ is_raw

bool GstAudioBatchBufferWrapper::is_raw

Definition at line 74 of file sources/gst-plugins/gst-nvmultistream2/gstnvstreammux_audio.h.

Referenced by GstAudioBatchBufferWrapper().

◆ mux

GstNvStreamMux * GstAudioBatchBufferWrapper::mux

Definition at line 75 of file sources/gst-plugins/gst-nvmultistream2/gstnvstreammux_audio.h.

◆ raw_batch

GstBufferList * GstAudioBatchBufferWrapper::raw_batch

Definition at line 72 of file sources/gst-plugins/gst-nvmultistream2/gstnvstreammux_audio.h.

Referenced by GstAudioBatchBufferWrapper().

The documentation for this class was generated from the following file:
